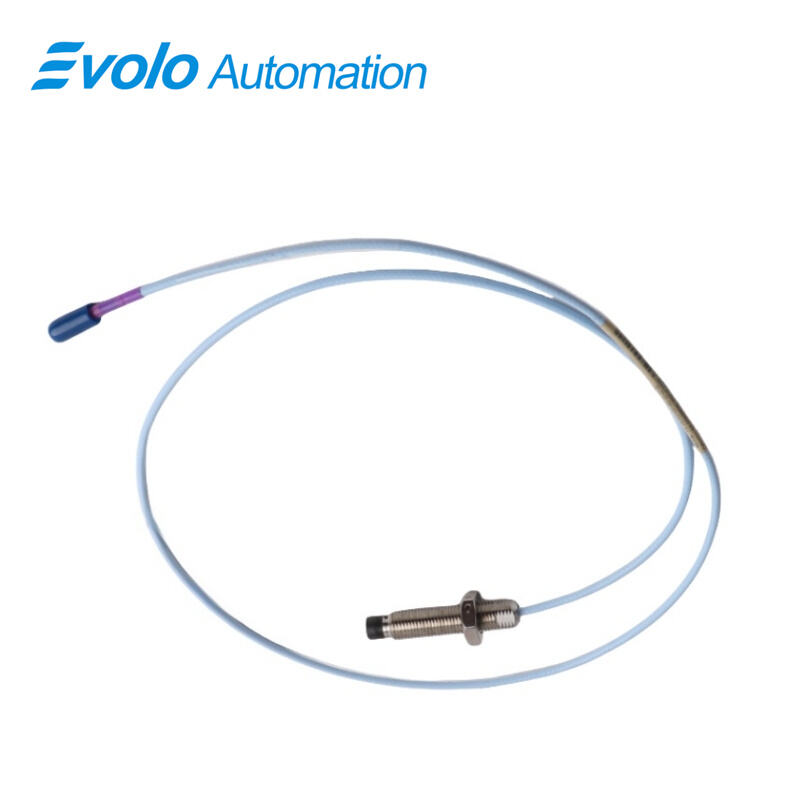

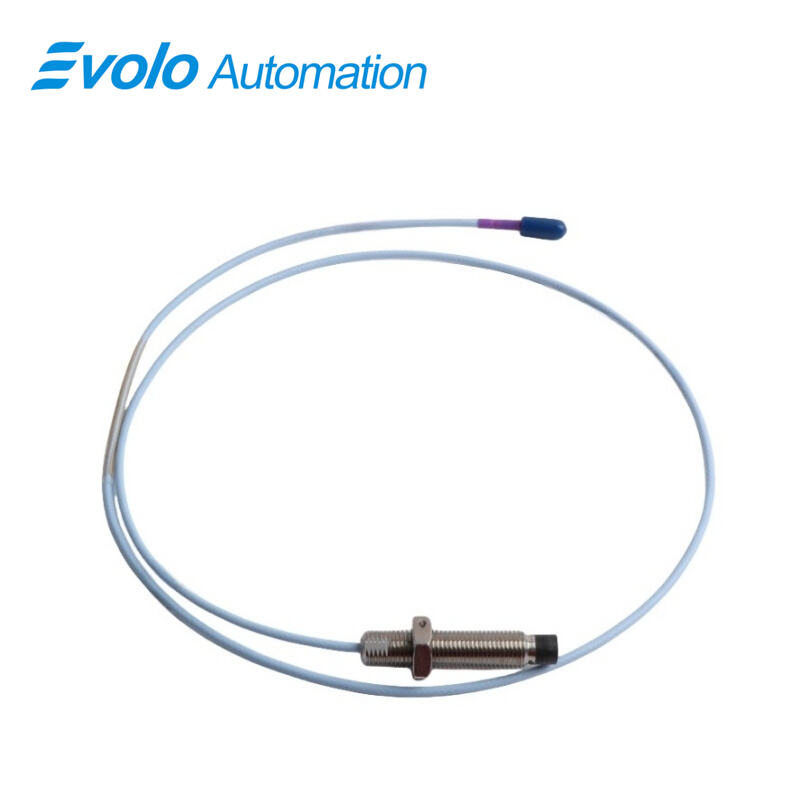

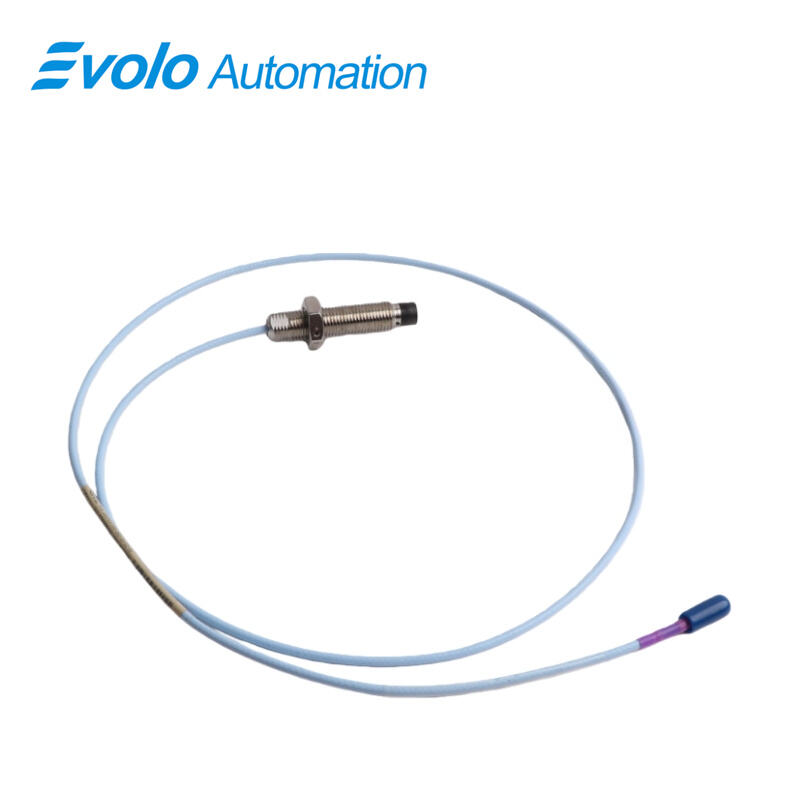

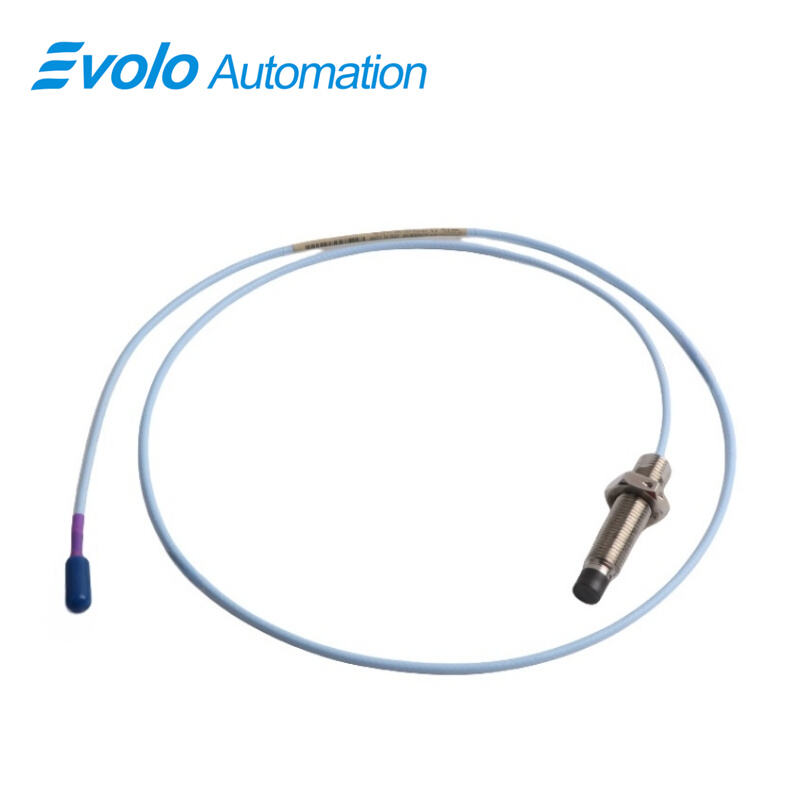

330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-060-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe delivers precise non-contact vibration and displacement measurements on fluid-film bearing machines. Featuring a large 11 mm tip and a linear output of 3.94 V/mm (100 mV/mil), the 3300 XL 11 mm extends measurement range beyond standard 8 mm systems. Total length 1.0 meter (3.3 feet) with M14 x 1.5 threaded case allows flexible mounting. The probe includes a miniature coaxial ClickLoc connector with protector, 99.9% braided copper shielding, and IP67-rated housing to resist dust and water. Operating temperature ranges from -40°C to +85°C. The 3300 XL 11 mm supports axial thrust position, ramp differential expansion on steam turbines, rod position or rod drop on compressors, tachometer/zero speed readings, and Keyphasor phase reference. A patented TipLoc molding bonds the probe tip to the body, while CableLoc secures the cable at 330 N pull strength. Optional FluidLoc cable prevents oil leakage. Connector protectors enhance durability in humid environments. All 3300 XL 11 mm components are compatible with 7200-series replacements, enabling easy upgrades without altering monitor configurations.

Applications

Axial Thrust Position Measurement
Use the 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe to monitor axial movement on turbine and compressor shafts. The 3.94 V/mm output and 11 mm tip allow detection of fine displacements up to 11 mm, supporting precision control in automated shaft positioning.

Ramp Differential Expansion Measurement
Deploy the 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe to measure expansion differences on steam turbine ramps. The probe’s 1.0-meter cable and IP67-rated housing allow installation in challenging environments while maintaining accurate readings of ramp growth for differential expansion analysis.

Rod Position or Rod Drop Monitoring
The 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe captures rod movement in reciprocating compressors. Its 21 mm thread engagement and M14 x 1.5 threaded case provide secure mounting, while the 50 Ω output supports integration with high-frequency control systems.

Tachometer and Zero Speed Measurement
Use the 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe to generate reliable speed signals and zero-speed detection. Its miniature coaxial ClickLoc connector with 99.9% braided shielding ensures low-noise signals, enhancing automation system monitoring accuracy.

Specifications

Competitive Advantage

Extended Linear Measurement Range
The 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe 11 mm tip delivers a longer linear range than standard 8 mm probes. This allows precise measurements over larger gaps, improving automation process monitoring for rotating machinery.

Secure Probe-Cable Connection
Patented TipLoc and CableLoc designs of the 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe provide 330 N pull strength, ensuring stable probe-cable connections, reducing installation downtime, and preventing signal interruptions in automated systems.

Flexible Mounting Options
The 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe supports armored and unarmored configurations with multiple thread types, enabling easy adaptation to different industrial layouts and maintaining linear range performance.

Environmental Protection for Automation Systems
IP67-rated housing, optional FluidLoc cables, and connector protectors on the 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe prevent ingress of dust, water, and oil, ensuring uninterrupted signal transmission in harsh industrial automation environments.

Component Interchangeability and Upgrade Efficiency
All 330703-000-060-10-01-00 3300 XL 11 mm Proximity Probe components are compatible with legacy 7200-series systems, supporting seamless upgrades of automation systems without modifying monitor configurations, reducing engineering effort and downtime.
