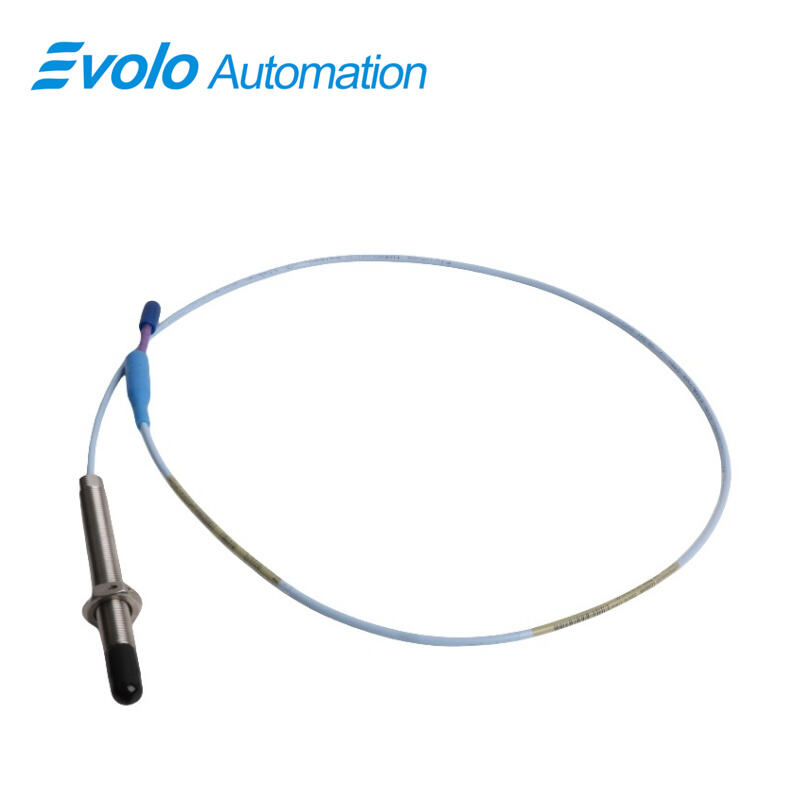

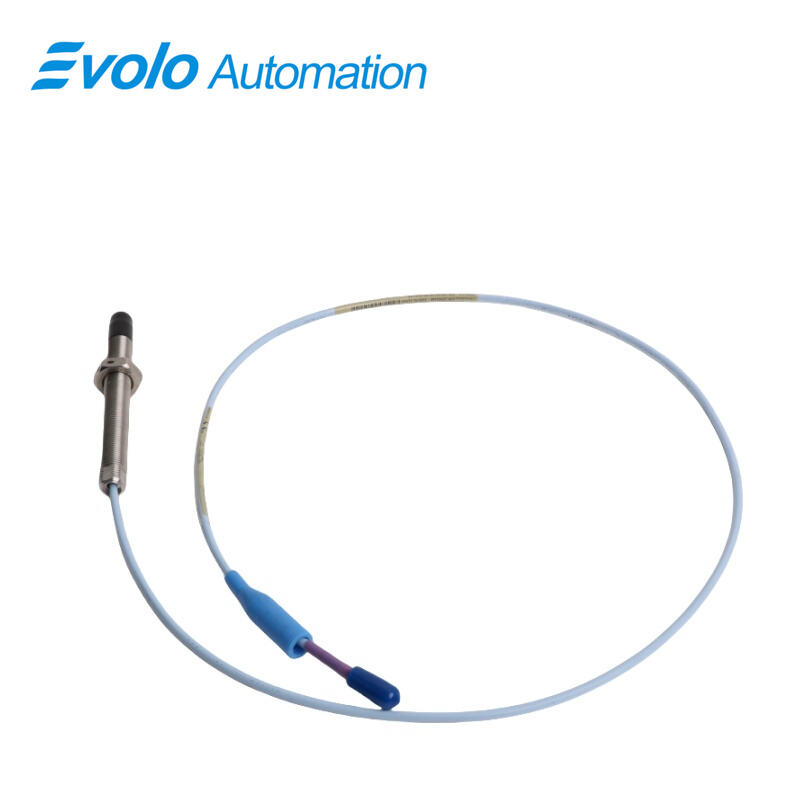

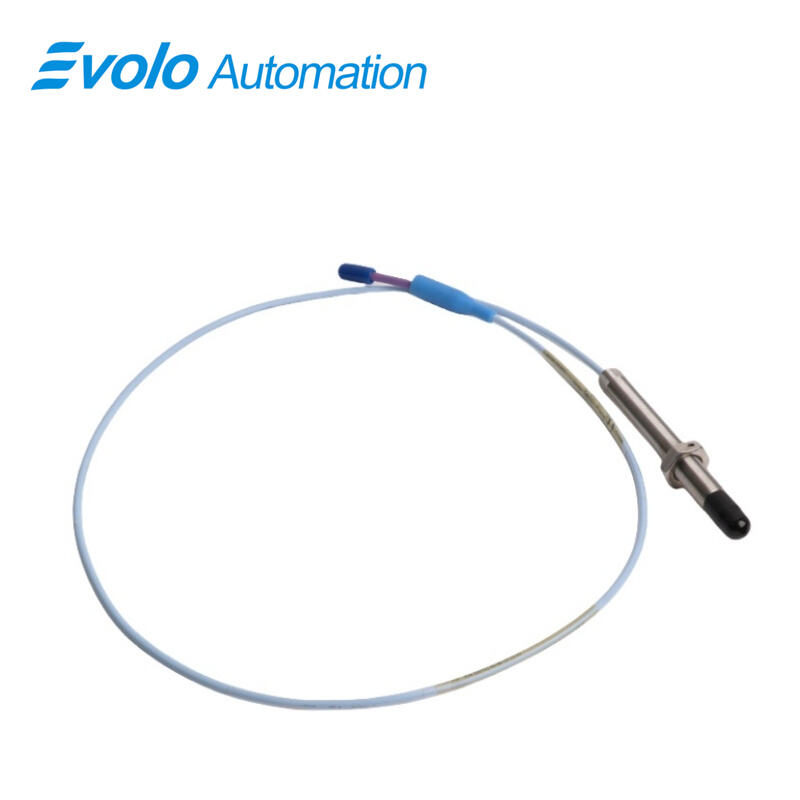

330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330701-00-050-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe provides a 3.94 V/mm (100 mV/mil) output for precise non-contacting vibration and displacement measurements on fluid-film bearing machines. With an 11 mm probe tip, the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe achieves a longer linear range than standard 8 mm probes, making it ideal for axial (thrust) position measurement, ramp differential expansion on steam turbines, rod position detection on reciprocating compressors, tachometer and zero speed readings, and Keyphasor signal generation. The probe features a 5/8-18 UNF case thread with 0.938 in maximum engagement, IP67 dust and water resistance, and operates from -40°C to +85°C. Shielded with 99.9% braided copper and equipped with miniature ClickLoc connectors and optional FluidLoc cables, the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe ensures secure signal integrity while preventing fluid ingress. Patented TipLoc molding and CableLoc designs provide strong mechanical attachment, with a 330 N (75 lb) pull strength on the cable connection. Reverse mount and armored/unarmored probe options allow flexible installation, and connector protectors are available to enhance environmental resistance. The system replaces 7200-series 11 mm and 14 mm transducer systems and integrates with 3500 and updated 3300 monitoring systems.

Applications

Measure axial shaft position on turbines
Install the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe on turbine thrust bearings to detect axial shaft displacement. Use the 3.94 volt per millimeter output and 1 meter cable to capture precise measurements for rotational machinery.

Track thermal expansion in steam rotors
Mount the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe along rotor sections to record differential expansion. Secure using the five eighths inch 18 UNF probe thread and zero point nine three eight inch engagement for reliable data in high temperature operations.

Monitor rod movement in reciprocating compressors
Connect the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe to measure rod position and travel. Use the miniature ClickLoc connector and FluidLoc cable to maintain accurate readings under machine vibration.

Detect shaft speed and zero crossing points
Position the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe near rotating shafts to generate tachometer signals. Its IP67 rating and braided copper shielding preserve signal quality in wet or dusty environments.

Specifications

Competitive Advantage

Measure large gaps with high output
The 11 millimeter tip provides 3.94 volt per millimeter output enabling the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe to record accurate data over longer distances than standard 8 millimeter probes.

Secure probe cable connection for high vibration
The TipLoc molding and CableLoc pull strength of 330 newtons on the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe prevent cable disconnection during operation.

Install in harsh environments
Use the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe in dust or fluid exposed areas with IP sixty seven rating, FluidLoc cable, and connector protectors to maintain signal integrity.

Mount in tight or reverse positions
Deploy the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe using threaded five eighths inch 18 UNF armored or unarmored options for flexible installation in limited space.

Upgrade 7200 series systems without rework
Replace old 11 millimeter and 14 millimeter 7200 series probes with the 330701-00-050-10-12-05 3300 XL 11 mm Proximity Probe and integrate into updated 3500 or 3300 monitoring systems efficiently.
