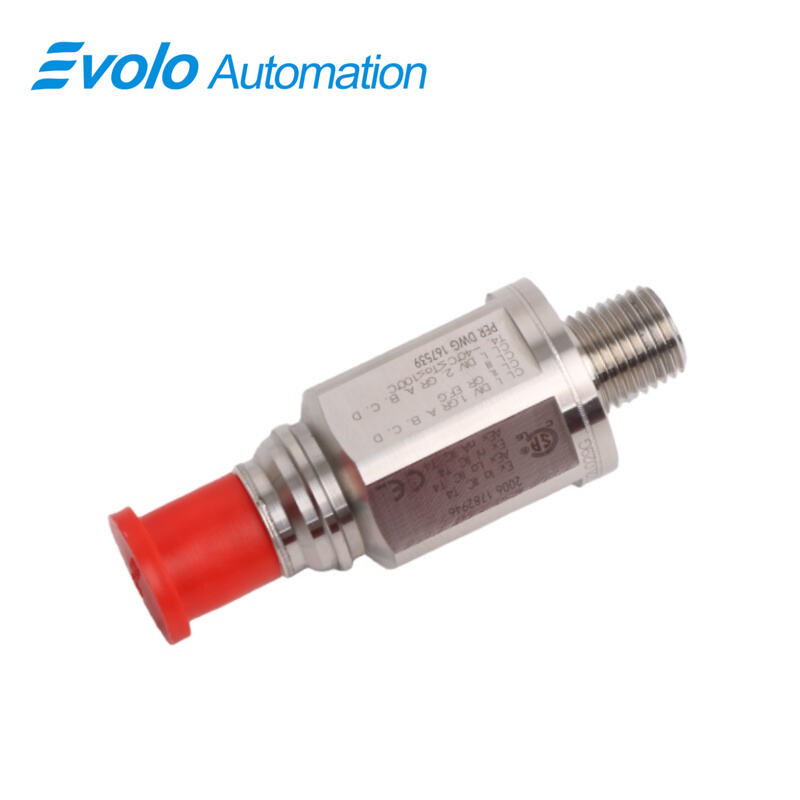

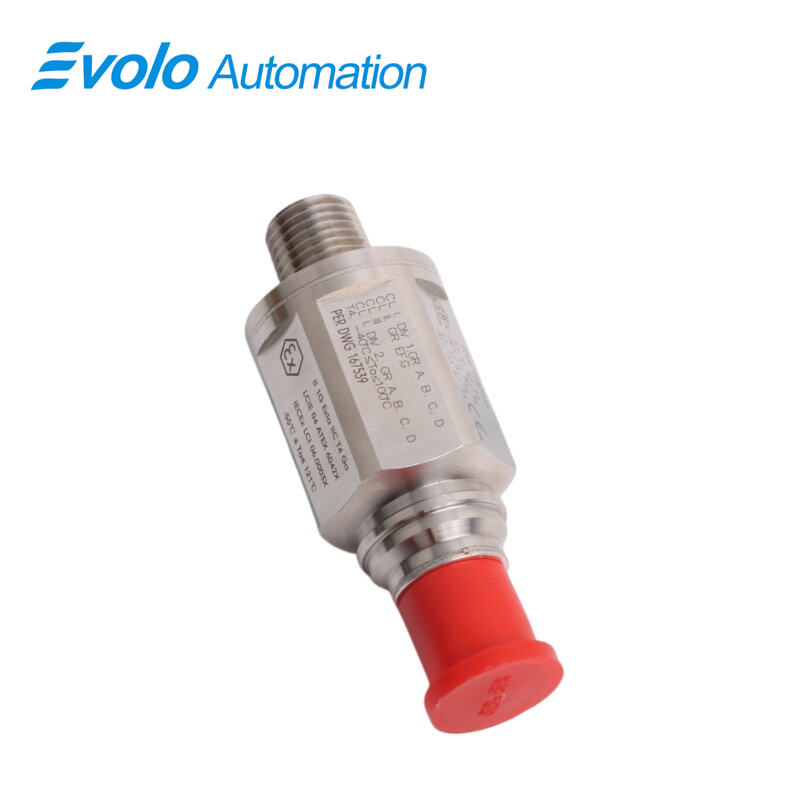

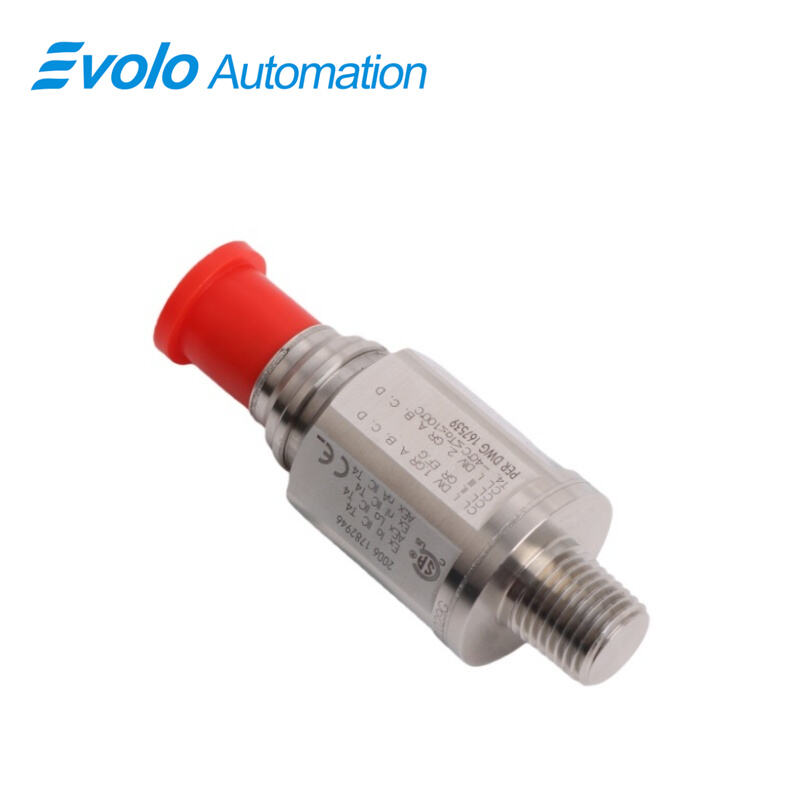

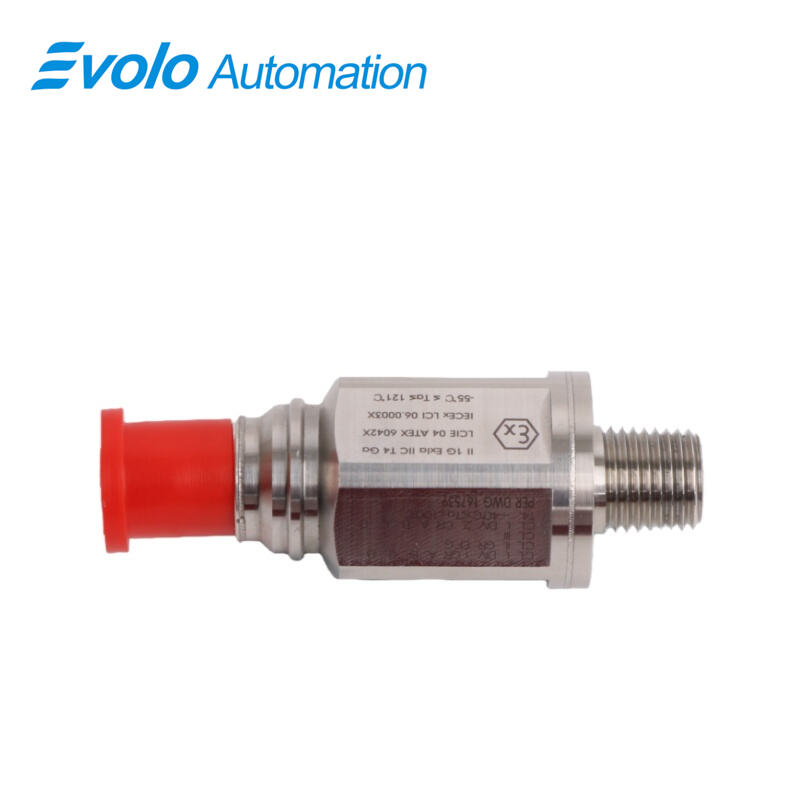

330525-CN Velomitor XA Piezo-velocity Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330525-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330525-CN Velomitor XA Piezo-velocity Sensor is designed for critical machinery monitoring in automated systems. With a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5% and a velocity range of 1270 mm/s (50 in/s) peak, the 330525-CN Velomitor XA Piezo-velocity Sensor accurately measures casing and structural vibrations. Its 316L stainless steel case supports operating temperatures from -55°C to +121°C and shock survivability up to 5000 g peak. The sensor’s mounted resonant frequency exceeds 12 kHz, capturing high-frequency vibration for motors, pumps, and gearboxes. The 330525-CN Velomitor XA Piezo-velocity Sensor features a weatherproof connector and cable assembly, allowing direct mounting without a housing, and supports IP-65 and NEMA 4X ratings when paired with a proper extension cable. With a dynamic output impedance below 2400 Ω, the 330525-CN Velomitor XA Piezo-velocity Sensor integrates directly into PLC, DCS, or SCADA systems for real-time automated vibration monitoring. Its hermetically-sealed design tolerates 100% non-submerged humidity, making the 330525-CN Velomitor XA Piezo-velocity Sensor ideal for harsh industrial environments.

Applications

Application – Measure Pump and Motor Casing Vibration
Install the 330525-CN Velomitor XA Piezo-velocity Sensor directly on pump or motor casings to monitor vibration velocity. Use its high-frequency response to detect bearing or shaft issues in real time and feed data to the plant automation system for continuous monitoring.

Application – Monitor Gearbox Vibration
Mount the 330525-CN Velomitor XA Piezo-velocity Sensor on gearbox housings to measure peak velocity up to 1270 mm/s. The sensor captures vibration signatures from gear mesh, allowing automated diagnostics of wear or misalignment.

Application – Cooling Tower Fan Vibration Monitoring
Use the 330525-CN Velomitor XA Piezo-velocity Sensor to track vibration on air-cooled fan assemblies. Its hermetically sealed cable allows safe operation in high-humidity environments, transmitting data directly to PLC or DCS systems for automated fan performance assessment.

Specifications

Competitive Advantage

Competitive Advantage – High-Temperature Operation
The 330525-CN Velomitor XA Piezo-velocity Sensor operates from -55°C to +121°C, making it suitable for machinery in extreme industrial environments without additional protective housings.

Competitive Advantage – Shock Resistance for Automation
With a shock survivability of 5000 g peak, the 330525-CN Velomitor XA Piezo-velocity Sensor can handle sudden machinery impacts and maintain reliable data output for automated condition monitoring.

Competitive Advantage – Direct Integration into Control Systems
The sensor’s dynamic output impedance under 2400 Ω and weatherproof connector design allow direct connection to PLC, DCS, or SCADA systems, reducing installation time and enabling automated vibration analysis.

Competitive Advantage – Wide Vibration Capture Range
The 330525-CN Velomitor XA Piezo-velocity Sensor captures vibrations up to 1270 mm/s and mounted resonant frequency above 12 kHz, supporting detailed real-time analysis in automated machinery monitoring applications.
