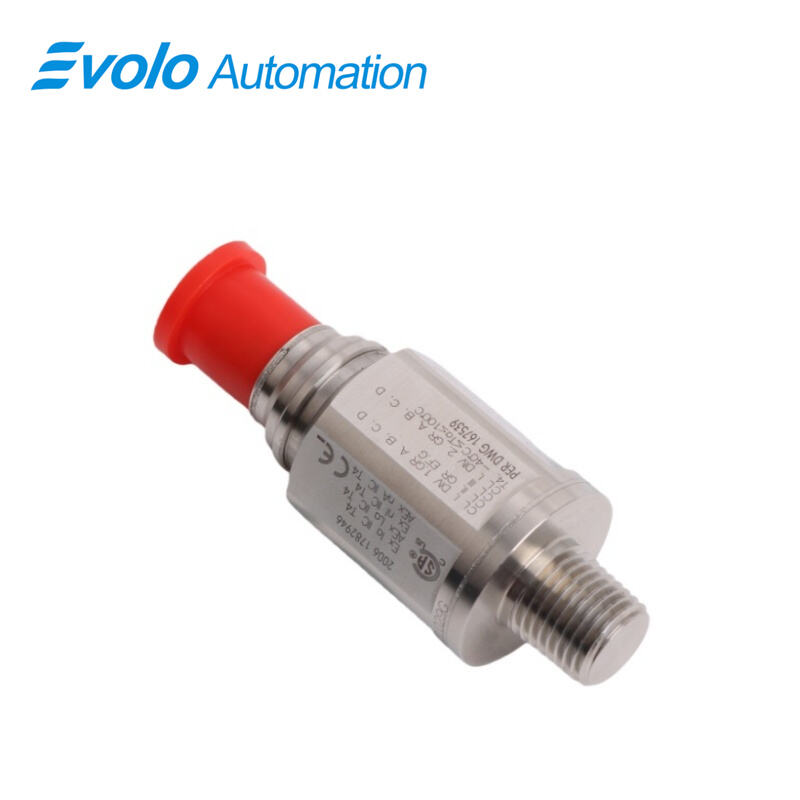

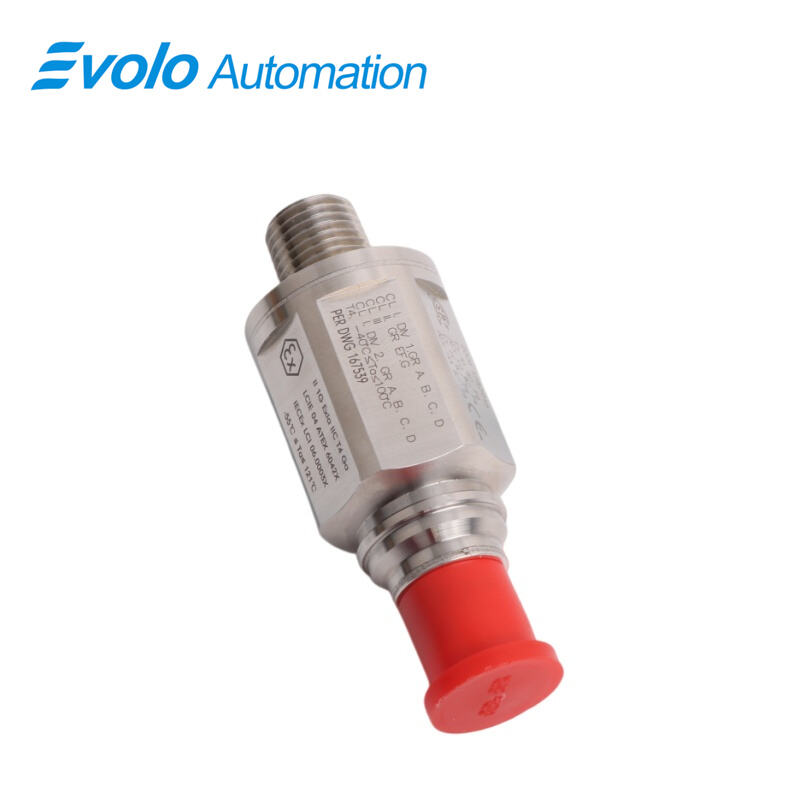

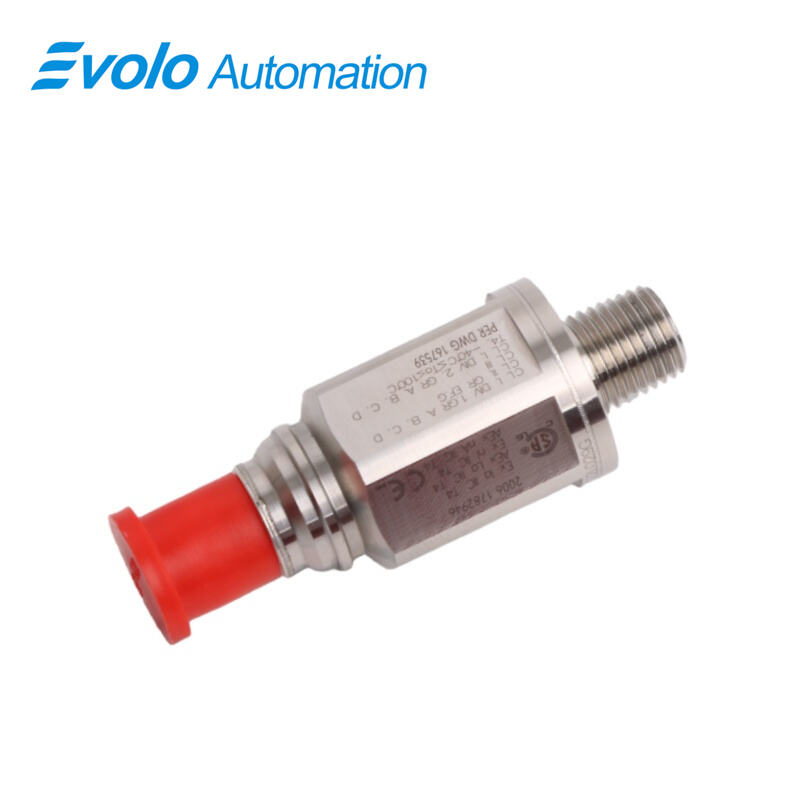

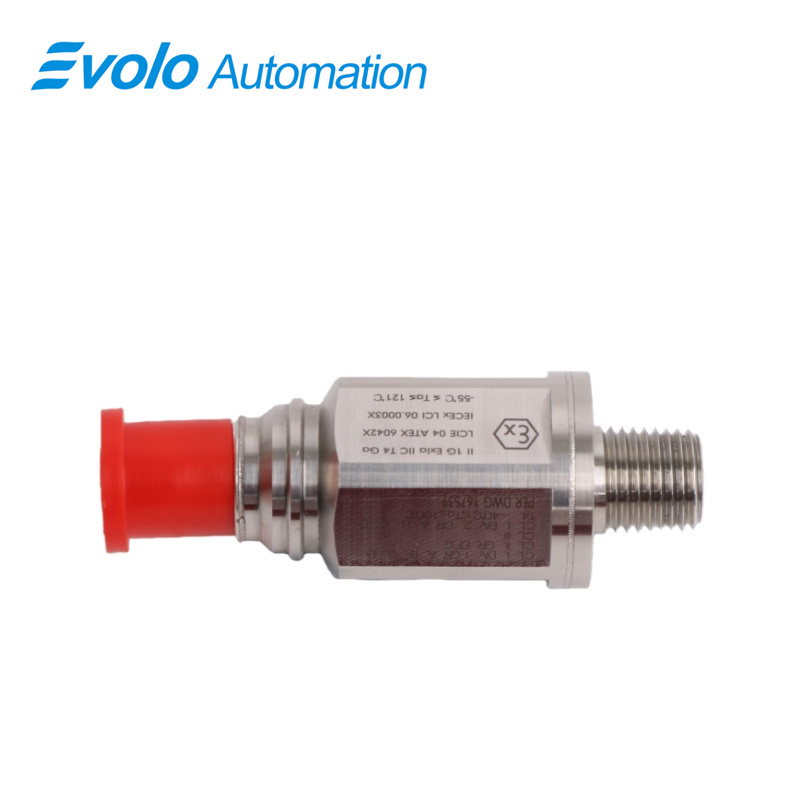

330525-00 Velomitor XA Piezo-velocity Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330525-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330525-00 Velomitor XA Piezo-velocity Sensor delivers precise vibration velocity measurements up to 1270 mm/s (50 in/s) peak with ±5% sensitivity at 3.94 mV/mm/s. The sensor’s mounted resonant frequency exceeds 12 kHz, ensuring accurate high-speed monitoring in automated systems. The 330525-00 Velomitor XA features a 316L stainless steel case and hermetically sealed design, supporting operation from -55°C to +121°C (-67°F to +250°F) and 100% non-submerged humidity. Dynamic output impedance remains below 2400 Ω, enabling integration with PLC, DCS, and SCADA systems. With a shock survivability of 5000 g peak and mounting torque up to 45 N-m (33 ft-lb), the 330525-00 Velomitor XA withstands industrial vibrations while maintaining signal integrity. Its weatherproof connector and cable assembly allow direct mounting without a housing, meeting IP-65 and NEMA 4X ratings when paired with a compatible extension cable. The 330525-00 Velomitor XA is ideal for automated monitoring of pumps, motors, and industrial fans, providing reliable data for predictive maintenance, vibration analysis, and condition monitoring.

Applications

Monitor Pump Vibration Velocity: Install 330525-00 Velomitor XA on pump housings to measure vibration up to 1270 mm/s (50 in/s) peak, detecting misalignment or bearing wear early.

Track Motor Casing Vibrations: Use 330525-00 Velomitor XA to measure vibrations across -55°C to +121°C, capturing real-time data for motors operating at high RPMs.

Assess Cooling Tower Fan Performance: Mount 330525-00 Velomitor XA on air-cooled heat exchangers or cooling tower fans to record vibration amplitudes and frequencies up to 12 kHz, enabling automated fan-speed monitoring.

Inspect Gearbox Gear Mesh: Place 330525-00 Velomitor XA on gearbox housings to measure acceleration peaks up to 50 g and detect potential mechanical faults in automated machinery.

High-Frequency Machine Analysis: Integrate 330525-00 Velomitor XA with PLC/DCS/SCADA systems to monitor high-frequency vibration signals, taking advantage of its low output impedance (<2400 Ω).

Specifications

Competitive Advantage

Seamless Integration with Automation Systems: 330525-00 Velomitor XA provides dynamic output impedance below 2400 Ω, ensuring reliable connection to PLCs, DCS, and SCADA systems.

Operation in Extreme Conditions: With temperature range -55°C to +121°C and 100% non-submerged humidity tolerance, the 330525-00 Velomitor XA maintains accurate readings in harsh industrial environments.

Rugged and Durable Design: The 316L stainless steel case and shock survivability of 5000 g allow 330525-00 Velomitor XA to handle vibration, impact, and mechanical stress without affecting data quality.

Direct Mounting Without Housing: The 330525-00 Velomitor XA cable assembly permits IP-65 and NEMA 4X rated installation, reducing installation time and complexity.

High-Frequency Vibration Measurement: With a mounted resonant frequency above 12 kHz, 330525-00 Velomitor XA captures precise, high-frequency vibration data for automated machinery analysis.
