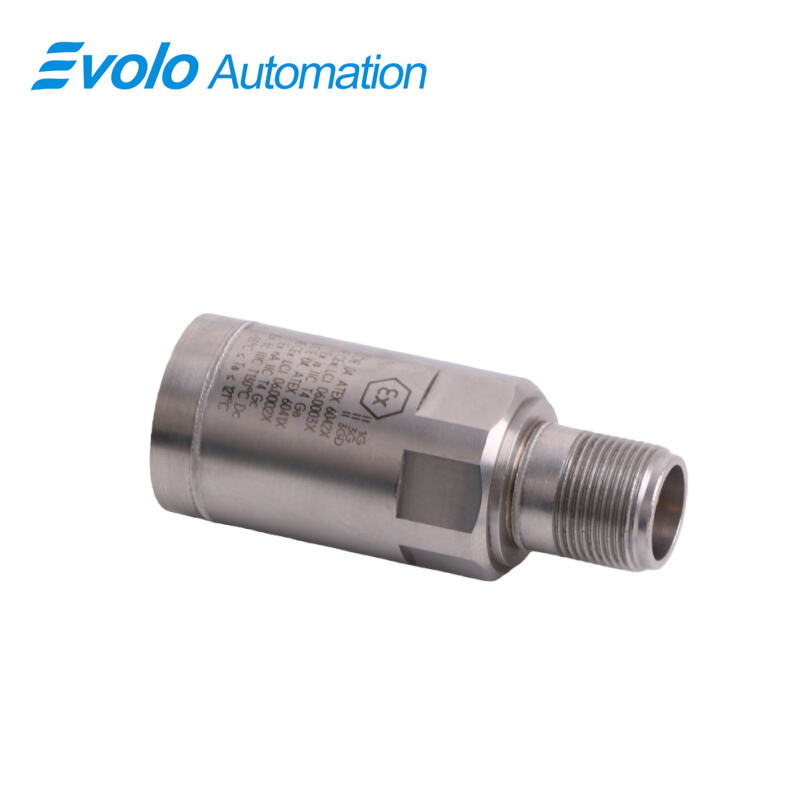

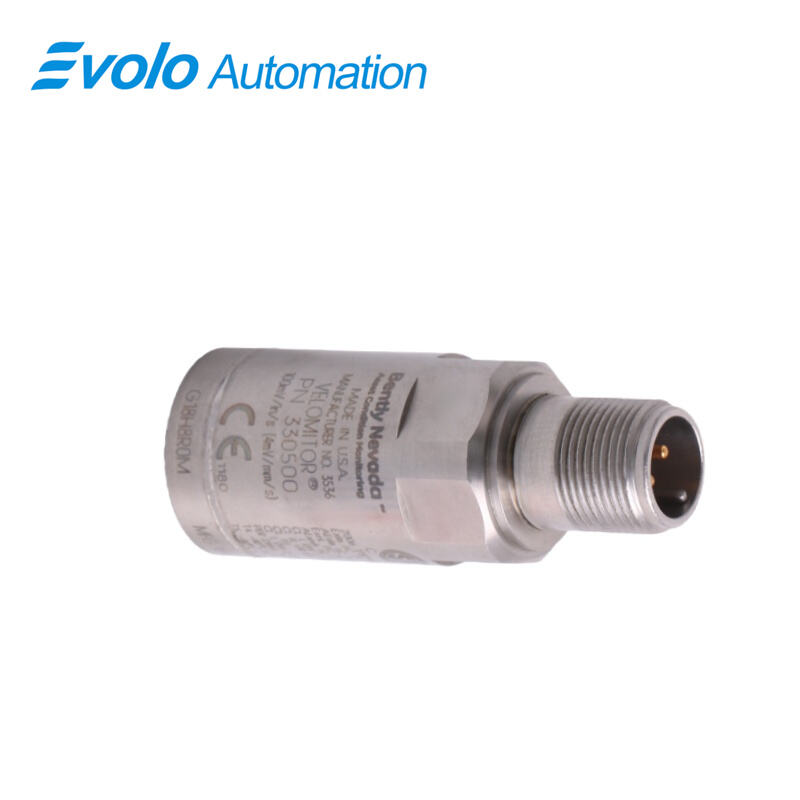

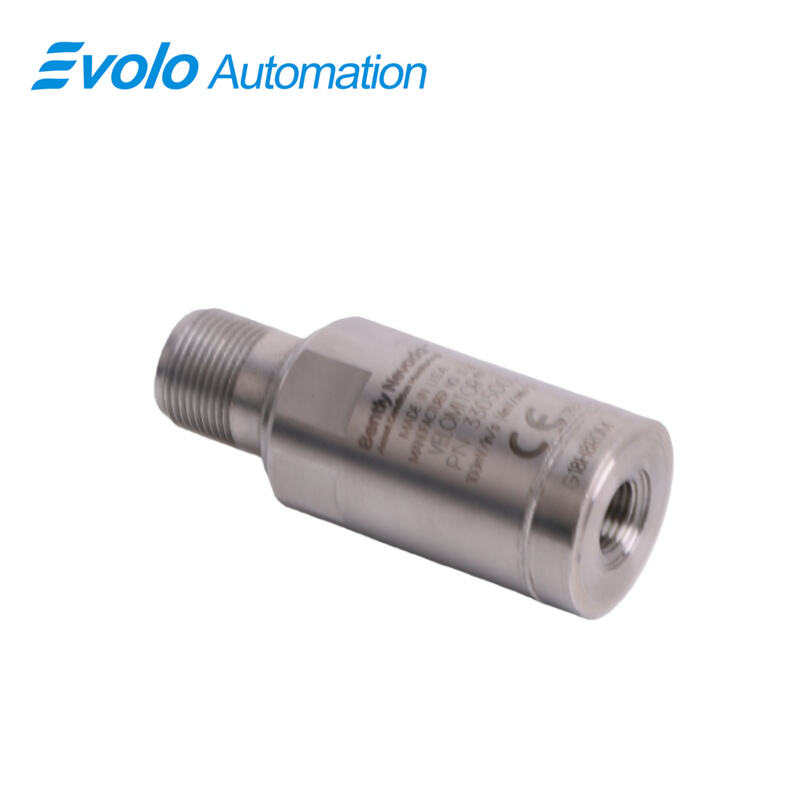

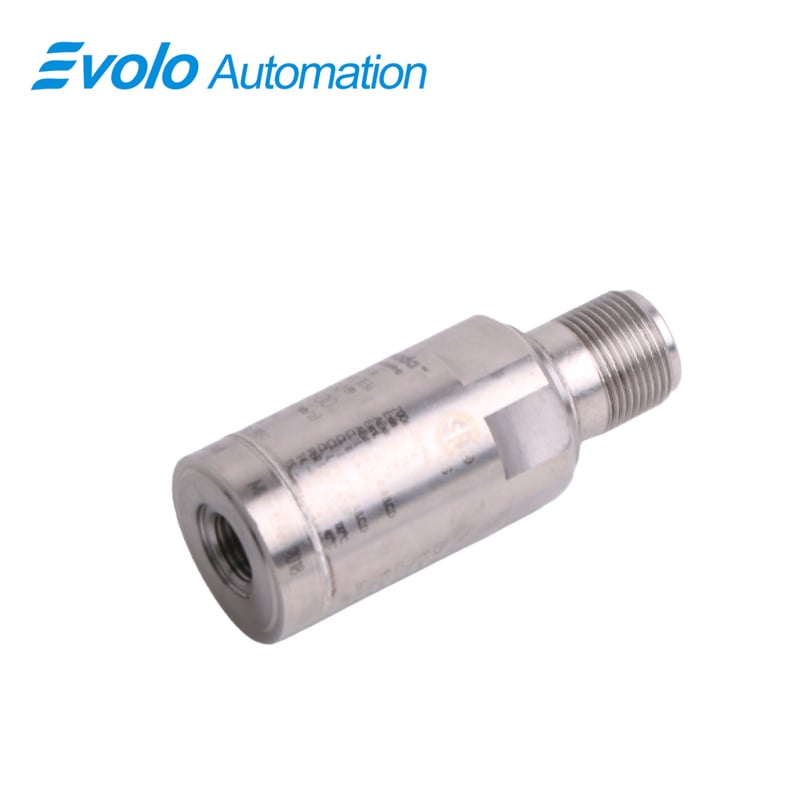

330500-03-01 Velomitor Piezo-velocity Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330500-03-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330500-03-01 Velomitor Piezo-velocity Sensor is designed for precise measurement of absolute bearing housing, casing, or structural vibration in industrial automation systems. This solid-state piezoelectric sensor incorporates embedded electronics with no moving parts, ensuring long-term operation under high shock conditions up to 5,000 g peak. The 330500-03-01 Velomitor Piezo-velocity Sensor features a 1/4–28 UNF mounting thread adaptor, dynamic output impedance below 2400 Ω, and amplitude linearity of ±2% up to 152 mm/s (6 in/s) peak. It operates in temperatures ranging from -55°C to 121°C (-67°F to 250°F) and can function in up to 100% non-submerged humidity. Constructed from 316L stainless steel, the 330500-03-01 Velomitor Piezo-velocity Sensor can be mounted vertically, horizontally, or at any angle, transmitting accurate vibration signals for monitoring and automation control. Base strain sensitivity is 0.005 in/s/mstrain, and magnetic field susceptibility is <51 min/s/gauss (50 gauss, 50–60 Hz), enabling reliable performance in challenging industrial environments.

Applications

Measure Pump Bearing Vibration with 330500-03-01
The 330500-03-01 Velomitor Piezo-velocity Sensor captures precise bearing housing vibration, using its ±2% amplitude linearity to detect early mechanical wear and prevent unplanned downtime.

Track Fan and Compressor Vibration with 330500-03-01
Install the 330500-03-01 Velomitor Piezo-velocity Sensor on fan and compressor casings to monitor vibration velocity from 3.94 mV/mm/s (100 mV/in/s), supporting automated control adjustments and predictive maintenance.

Monitor Machinery Structural Movement with 330500-03-01
Use the 330500-03-01 Velomitor Piezo-velocity Sensor on structural frames to detect casing vibration patterns over -55°C to 121°C (-67°F to 250°F), helping optimize automation feedback loops.

Provide Automation Feedback for Rotating Equipment with 330500-03-01
Integrate the 330500-03-01 Velomitor Piezo-velocity Sensor into control systems to adjust machine operations based on real-time vibration velocity data, enabling high-precision automation monitoring.

Specifications

Competitive Advantage

High Shock Survivability
The 330500-03-01 Velomitor Piezo-velocity Sensor withstands up to 5,000 g peak shock, ensuring accurate vibration velocity measurement even during sudden mechanical impacts.

Wide Operating Temperature Range
The 330500-03-01 Velomitor Piezo-velocity Sensor operates between -55°C and 121°C, allowing deployment in extreme industrial environments without affecting signal quality.

Flexible Mounting Orientation
The 330500-03-01 Velomitor Piezo-velocity Sensor can be mounted vertically, horizontally, or at any angle due to its case-isolated 1/4-28 UNF mounting adaptor, enabling installation in confined or unconventional spaces.

Low Magnetic Field Sensitivity
With <51 min/s/gauss susceptibility, the 330500-03-01 Velomitor Piezo-velocity Sensor reliably measures vibration near motors or electrical equipment, minimizing measurement errors.
