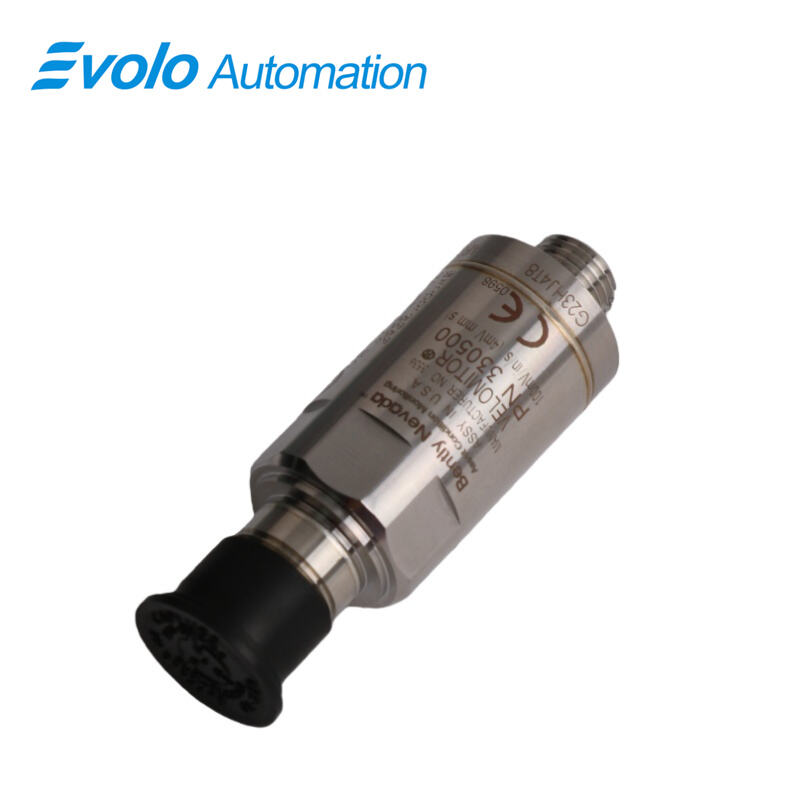

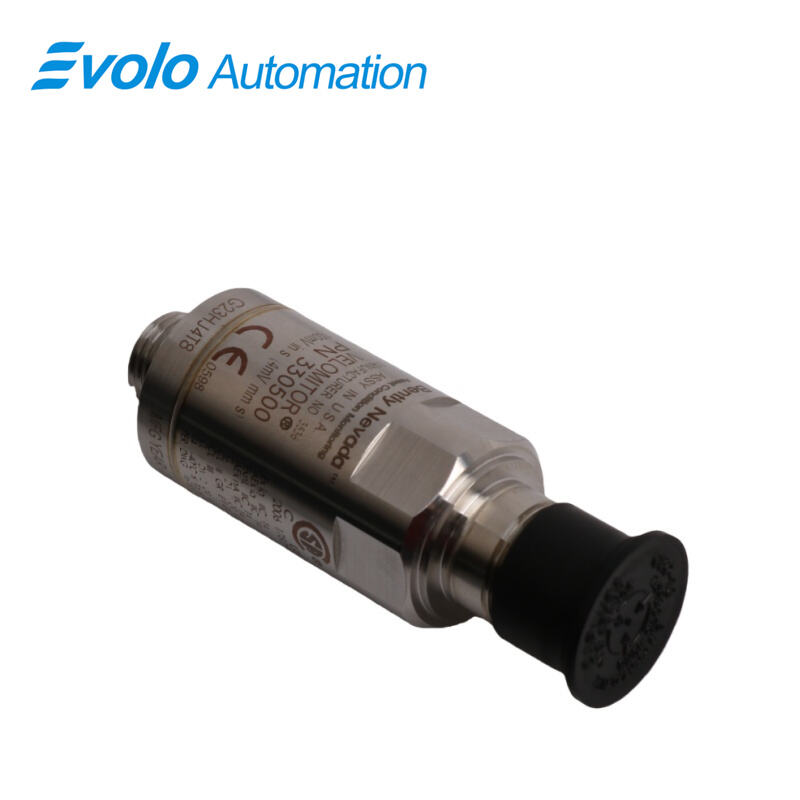

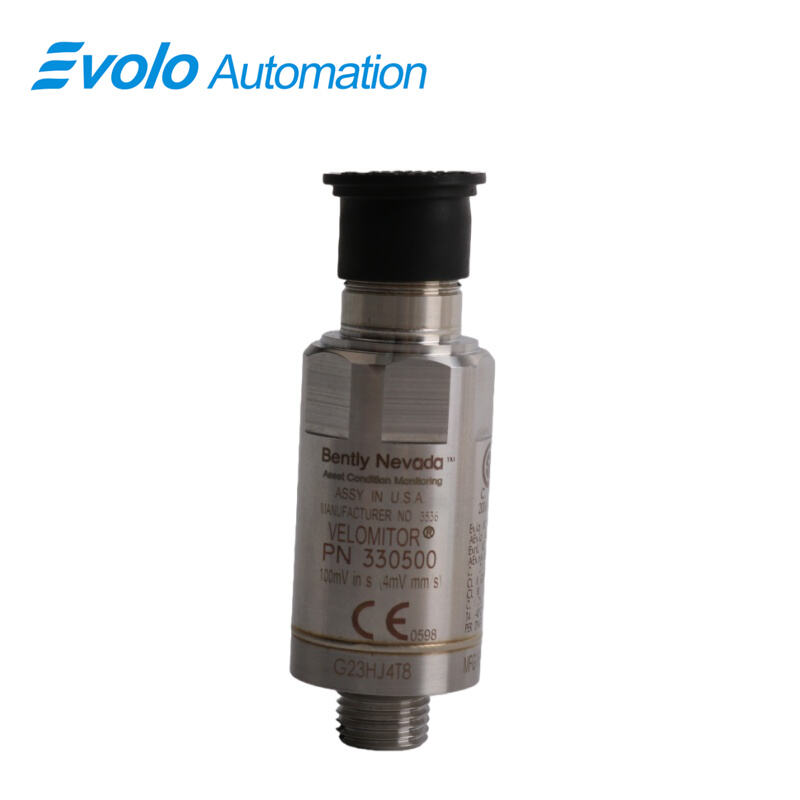

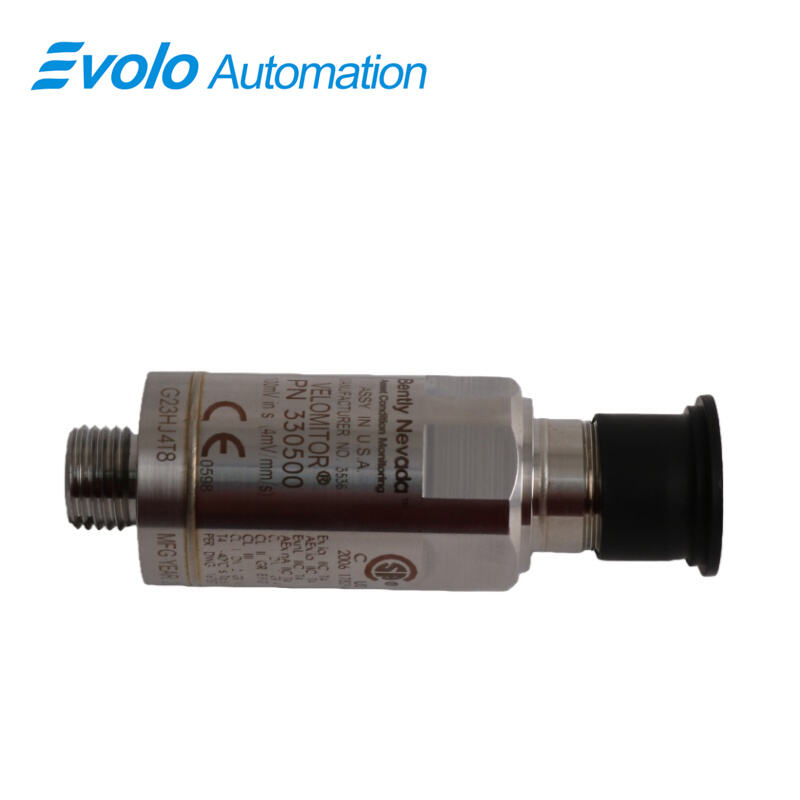

330500-01-CN Velomitor Piezo-velocity Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330500-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330500-01-CN Velomitor Piezo-velocity Sensor is engineered to measure absolute vibration of bearing housings, casings, and industrial structures with precision. This piezoelectric sensor features integrated solid-state electronics and a 316L stainless steel case, delivering long-term reliability in demanding automation environments. The 330500-01-CN Velomitor operates across a temperature range of -55°C to 121°C (-67°F to 250°F) and tolerates shock up to 5,000 g peak, making it suitable for heavy-duty machinery. It supports mounting via a 1/2-20 UNF thread adaptor and allows installation in vertical, horizontal, or angled orientations. With a dynamic output impedance of less than 2400 Ω and amplitude linearity within ±2% up to 152 mm/s (6 in/s) peak, the 330500-01-CN Velomitor ensures precise velocity measurement. The hermetically sealed case withstands up to 100% relative humidity, and grounding is isolated for safe industrial deployment. CSA and ATEX approvals expand its applicability in global automated systems. By combining robust construction, flexible mounting, and precise piezoelectric response, the 330500-01-CN Velomitor Piezo-velocity Sensor is ideal for vibration monitoring and predictive maintenance in automated manufacturing and processing environments.

Applications

Vibration Measurement on Bearing Housings
Use the 330500-01-CN Velomitor to monitor bearing vibrations in pumps, turbines, and motors. The sensor’s amplitude linearity of ±2% up to 152 mm/s ensures accurate vibration detection for automated condition monitoring.

Structural Vibration Monitoring
Install the 330500-01-CN Velomitor on machine frames and structural supports to track vibration patterns. The 5,000 g shock survivability allows reliable measurement under heavy industrial operations.

Predictive Maintenance for Rotating Machinery
Deploy the 330500-01-CN Velomitor to detect early signs of imbalance or misalignment. The sensor’s integrated electronics reduce mechanical degradation, supporting uninterrupted data collection.

Orientation-flexible Mounting
The 330500-01-CN Velomitor can be mounted vertically, horizontally, or at an angle using the 1/2-20 UNF thread adaptor, making it suitable for varied machine layouts in automated systems.

Specifications

Competitive Advantage

High-Temperature and Shock Endurance
The 330500-01-CN Velomitor operates from -55°C to 121°C and withstands shocks up to 5,000 g, enabling reliable use on high-speed industrial machinery without additional protection.

Hermetically Sealed Case for Humid Environments
The 316L stainless steel, hermetically sealed case allows the 330500-01-CN Velomitor to function in 100% relative humidity without performance loss, ideal for automated processes in wet or oily conditions.

Integrated Solid-State Electronics
With no moving parts, the 330500-01-CN Velomitor avoids mechanical wear, allowing continuous vibration monitoring and reducing maintenance downtime in automated systems.

Global Compliance and Safety Approvals
CSA, ATEX, and IECEx approvals ensure that the 330500-01-CN Velomitor meets international safety standards for industrial automation applications, supporting deployment across global manufacturing and processing facilities.
