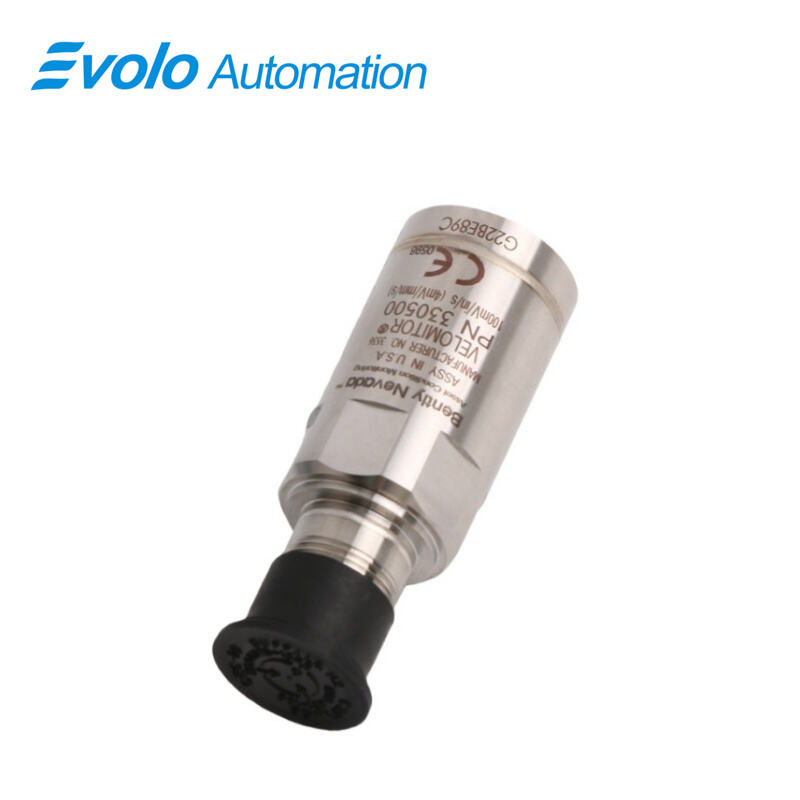

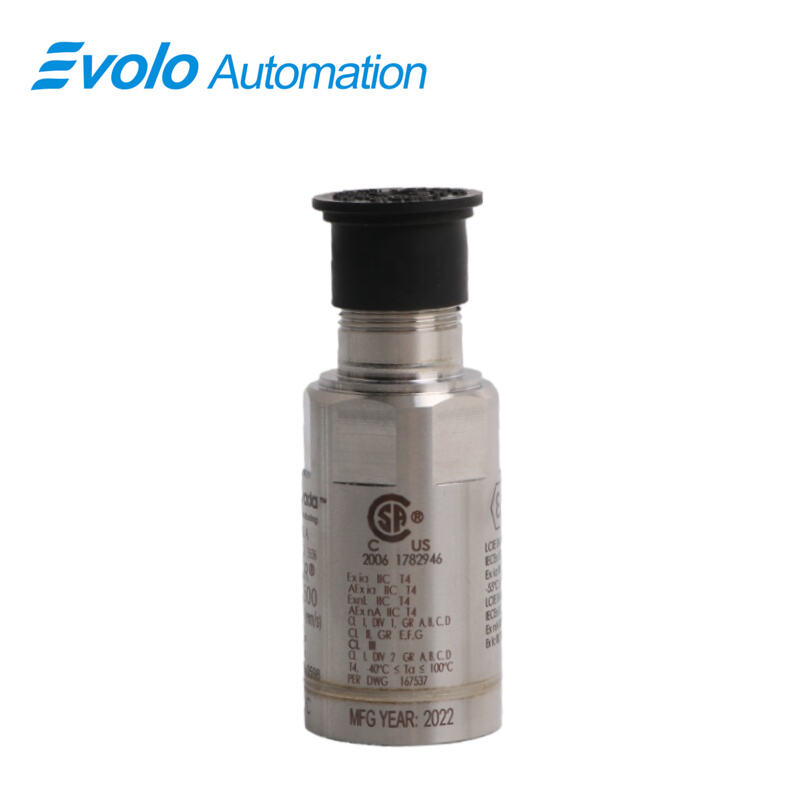

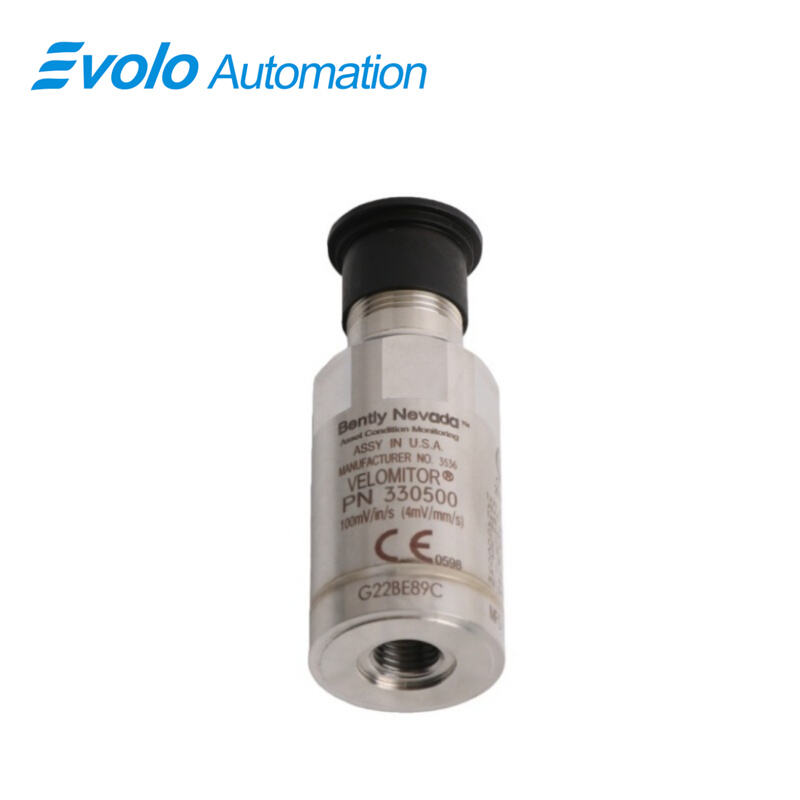

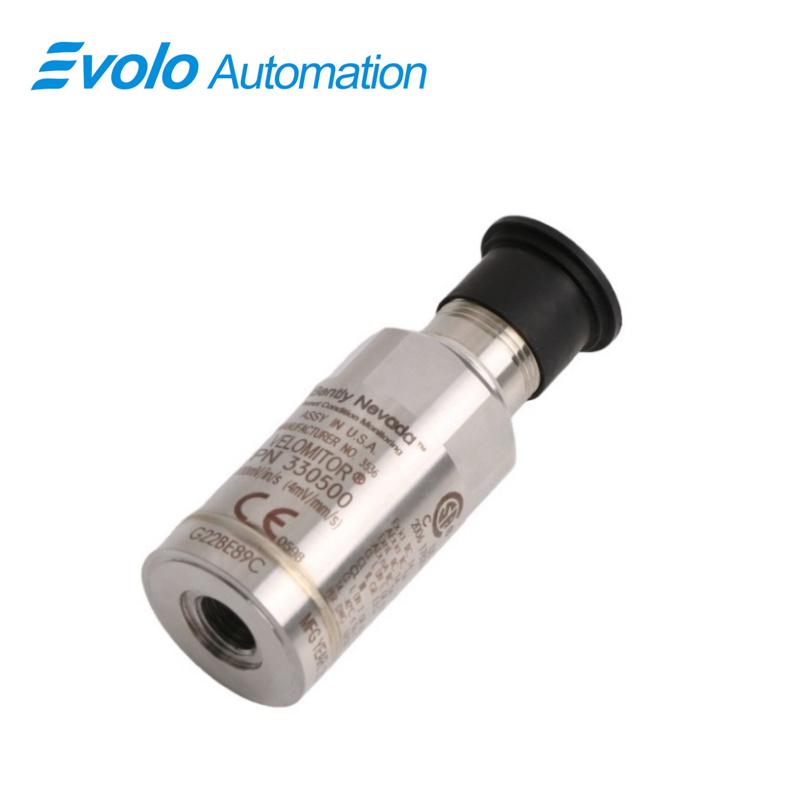

330500-00-04 Velomitor XA Piezo-velocity Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330500-00-04
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330500-00-04 Velomitor XA Piezo-velocity Sensor is a ruggedized piezoelectric velocity transducer designed for industrial automation and condition monitoring of rotating machinery. The 330500-00-04 features a 316L stainless steel case, IP-65/NEMA 4X-rated weatherproof connector and cable, and operates reliably in high-humidity and harsh environments. With a sensitivity of 3.94 mV/mm/s, velocity range up to 1270 mm/s peak, and mounted resonant frequency above 12 kHz, the 330500-00-04 delivers accurate velocity measurements for vibration monitoring and automated protection systems. Its dynamic output impedance below 2400 Ω and operating temperature range from -55°C to +121°C ensure stable signal output under extreme conditions. The 330500-00-04 withstands shocks up to 5000 g and mounting torque of 45 N-m, making it ideal for installation without protective housings on industrial compressors, turbines, and pumps in automated monitoring applications.

Applications

Industrial Vibration Monitoring
330500-00-04 is used for measuring vibration velocity on turbines, compressors, and pumps. With a sensitivity of 3.94 mV/mm/s and velocity range up to 1270 mm/s peak, 330500-00-04 provides precise velocity signals for automated condition monitoring systems, enabling early fault detection and predictive maintenance.

Shock and High-Temperature Machinery Monitoring
For harsh industrial environments, 330500-00-04 operates reliably from -55°C to +121°C and survives shocks up to 5000 g, making it suitable for high-speed rotating machinery where extreme forces occur, ensuring continuous automated monitoring.

Automated Protection and Control
330500-00-04 supports Keyphasor and velocity-based monitoring for automated protection systems. Its dynamic output impedance below 2400 Ω and high mounted resonant frequency >12 kHz ensure clean signal transmission to control and protection devices, facilitating real-time automated decisions.

Specifications

Competitive Advantage

Rugged and Weatherproof Design
The 316L stainless steel case and IP-65/NEMA 4X-rated connector allow 330500-00-04 to be mounted without additional housings in moist or dusty environments, reducing installation complexity for automated machinery systems.

High Accuracy and Frequency Response
With a sensitivity of 3.94 mV/mm/s, velocity range of 1270 mm/s, and resonant frequency >12 kHz, 330500-00-04 captures high-fidelity vibration signals, improving reliability and precision in automated condition monitoring.

Easy Integration and Secure Mounting
The mounting torque rating of 45 N-m allows 330500-00-04 to be installed securely on industrial equipment without risk of loosening, while its weatherproof cable assembly simplifies connection to automation and control systems.

Extreme Shock and Temperature Resilience
330500-00-04 withstands shocks up to 5000 g and operates across a wide temperature range, ensuring uninterrupted operation and accurate velocity measurement in demanding automated industrial environments.
