Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330190-080-01-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
8.0 meters (26.2 feet) |
|
Connector Protector and Cable Option: |
Armored cable |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
30.5x30x4.5cm |
|
Weight: |
0.96 kg |
Description

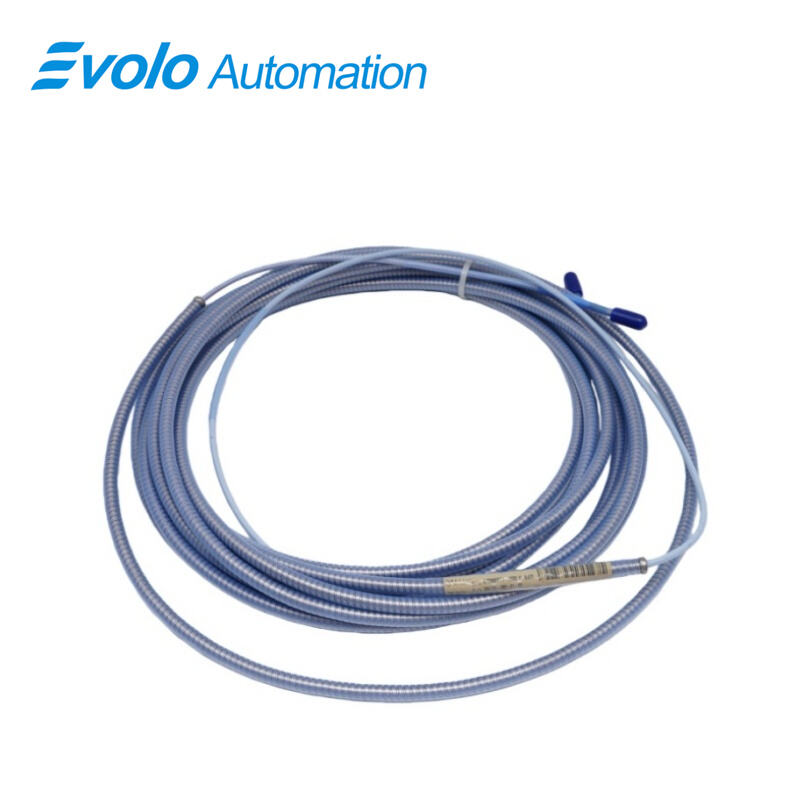

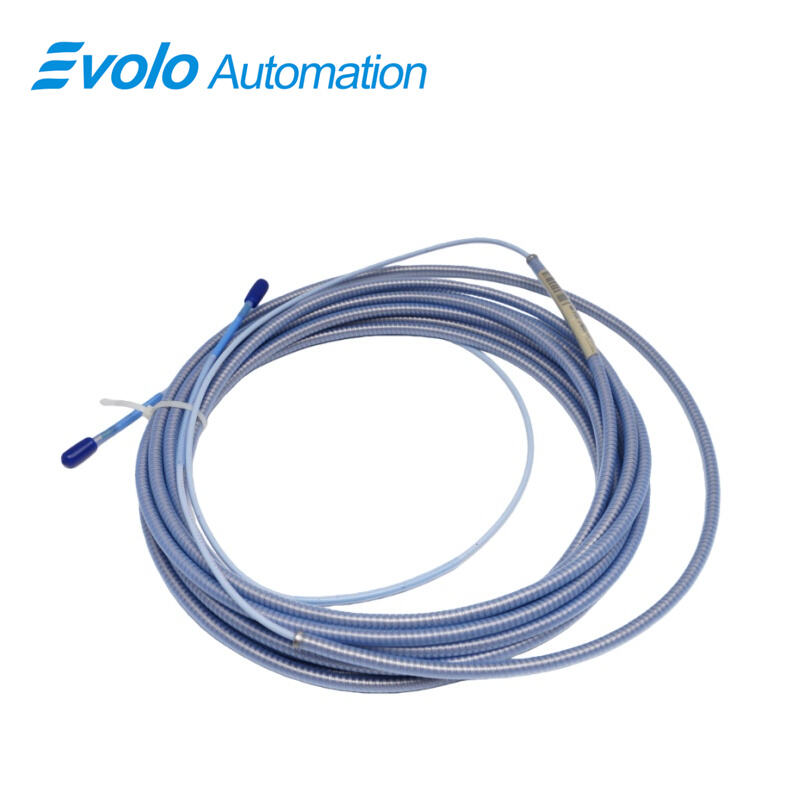

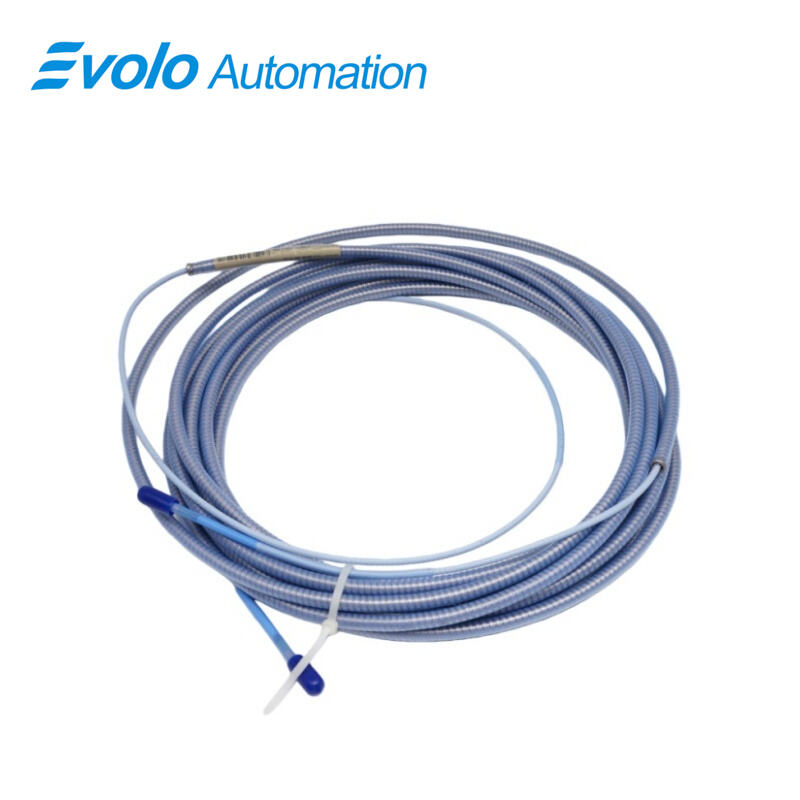

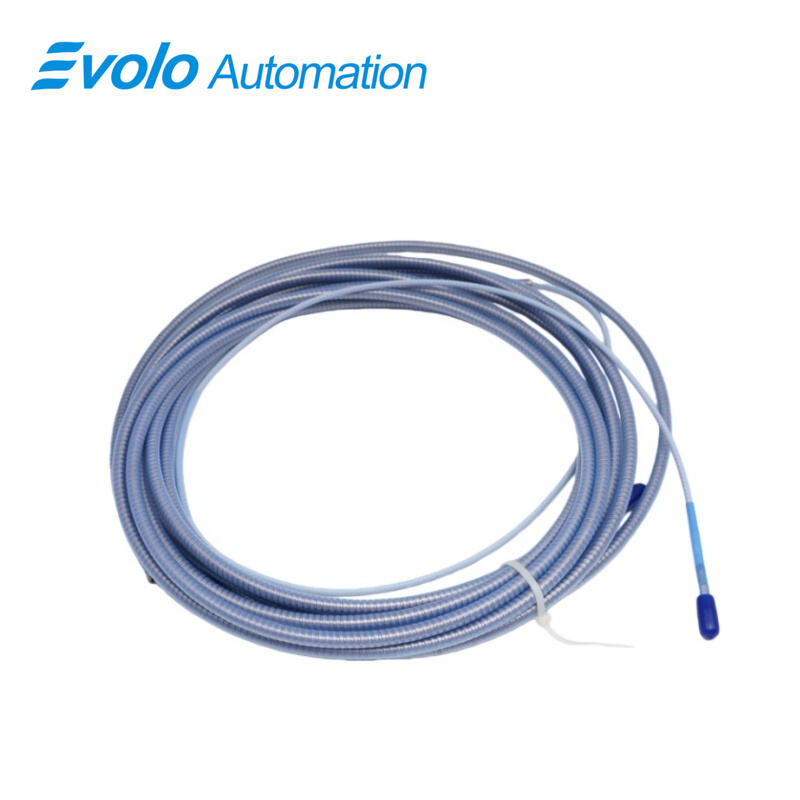

The 330190-080-01-00 3300 XL Extended Temperature Range (ETR) 8 mm Extension Cable is specifically engineered for high-temperature industrial automation environments where standard 3300 XL cables may not withstand extreme conditions. Designed to operate from -52°C to +260°C (-62°F to +500°F), this ETR extension cable pairs with 3300 XL ETR probes to ensure accurate position and vibration monitoring in centrifugal compressors, refrigeration systems, and other fluid-film bearing machinery. Constructed from 75Ω triaxial perfluoroalkoxy (PFA) insulated cable, the ETR extension cable provides exceptional chemical and thermal resistance while maintaining a linear range of 2 mm (80 mils) and supporting frequency response from 0 to 10 kHz with up to 305 meters (1000 ft) of field wiring. Features such as armored cable protection, a patented CableLoc design for 330 N pull strength, and compatibility with standard 3300 XL Proximitor Sensors make it ideal for automated industrial monitoring systems requiring reliability, precision, and long-term durability. This cable also supports minimal output sensitivity change (<2 mV per volt), ensuring consistent automated data acquisition in harsh conditions.
Applications
High-Temperature Compressor Monitoring
Used with 3300 XL ETR probes to monitor vibration and position in centrifugal or refrigeration compressors operating above 177°C, ensuring automation systems maintain precision under extreme heat.
Extended Process Gas Turbine Automation
Supports real-time position and radial vibration measurements in gas turbines where standard cables cannot tolerate surface temperatures exceeding 200°C, improving predictive maintenance accuracy.
Long-Distance Remote Sensing
Capable of maintaining frequency response up to 10 kHz across 7–305 meters of cable, enabling automated monitoring from remote or hard-to-access machinery areas.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
|
Extended Temperature Range Cable: |
-52°C to +260°C (-62°F to +500°F) |
|
Material: |
75Ω triaxial, perfluoroalkoxy (PFA) insulated. |
Competitive Advantage
Extended Temperature Operation
Rated for operation up to 260°C (500°F), far exceeding standard 3300 XL specifications, allowing automated monitoring in extreme thermal environments.
Superior Chemical and Thermal Resistance
PFA triaxial insulation provides robust protection against chemical exposure and thermal degradation, enhancing cable longevity in automated process systems.
Mechanical Durability and Pull Strength
Armored cable and CableLoc design provide 330 N pull strength, ensuring secure probe-cable connections even in high-vibration industrial settings.
High-Fidelity Signal Transmission
Maintains less than 2 mV change in output voltage per volt input change with consistent capacitance (69.9 pF/m), ensuring accurate vibration and position data for automated control and predictive maintenance systems.
