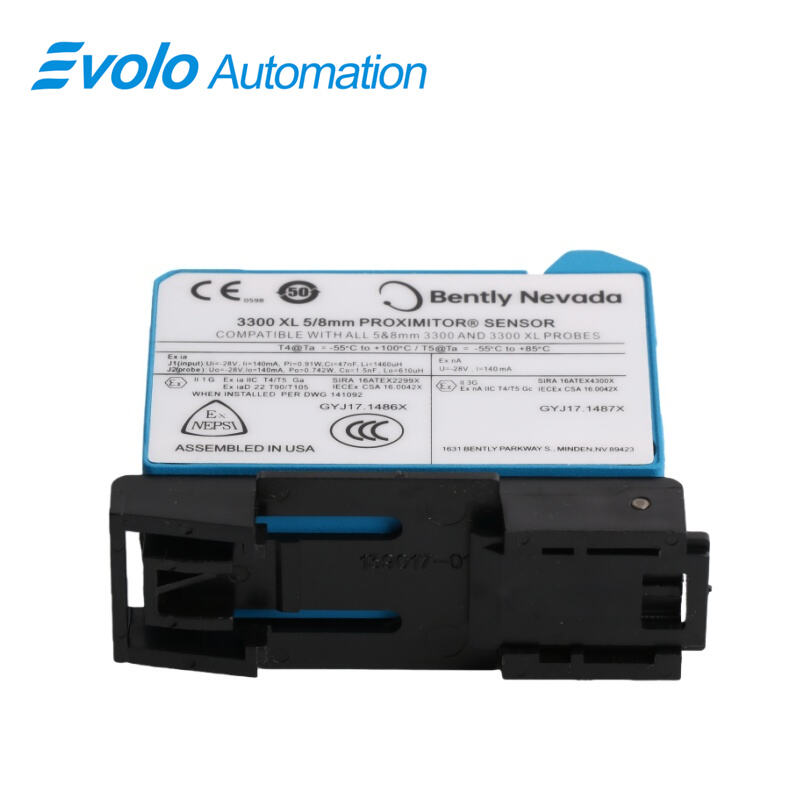

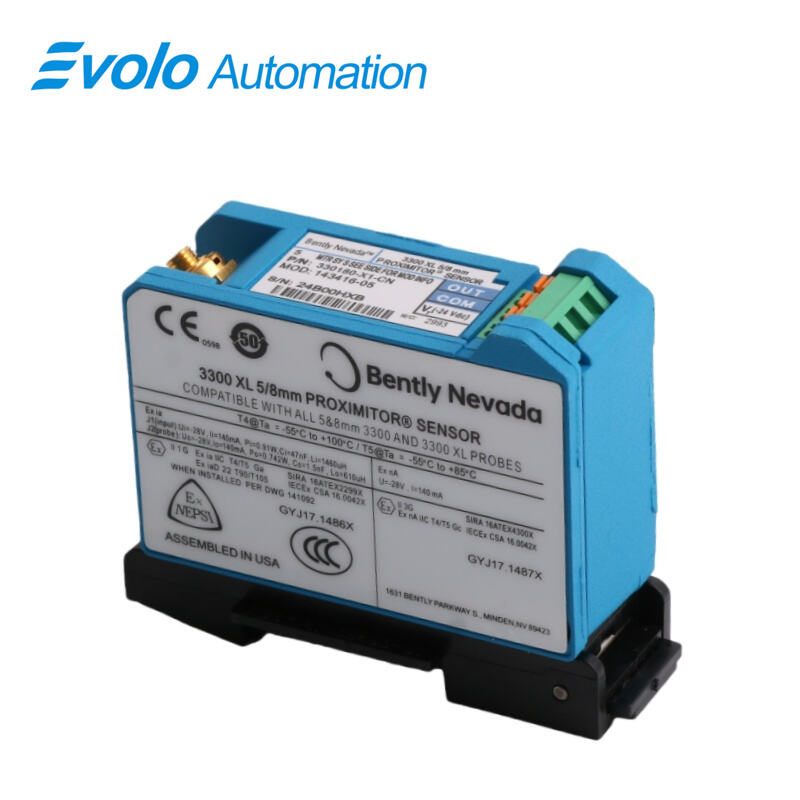

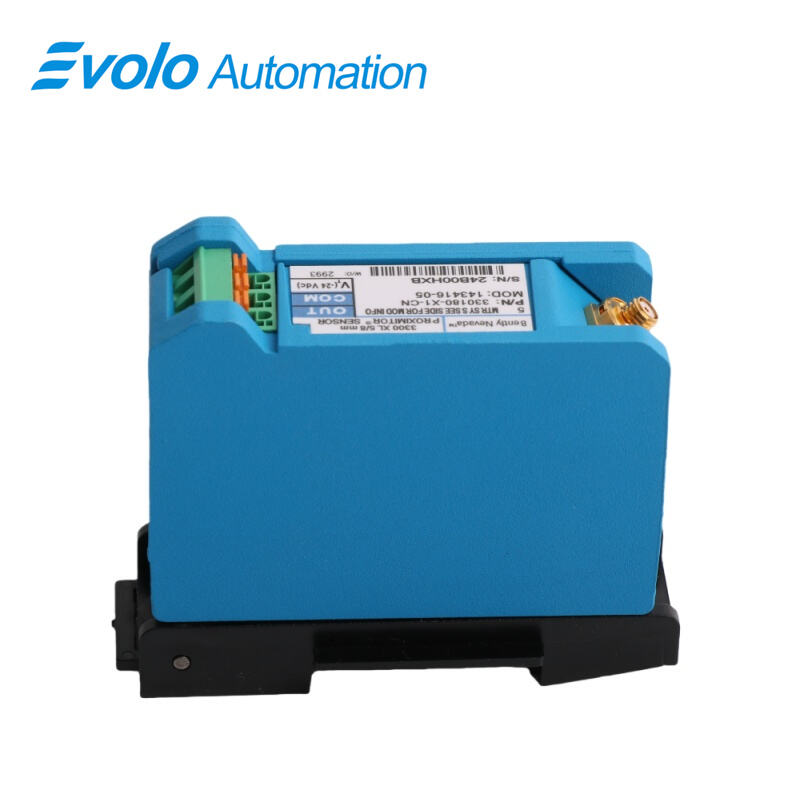

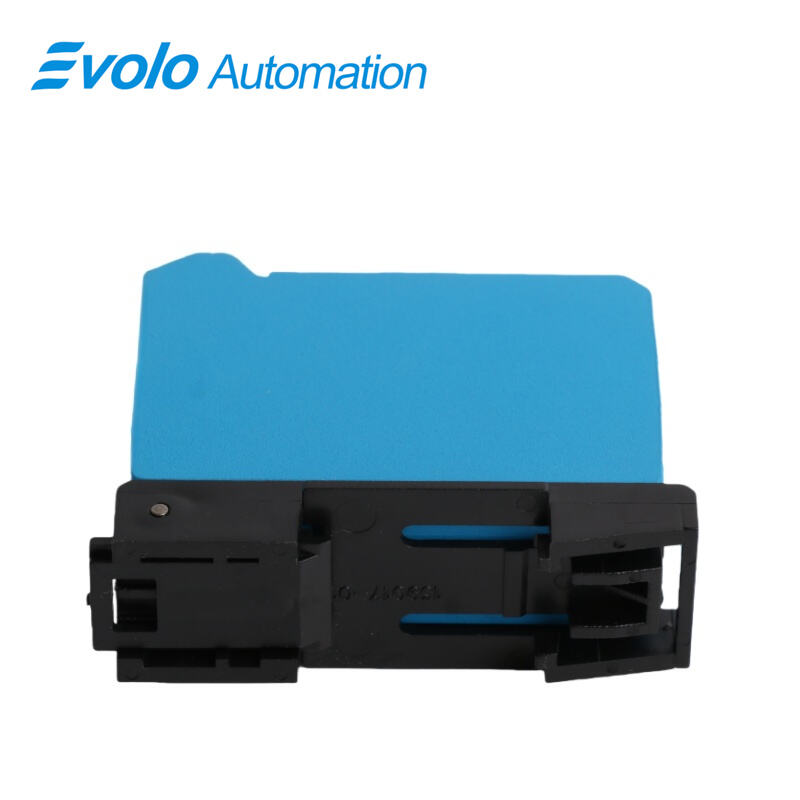

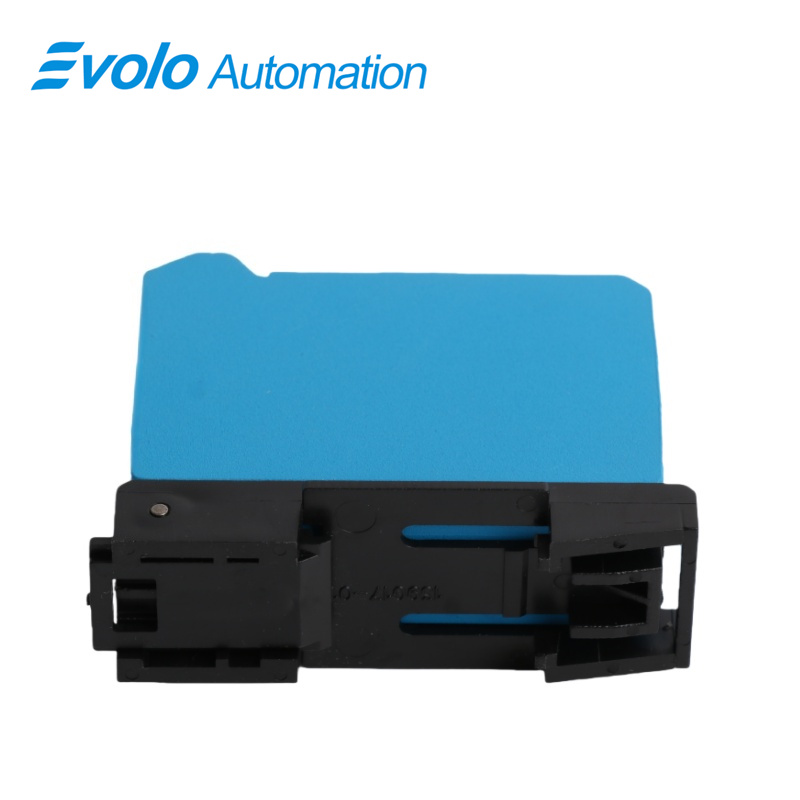

330180-X1-CN MOD:143416-05 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-CN MOD:143416-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-CN MOD:143416-05 3300 XL Proximitor Sensor accepts a single 3300 XL 8 mm or 3300-series 5 mm Proximity Probe with extension cable, delivering an output voltage directly proportional to the shaft-to-probe distance. With a system length of 1.0 meter (3.3 feet) and aluminum A308 housing, the 330180-X1-CN 3300 XL Proximitor Sensor provides a 50 Ω output resistance, less than 2 mV voltage variation per volt of input change, and frequency response from 0 to 10 kHz over 305 meters (1000 feet) of field wiring. It supports minimum target diameters of 15.2 mm (0.6 in) and operates between -52°C and +100°C (-62°F to +212°F). The sensor’s output ranges from 0.0247 to 0.0348 Mil pp/Gauss depending on gap (10–90 mils). CSA, ATEX, and IECEx approvals allow safe installation in hazardous areas. Designed for automated machinery, the 330180-X1-CN 3300 XL Proximitor Sensor transmits precise vibration, position, and Keyphasor reference signals for control and monitoring systems in turbines, compressors, and pumps. Optional FluidLoc and patented CableLoc features enhance probe-to-sensor connectivity, ensuring reliable signal transfer and ease of maintenance in automated environments.

Applications

Measure Turbine Shaft Position with 330180-X1-CN 3300 XL Proximitor Sensor: Accurately detect axial displacement up to 2 mm (80 mils) using the 330180-X1-CN 3300 XL Proximitor Sensor with a 50 Ω output resistance and a 1.0-meter probe system.

Monitor Reciprocating Compressor Rod Motion: The 330180-X1-CN 3300 XL Proximitor Sensor captures rod displacement for automation control using its <2 mV/V supply sensitivity and 10 kHz frequency response.

Track Pump Vibration Signals: Deploy 330180-X1-CN 3300 XL Proximitor Sensor on fluid-film bearing pumps to measure vibration and position simultaneously, leveraging the sensor’s 15.2 mm minimum target detection and CSA/ATEX approvals.

Specifications

Competitive Advantage

Direct Shaft-to-Sensor Output: 330180-X1-CN 3300 XL Proximitor Sensor integrates with 3300 XL probes eliminating extension cables, simplifying installation and reducing maintenance.

Extended Frequency Range: 330180-X1-CN 3300 XL Proximitor Sensor provides accurate output from 0–10 kHz over 305 meters, enabling high-speed automation systems.

Wide Temperature Operation: Operates reliably from -52°C to +100°C, allowing 330180-X1-CN 3300 XL Proximitor Sensor use in extreme industrial environments.

Hazardous Area Certification: CSA, ATEX, and IECEx approvals let 330180-X1-CN 3300 XL Proximitor Sensor be deployed safely in explosive or flammable zones.

Secure Probe Connection: Patented CableLoc and optional FluidLoc designs of 330180-X1-CN 3300 XL Proximitor Sensor ensure 330 N pull strength, preventing liquid ingress and connection loss.
