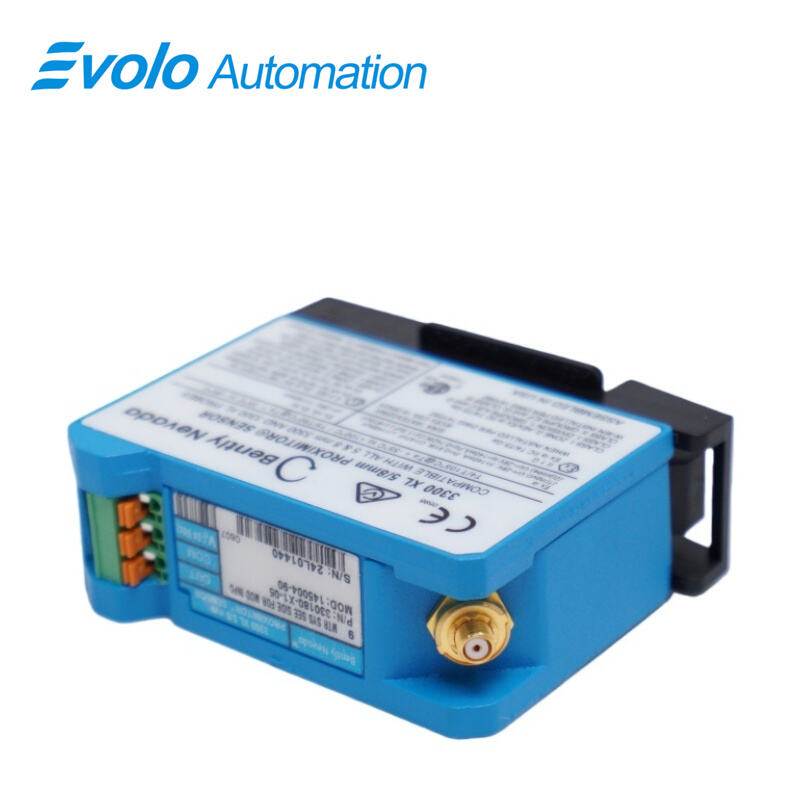

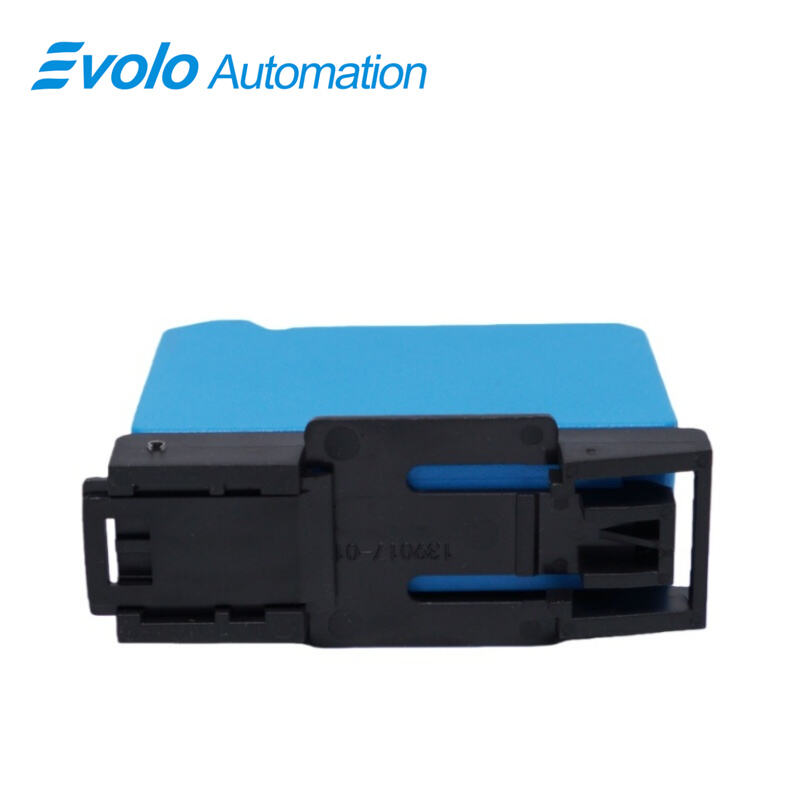

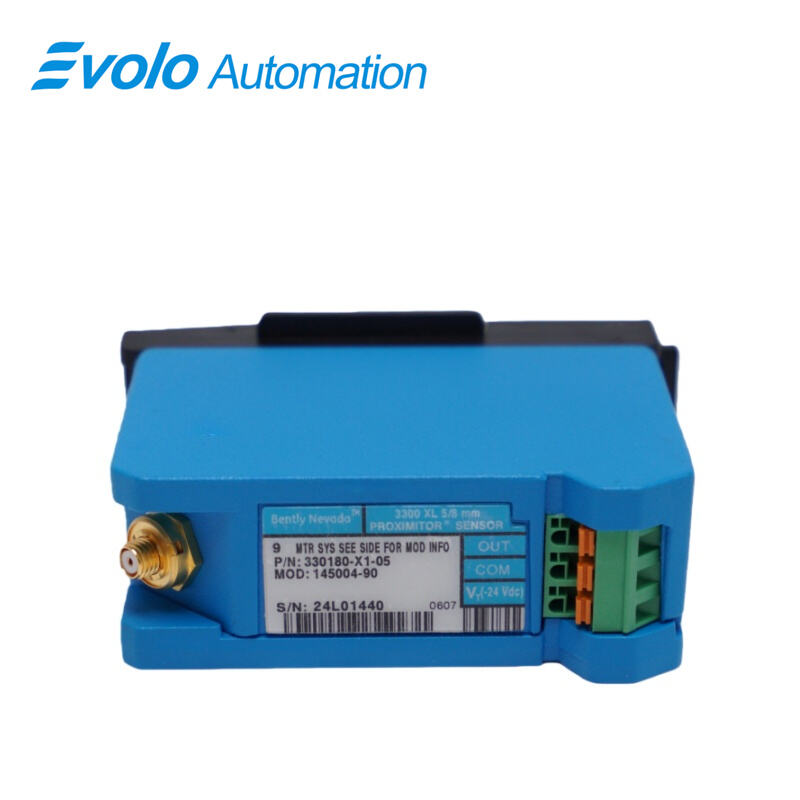

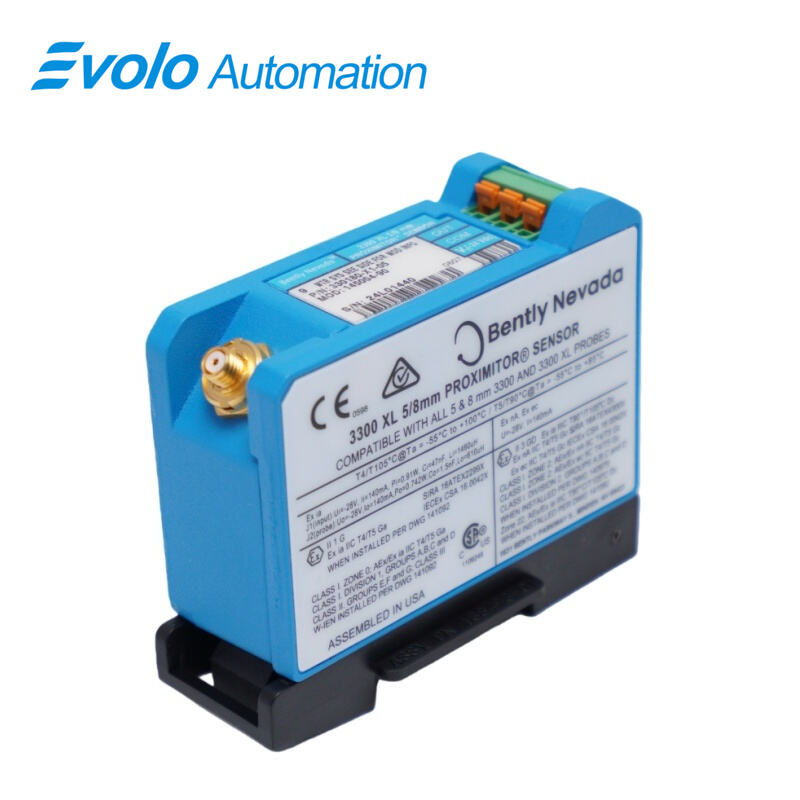

330180-X1-05 MOD:145004-90 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-05 MOD:145004-90
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330180-X1-05 MOD:145004-90 3300 XL Proximitor Sensor accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm Proximity Probe with extension cable, converting precise gap measurements into output signals. The 330180-X1-05 3300 XL Proximitor Sensor supports static (position) and dynamic (vibration) measurements with 50 Ω output resistance, frequency response up to 10 kHz, and field wiring up to 305 meters. Its aluminum A308 housing operates from -52°C to +100°C and stores from -52°C to +105°C. Power range is -17.5 Vdc to -26 Vdc, with supply sensitivity less than 2 mV per volt input. The 330180-X1-05 3300 XL Proximitor Sensor delivers output voltages of 0.0247, 0.0323, and 0.0348 Mil pp/Gauss at gaps of 10, 50, and 90 mils respectively, with a minimum target size of 15.2 mm. CSA, ATEX, and IECEx approvals allow safe integration into automated industrial systems. Patented TipLoc molding and CableLoc designs provide secure probe connections, while optional FluidLoc cables prevent fluid ingress, ensuring the 330180-X1-05 3300 XL Proximitor Sensor maintains accurate automated measurements without frequent maintenance.

Applications

Application – Vibration Monitoring on Rotating Machinery
Use the 330180-X1-05 3300 XL Proximitor Sensor to measure radial vibration on fluid-film bearing machines, detecting displacement changes with linear 2 mm range and output response up to 10 kHz. The long field wiring (up to 305 meters) allows installation across multiple machines without signal loss.

Application – Position Tracking in Turbine Shafts
Install the 330180-X1-05 3300 XL Proximitor Sensor to monitor shaft position dynamically. Its 50 Ω output resistance and voltage response ensure precise gap detection for Keyphasor reference and speed measurements.

Application – Automated Process Control Feedback
Integrate the 330180-X1-05 3300 XL Proximitor Sensor with PLC or DCS systems. The sensor outputs real-time displacement signals, enabling automated adjustments in pumps, compressors, or turbines.

Specifications

Competitive Advantage

Competitive Advantage – Direct Probe Connection
The 330180-X1-05 3300 XL Proximitor Sensor eliminates the need for separate Proximitor housings or extension cables between sensor and probe, simplifying installation and reducing wiring errors.

Competitive Advantage – Patented TipLoc and CableLoc Designs
Patented TipLoc molding and CableLoc attachment increase probe retention force up to 330 N, preventing probe detachment and ensuring accurate automated measurements over time.

Competitive Advantage – Optional FluidLoc Cable Protection
FluidLoc cable option prevents oil or fluid ingress, maintaining reliable sensor output in lubrication-intensive or high-temperature environments.

Competitive Advantage – Wide Temperature Operation and Approvals
With -52°C to +100°C operating range and CSA, ATEX, IECEx approvals, the 330180-X1-05 3300 XL Proximitor Sensor can be deployed safely in industrial automation environments, including hazardous areas.
