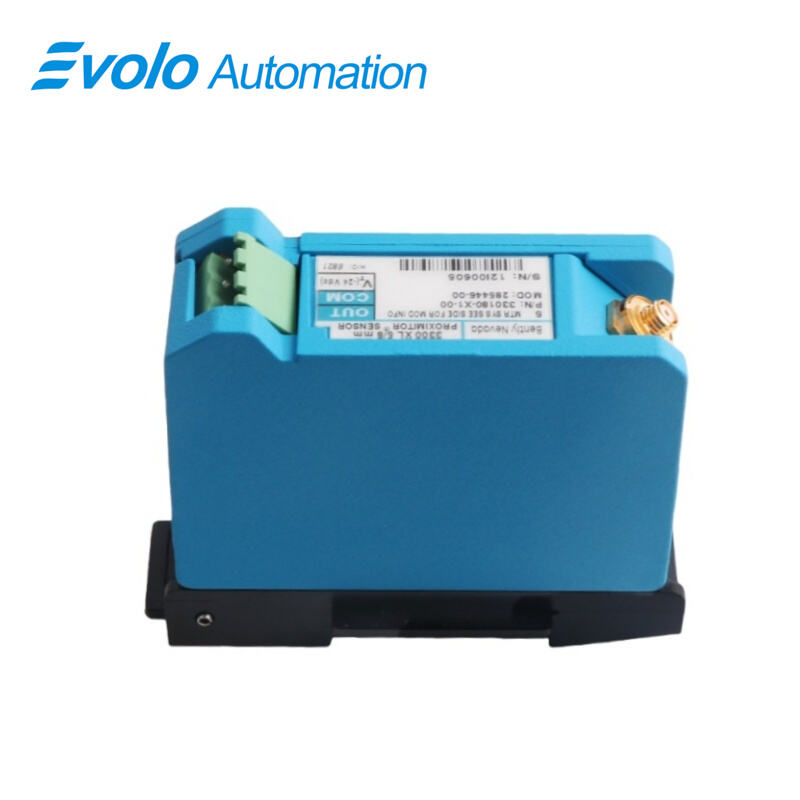

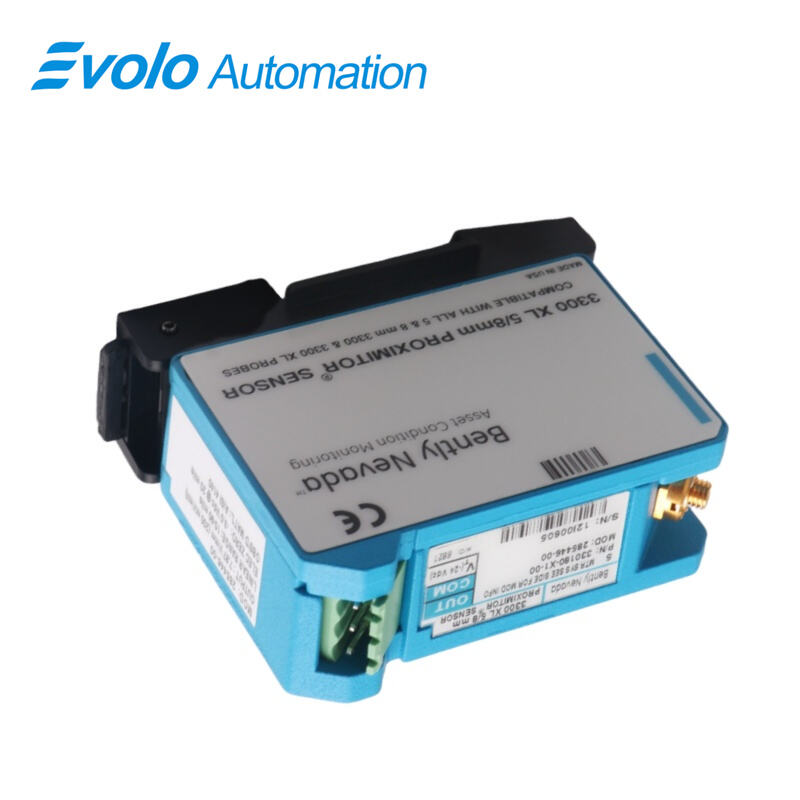

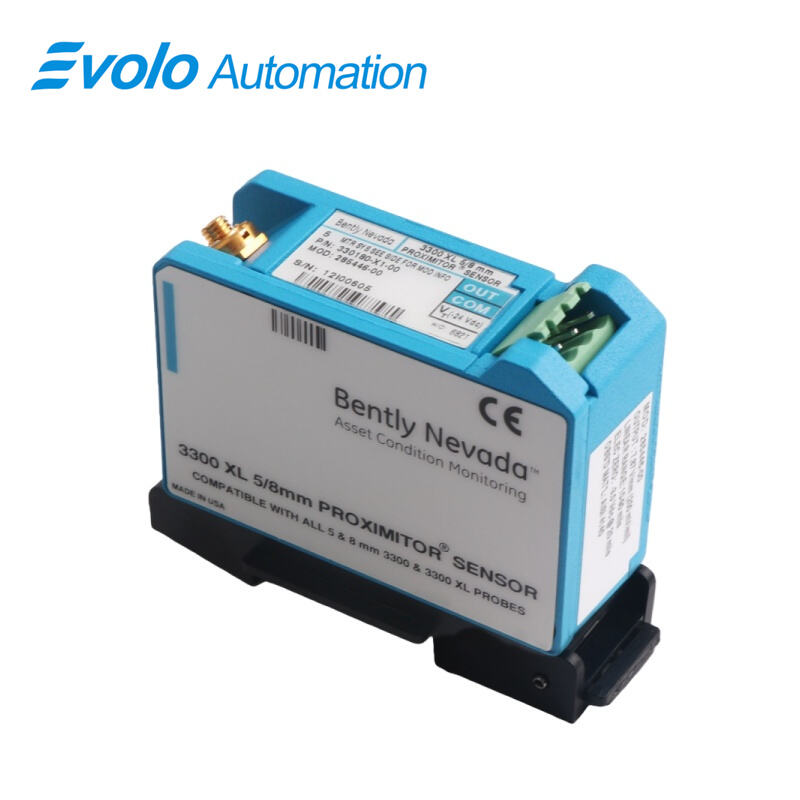

330180-X1-00 MOD: 145004-128 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-00 MOD: 145004-128
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-00 3300 XL Proximitor Sensor is a high-performance signal conditioning unit designed for advanced industrial automation and machinery protection systems. It accepts input from non-contacting 3300-series 5 mm and 3300 XL 8 mm proximity probes and their extension cables, converting displacement signals into precise electrical outputs suitable for control, monitoring, and diagnostic systems. The sensor operates over a wide temperature range from -52°C to +100°C, supports field wiring up to 305 meters (1000 feet), and maintains less than 2 mV variation per volt of supply voltage, ensuring stable, repeatable measurements. The Proximitor Sensor is housed in A308 aluminum, offering durability and corrosion resistance, and its compact design enables high-density DIN-rail installations or traditional panel mounting. Its RFI/EMI-hardened design ensures reliable operation even in electrically noisy industrial environments, satisfying CE requirements without additional shielding. With SpringLoc terminal strips, field wiring is simplified and robust, eliminating loosening issues typical of screw-type connections. This sensor is ideal for measuring static positions, radial vibration, axial vibration, and Keyphasor speed signals, making it a versatile solution for fluid-film bearing machines and other critical rotating equipment.

Applications

1. Fluid-Film Bearing Machines
Measures radial and axial vibration with a linear range up to 2 mm, providing critical data for predictive maintenance of pumps, compressors, and turbines.

2. Keyphasor Signal Generation
Provides high-fidelity phase reference signals for shaft speed monitoring and synchronization in automation and control systems, compatible with probes on shafts ≥15.2 mm diameter.

3. High-Density DIN-Rail Installations
Supports compact control panel designs, allowing consolidation of multiple sensors without interference or additional isolation hardware.

4. Long-Distance Signal Transmission
Maintains ±3 dB accuracy over 305 meters (1000 feet) of cabling, enabling flexible sensor placement in large industrial plants.

5. Harsh Industrial Environments
Operates reliably in wide temperature ranges and 100% condensing humidity, making it ideal for chemical, petrochemical, and power generation facilities.

Specifications

Competitive Advantage

1. Broad Probe Compatibility
Accepts both 3300-series 5 mm and 3300 XL 8 mm probes, ensuring flexibility and backward compatibility for retrofits and upgrades.

2. High Signal Stability
Supply sensitivity of <2 mV per volt and 50 Ω output resistance ensure accurate, low-noise measurements for precise machinery monitoring.

3. Enhanced EMI/RFI Immunity
Improved electromagnetic compatibility allows installation in fiberglass or non-metallic housings without signal degradation, reducing installation costs.

4. Flexible Mounting Options
Supports DIN-rail or panel mounting with a shared 4-hole footprint, allowing easy integration into existing control systems without redesign.

5. Simplified Field Wiring
SpringLoc terminal strips eliminate the need for special tools and prevent loose connections, enabling fast, robust, and maintenance-free installations.
