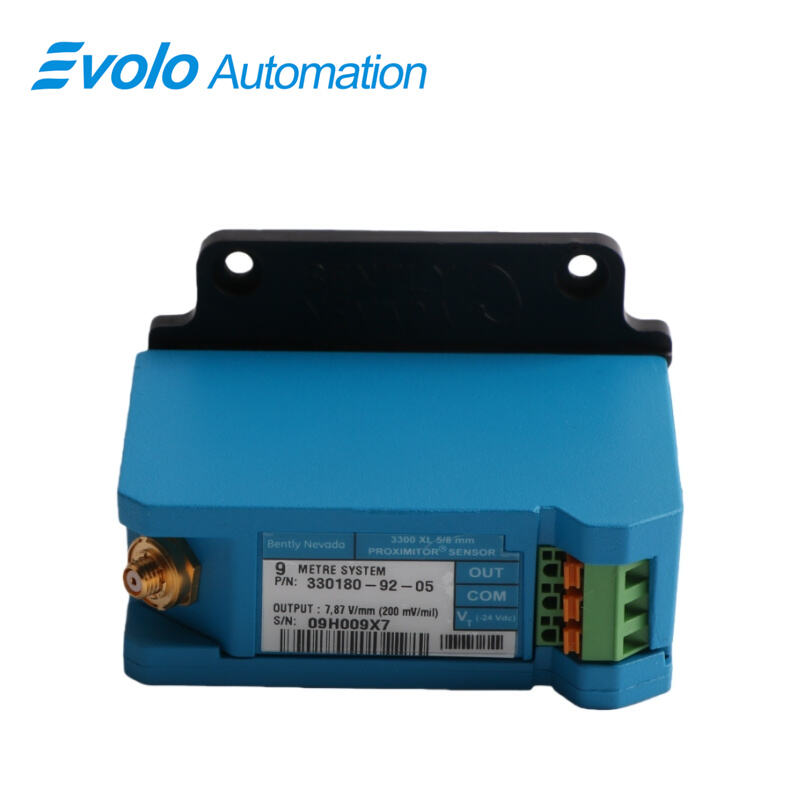

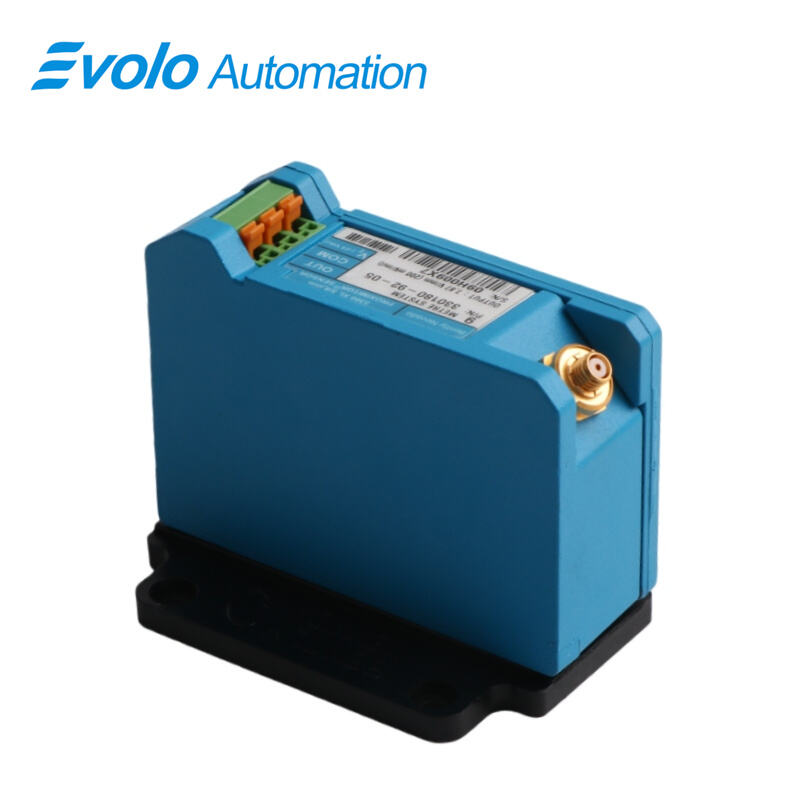

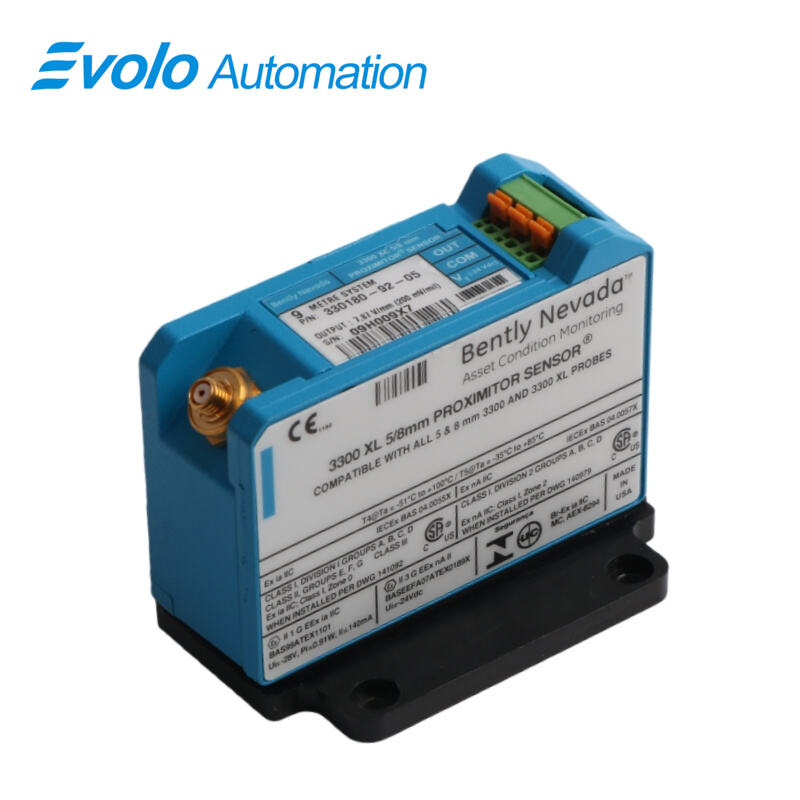

330180-92-05 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-92-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-92-05 3300 XL Proximitor Sensor accepts one 3300-series 5 mm or 3300 XL 8 mm Proximity Probe with extension cable, delivering accurate vibration and position signals for automated machinery. The 330180-92-05 3300 XL Proximitor Sensor supports a system length of 9.0 meters (29.5 feet), operates from -52°C to +100°C, and handles up to 305 meters (1000 feet) of field wiring with less than 2 mV supply sensitivity. Its A308 aluminum housing, IP-rated insulation, and CSA/ATEX/IECEx approvals protect the 330180-92-05 3300 XL Proximitor Sensor in industrial environments. With 50 Ω output resistance and frequency response up to 10 kHz, the 330180-92-05 3300 XL Proximitor Sensor provides reliable Keyphasor, tachometer, and displacement data for compressors, turbines, and automated control systems. DIN-rail and panel-mount options simplify installation, while SpringLoc terminals speed up wiring.

Applications

Connect to 3300-Series Proximity Probes
The 330180-92-05 3300 XL Proximitor Sensor accepts a 5 mm or 3300 XL 8 mm Proximity Probe with extension cable, enabling accurate automated measurement of vibration, radial position, and axial displacement on fluid-film bearing machines.

Monitor Rotating Machinery Signals
With 50 Ω output resistance and frequency response up to 10 kHz, the 330180-92-05 3300 XL Proximitor Sensor transmits Keyphasor, tachometer, and zero-speed signals to control systems for compressors, turbines, and motors.

Install in Tight or High-Density Panels
The 330180-92-05 3300 XL Proximitor Sensor supports DIN-rail or traditional 4-hole panel mount installation, with 9.0 meters (29.5 feet) system length, allowing placement in high-density automation cabinets or restricted machine spaces.

Operate Across Wide Temperature Ranges
Designed for -52°C to +100°C (-62°F to +212°F), the 330180-92-05 3300 XL Proximitor Sensor reliably delivers probe signals in harsh industrial environments, including refrigeration compressors and process gas turbines.

Simplify Field Wiring
SpringLoc terminals on the 330180-92-05 3300 XL Proximitor Sensor reduce installation time by eliminating screw-type clamps, facilitating fast and secure connections in automation systems.

Specifications

Competitive Advantage

Handle Long Cable Runs Accurately
The 330180-92-05 3300 XL Proximitor Sensor transmits precise signals over 305 meters (1000 feet) of field wiring with less than 2 mV change per volt, ensuring accurate vibration and position measurement for automated control.

Protect Equipment in Industrial Environments
The 330180-92-05 3300 XL Proximitor Sensor uses A308 aluminum housing and CSA/ATEX/IECEx approvals, guarding against dust, moisture, and electromagnetic interference, while supporting installation in fiberglass housings without affecting output.

Support High-Frequency Monitoring
With 0–10 kHz frequency response, the 330180-92-05 3300 XL Proximitor Sensor captures fast vibration and position changes, making it ideal for compressors, turbines, and high-speed rotating equipment in automation applications.

Enable Quick Installation
DIN-rail or panel-mount options and SpringLoc terminals on the 330180-92-05 3300 XL Proximitor Sensor allow technicians to mount and wire the sensor efficiently, reducing setup time in automated systems.
