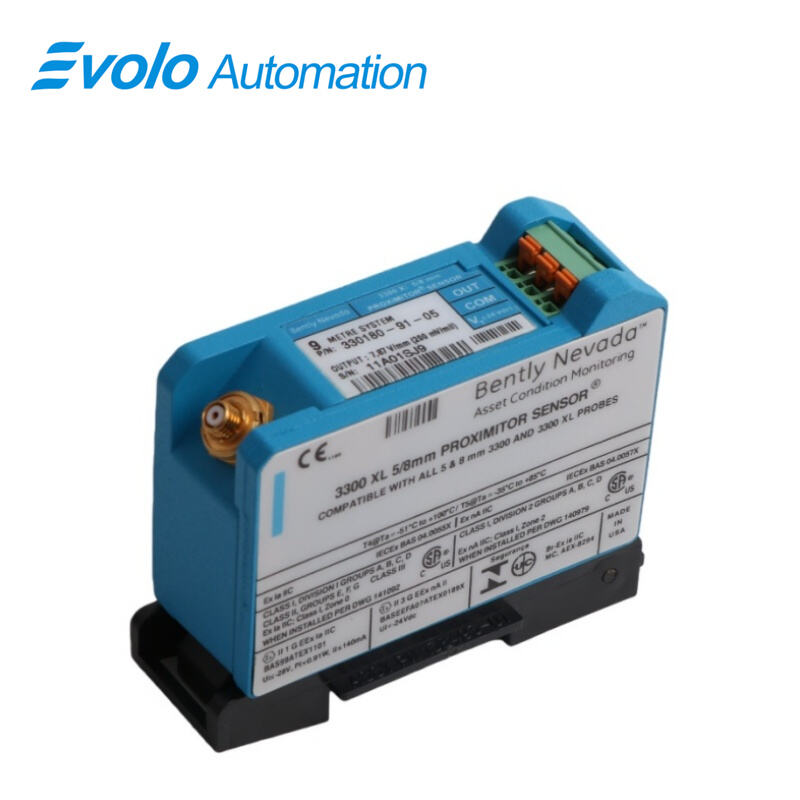

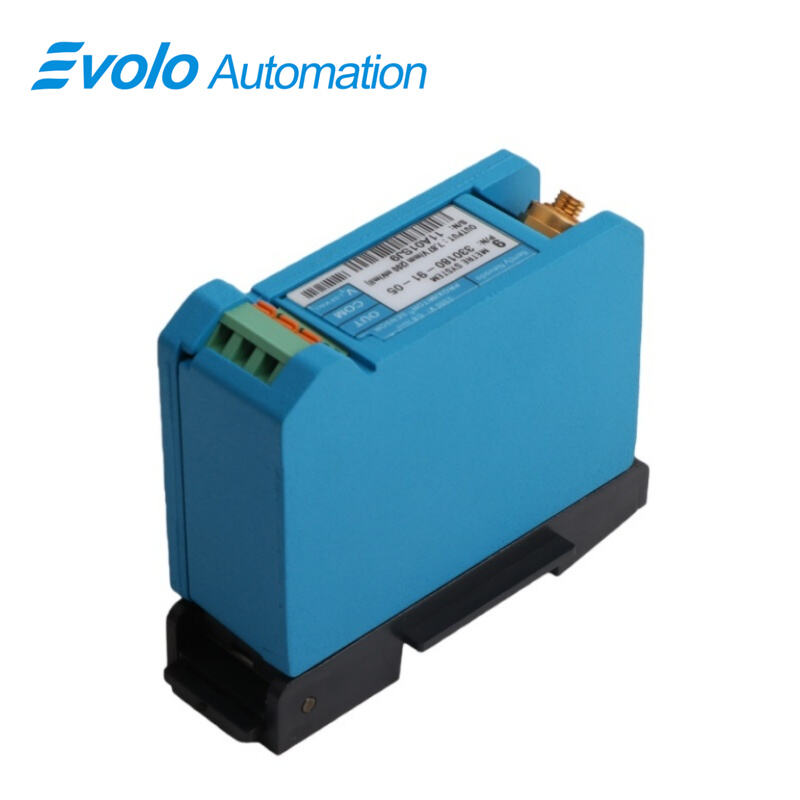

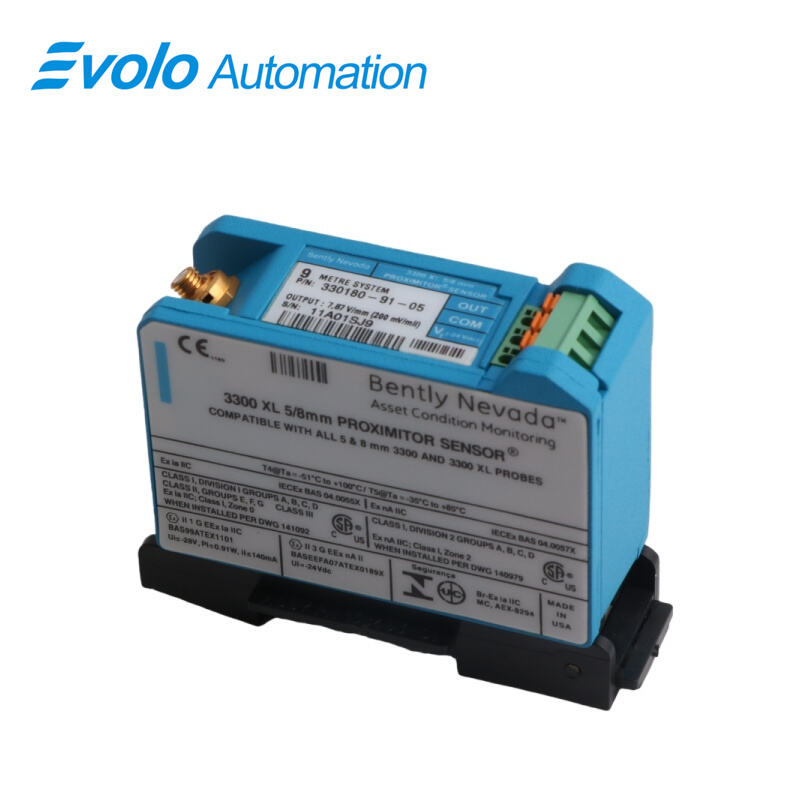

330180-91-05 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-91-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-91-05 3300 XL Proximitor Sensor is engineered for automation systems that require continuous non-contact signal conditioning for rotating machinery. The 330180-91-05 3300 XL Proximitor Sensor supports a 9.0-meter system length with DIN mounting, allowing direct installation inside high-density automation cabinets. Powered by -17.5 Vdc to -26 Vdc, the 330180-91-05 3300 XL Proximitor Sensor processes signals from 3300-series 5 mm and 3300 XL 8 mm proximity probes with a frequency response from 0 to 10 kHz, even when connected to field wiring lengths up to 305 meters. Its A308 aluminum housing supports operation from -52°C to +100°C, while a 50 Ω output resistance and supply sensitivity below 2 mV/V ensure accurate signal transfer to monitoring and control systems. CSA, ATEX, and IECEx approvals allow deployment in regulated industrial environments.

Applications

Shaft vibration monitoring in turbine automation systems
The 330180-91-05 3300 XL Proximitor Sensor is used in turbine automation to convert non-contact probe signals into proportional voltage outputs for shaft vibration measurement. With a frequency response of 0 to 10 kHz and a 50 Ω output resistance, the 330180-91-05 supports high-speed turbine shafts while maintaining signal integrity over up to 305 meters of field wiring.

Axial thrust position measurement in compressors
In centrifugal and axial compressors, the 330180-91-05 3300 XL Proximitor Sensor processes displacement signals from 3300 XL 8 mm probes to monitor axial shaft movement. The 330180-91-05 operates on -17.5 Vdc to -26 Vdc and detects small gap changes using a minimum target size of 15.2 mm, enabling precise thrust position tracking for automated protection logic.

Keyphasor reference and speed detection
The 330180-91-05 3300 XL Proximitor Sensor supports Keyphasor reference applications by conditioning probe inputs for accurate phase and speed signals. With supply sensitivity below 2 mV per volt, the 330180-91-05 ensures consistent output voltage levels required by vibration monitoring and rotational speed calculation modules.

Fluid-film bearing monitoring in pump automation
The 330180-91-05 3300 XL Proximitor Sensor is deployed in pump automation systems to monitor shaft position and dynamic motion within fluid-film bearings. Its A308 aluminum housing and operating temperature range from -52°C to +100°C allow the 330180-91-05 to function in demanding industrial environments, including oil and chemical processing facilities.

High-density control cabinet installations
Using DIN-rail mounting and a 9.0-meter system length, the 330180-91-05 3300 XL Proximitor Sensor fits compact automation cabinets where multiple vibration channels are required. The 330180-91-05 supports CSA, ATEX, and IECEx approved installations, enabling deployment in regulated automation and hazardous-area monitoring systems.

Specifications

Competitive Advantage

High-density cabinet installation with DIN mounting
The 330180-91-05 3300 XL Proximitor Sensor DIN-rail format reduces panel space usage while supporting 9-meter system configurations without signal degradation.

Wide temperature operation for harsh environments
Operating from -52°C to +100°C, the 330180-91-05 3300 XL Proximitor Sensor supports automation equipment exposed to extreme ambient and process conditions.

Long-distance signal transmission capability
The 330180-91-05 3300 XL Proximitor Sensor maintains a flat frequency response up to 10 kHz across 305 meters of field wiring, supporting remote monitoring layouts.

Certified use in hazardous industrial zones
With CSA, ATEX, and IECEx approvals, the 330180-91-05 3300 XL Proximitor Sensor can be deployed in oil, gas, and chemical automation systems without additional certification steps.
