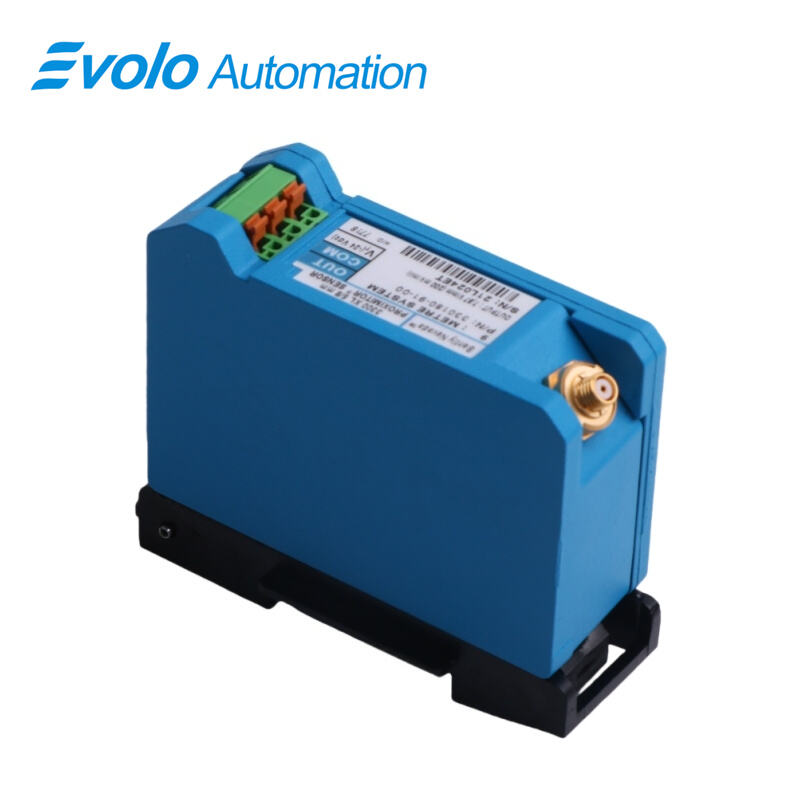

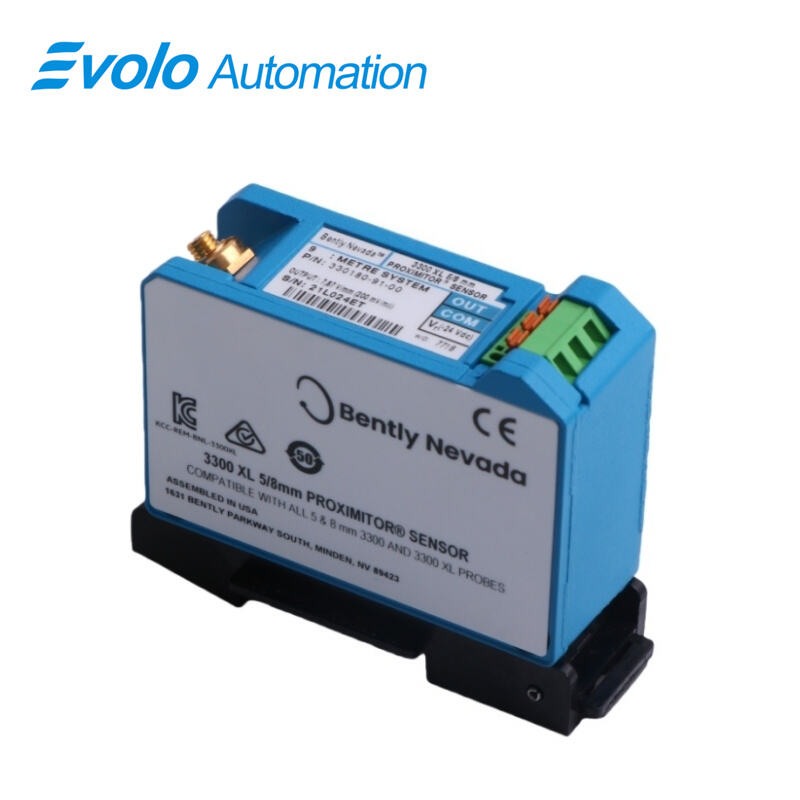

330180-91-00 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-91-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330180-91-00 3300 XL Proximitor Sensor is an eddy current measurement device designed for automation systems that require continuous shaft position and vibration monitoring. 330180-91-00 supports one non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe with extension cable and provides a calibrated 9.0-meter system length suitable for DIN-rail installation in compact control cabinets.

Powered by a −17.5 Vdc to −26 Vdc supply, 330180-91-00 delivers a low-noise output with 50 Ω resistance and supply sensitivity below 2 mV per volt, ensuring precise signal transmission to monitoring racks and PLC-based automation platforms. The sensor operates across a wide temperature range from −52°C to +100°C, allowing 330180-91-00 to function reliably in turbines, compressors, pumps, and motor-driven equipment.

With a frequency response of 0–10 kHz over field wiring up to 305 meters, 330180-91-00 supports both static position measurement and dynamic vibration analysis. Output scaling reaches 0.0247 to 0.0348 mV/mil pp/Gauss depending on probe gap, enabling accurate gap and motion detection. The A308 aluminum housing and DIN-mount design make 330180-91-00 well suited for industrial automation environments where space efficiency and repeatable measurement are required.

Applications

Shaft Radial Vibration Measurement on Rotating Machinery
The 330180-91-00 is used to measure shaft radial vibration on turbines, compressors, pumps, and large motors. By accepting a 3300 XL 8 mm proximity probe and operating with a 0–10 kHz frequency response, 330180-91-00 captures low-frequency shaft movement and high-frequency vibration generated by imbalance, misalignment, or mechanical looseness. The 9.0-meter system length allows direct integration into automation cabinets while maintaining signal accuracy over long field wiring distances up to 305 meters.

Axial Position Monitoring in Thrust Bearing Systems
In thrust bearing applications, 330180-91-00 converts probe-to-target distance into a proportional output voltage, enabling continuous axial position tracking. With output sensitivity values up to 0.0348 mV/mil pp/Gauss at larger probe gaps, 330180-91-00 supports precise detection of shaft movement toward thrust collars, helping automation systems trigger alarms or shutdown logic when axial limits are exceeded.

Rotor Speed and Phase Reference Signal Acquisition
When paired with a Keyphasor-style target, 330180-91-00 provides clean dynamic signals for speed calculation and phase reference. The low output resistance of 50 Ω and supply sensitivity below 2 mV/V ensure reliable signal delivery to monitoring racks, DCS, or PLC-based condition monitoring systems.

Operation in Harsh Temperature Industrial Zones
The 330180-91-00 operates across −52°C to +100°C, making it suitable for automation deployments in cold start-up environments and high-temperature process areas. The A308 aluminum housing supports long-term use in oil, gas, power generation, and petrochemical facilities where ambient conditions fluctuate significantly.

Specifications

Competitive Advantage

Supports Long Cable Runs Without Signal Loss
With a certified frequency response of 0–10 kHz over wiring lengths up to 305 meters, 330180-91-00 allows control rooms to be located far from rotating equipment. This reduces cabinet placement restrictions and simplifies automation system layout without degrading vibration signal quality.

Direct Voltage Output for PLC and Monitoring Rack Input
The 330180-91-00 delivers a linear voltage output directly proportional to probe gap, eliminating the need for external signal converters. This simplifies integration with machinery protection systems, vibration monitors, and automation controllers that require raw proximity data.

DIN-Rail Mounting for High-Density Control Panels
Designed for DIN mounting, 330180-91-00 fits easily into high-density automation cabinets. This mounting approach supports faster installation and organized wiring, especially in large-scale machinery monitoring projects with multiple proximity channels.

Wide Temperature Operating Range for Continuous Monitoring
The −52°C to +100°C operating range allows 330180-91-00 to remain active during startup, shutdown, and transient operating conditions. Automation systems using 330180-91-00 maintain continuous shaft monitoring without requiring seasonal sensor replacement or relocation.

Interoperable with 3300-Series Probes and Cables
The 330180-91-00 accepts both 3300-series 5 mm probes and 3300 XL 8 mm probes, allowing automation teams to reuse existing probe inventories. This reduces spare parts complexity while maintaining consistent measurement behavior across different machine assets.
