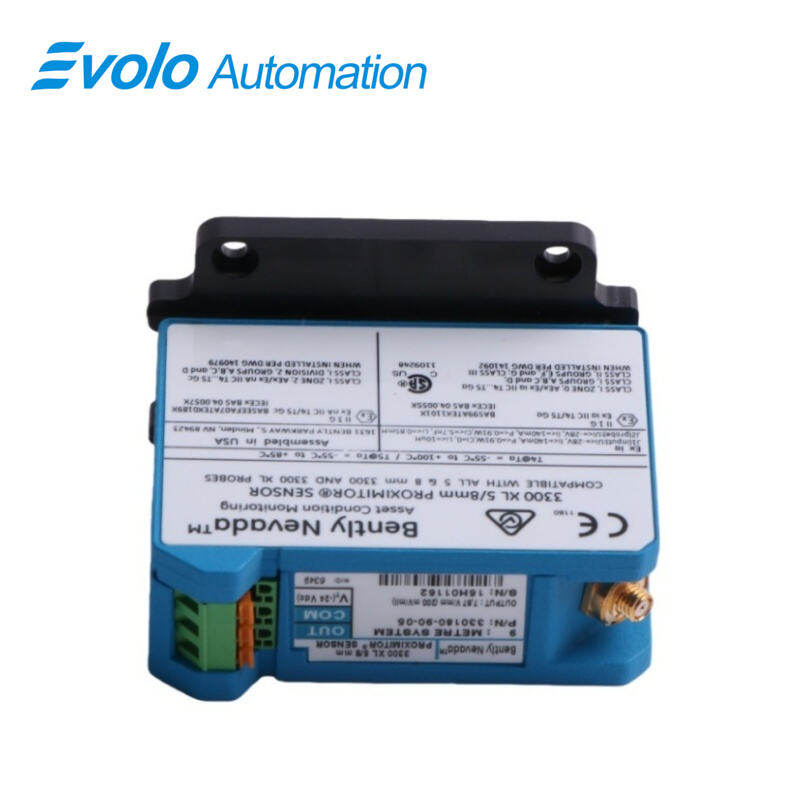

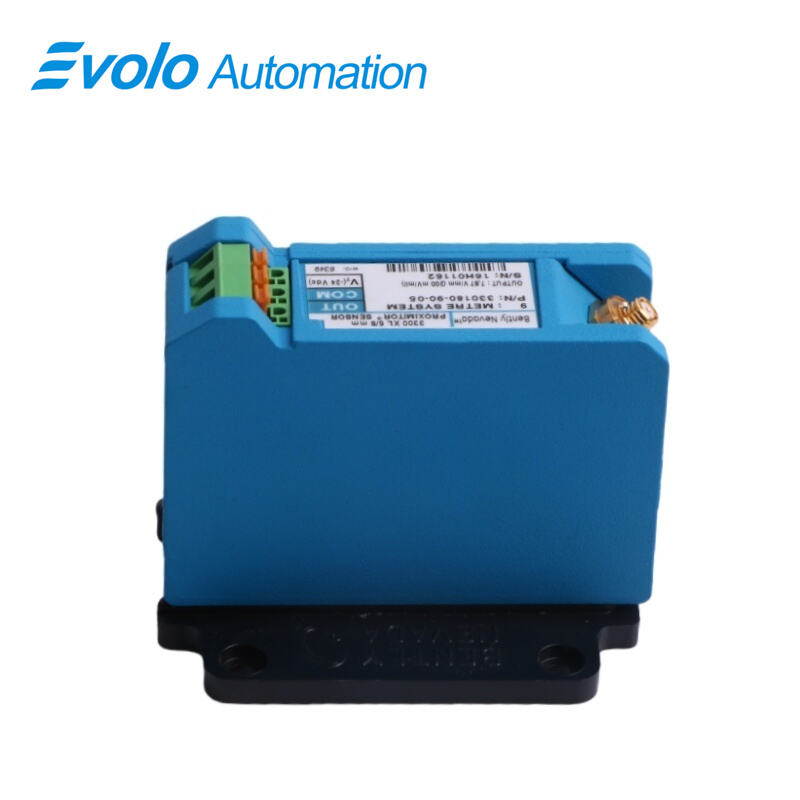

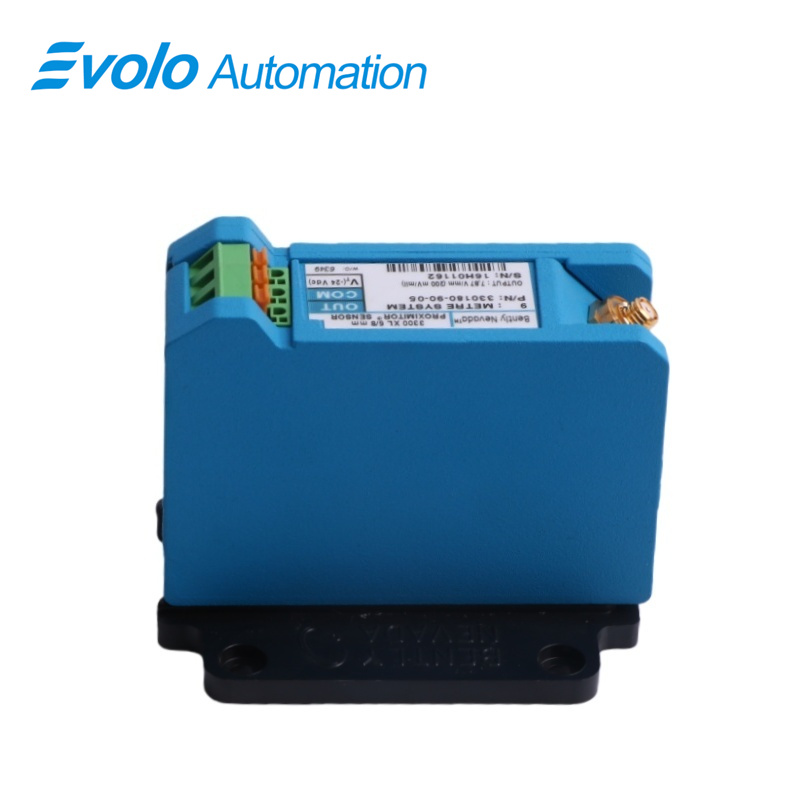

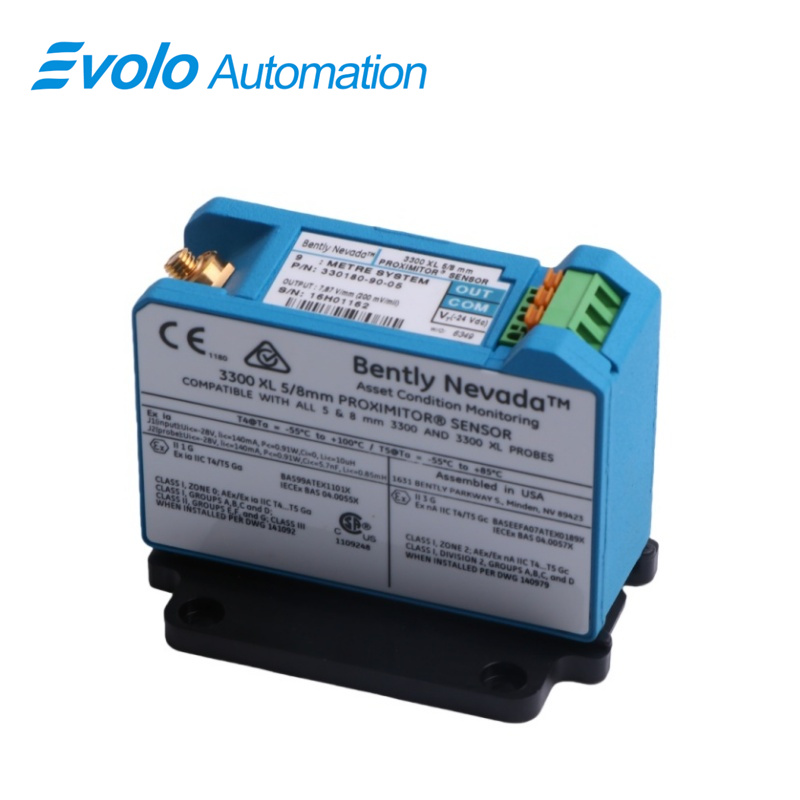

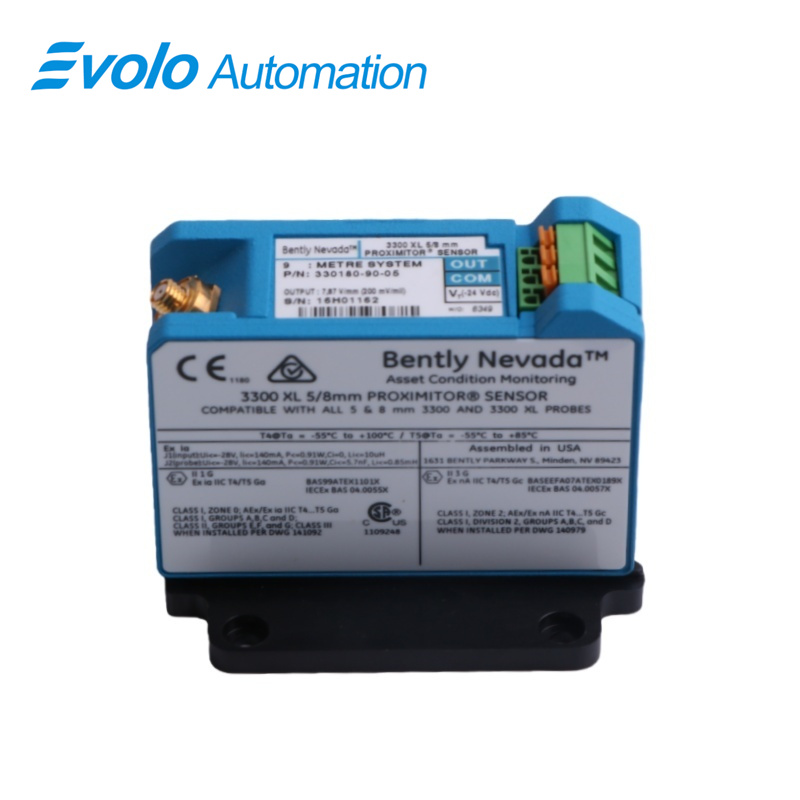

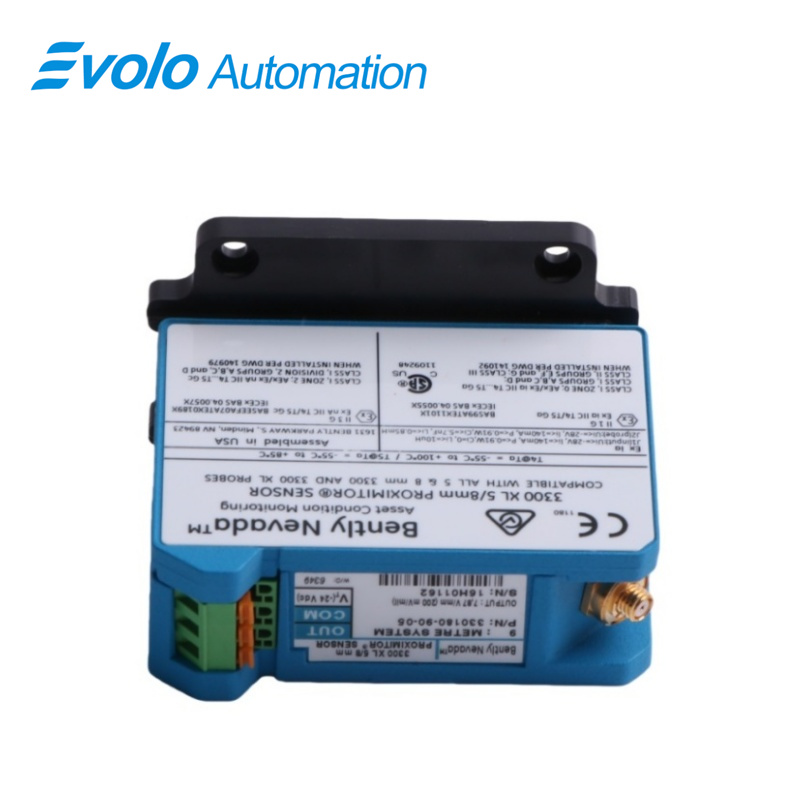

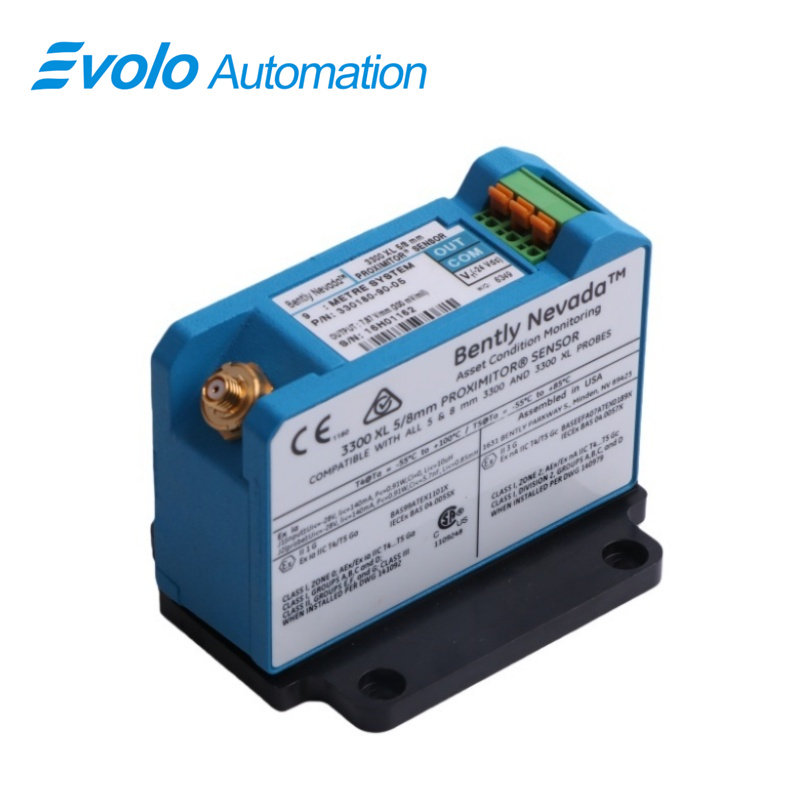

330180-90-05 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-90-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-90-05 3300 XL Proximitor Sensor is a panel-mount device designed for industrial automation systems. This sensor accepts one non-contacting 3300 XL 8 mm Proximity Probe and extension cable, supporting a system length of 9.0 meters (29.5 feet). The 330180-90-05 3300 XL Proximitor Sensor operates at -17.5 Vdc to -26 Vdc with 50 Ω output resistance and maintains accuracy from -52°C to +100°C (-62°F to +212°F). Its frequency response covers 0 to 10 kHz, supporting field wiring up to 305 meters (1000 feet). The 330180-90-05 3300 XL Proximitor Sensor measures static position and dynamic vibration on fluid-film bearings, turbines, and rotating machinery, providing output voltages of 0.0247–0.0348 Mil pp/Gauss depending on probe gap. With A308 aluminum housing and compliance with CSA, ATEX, IECEx, the 330180-90-05 3300 XL Proximitor Sensor integrates easily into panel or DIN-rail configurations, reducing installation complexity while ensuring high-fidelity signal transmission.

Applications

Monitor Shaft Vibration on Fluid-Film Bearings
The 330180-90-05 3300 XL Proximitor Sensor works with 3300 XL 8 mm Proximity Probes to measure dynamic vibration with a linear range of 2 mm (80 mils) and frequency response up to 10 kHz, enabling accurate monitoring of fluid-film bearing machinery.

Measure Rotating Machinery Position
Using the 330180-90-05 3300 XL Proximitor Sensor with a 9.0-meter (29.5 feet) panel-mounted system, operators can detect shaft displacement and position changes precisely, supporting automation control in turbines and compressors.

Capture Keyphasor and Speed Signals
The 330180-90-05 3300 XL Proximitor Sensor provides output voltages of 0.0247–0.0348 Mil pp/Gauss depending on probe gap, allowing real-time Keyphasor reference and speed measurements for rotating machinery monitoring.

Long-Distance Signal Transmission
With the ability to maintain accurate signal over 305 meters (1000 feet) of field wiring, the 330180-90-05 3300 XL Proximitor Sensor ensures reliable data collection in large-scale automation installations.

Specifications

Competitive Advantage

High-Fidelity Output with Low Supply Sensitivity
The 330180-90-05 3300 XL Proximitor Sensor exhibits less than 2 mV output change per volt input change, maintaining precise signal measurement even under fluctuating supply voltages.

Panel and DIN-Rail Mount Flexibility
The 330180-90-05 3300 XL Proximitor Sensor can be mounted on a panel or high-density DIN-rail, using a 4-hole footprint identical to older Proximitor designs, reducing installation time and footprint.

Robust Signal Transmission
Using A308 aluminum housing and improved RFI/EMI protection, the 330180-90-05 3300 XL Proximitor Sensor delivers interference-free output in fiberglass or metallic housings without additional shielding.

Simplified Field Wiring
The 330180-90-05 3300 XL Proximitor Sensor features SpringLoc terminal strips, eliminating screw-type clamps and enabling faster, secure field wiring for automation systems.

Compatibility with 3300 Series Probes
The 330180-90-05 3300 XL Proximitor Sensor accepts 3300 XL 8 mm Proximity Probes and extension cables, supporting interchangeability with 5 mm and 8 mm 3300 series probes for flexible deployment in tight spaces.
