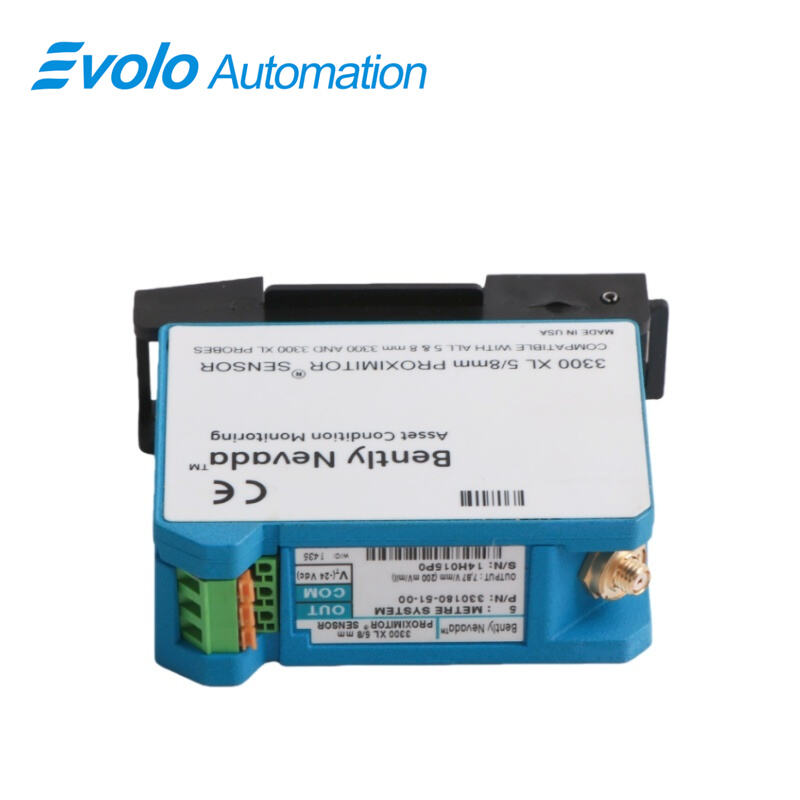

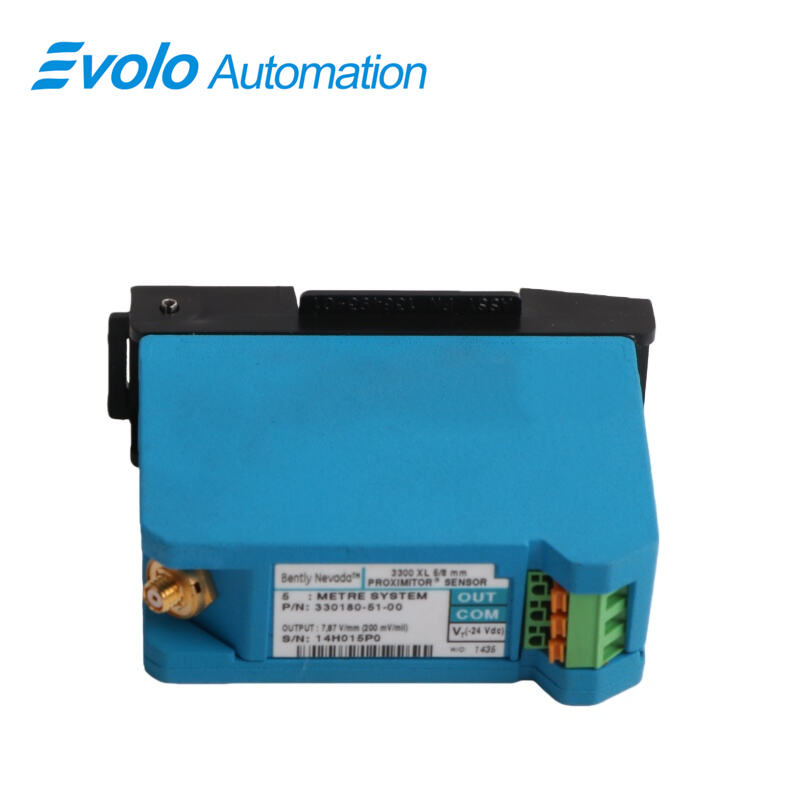

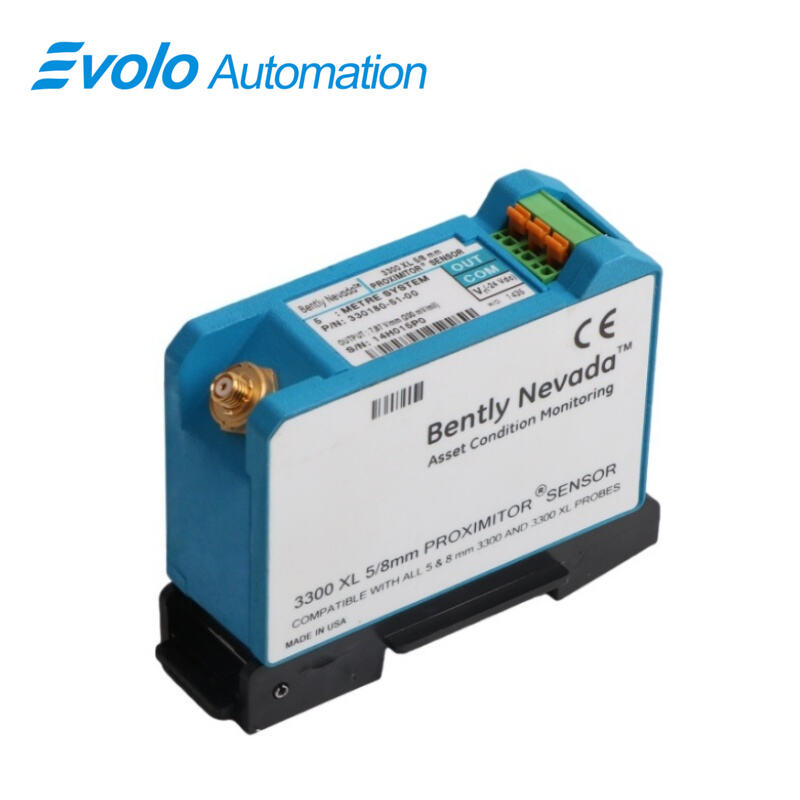

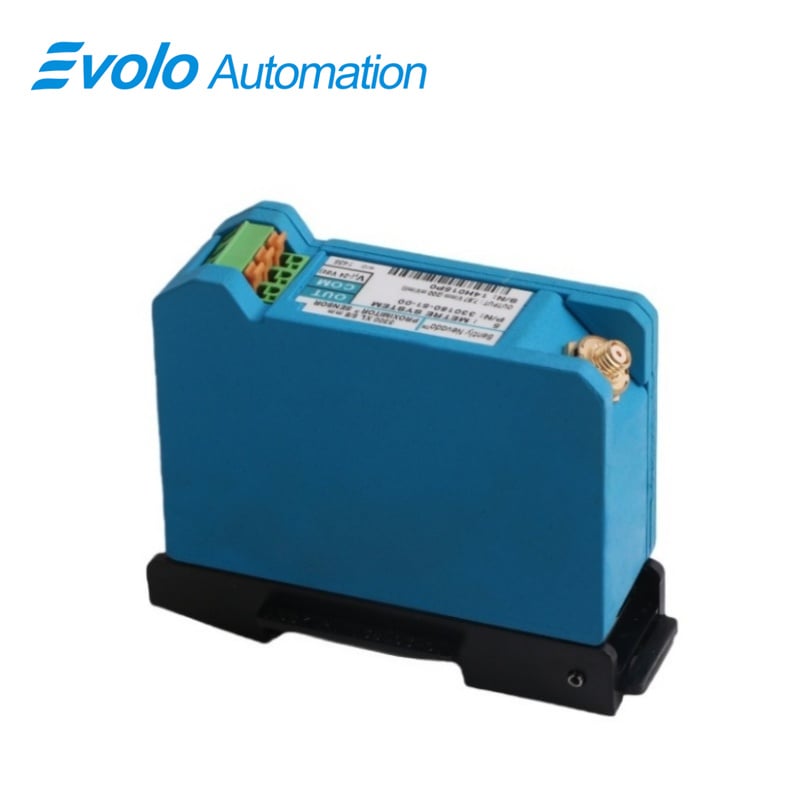

330180-51-CN 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-51-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-51-CN 3300 XL Proximitor Sensor supports a 5.0-meter system length with DIN mount and accepts one 3300-series 5 mm or 3300 XL 8 mm Proximity Probe and Extension Cable. Certified with CSA, ATEX, and IECEx approvals, the 330180-51-CN 3300 XL Proximitor Sensor operates at -17.5 Vdc to -26 Vdc and features A308 aluminum housing with 50 Ω output resistance and supply sensitivity under 2 mV per volt. Operating temperatures range from -52°C to +100°C, and storage is rated up to +105°C. The sensor delivers frequency response from 0 to 10 kHz across up to 305 meters of field wiring and detects flat targets as small as 15.2 mm diameter. Output voltage varies from 0.0247 to 0.0348 Mil pp/Gauss depending on probe gap. Designed for automation, the 330180-51-CN 3300 XL Proximitor Sensor provides precise vibration and shaft position measurements on fluid-film bearing machines, supports Keyphasor reference signals, and enables speed monitoring. Its SpringLoc terminals allow fast, tool-free wiring, and high RFI/EMI immunity allows installation in fiberglass or non-metallic housings without shielded conduits.

Applications

Measure Shaft Vibration in Fluid-Film Bearings
The 330180-51-CN 3300 XL Proximitor Sensor monitors shaft vibration using 3300 XL 8 mm probes with frequency response up to 10 kHz and outputs from 0.0247 to 0.0348 Mil pp/Gauss depending on probe gap, providing precise signals for pumps, turbines, and compressors.

Track Shaft Position and Motion
With a 5.0-meter system length and DIN mount, the 330180-51-CN 3300 XL Proximitor Sensor measures static and dynamic shaft displacement, supplying Keyphasor reference signals for speed and timing control in automation systems.

Install in High-Density DIN-Rail Panels
The 330180-51-CN 3300 XL Proximitor Sensor uses A308 aluminum housing and a compact footprint, allowing quick installation in crowded control panels without additional isolator plates.

Operate Across Wide Temperature Ranges
Rated for -52°C to +100°C operating and -52°C to +105°C storage, the 330180-51-CN 3300 XL Proximitor Sensor can function in extreme industrial environments.

Specifications

Competitive Advantage

Tool-Free SpringLoc Wiring
SpringLoc terminal strips on the 330180-51-CN 3300 XL Proximitor Sensor enable fast, secure field wiring without special tools.

Long-Distance Signal Transmission
Supports up to 305 meters of field wiring while maintaining less than 2 mV change per volt input, allowing centralized monitoring from control rooms.

Detect Small Targets
The 330180-51-CN 3300 XL Proximitor Sensor can detect flat targets as small as 15.2 mm diameter, suitable for compact or precision machinery.

Install Without Shielded Conduits
High RFI/EMI immunity allows the 330180-51-CN 3300 XL Proximitor Sensor to operate in fiberglass or non-metallic housings without special shielding, reducing installation effort and cost.
