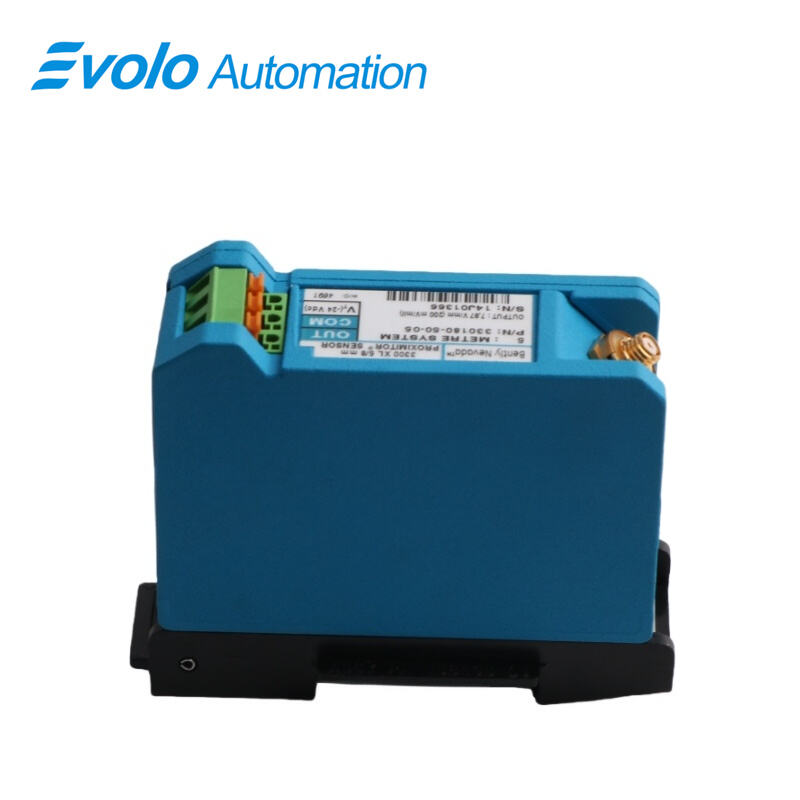

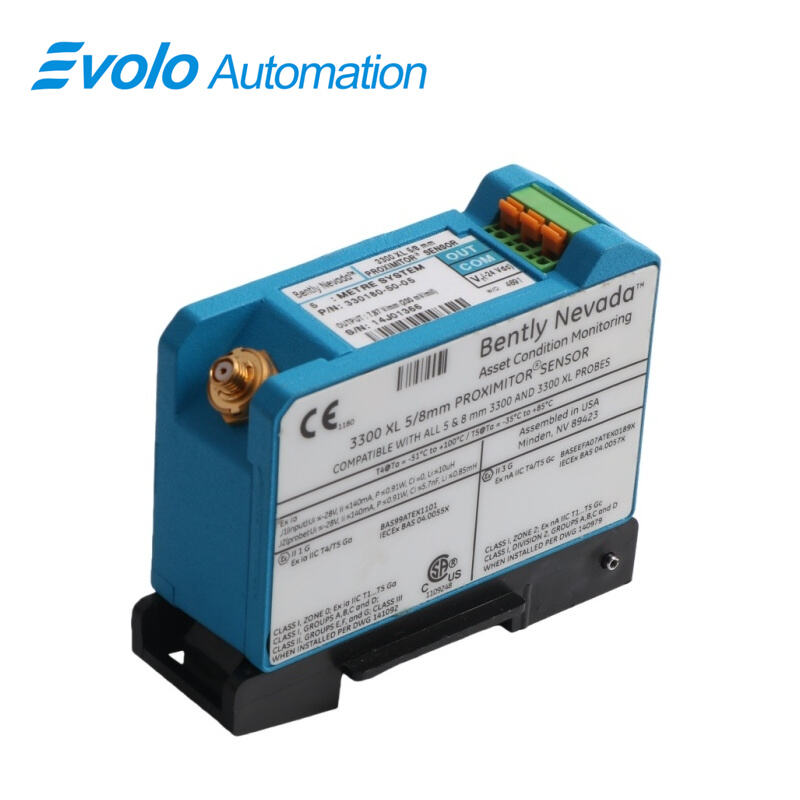

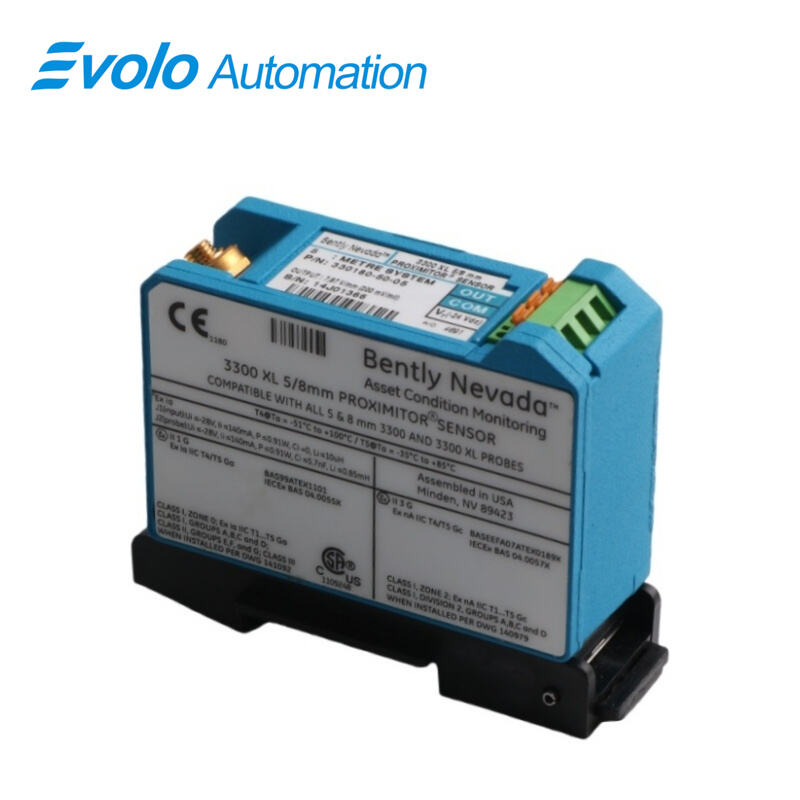

330180-50-05 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-50-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330180-50-05 3300 XL Proximitor Sensor is a high-performance signal conditioning device designed for industrial automation and machinery monitoring in fluid-film bearing machines. The 330180-50-05 accepts a single non-contacting 3300-series 5 mm or 3300 XL 8 mm Proximity Probe and extension cable, converting displacement signals into a stable voltage output for vibration, axial position, Keyphasor reference, and speed measurements. With a 5.0 meter system length, 50 Ω output resistance, supply sensitivity below 2 mV/V, and operating temperatures from -52°C to +100°C, the 330180-50-05 ensures precise signal processing even in harsh industrial environments. Constructed with A308 aluminum and carrying CSA, ATEX, and IECEx approvals, the 330180-50-05 supports long field wiring up to 305 meters with minimal signal loss and superior frequency response up to 10 kHz. Its compact panel mount design and improved RFI/EMI immunity make the 330180-50-05 ideal for high-density DIN-rail installations or traditional panels, simplifying integration into modern automated machinery control systems.

Applications

Vibration Monitoring in Fluid-Film Bearing Machines
330180-50-05 is used to monitor shaft vibration in turbines, compressors, and pumps. Paired with a 3300 XL 8 mm Proximity Probe, the 330180-50-05 converts displacement into voltage signals with a 50 Ω output resistance and supply sensitivity below 2 mV/V, enabling accurate vibration measurements for automated condition monitoring.

Axial Position and Thrust Measurement
For axial position monitoring, 330180-50-05 processes signals from probes installed on flat targets as small as 15.2 mm. Its operating temperature range of -52°C to +100°C ensures reliable position feedback even in harsh industrial environments, supporting automated thrust control.

Speed and Keyphasor Reference
330180-50-05 is applied in speed detection and Keyphasor applications. The 5.0 meter system length and frequency response up to 10 kHz allow 330180-50-05 to transmit accurate rotational speed and phase reference data over long field wiring distances, facilitating automated control and protection functions.

Specifications

Competitive Advantage

Wide Compatibility with 3300-Series Probes
The 330180-50-05 accepts both 5 mm and 8 mm 3300 XL probes, allowing seamless integration into existing automation systems and eliminating the need for probe recalibration or component replacement.

High Signal Integrity for Automated Control
With a 50 Ω output resistance, supply sensitivity below 2 mV/V, and support for field wiring up to 305 meters, 330180-50-05 maintains stable, high-quality signals for precise vibration and position monitoring in automated systems.

Compact Panel Mount and DIN-Rail Options
The 330180-50-05 offers flexible installation with panel mount or high-density DIN-rail options, improving integration into automation panels while reducing footprint and installation complexity.

Enhanced EMI/RFI Immunity
330180-50-05 is designed to resist electromagnetic and radio frequency interference, ensuring reliable operation in industrial environments with high electrical noise, which supports uninterrupted automated monitoring and control.
