330130-85-00-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-85-00-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

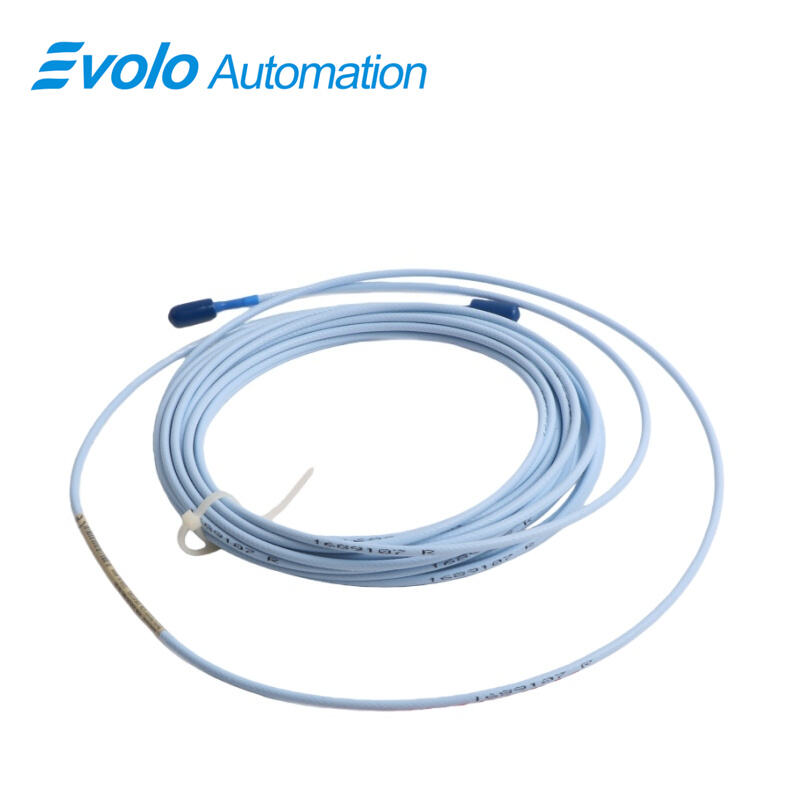

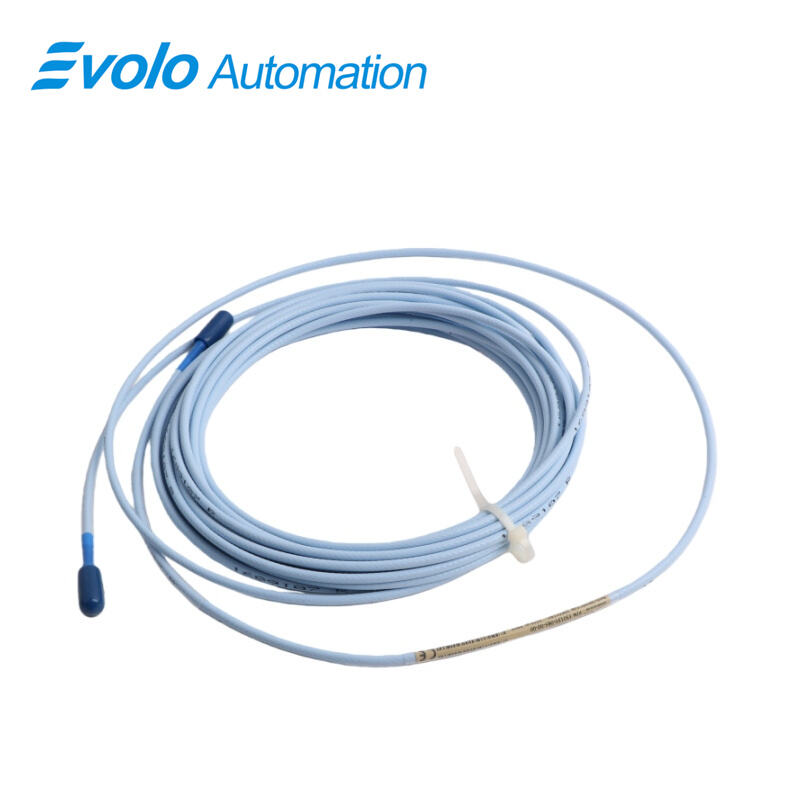

The 330130-85-00-00 3300 XL Standard Extension Cable provides an 8.5-meter (27.9 ft) connection for 3300 XL proximity transducer systems, ensuring accurate transmission of voltage signals proportional to probe displacement. Constructed from 75 Ω triaxial FEP-insulated cable, the 330130-85-00-00 3300 XL Standard Extension Cable maintains 69.9 pF/m (21.3 pF/ft) capacitance, supporting dynamic vibration and position measurements in automated fluid-film bearing machines. The cable accepts field wiring from 0.2 to 1.5 mm² (16–24 AWG) and operates from -52°C to +177°C (-62°F to +350°F), matching the performance range of 3300 XL 8 mm probes. Optional connector protectors safeguard signal integrity in moist or industrial environments. Compatible with all 3300 XL probes and Proximitor sensors, the 330130-85-00-00 3300 XL Standard Extension Cable enables system interchangeability without recalibration. The cable also integrates the patented CableLoc design, providing 330 N (75 lbf) pull strength for secure probe attachment, and supports optional FluidLoc configurations to prevent fluid ingress, ensuring uninterrupted automation monitoring and reliable Keyphasor and speed signal transmission.

Applications

Extend probe placement in large machines: Use 330130-85-00-00 3300 XL Standard Extension Cable to connect probes over 8.5 meters for centrifugal compressors and turbines.

Measure shaft vibration and displacement: Transmit voltage proportional to probe tip movement in fluid-film bearing systems using the 330130-85-00-00 3300 XL Standard Extension Cable.

Enable Keyphasor and speed detection: Transfer phase reference signals from 3300 XL probes for rotor speed monitoring.

Automated fluid leak monitoring: Use optional FluidLoc and connector protectors on 330130-85-00-00 3300 XL Standard Extension Cable to prevent oil or coolant from entering the cable.

Specifications

Competitive Advantage

Long-distance signal transmission: 8.5-meter length maintains signal fidelity with 69.9 pF/m capacitance for precise automation feedback.

Industrial temperature handling: Operates between -52°C and +177°C, allowing installation in extreme environments.

Secure probe connection: Patented CableLoc design provides 330 N (75 lbf) pull strength, ensuring 330130-85-00-00 3300 XL Standard Extension Cable remains attached under mechanical stress.

Plug-and-play integration: Fully compatible with all 3300 XL probes and Proximitor sensors, eliminating recalibration and reducing setup time.

Fluid protection: Optional FluidLoc configuration prevents leaks, protecting signals and automation equipment in wet or oily conditions.
