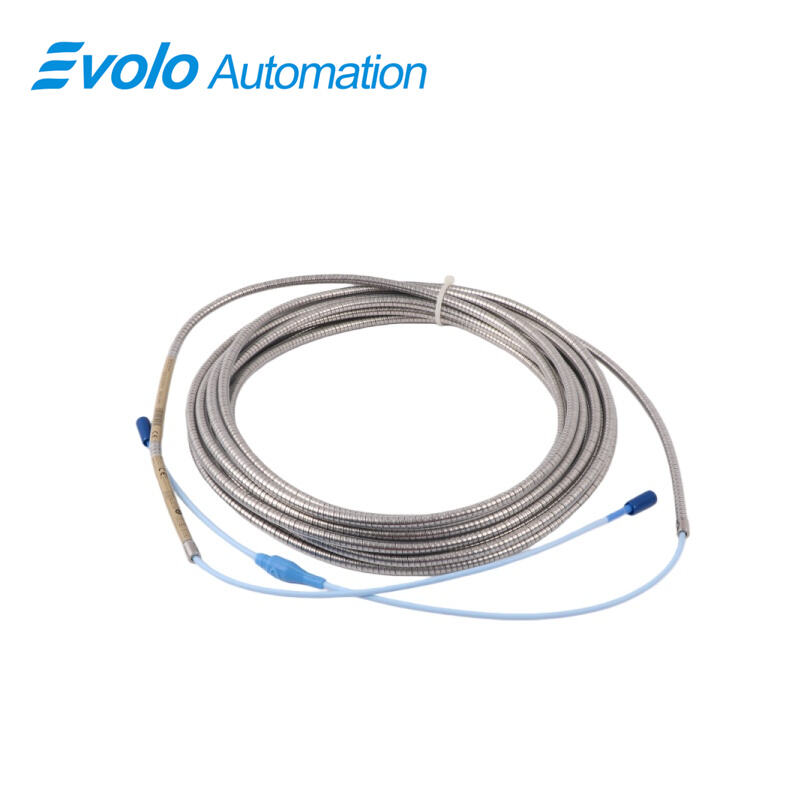

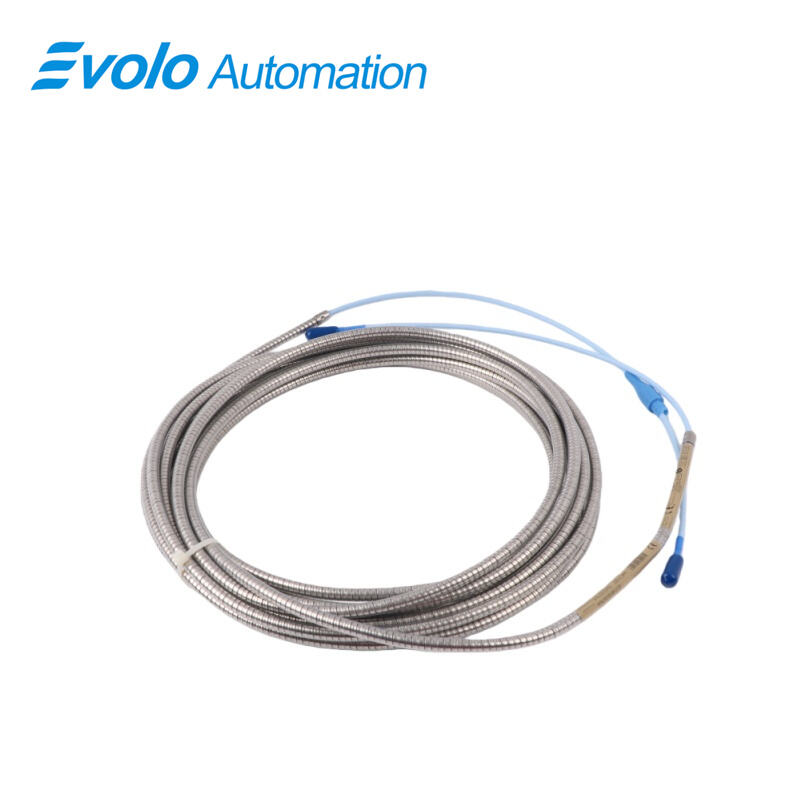

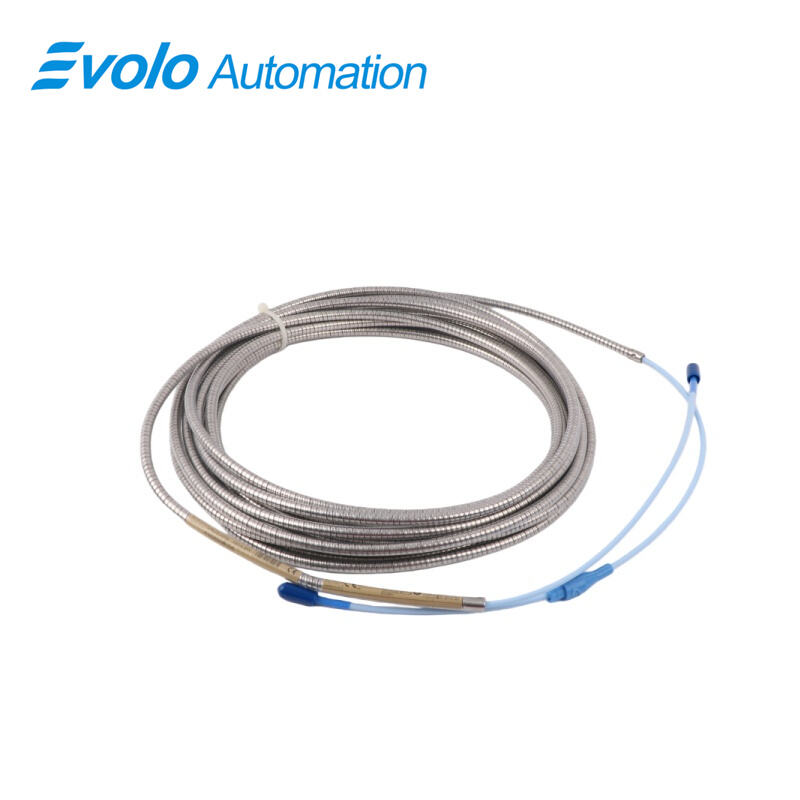

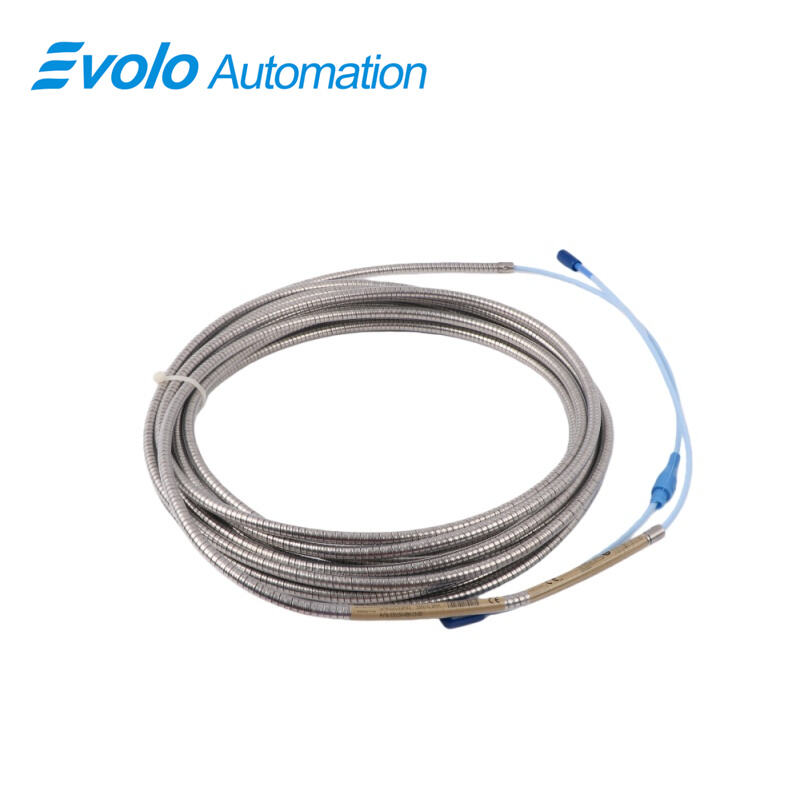

330130-130-02-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-130-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-130-02-05 3300 XL Standard Extension Cable is designed for industrial automation and condition monitoring systems, providing reliable connectivity between 3300 XL proximity probes and Proximitor sensors. The cable ensures accurate signal transmission for both static position and dynamic vibration measurements. With a length of 3.0 meters (9.8 feet), a 75 Ω triaxial FEP-insulated design, and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330130-130-02-05 cable guarantees precision and stability in automated machinery monitoring. Certified to CSA, ATEX, and IECEx standards, this extension cable is suitable for global industrial automation environments, operating reliably across −52°C to +177°C (−62°F to +350°F).

Applications

Fluid-Film Bearing Monitoring: Connect 3300 XL 8 mm probes to Proximitor sensors for precise axial and radial vibration measurements with a linear range of 2 mm (80 mils).

Turbine Shaft Positioning: The 3.0-meter length and low capacitance ensure accurate Keyphasor signals and speed measurements for steam and gas turbines.

Reciprocating Compressor Rod Monitoring: Supports field wiring from 0.2 to 1.5 mm² (16–24 AWG), allowing robust integration in automated reciprocating machinery monitoring systems.

Rotating Machinery Automation: Maintains signal integrity in fully automated plant environments using miniature coaxial ClickLoc connectors with connector protectors to prevent loose connections and contamination.

API 670 Compliance Systems: Works seamlessly with 3300 XL 8 mm proximity probes for automated compliance with mechanical configuration, linear range, and temperature stability standards.

Specifications

Competitive Advantage

High Environmental Resistance: Operates reliably in extreme conditions (−52°C to +177°C) for automated process control and predictive maintenance applications.

Low Signal Capacitance: 69.9 pF/m (21.3 pF/ft) ensures minimal signal distortion, enhancing precision in vibration and position monitoring.

Strong Mechanical Reliability: Patented CableLoc design provides 330 N (75 lbf) pull strength, securing probe-to-cable connections in automated systems.

Universal Compatibility: Fully interchangeable with 3300 XL probes and Proximitor sensors, eliminating the need for system recalibration or component-specific matching.

Connector Protection: Optional connector protectors provide additional environmental shielding for automated installations exposed to moisture, oil, or dust.
