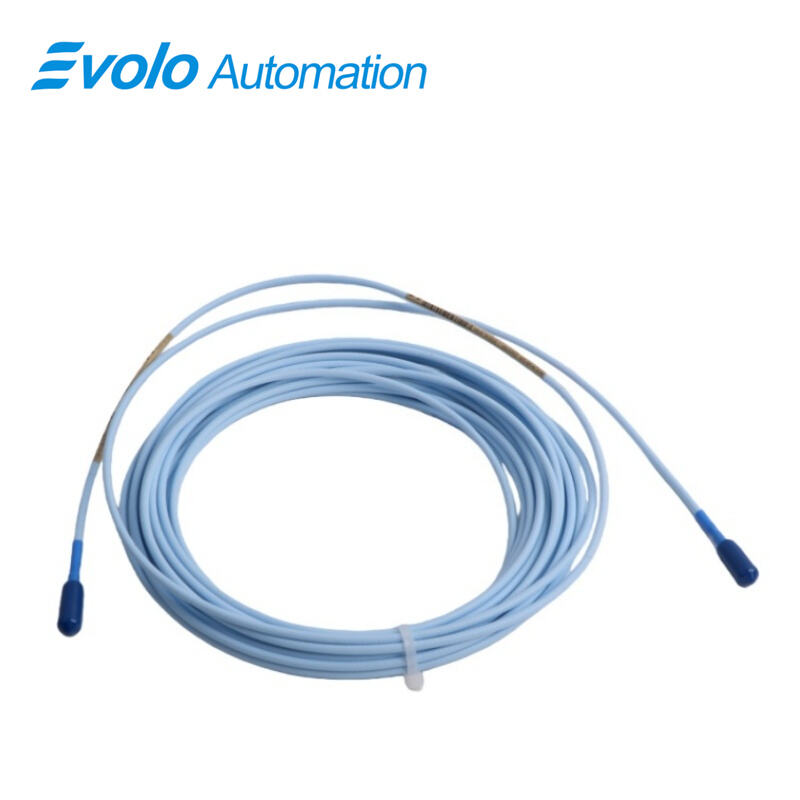

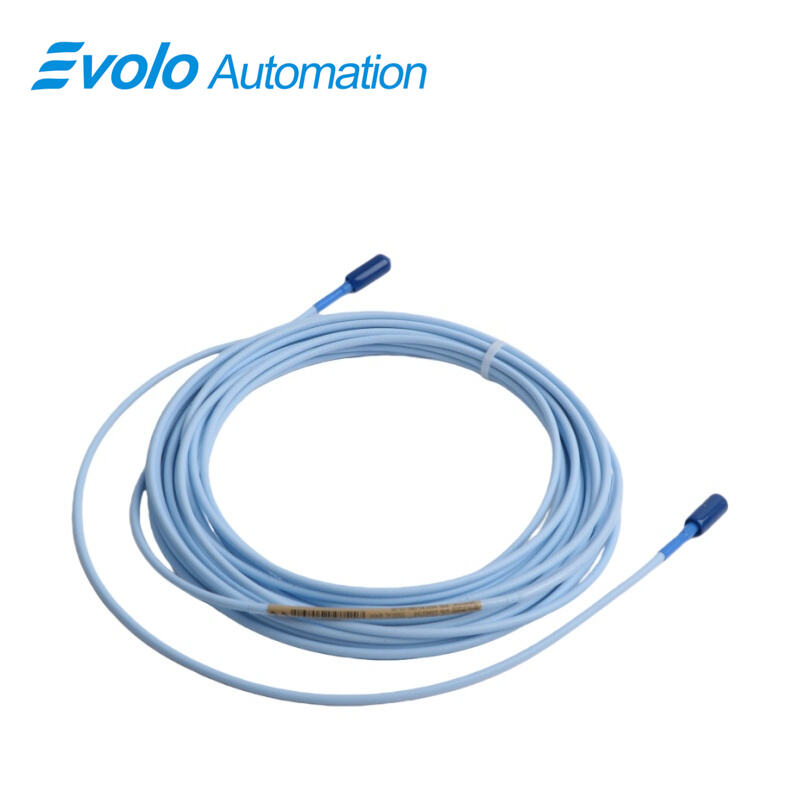

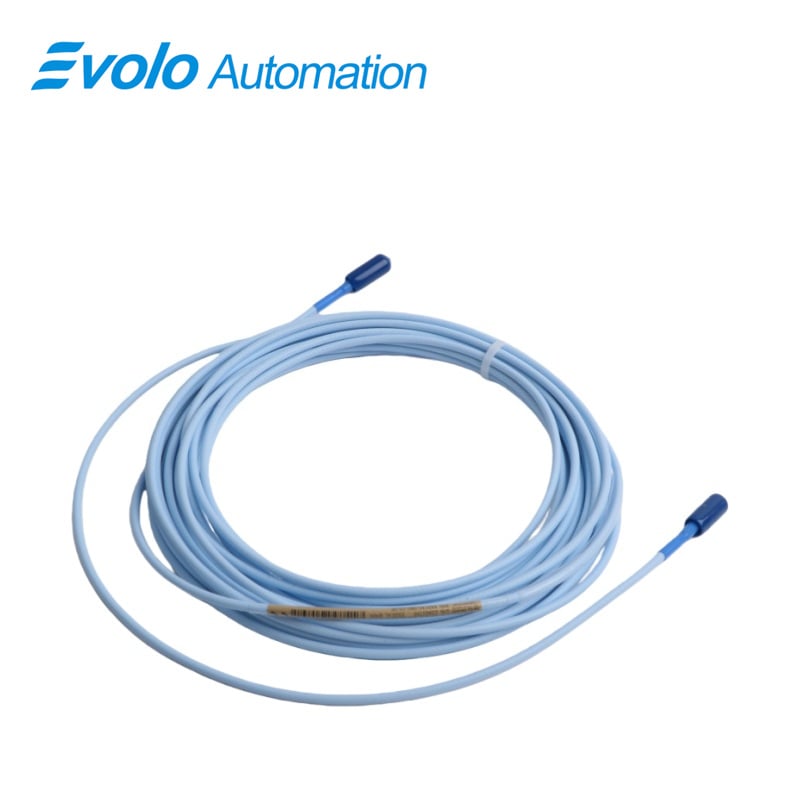

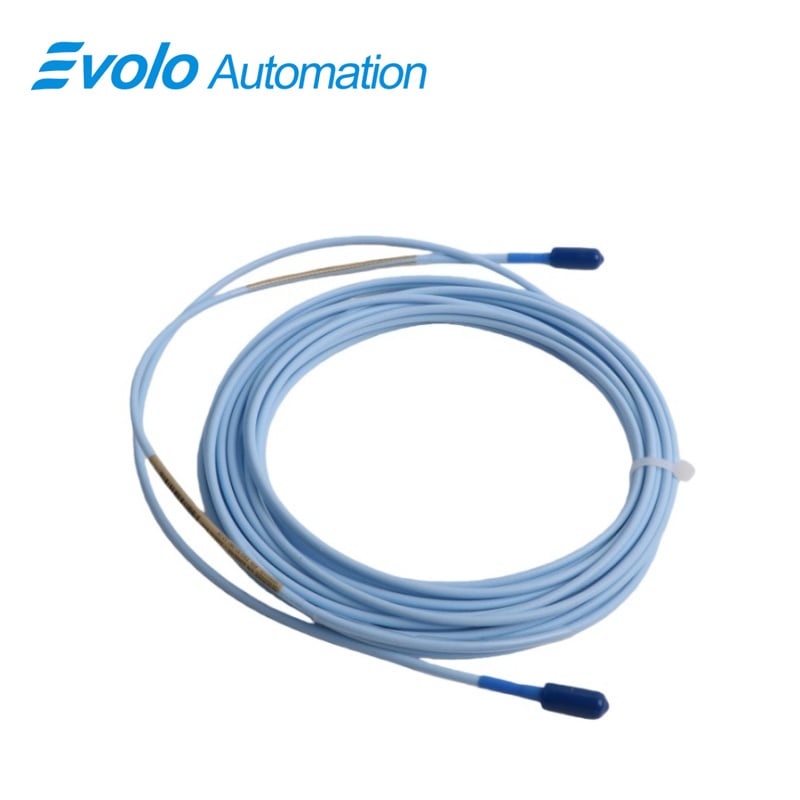

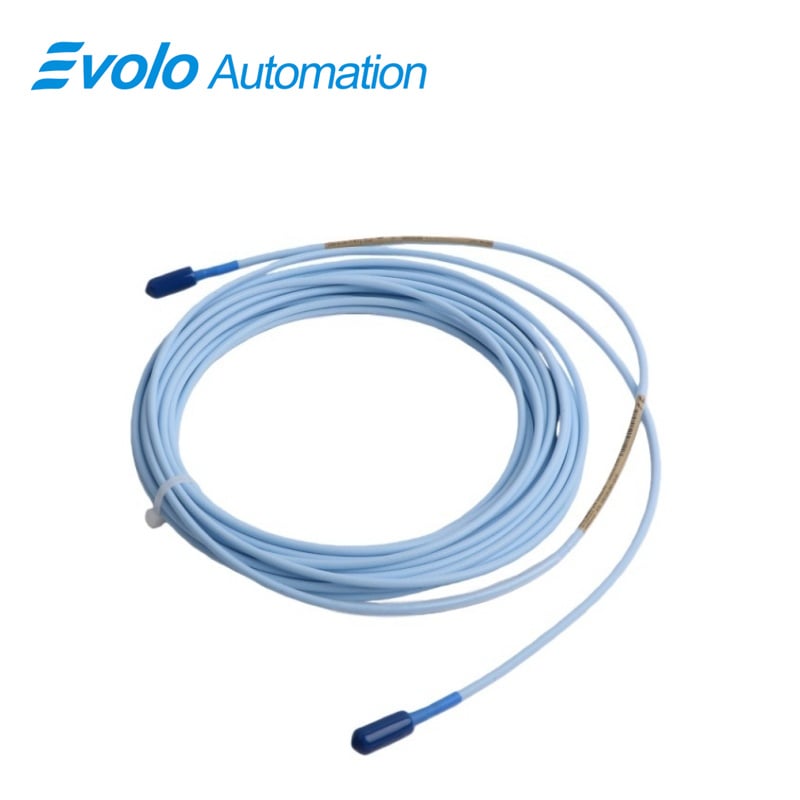

330130-080-10-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-10-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-10-00 3300 XL Standard Extension Cable is a high-performance accessory designed for the 3300 XL 8 mm Proximity Transducer System, delivering reliable signal transmission for static and dynamic vibration measurements in automated industrial environments. With a total length of 8.0 meters (26.2 feet) and a FluidLoc cable option, this extension cable minimizes leakage of oils or liquids, ensuring secure connections in fluid-film bearing machines and other industrial equipment. Constructed from 75 Ω triaxial FEP-insulated material, it provides low capacitance of 69.9 pF/m (21.3 pF/ft) and a stable output resistance of 50 Ω, while maintaining a linear measurement range of 2 mm (80 mils). The cable supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG) and operates reliably across a temperature range of -52°C to +177°C (-62°F to +350°F). With a frequency response up to 10 kHz and compatibility with up to 305 meters (1,000 feet) of field wiring, this extension cable ensures precise transmission of probe signals for machinery protection, speed measurements, and predictive maintenance applications. The 3300 XL Standard Extension Cable also provides full backward compatibility with previous 3300 series 5 mm and 8 mm transducer system components, supporting complete interchangeability of probes and Proximitor sensors.

Applications

1. Fluid-Film Bearing Vibration Monitoring
Extends 3300 XL probe signals up to 8 meters for accurate vibration measurements on turbines, compressors, and large pumps.

2. High-Temperature Process Equipment
Operates across -52°C to +177°C, suitable for machinery in petrochemical, energy, and manufacturing industries.

3. Keyphasor Reference for Speed Measurement
Provides precise signal transmission for shaft speed detection in rotating machinery, critical for automated monitoring systems.

4. Predictive Maintenance Systems
Enables long-distance signal routing without loss of accuracy for real-time monitoring of bearing and shaft condition.

5. High-Density Industrial Installations
Supports field wiring lengths up to 305 meters, allowing centralized monitoring of multiple probes in compact or remote control rooms.

Specifications

Competitive Advantage

1. FluidLoc Cable Design
Prevents leakage of oil or other liquids, enhancing reliability and reducing maintenance in lubrication-intensive machinery.

2. High Signal Integrity
Low cable capacitance (69.9 pF/m) and 50 Ω output resistance preserve signal fidelity for both static and dynamic measurements.

3. Extreme Temperature and Chemical Resistance
FEP insulation and robust construction allow operation from -52°C to +177°C, making it ideal for harsh industrial environments.

4. Long-Distance Compatibility
Supports up to 305 meters (1,000 feet) of field wiring with full frequency response to 10 kHz, ensuring flexible system design.

5. Full Interchangeability and Backward Compatibility
Works seamlessly with all 3300 XL 8 mm probes and legacy 5 mm or 8 mm components, reducing installation complexity and inventory requirements.
