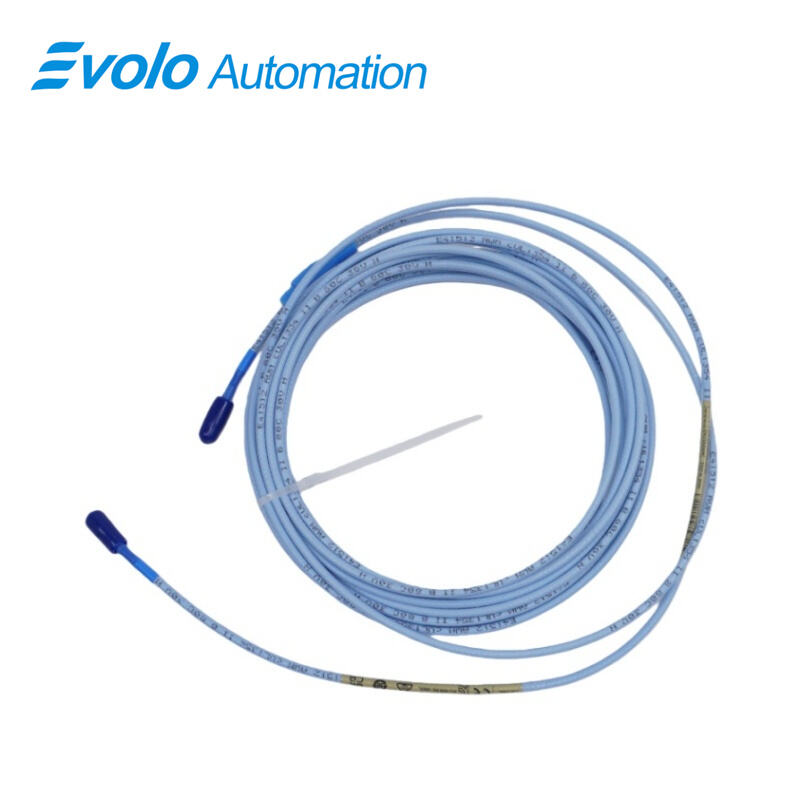

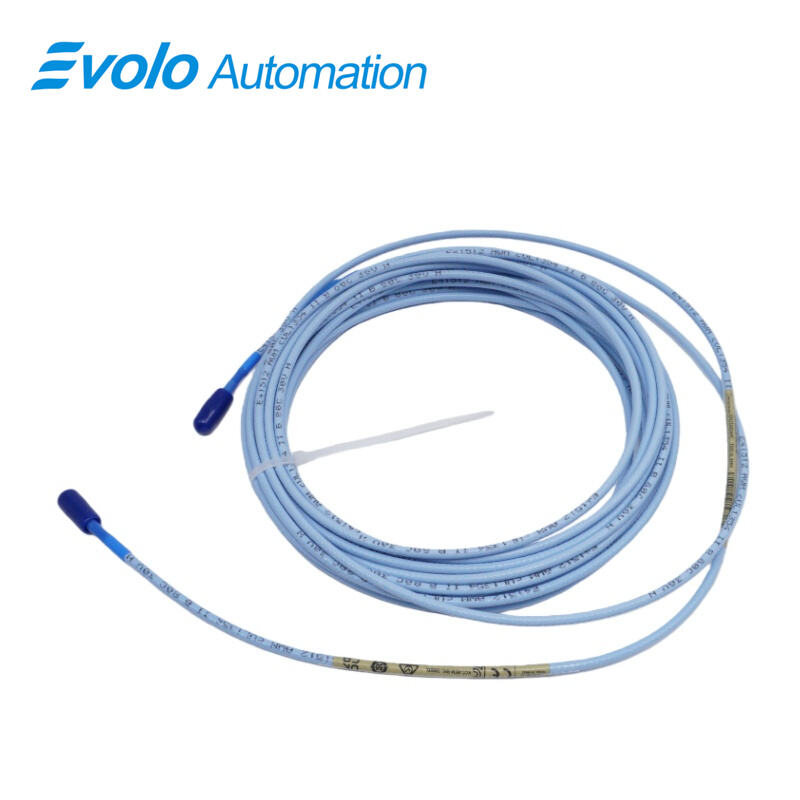

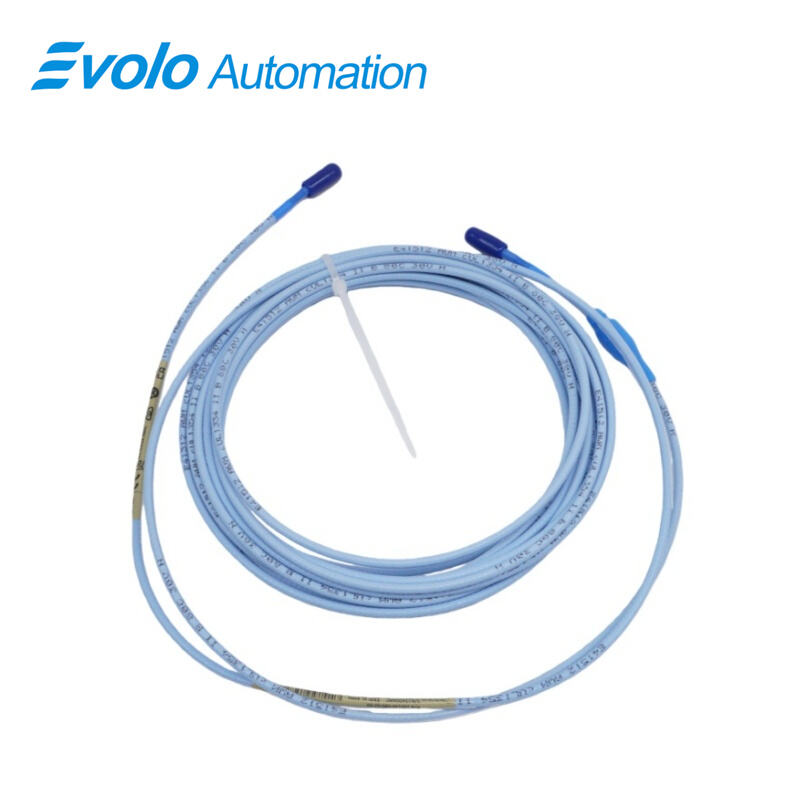

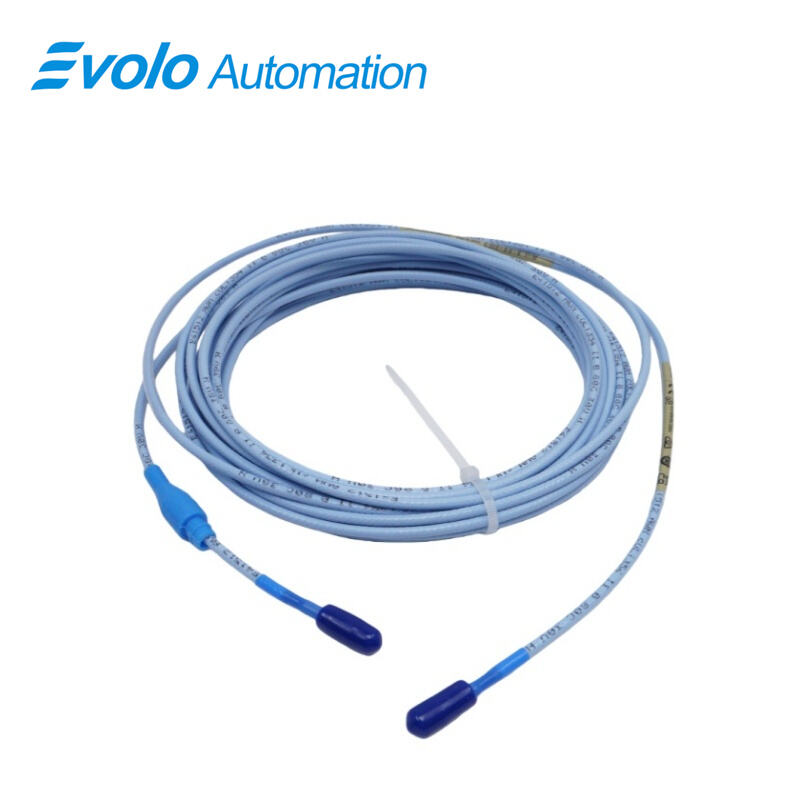

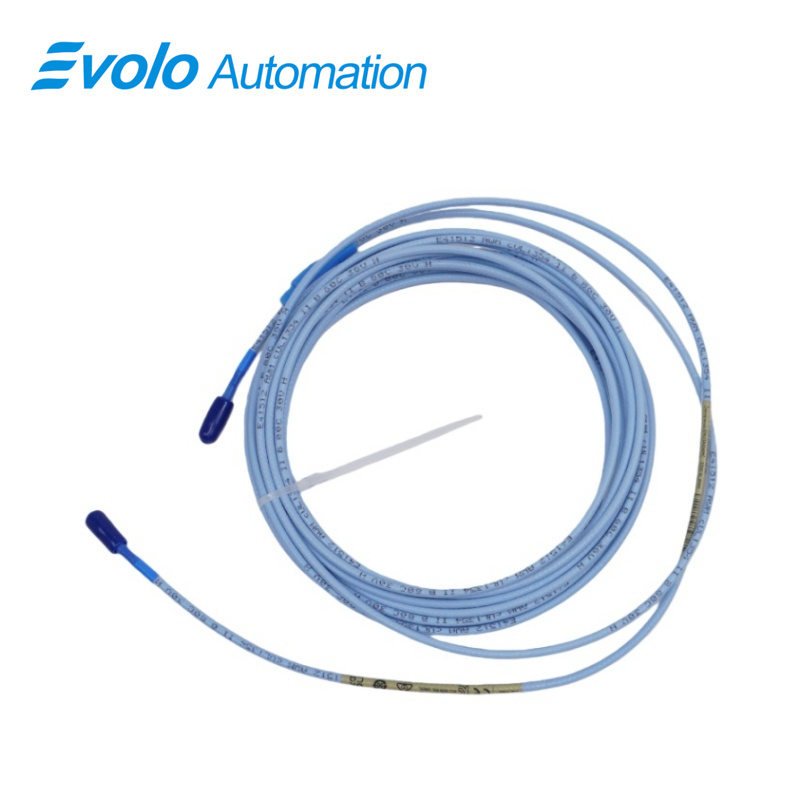

330130-080-02-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-02-00 3300 XL Standard Extension Cable is an 8.0-meter extension designed for automated monitoring systems using the 3300 XL 8 mm Proximity Transducer System. With 75 Q FEP insulation and a connector protector, the 330130-080-02-00 3300 XL Standard Extension Cable maintains signal integrity for static and dynamic measurements of position and vibration on fluid-film bearing machinery. Its 50 Ω output resistance, 69.9 pF/m capacitance, and frequency response up to 10 kHz allow accurate transmission over field wiring up to 305 meters. The cable supports 0.2–1.5 mm² (16–24 AWG) wiring and a 2 mm linear range, ensuring precise distance detection to targets as small as 15.2 mm diameter. Optional FluidLoc protection prevents oil and liquid ingress, while the patented CableLoc and TipLoc designs provide 330 N pull strength at the connection points. The 330130-080-02-00 3300 XL Standard Extension Cable is fully compatible with 3300 XL probes and Proximitor sensors, enabling flexible automated system layouts and efficient probe replacement without recalibration. This cable ensures reliable signal delivery for speed, position, and Keyphasor reference measurements in industrial automation environments.

Applications

Measure Vibration on Fluid-Film Bearings
The 330130-080-02-00 3300 XL Standard Extension Cable transmits precise signals from 8 mm proximity probes to monitor shaft vibration in fluid-film bearing machinery. Its 50 Ω output resistance and 69.9 pF/m capacitance ensure accurate data for automated condition monitoring.

Track Rotational Speed and Keyphasor Signals
Using the 330130-080-02-00 3300 XL Standard Extension Cable, Keyphasor reference signals and rotational speed measurements are transmitted reliably to control systems. The cable’s 0–10 kHz frequency response supports high-speed machinery monitoring.

Extend Probe Range in Industrial Automation Systems
The 330130-080-02-00 3300 XL Standard Extension Cable provides an 8.0-meter connection between probes and Proximitor sensors, enabling flexible probe placement without signal loss for complex automated layouts.

Monitor Position Changes on Conductive Surfaces
The 330130-080-02-00 3300 XL Standard Extension Cable supports precise static measurements, with a 2 mm linear range and detection of targets as small as 15.2 mm diameter, ideal for automated position control applications.

Specifications

Competitive Advantage

High Signal Accuracy Over Long Distances
The 330130-080-02-00 3300 XL Standard Extension Cable maintains less than 2 mV change per volt variation in input, ensuring accurate output even with field wiring up to 305 meters.

Robust Mechanical Connections
Patented CableLoc and TipLoc designs on the 330130-080-02-00 3300 XL Standard Extension Cable provide 330 N pull strength, securing probe connections in automated systems under vibration.

Optional Fluid Protection
The 330130-080-02-00 3300 XL Standard Extension Cable supports a FluidLoc option to prevent oil and liquid ingress, protecting industrial automation equipment.

Flexible Integration With Existing Systems
Fully compatible with 3300 XL 8 mm probes and Proximitor sensors, the 330130-080-02-00 3300 XL Standard Extension Cable allows quick replacement and system expansion without recalibration.

Efficient Automated Data Transmission
The 75 Q triaxial FEP insulation of the 330130-080-02-00 3300 XL Standard Extension Cable reduces interference, enabling reliable vibration, speed, and position data for real-time automation control.
