Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-080-01-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
8.0 meters (26.2 feet) |
|
Connector Protector and Cable Option: |
Armored cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
31x30x3cm |
|
Weight: |
0.84kg |
Description

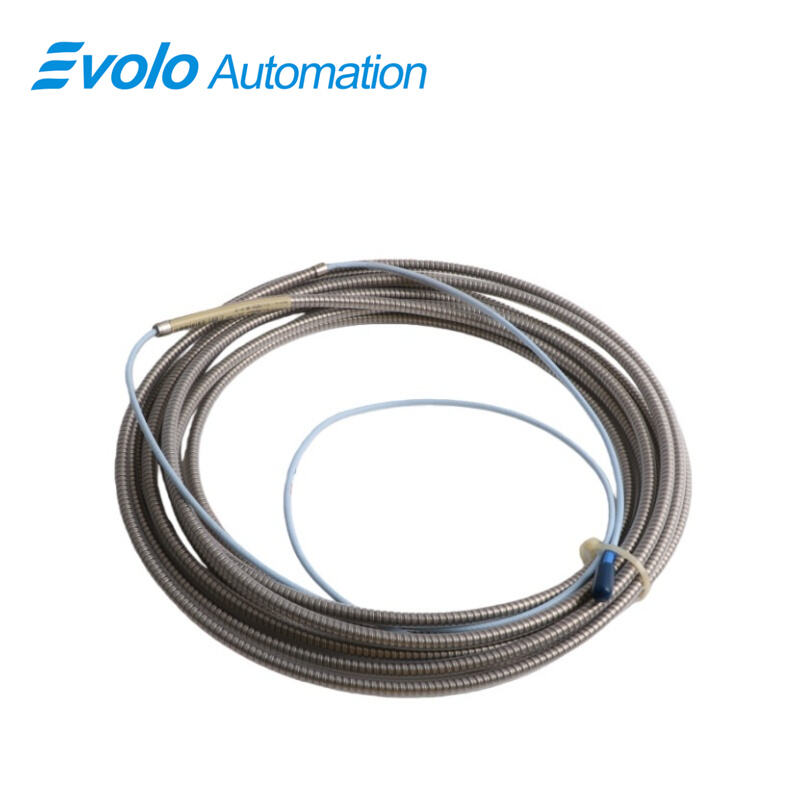

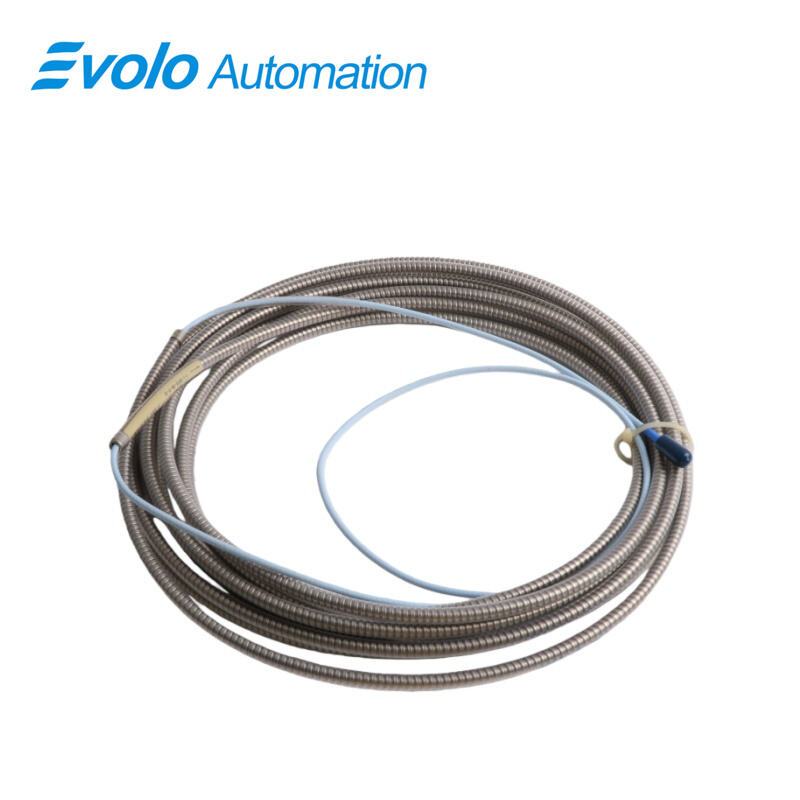

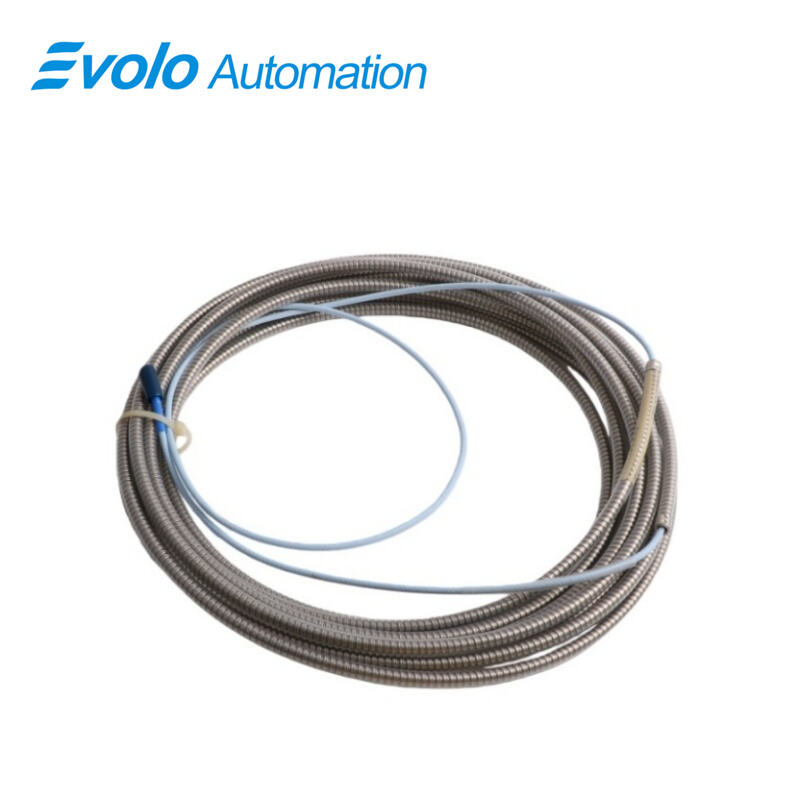

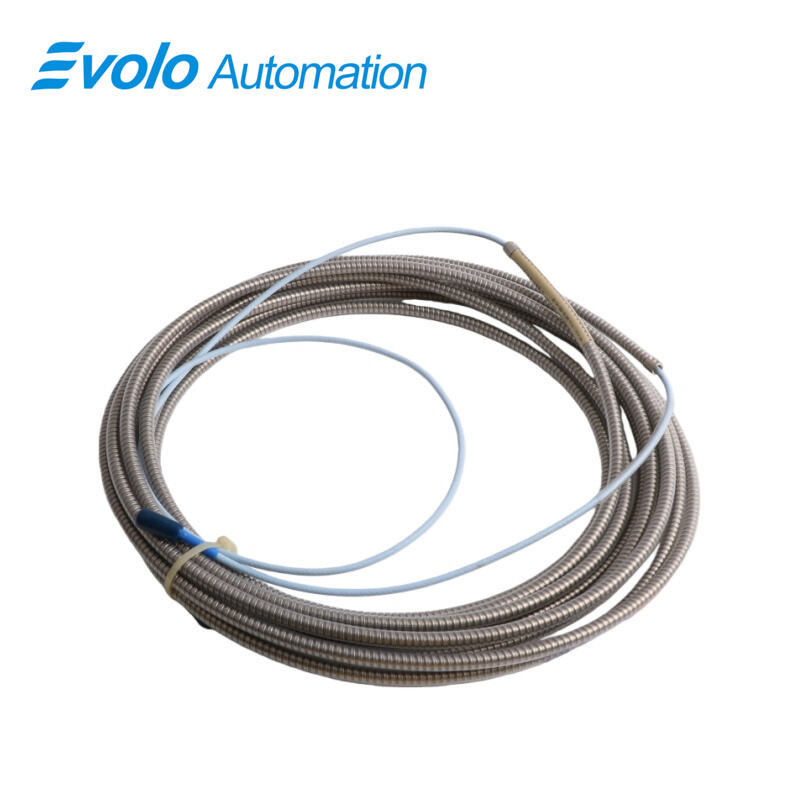

The 330130-080-01-CN 3300 XL Standard Extension Cable provides an 8.0-meter armored FEP-insulated connection for 3300 XL 8 mm Proximity Transducer Systems. With less than 2 mV output change per volt input, 50 Ω resistance, and 69.9 pF/m capacitance, the 330130-080-01-CN 3300 XL Standard Extension Cable ensures accurate transmission of both static (position) and dynamic (vibration) signals. Supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG) and frequency response up to 10 kHz, the 330130-080-01-CN 3300 XL Standard Extension Cable enables automated monitoring of fluid-film bearing vibration, shaft position, and Keyphasor speed measurements over distances up to 305 meters (1000 feet). Minimum target detection of 15.2 mm flat surfaces allows seamless integration into industrial automation systems, while optional FluidLoc protection prevents oil ingress during operation.
Applications
Measure rotor shaft vibration on fluid-film bearings using 330130-080-01-CN 3300 XL Standard Extension Cable. Its 8.0-meter length and 75 Q FEP insulation support accurate transmission of vibration signals over long distances (up to 305 meters), ensuring automated monitoring without signal loss.
Detect shaft position in pumps or compressors with 330130-080-01-CN 3300 XL Standard Extension Cable. The 2 mm linear range and <2 mV/V supply sensitivity enable precise position readings for automated control systems.
Capture Keyphasor reference and speed signals using 330130-080-01-CN 3300 XL Standard Extension Cable. Its 50 Ω output resistance and 69.9 pF/m capacitance maintain signal integrity for high-speed rotation monitoring.
Transmit proximity signals across long field wiring with 330130-080-01-CN 3300 XL Standard Extension Cable. The cable supports 0.2–1.5 mm² (16–24 AWG) wiring and frequency response up to 10 kHz, making it suitable for extended automated installations.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Armored cable construction in 330130-080-01-CN 3300 XL Standard Extension Cable provides 330 N pull strength, protecting probes and wiring during installation and operation in industrial environments.
High-precision voltage output ensures less than 2 mV change per volt input, delivered by 330130-080-01-CN 3300 XL Standard Extension Cable, supporting accurate automated measurements.
Long-distance signal capability up to 305 meters with 330130-080-01-CN 3300 XL Standard Extension Cable, enabling flexible layouts for large-scale automation systems.
