Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-080-00-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
8.0 meters (26.2 feet) |
|
Connector Protector and Cable Option: |
Standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
20x19x2cm |
|
Weight: |
0.26kg |
Description

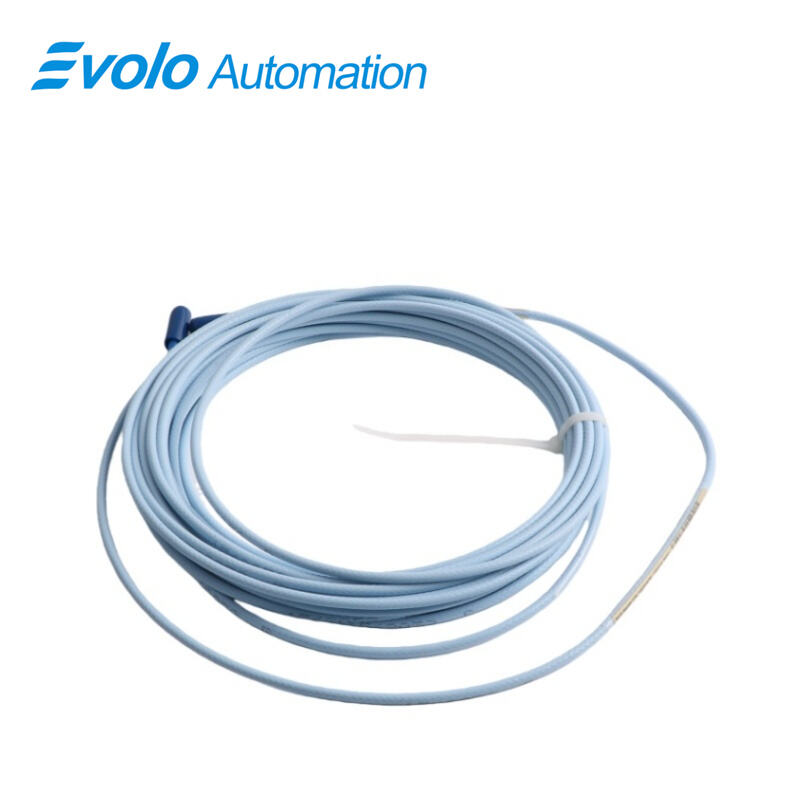

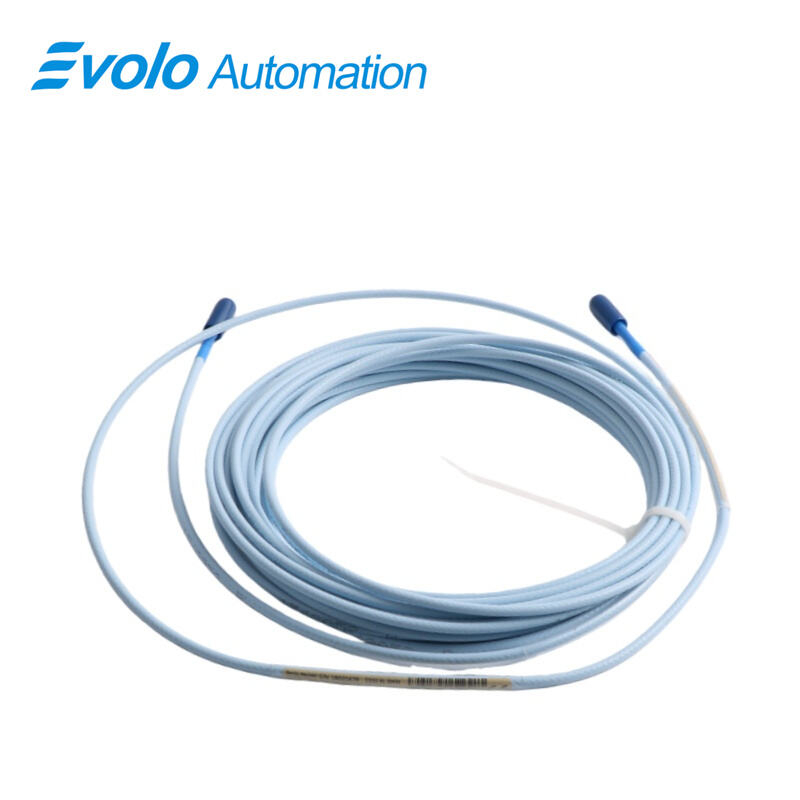

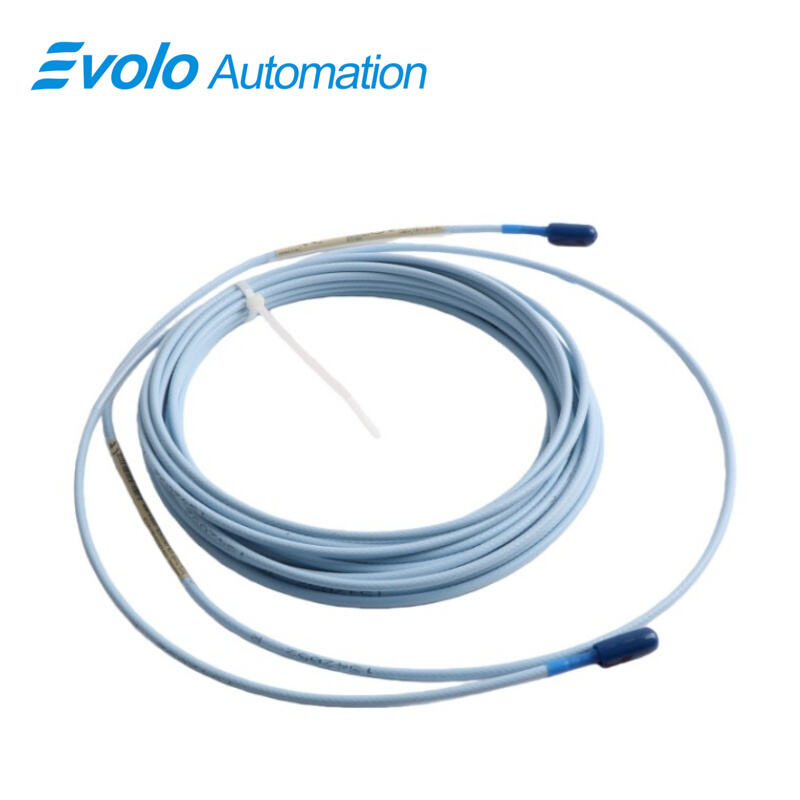

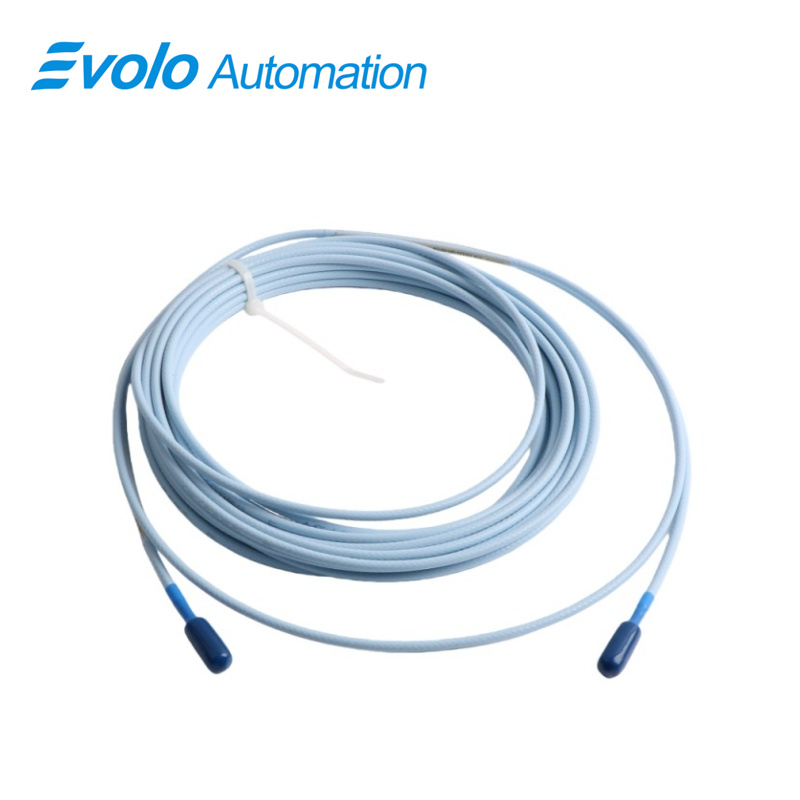

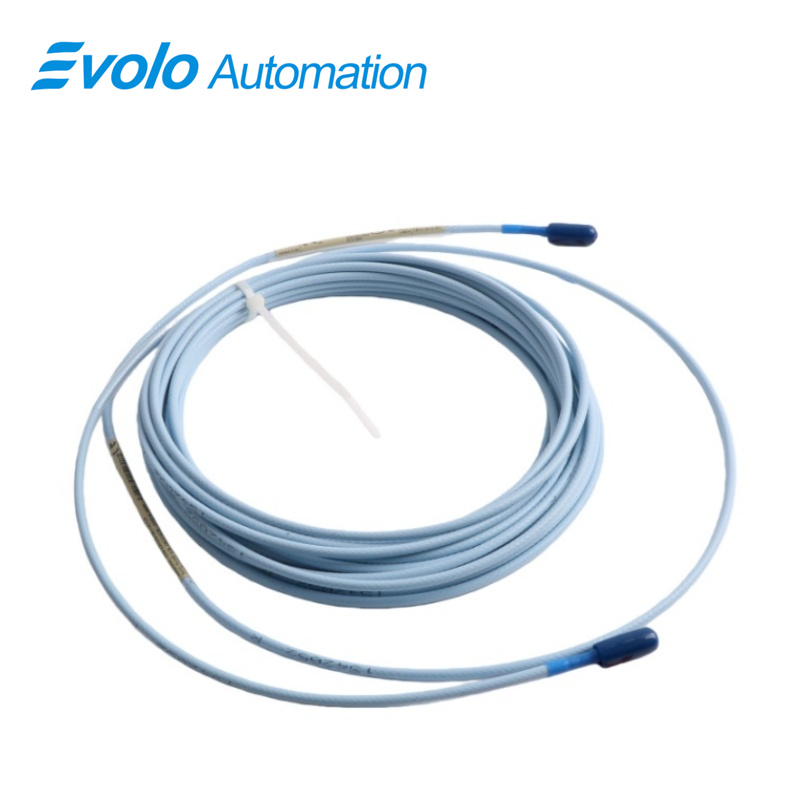

The 330130-080-00-CN Standard Extension Cable transmits precise signals from 8 mm 3300 XL proximity transducers in automated machinery. Measuring 8.0 meters (26.2 feet), it features 75 Q triaxial FEP insulation, 50 Ω output resistance, and 69.9 pF/m capacitance. It supports 0.2–1.5 mm² (16–24 AWG) field wiring and maintains less than 2 mV output change per volt input variation. With a linear range of 2 mm, frequency response 0–10 kHz, and minimum target detection of 15.2 mm, 330130-080-00-CN captures both static and dynamic measurements accurately. Patented TipLoc and CableLoc designs provide secure 330 N (75 lbf) probe attachment, and the optional FluidLoc cable prevents oil or liquid ingress. CSA, ATEX, and IECEx approvals allow deployment in hazardous industrial zones. 330130-080-00-CN enables reliable vibration, position, and Keyphasor reference signal transmission for automated process monitoring across extended field wiring up to 305 meters (1000 feet).
Applications
Signal Transmission for Vibration Monitoring
330130-080-00-CN transmits high-precision voltage signals from 8 mm 3300 XL probes to Proximitor modules, enabling detailed vibration monitoring on fluid-film bearing machines. Its 50 Ω output resistance and 69.9 pF/m cable capacitance ensure signal integrity over 8.0 meters (26.2 feet).
Position Measurement in Rotating Equipment
330130-080-00-CN delivers real-time shaft position data from 8 mm 3300 XL probes, supporting linear range of 2 mm and minimum target size of 15.2 mm, which ensures precise rotor alignment in automated machinery.
Keyphasor Reference Signal Delivery
With frequency response of 0–10 kHz and support for up to 305 meters (1000 feet) of field wiring, 330130-080-00-CN reliably transmits Keyphasor and speed reference signals for automation control and data logging.
Extended Field Wiring in Automation Systems
330130-080-00-CN allows extended probe placement in large industrial setups, using 0.2–1.5 mm² (16–24 AWG) field wiring while keeping voltage deviation below 2 mV per volt input.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
High-Precision Signal Transmission
330130-080-00-CN maintains less than 2 mV voltage change per volt input, with 50 Ω output resistance and 69.9 pF/m capacitance, delivering accurate data from 8 mm 3300 XL probes for automated monitoring.
Secure Probe Attachment
Patented TipLoc and CableLoc designs in 330130-080-00-CN provide 330 N (75 lbf) pull strength, ensuring probe connections remain secure during industrial operations.
Fluid Ingress Prevention
Optional FluidLoc cable on 330130-080-00-CN prevents oil and liquids from entering the probe, preserving signal quality in lubrication-heavy environments.
Compliance for Hazardous Zones
CSA, ATEX, and IECEx approvals allow 330130-080-00-CN deployment in hazardous areas without additional modifications.
Long-Range Signal Capability
330130-080-00-CN supports extended field wiring up to 305 meters (1000 feet) with full 0–10 kHz frequency response, enabling automation systems to operate over large industrial areas without signal loss.
