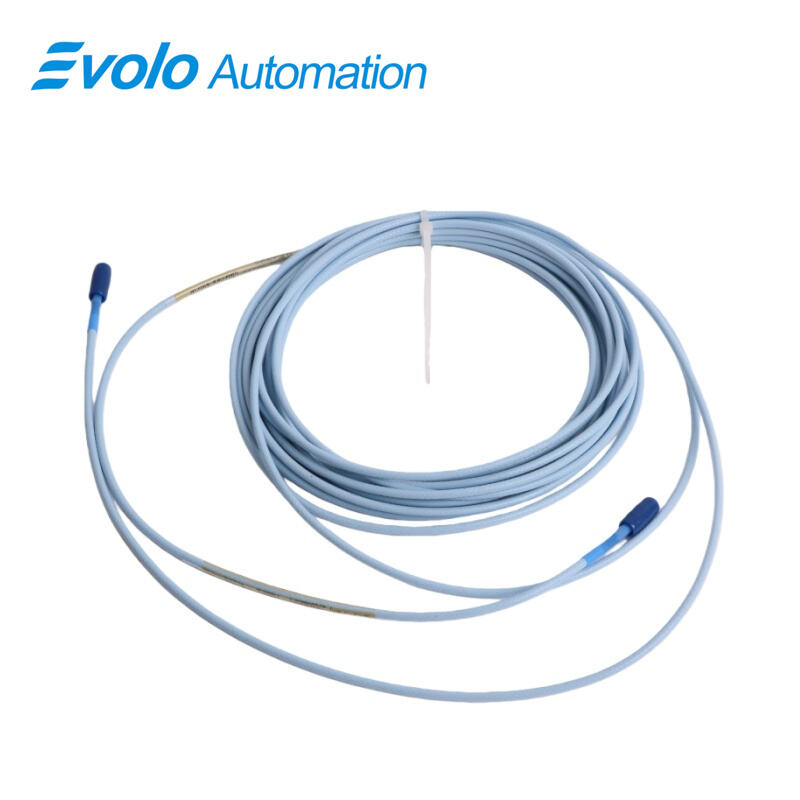

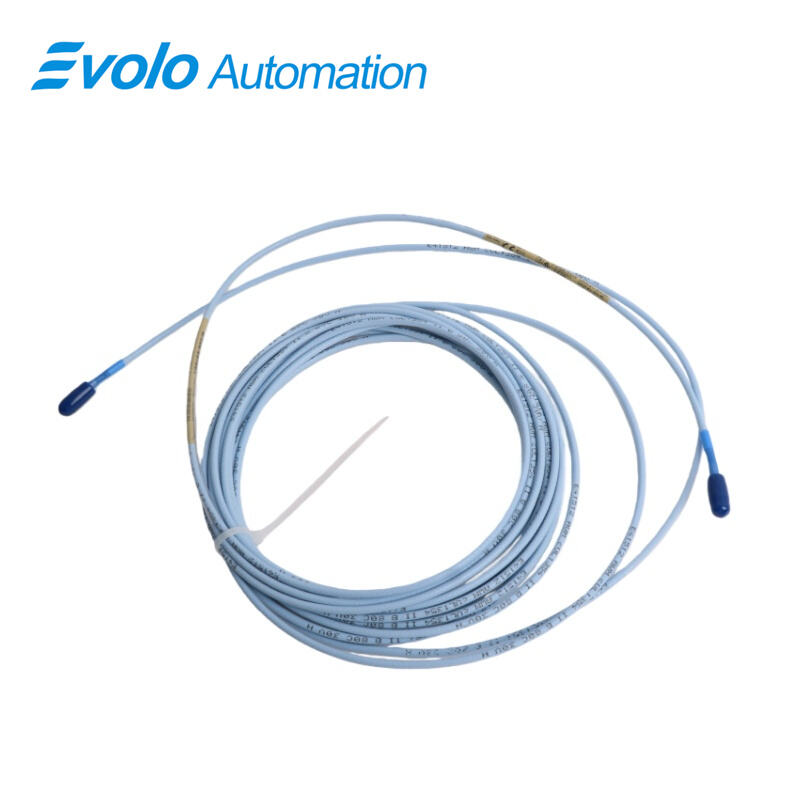

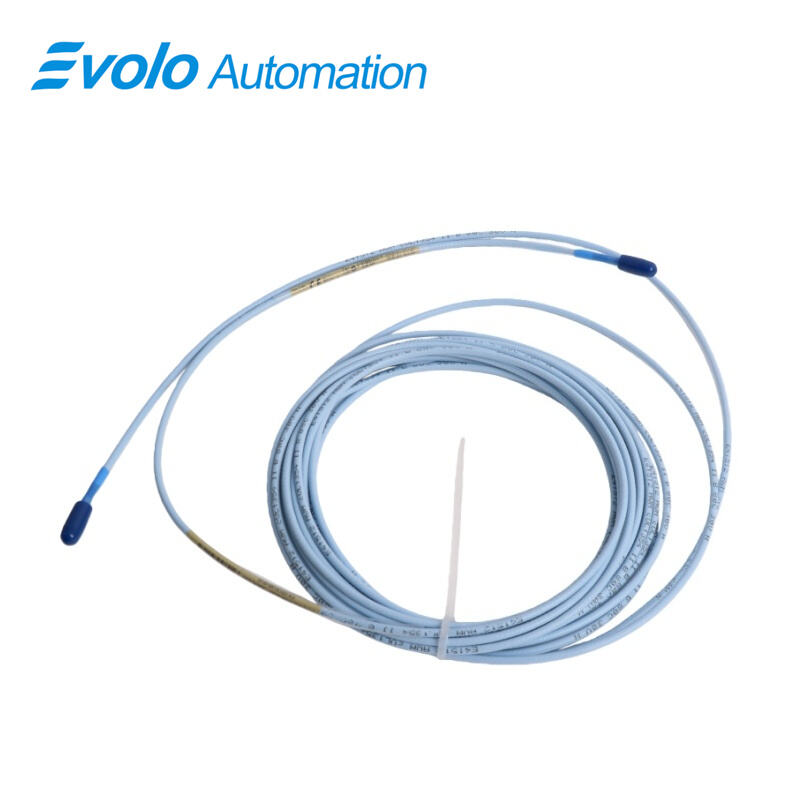

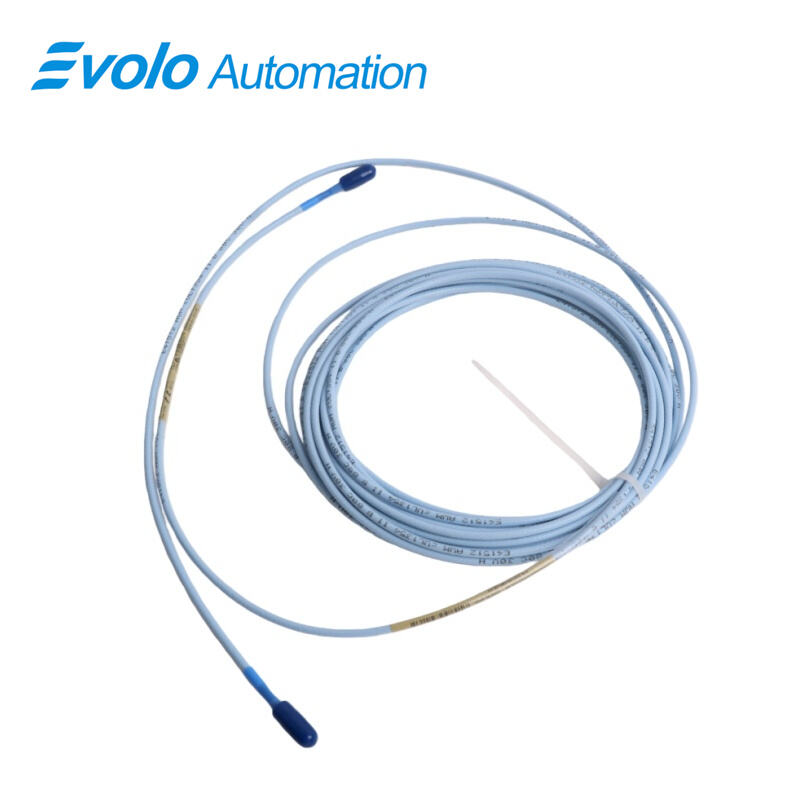

330130-080-00-BR 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-00-BR
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-00-BR 3300 XL Standard Extension Cable is an 8.0-meter (26.2 ft) extension designed for 8 mm 3300 XL Proximity Transducer Systems. It features 75 Q triaxial FEP insulation, a 50 Ω output resistance, and 69.9 pF/m capacitance, ensuring precise signal transmission over long distances up to 305 meters (1000 ft). With supply sensitivity under 2 mV per volt, the 330130-080-00-BR 3300 XL Standard Extension Cable maintains accurate voltage outputs for both static position and dynamic vibration measurements. Compatible with 0.2–1.5 mm² (16–24 AWG) field wiring, this cable supports automated speed, Keyphasor reference, and vibration monitoring on fluid-film bearing machines. Approved by CSA, ATEX, and IECEx, the 330130-080-00-BR 3300 XL Standard Extension Cable integrates seamlessly with 8 mm probes and Proximitor sensors, enabling quick installation and extended automated monitoring without bench calibration. Its connector protector and durable FEP insulation secure the probe connection, while the cable transmits high-frequency signals (0–10 kHz) with minimal loss, supporting precise measurements on rotating equipment and industrial automation systems.

Applications

Monitor Bearing Vibration on Fluid-Film Machines
The 330130-080-00-BR 3300 XL Standard Extension Cable connects to 8 mm 3300 XL Proximity Probes to transmit precise voltage outputs proportional to bearing displacement, supporting vibration measurements up to 10 kHz. Its 8.0-meter length and 69.9 pF/m capacitance allow reliable signal transmission over long wiring distances.

Track Rotational Speed and Keyphasor Signals
Used with Keyphasor sensors, the 330130-080-00-BR 3300 XL Standard Extension Cable delivers high-frequency signals from probes to Proximitor units for automated speed calculation and phase referencing, enabling real-time monitoring of turbine and pump shafts.

Measure Shaft Position for Automation Control
By integrating the 330130-080-00-BR 3300 XL Standard Extension Cable with 3300 XL probes, automated systems can monitor both static and dynamic shaft positions with a linear range of 2 mm, supporting precise motion control in industrial machinery.

Specifications

Competitive Advantage

Long-Distance Signal Transmission
The 330130-080-00-BR 3300 XL Standard Extension Cable supports field wiring up to 305 meters (1000 feet) while maintaining less than 2 mV change in output per volt of input variation, ensuring accurate automated monitoring.

Durable and Safe Installation
Its 75 Q triaxial FEP insulation and standard connector protector provide a secure connection, protecting the 330130-080-00-BR 3300 XL Standard Extension Cable from environmental exposure and minimizing installation errors.

Seamless Integration with Existing Systems
The 330130-080-00-BR 3300 XL Standard Extension Cable is fully compatible with 8 mm 3300 XL probes and Proximitor sensors, allowing automated systems to upgrade or extend monitoring without bench recalibration.

High-Frequency Response for Automation Applications
The cable supports signals from 0 to 10 kHz, enabling accurate transmission of both vibration and position signals, essential for automated control of rotating machinery and predictive maintenance.
