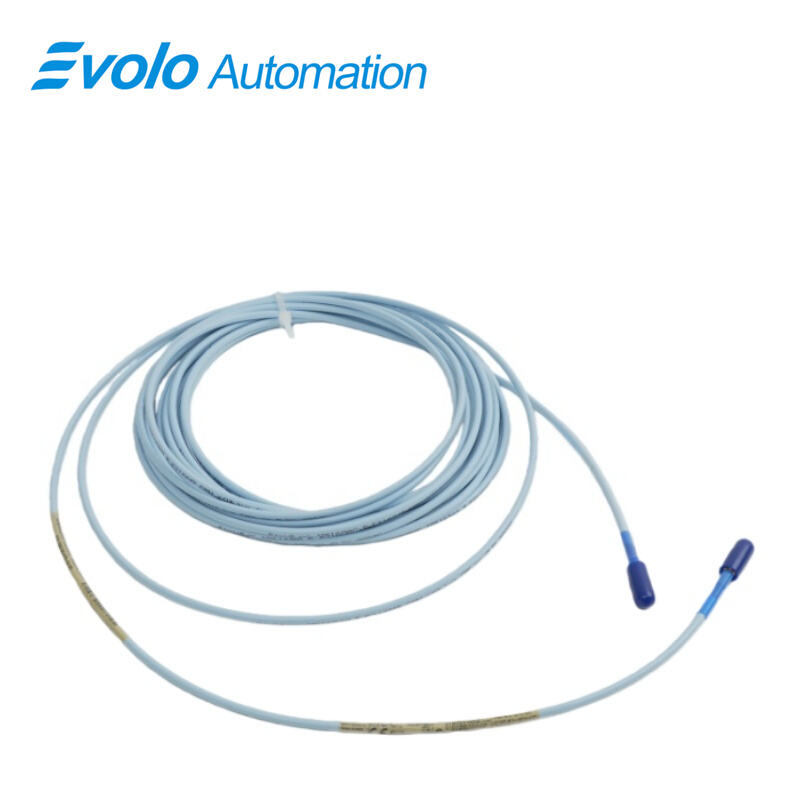

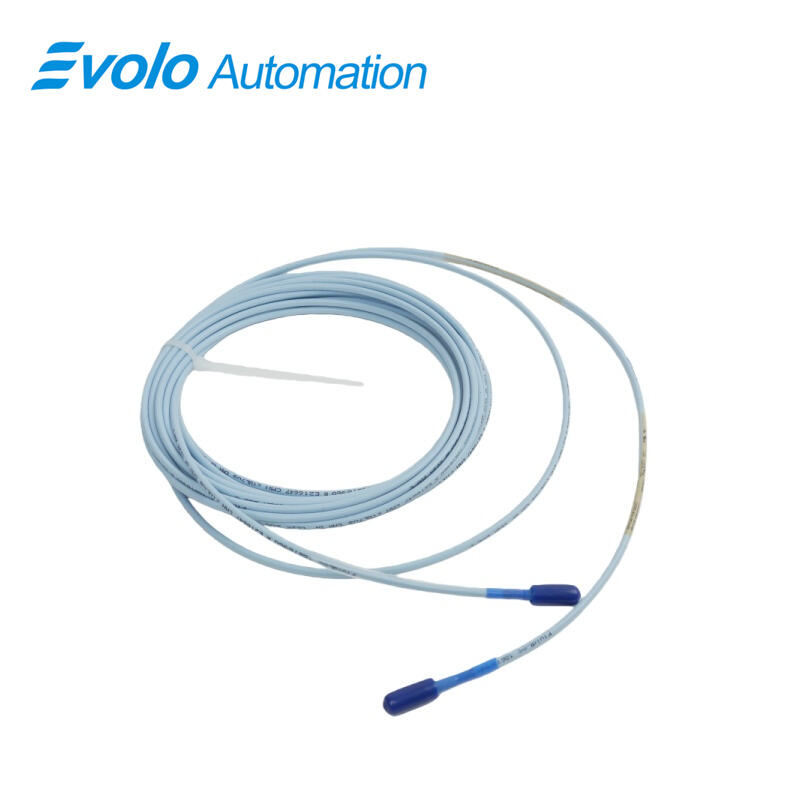

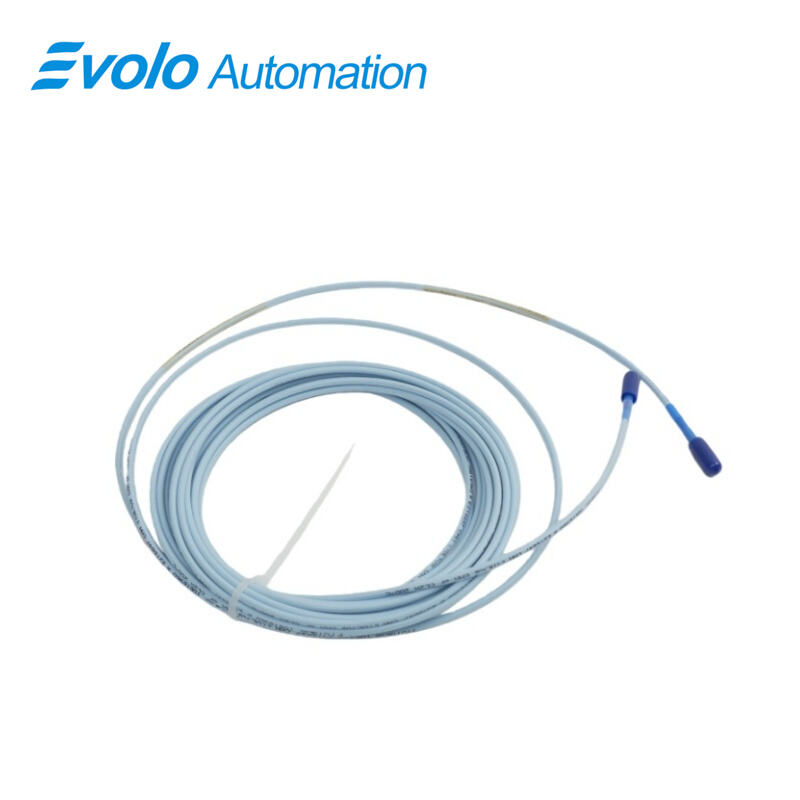

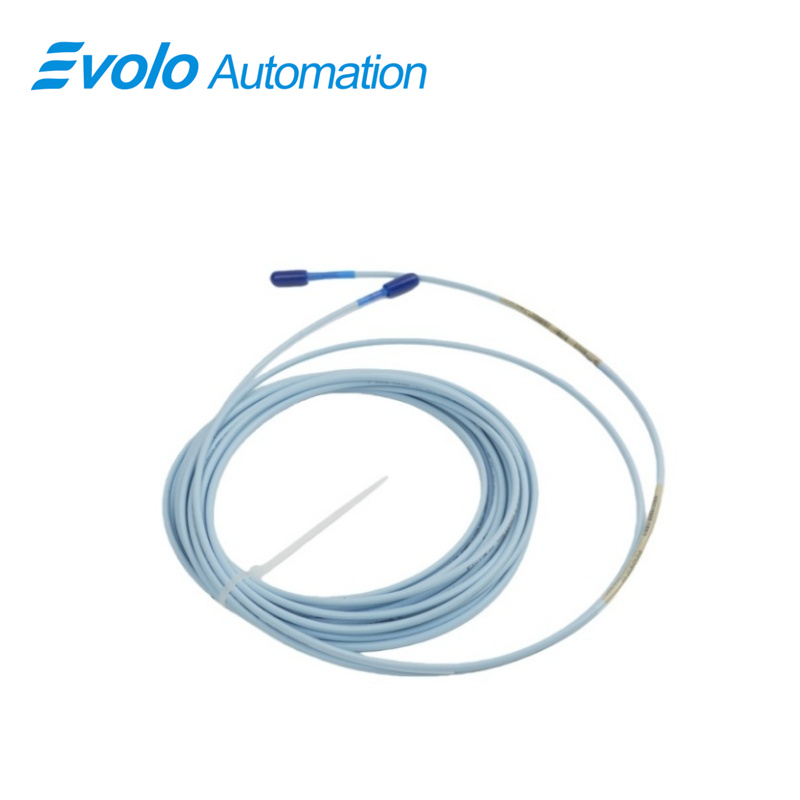

330130-075-10-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-075-10-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-075-10-05 3300 XL Standard Extension Cable is a high-performance accessory designed for use with the 3300 XL 8 mm Proximity Transducer System. This 7.5-meter (24.6 feet) FluidLoc cable delivers a highly stable signal from the probe to the Proximitor sensor, supporting both static position and dynamic vibration measurements. The cable’s 75 Ω triaxial construction with FEP insulation ensures minimal signal loss, with a typical capacitance of 69.9 pF/m (21.3 pF/ft), maintaining measurement linearity within 2 mm (80 mils). Engineered for harsh industrial environments, the cable operates reliably over a wide temperature range of -52°C to +177°C (-62°F to +350°F) and is fully compliant with CSA, ATEX, and IECEx approvals. The FluidLoc design prevents leaks of oil or other liquids through the cable interior, enhancing machinery safety and extending service life. This extension cable is fully interchangeable with other 3300 XL components, supporting backward compatibility and seamless integration into existing proximity transducer systems without the need for recalibration.

Applications

1. Fluid-Film Bearing Machines
Provides precise transmission of radial and axial vibration signals from probes to sensors, enabling predictive maintenance of pumps, turbines, and compressors.

2. High-Temperature Industrial Equipment
Maintains performance in environments up to +177°C, making it ideal for chemical, petrochemical, and power generation applications.

3. Long-Distance Signal Transmission
Supports cable runs of 7.5 meters (24.6 feet) or more while preserving signal fidelity, enabling flexible placement of probes in machinery.

4. Keyphasor and Speed Monitoring
Delivers high-integrity signals for Keyphasor reference and shaft speed measurements, essential for rotor dynamics monitoring.

5. Oil and Liquid-Protected Systems
Optional FluidLoc design prevents fluid ingress into the cable, maintaining system reliability in lubrication-intensive machinery.

Specifications

Competitive Advantage

1. Patented CableLoc Design
Provides 330 N (75 lbf) pull strength, securing the connection between probe and extension cable to prevent disconnections or signal loss.

2. High-Temperature Durability
FEP insulation and triaxial construction allow operation up to +177°C, exceeding typical industrial cable ratings.

3. Signal Stability
Low extension cable capacitance (69.9 pF/m) and 75 Ω characteristic impedance ensure minimal signal degradation across long runs.

4. Backward Compatibility
Fully compatible with other 3300 XL and non-XL 3300 series components, reducing replacement and installation complexity.

5. Fluid-Resistant Design
The FluidLoc option prevents oil or liquids from leaking into the cable, reducing maintenance needs and extending system life.
