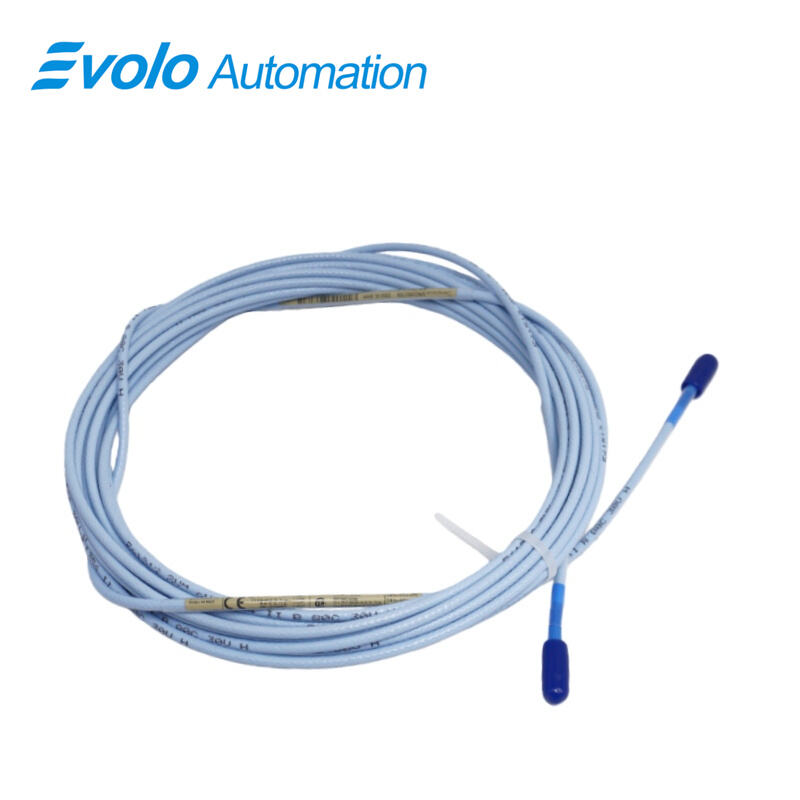

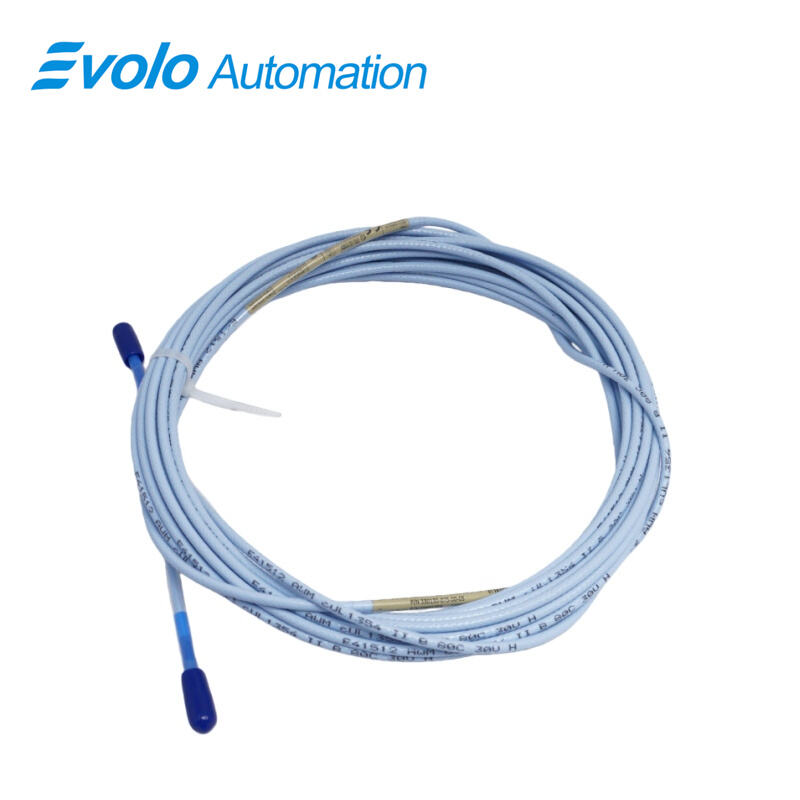

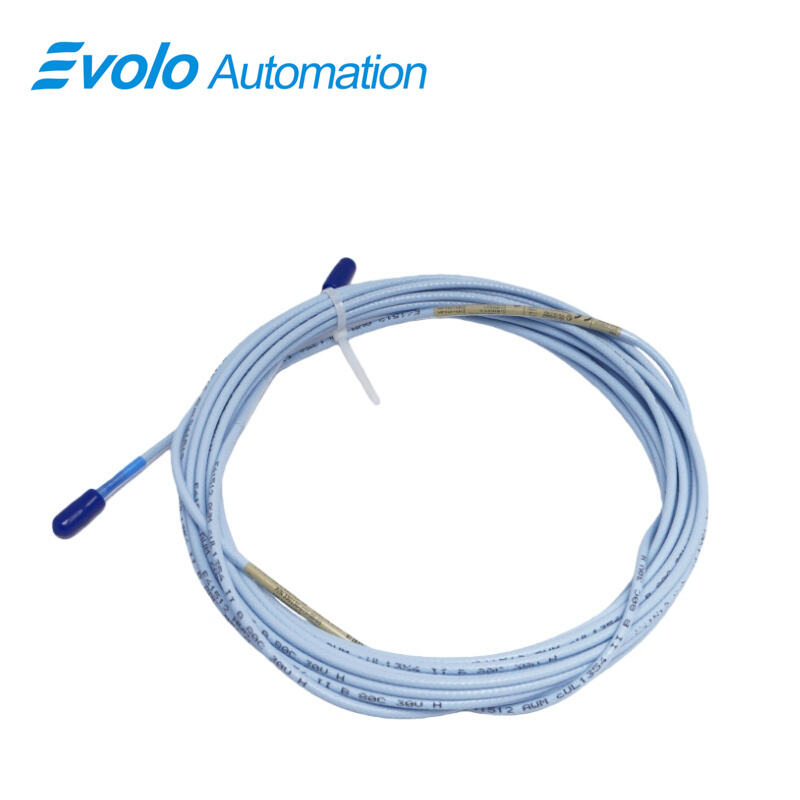

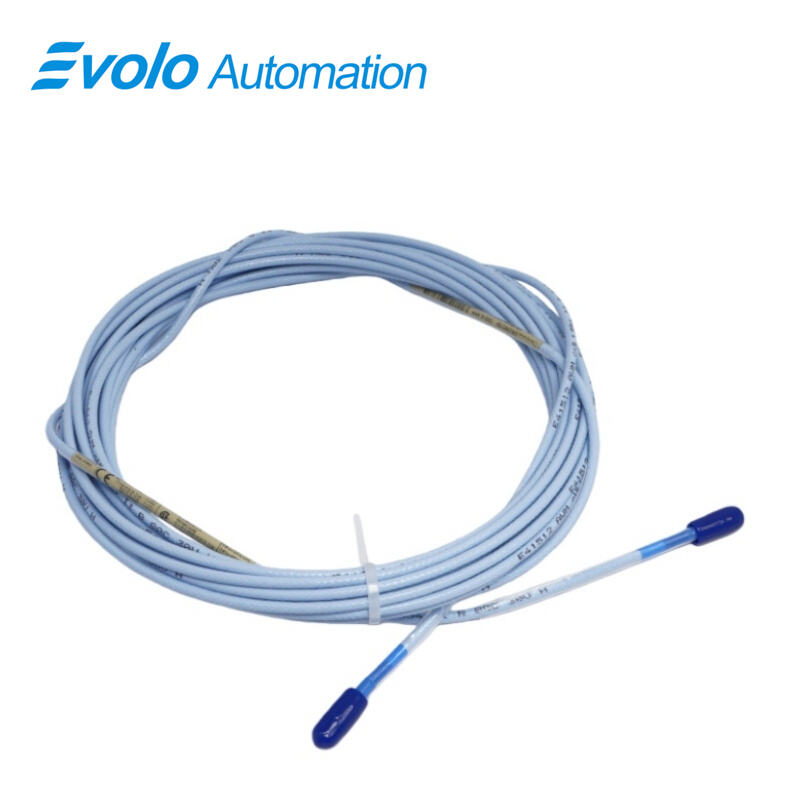

330130-075-01-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-075-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-075-01-05 3300 XL Standard Extension Cable provides a 7.5-meter (24.6 feet) armored cable for connection to 3300 XL 8 mm Proximity Probes, ensuring precise transmission of static and dynamic measurements. This 330130-075-01-05 3300 XL Standard Extension Cable features 75 Ω triaxial FEP insulation, extension cable capacitance of 69.9 pF/m (21.3 pF/ft), and supports field wiring from 0.2 to 1.5 mm² (16–24 AWG). Operating from -52°C to +177°C (-62°F to +350°F), the 330130-075-01-05 3300 XL Standard Extension Cable delivers consistent output voltage for Keyphasor reference, vibration, and position monitoring on fluid-film bearing machines, turbines, and compressors. Fully compatible with 3300 XL 8 mm Proximity Transducer Systems, this 330130-075-01-05 3300 XL Standard Extension Cable allows plug-and-play integration without bench calibration.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330130-075-01-05 3300 XL Standard Extension Cable connects to 3300 XL 8 mm Proximity Probes to transmit high-precision vibration signals. Its 7.5-meter armored cable and 69.9 pF/m capacitance allow accurate measurement in large industrial machines.

Position Measurement on Rotating Machinery
Using the 330130-075-01-05 3300 XL Standard Extension Cable, operators can capture static position data from turbines or compressors. The cable’s 75 Ω triaxial FEP insulation ensures minimal signal loss for distances up to 7.5 meters.

Keyphasor and Speed Reference
The 330130-075-01-05 3300 XL Standard Extension Cable supports Keyphasor signal transmission from 3300 XL 8 mm Proximity Probes, allowing precise rotational speed monitoring in power generation and process automation systems.

Specifications

Competitive Advantage

Long-Distance Signal Transmission
The 330130-075-01-05 3300 XL Standard Extension Cable provides 7.5 meters (24.6 feet) of armored cable, enabling flexible sensor placement without degrading signal quality.

High Temperature Operation
With an operating range from -52°C to +177°C (-62°F to +350°F), the 330130-075-01-05 3300 XL Standard Extension Cable maintains accurate output in extreme industrial environments.

Robust Construction for Harsh Environments
The 75 Ω triaxial FEP-insulated armored cable of 330130-075-01-05 3300 XL Standard Extension Cable resists oil, moisture, and mechanical stress, securing consistent connection to 3300 XL 8 mm Proximity Probes.

Plug-and-Play Integration
The 330130-075-01-05 3300 XL Standard Extension Cable is fully compatible with 3300 XL 8 mm Proximity Transducer Systems, allowing easy interchange of probes and extension cables without bench calibration.
