Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-075-00-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
7.5 meters (24.6 feet) |
|
Connector Protector and Cable Option: |
Standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
19.5x18.8x2.8cm |
|
Weight: |
0.26kg |
Description

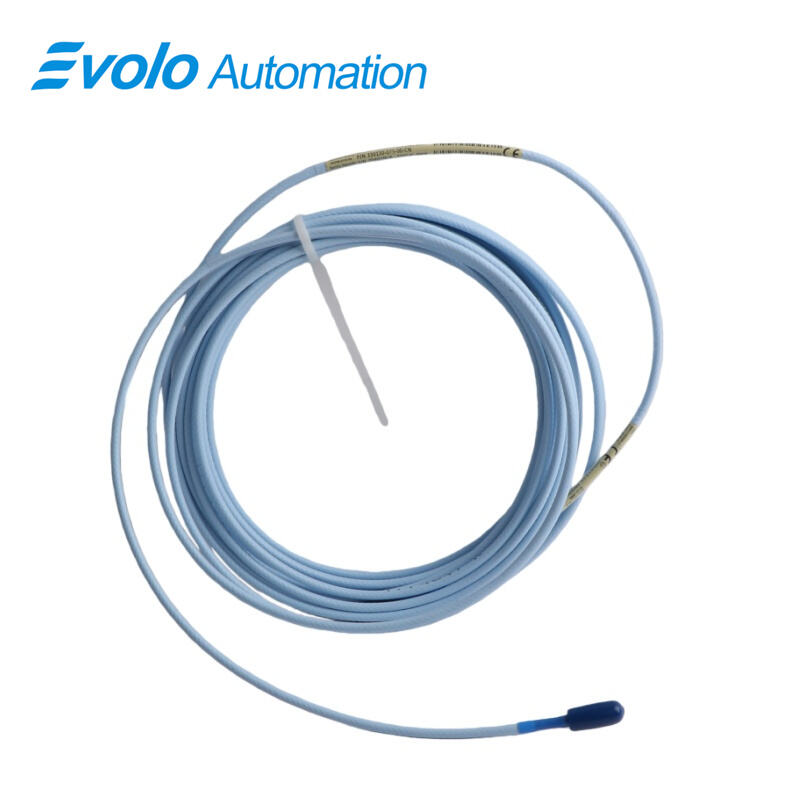

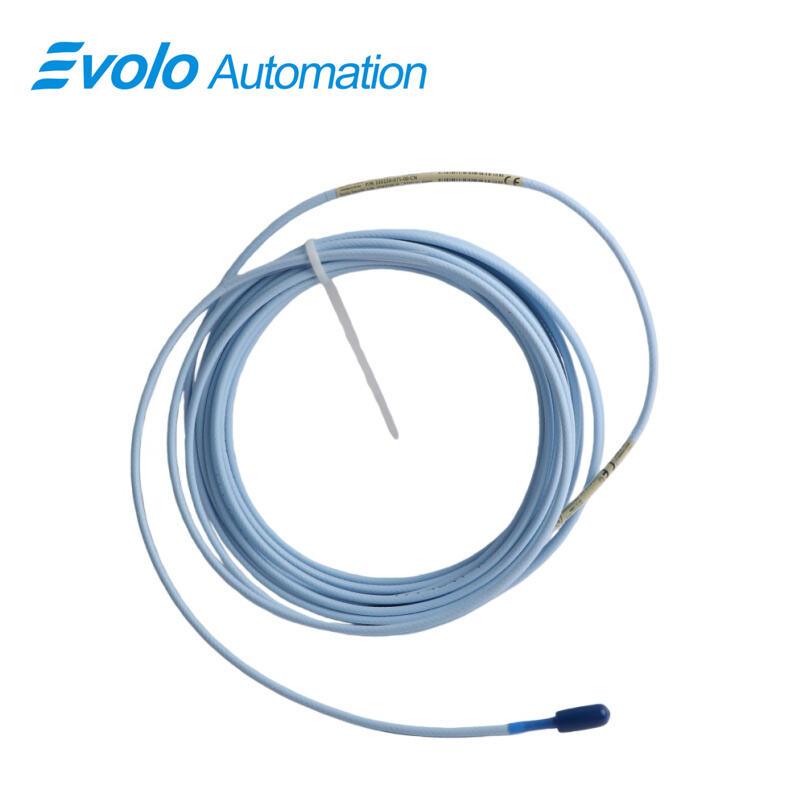

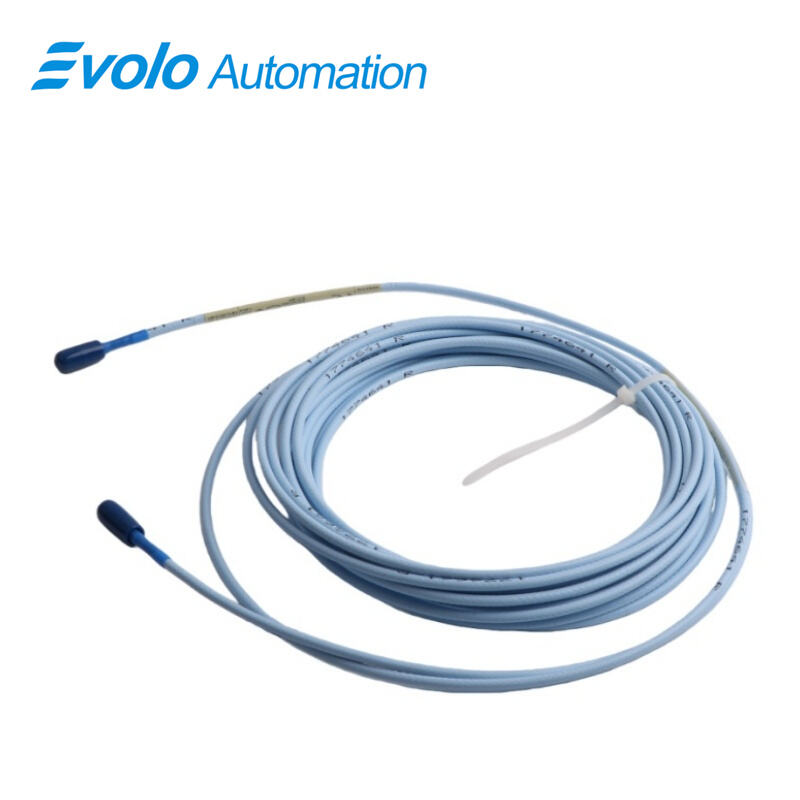

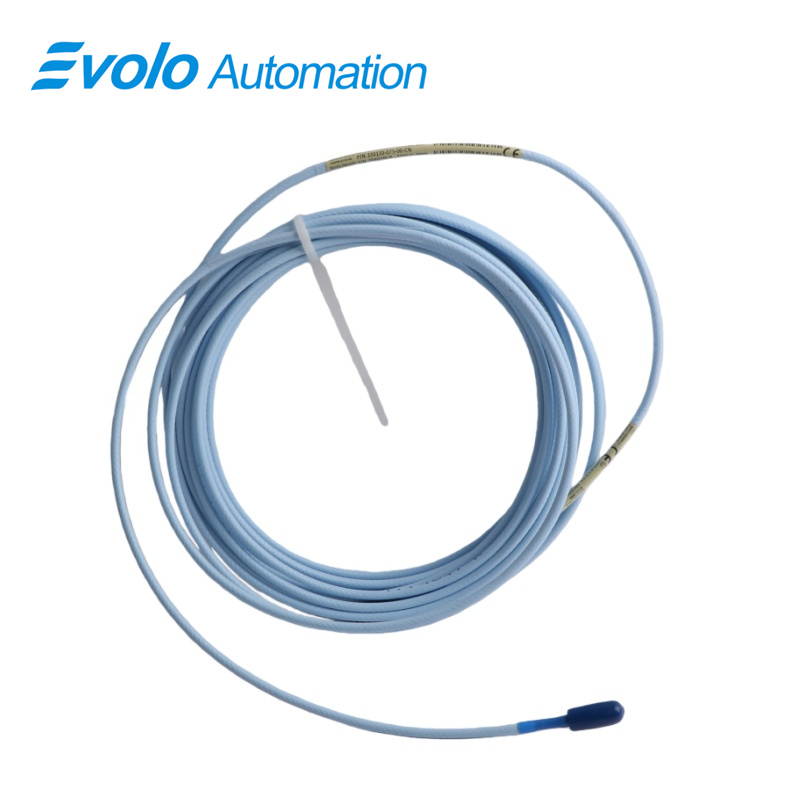

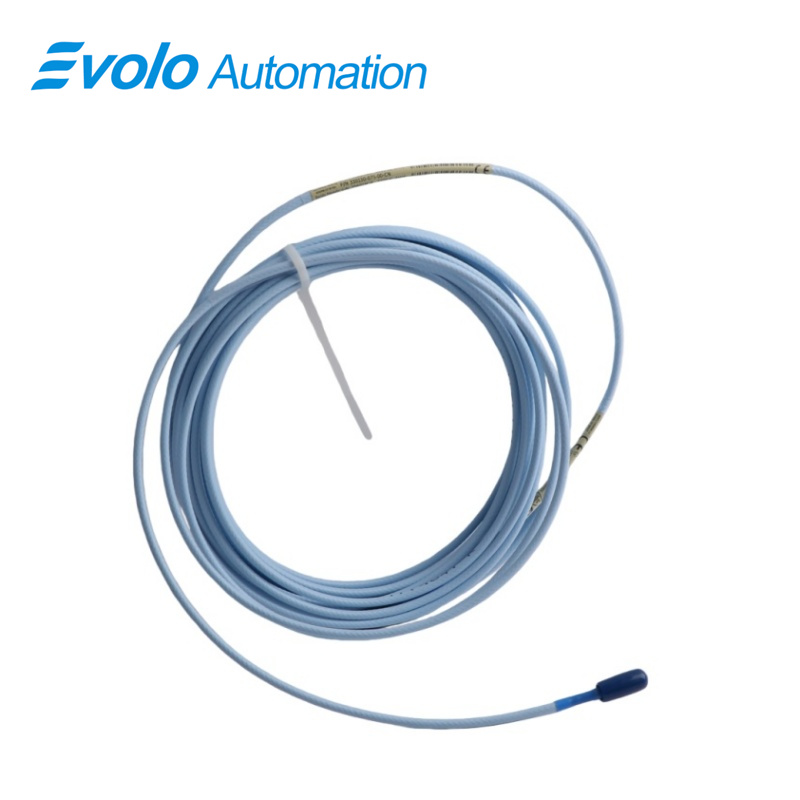

The 330130-075-00-CN 3300 XL Standard Extension Cable delivers precise signal transmission for 8 mm proximity probes in automated machinery. With a 7.5-meter (24.6 feet) length, 75 Q triaxial FEP insulation, 50 Ω output resistance, and 69.9 pF/m capacitance, the 330130-075-00-CN 3300 XL cable ensures minimal signal loss for static and dynamic measurements. It supports 0.2–1.5 mm² (16–24 AWG) field wiring, a 2 mm linear range, and detects targets as small as 15.2 mm. The frequency response of 0–10 kHz allows accurate vibration and position monitoring across wiring up to 305 meters. CSA, ATEX, and IECEx approvals enable safe installation in hazardous automation environments. The 330130-075-00-CN 3300 XL cable is compatible with all 3300 XL probes and Proximitor sensors, enabling flexible configuration and secure connections with patented TipLoc and CableLoc systems. Optional FluidLoc cables prevent oil leakage, maintaining clean operation in rotating machinery.
Applications
Measure Shaft Vibration in Fluid-Film Bearings
Use the 330130-075-00-CN 3300 XL cable to connect 8 mm probes for vibration monitoring on pumps, compressors, and turbines. Accurate frequency response (0–10 kHz) allows detection of early imbalance or misalignment.
Monitor Rotor Position in High-Speed Machinery
Connect the 330130-075-00-CN 3300 XL cable to measure rotor position with a 2 mm linear range. Small targets down to 15.2 mm can be tracked in automated assembly or processing lines.
Support Keyphasor Reference and Speed Measurement
The 330130-075-00-CN 3300 XL cable enables precise transmission of Keyphasor signals for automated speed control and synchronization in industrial drives and control loops.
Extend Probe Signals in Hazardous Areas
Use 330130-075-00-CN 3300 XL cable with CSA, ATEX, and IECEx-approved probes to safely extend signals in explosive or high-risk zones, maintaining accurate readings up to 305 meters.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
High-Fidelity Signal Transmission
Low capacitance (69.9 pF/m) and 50 Ω output resistance allow the 330130-075-00-CN 3300 XL cable to transmit accurate signals without voltage drop, even in long runs.
Durable Cable Construction
75 Q triaxial FEP insulation and armored design protect the 330130-075-00-CN 3300 XL cable from mechanical and chemical hazards in automated environments.
Secure Probe Connections
Patented TipLoc and CableLoc systems ensure the 330130-075-00-CN 3300 XL cable maintains a firm bond between probe and cable, providing consistent signal transfer under high-vibration conditions.
Optional FluidLoc for Leak Prevention
FluidLoc option prevents oil and other fluids from entering the 330130-075-00-CN 3300 XL cable , maintaining clean operation and reducing maintenance in automated machinery.
Flexible Field Wiring Support
Supports 0.2–1.5 mm² (16–24 AWG) wiring, enabling the 330130-075-00-CN 3300 XL cable to adapt to various automated system layouts without recalibration.
