Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-070-00-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
7.0 meters (22.9 feet) |
|
Connector Protector and Cable Option: |
Standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
19.3x18.6x2.1cm |
|
Weight: |
0.24kg |
Description

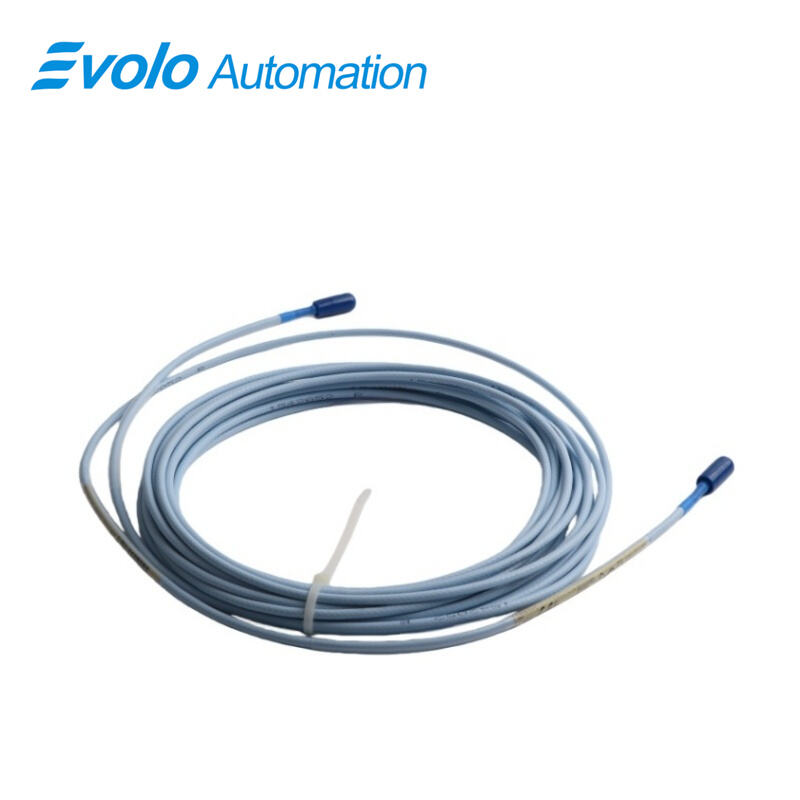

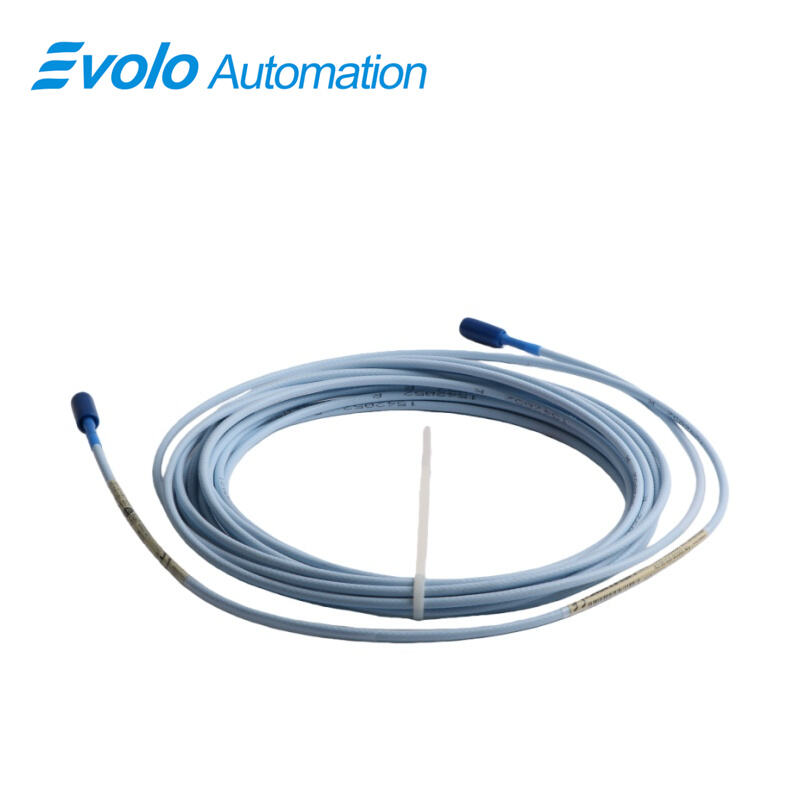

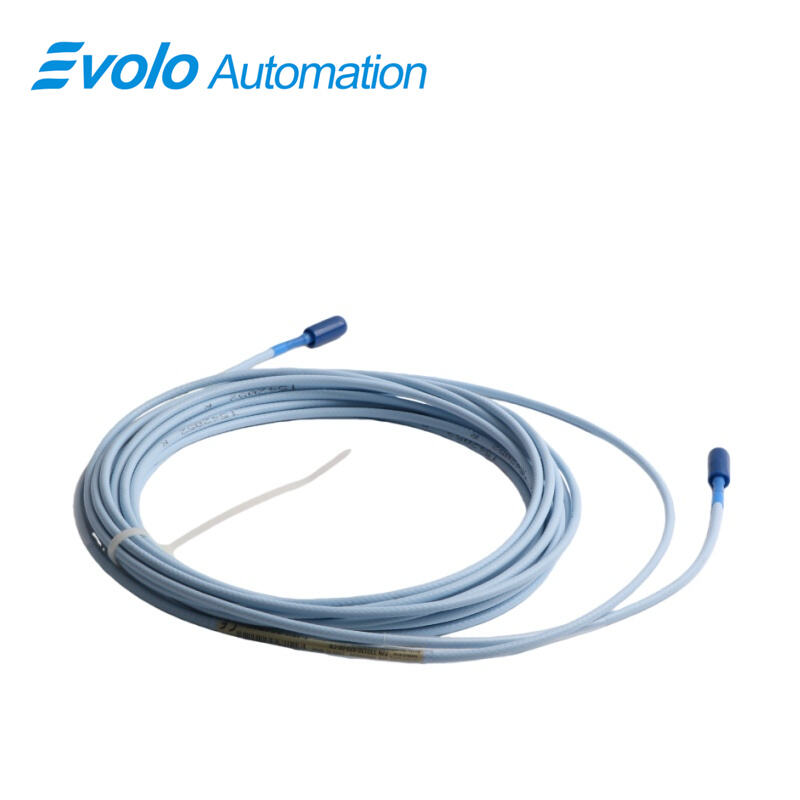

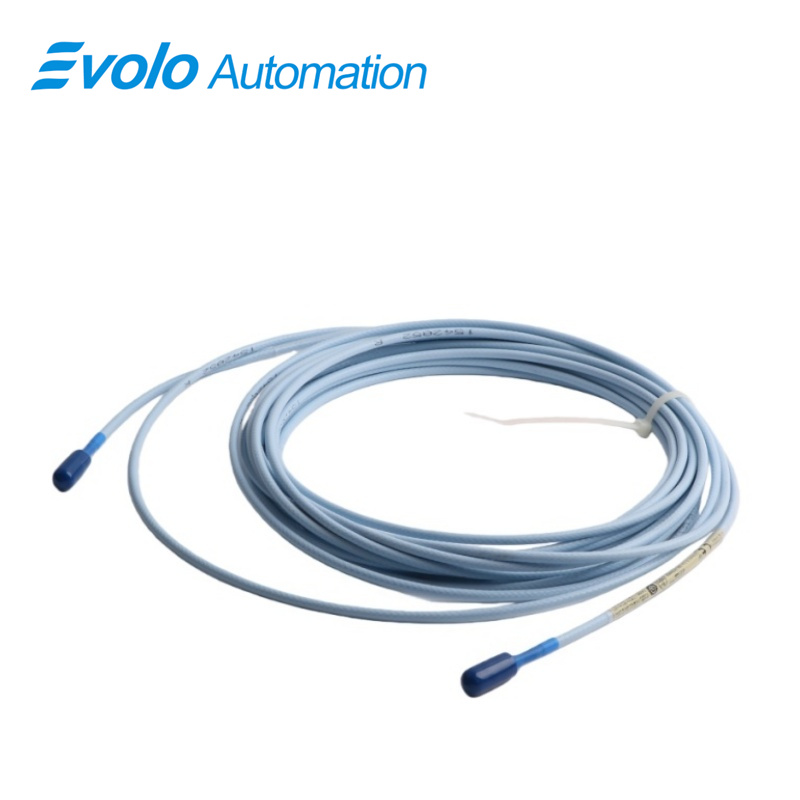

The 330130-070-00-CN 3300 XL Standard Extension Cable delivers precise signal transmission for 8 mm proximity probes in automated machinery. With a cable length of 7.0 meters (22.9 feet) and 75 Q triaxial FEP insulation, the 330130-070-00-CN 3300 XL cable maintains less than 2 mV change per volt of input, supporting accurate static and dynamic measurements. Its 50 Ω output resistance and 69.9 pF/m capacitance ensure high-quality data over field wiring up to 305 meters. The 330130-070-00-CN 3300 XL cable accommodates 0.2 to 1.5 mm² (16–24 AWG) wiring and captures linear ranges of 2 mm with minimum target sizes of 15.2 mm, making it ideal for vibration, shaft position, and Keyphasor speed monitoring in automated systems. CSA, ATEX, and IECEx approvals allow safe use in hazardous areas.
Applications
Application – Measure Shaft Position on Fluid-Film Bearings
Use the 330130-070-00-CN 3300 XL cable to connect 8 mm probes on fluid-film bearing machinery. The 2 mm linear range and precise voltage output allow operators to monitor shaft positions accurately in automated production systems.
Application – Monitor Rotor Vibration in Turbines
Integrate 330130-070-00-CN 3300 XL cables with vibration probes to record high-frequency rotor vibrations up to 10 kHz. The 75 Q FEP insulation and low output resistance provide clear, repeatable signals across field wiring up to 305 meters.
Application – Capture Keyphasor Signals for Speed Measurement
Connect the 330130-070-00-CN 3300 XL to Keyphasor probes to generate precise speed reference signals. The cable’s capacitance and low supply sensitivity maintain consistent output even with varying voltage supply.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Competitive Advantage – Long-Distance Signal Integrity
The 330130-070-00-CN 3300 XL supports up to 305 meters of field wiring while maintaining signal accuracy due to 50 Ω output resistance and 69.9 pF/m capacitance, reducing the need for intermediate amplifiers.
Competitive Advantage – Hazardous Area Ready
With CSA, ATEX, and IECEx approvals, 330130-070-00-CN 3300 XL can be safely installed in hazardous automation environments without additional protective components.
Competitive Advantage – High Mechanical Retention
The cable’s design works with patented TipLoc and CableLoc probe interfaces, providing 330 N pull strength to securely attach the probe cable, preventing disconnections during automated operations.
Competitive Advantage – Broad Sensor Compatibility
The 330130-070-00-CN 3300 XL is fully interchangeable with other 3300 XL series probes and extension cables, allowing flexible system upgrades and replacement without re-calibration.
