Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-070-00-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
7.0 meters (22.9 feet) |
|
Connector Protector and Cable Option: |
Standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
20x20x2.1cm |
|
Weight: |
0.24kg |
Description

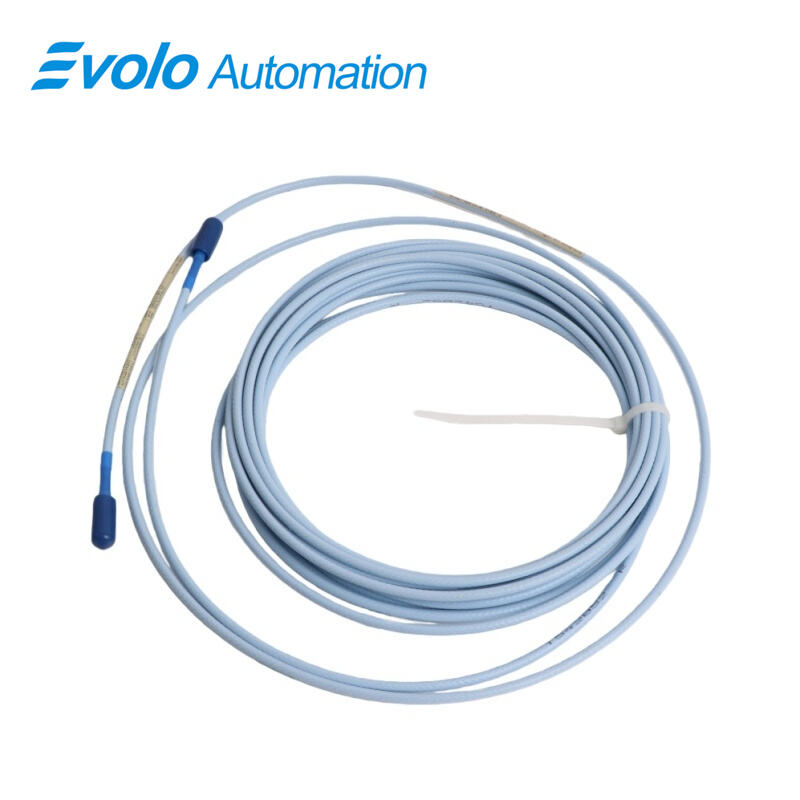

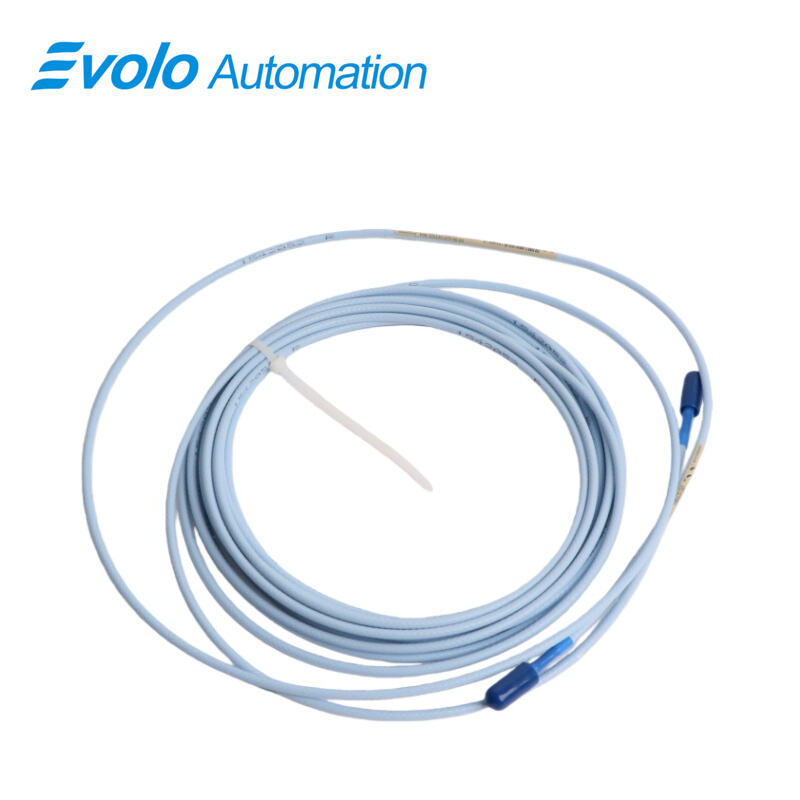

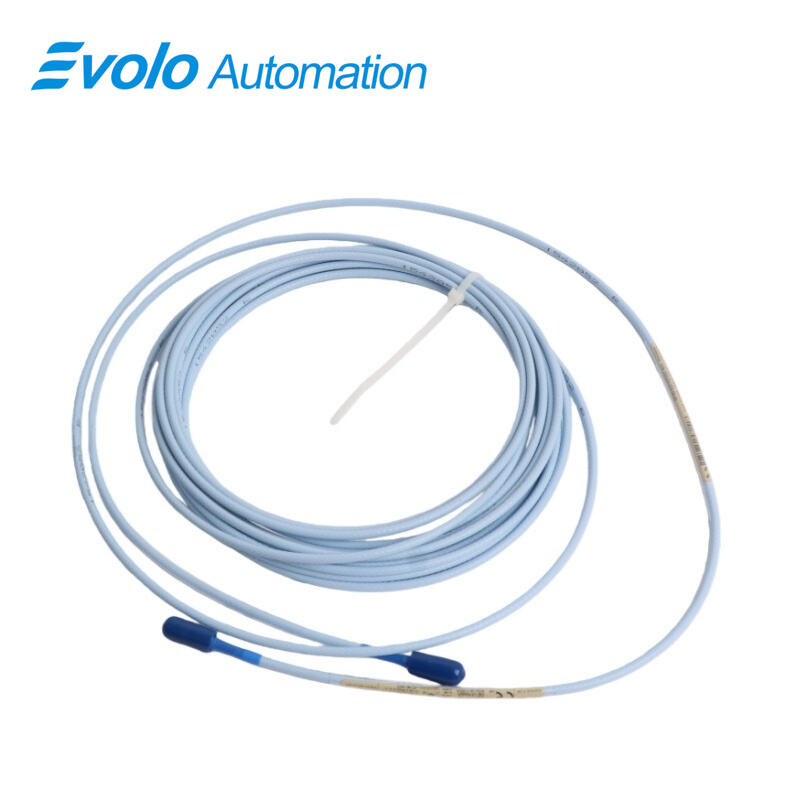

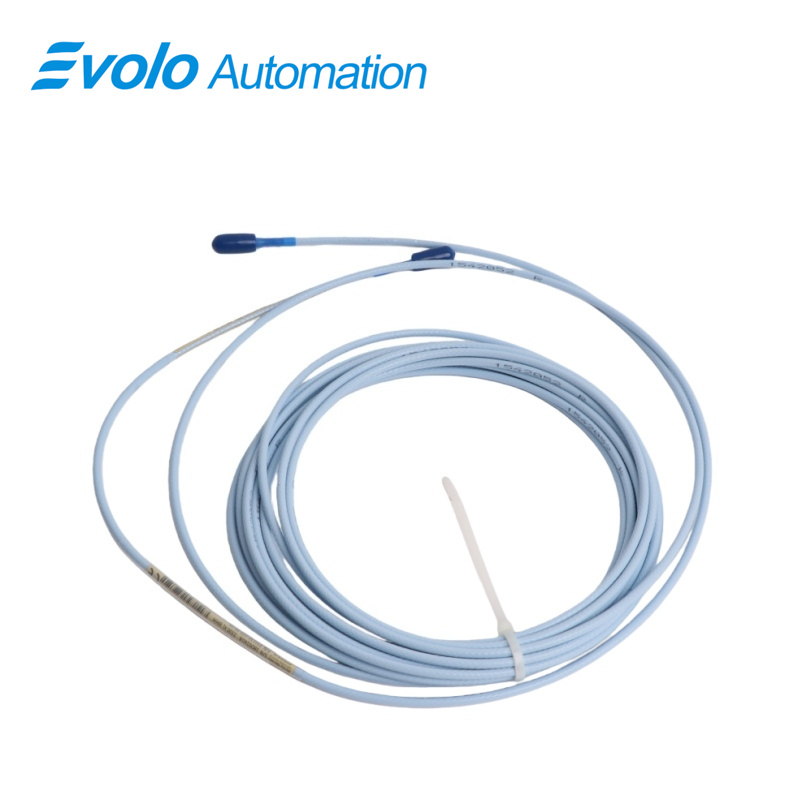

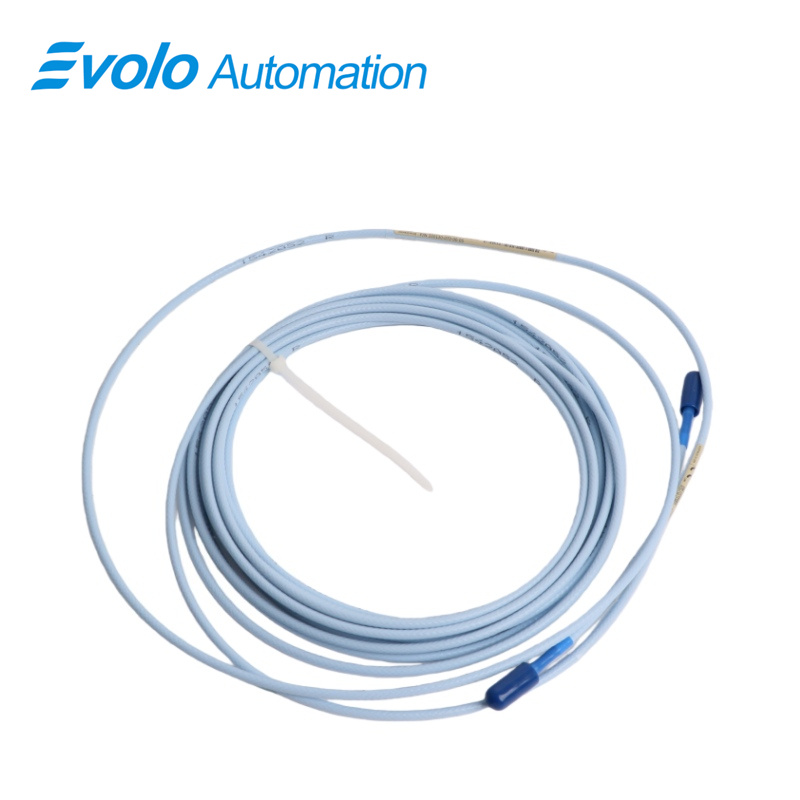

The 330130-070-00-05 3300 XL Standard Extension Cable is a 7.0-meter (22.9 ft) triaxial FEP-insulated cable for use with 3300 XL 8 mm proximity probes. The 330130-070-00-05 3300 XL cable provides 50 Ω output resistance, supply sensitivity below 2 mV/V, and capacitance of 69.9 pF/m (21.3 pF/ft). It supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and maintains a linear range of 2 mm (80 mils). The 330130-070-00-05 3300 XL cable transmits vibration and position measurements, Keyphasor reference signals, and shaft speed data, handling up to 305 meters (1000 ft) of field wiring with a minimum target diameter of 15.2 mm (0.6 in). CSA, ATEX, and IECEx approvals ensure reliable operation in industrial environments.
Applications
Connect 330130-070-00-05 3300 XL Proximity Probes to Monitoring Systems
The 330130-070-00-05 3300 XL cable links 3300 XL 8 mm probes to Proximitor sensors, transmitting vibration and position data with 50 Ω output and linear range of 2 mm (80 mils) for fluid-film bearing machines.
Extend 330130-070-00-05 3300 XL Probe Wiring for Remote Locations
The 330130-070-00-05 3300 XL cable provides 7.0 meters of extension, maintaining capacitance of 69.9 pF/m and low supply sensitivity (<2 mV/V) to ensure accurate signal transmission over long distances.
Transmit Keyphasor and Speed Signals with 330130-070-00-05 3300 XL Cable
The 330130-070-00-05 3300 XL cable delivers high-fidelity Keyphasor reference and shaft speed signals, supporting up to 305 meters (1000 ft) of field wiring with a minimum target size of 15.2 mm (0.6 in).
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Ensure Precise Signal Transmission with 330130-070-00-05 3300 XL Cable
The 330130-070-00-05 3300 XL cable maintains 50 Ω output, less than 2 mV/V supply sensitivity, and capacitance of 69.9 pF/m to preserve vibration and position measurements.
Simplify Industrial Installation Using 330130-070-00-05 3300 XL Cable
The 330130-070-00-05 3300 XL cable supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and standard triaxial connectors for routing in tight or oil-exposed spaces.
Enable Extended Monitoring Distances with 330130-070-00-05 3300 XL Cable
The 330130-070-00-05 3300 XL cable supports connection over 305 meters (1000 ft) while keeping Keyphasor, speed, vibration, and position signals accurate.
