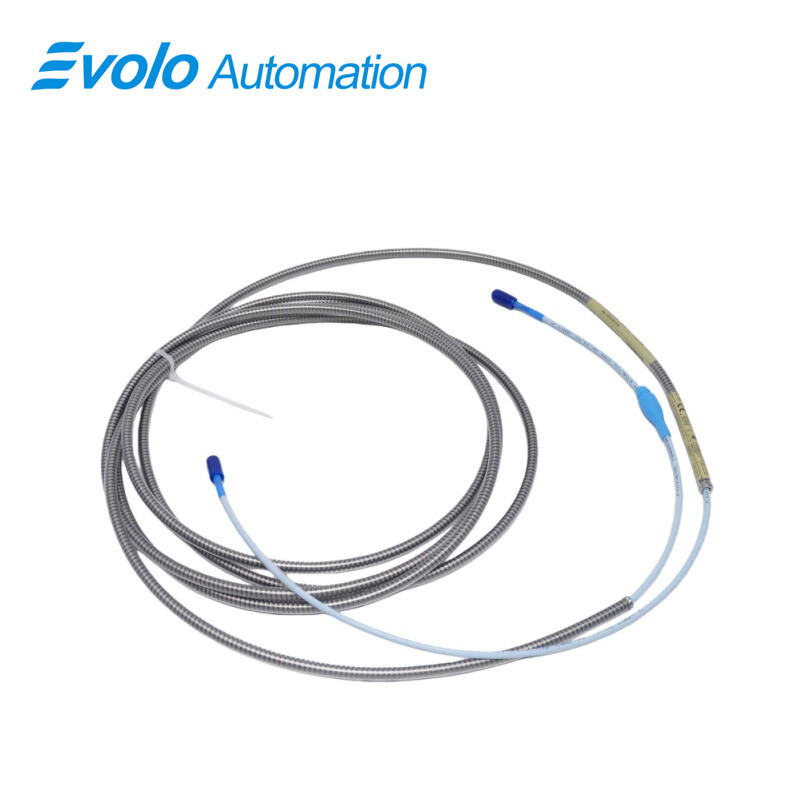

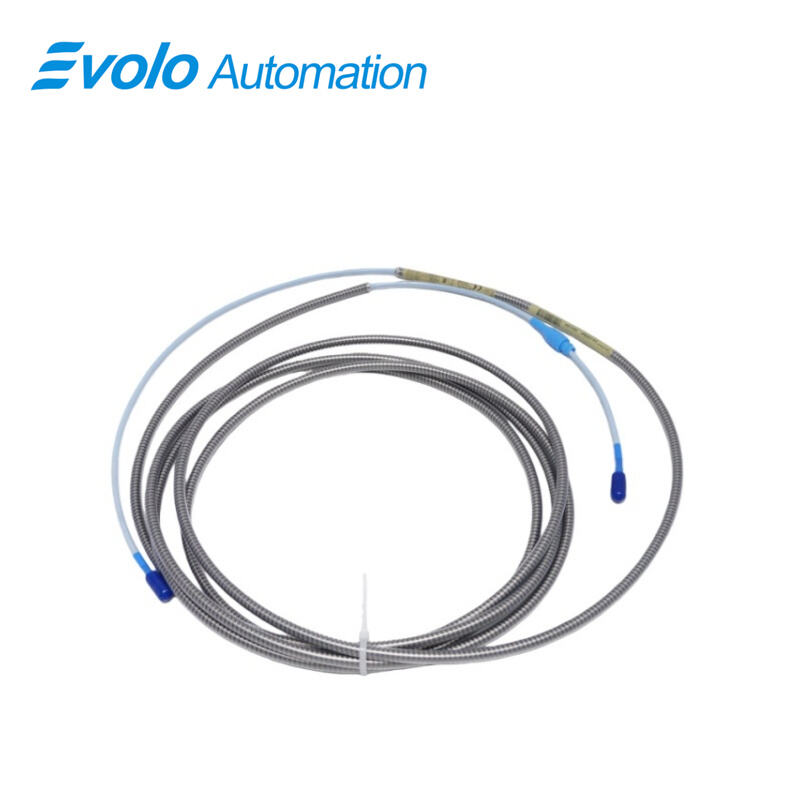

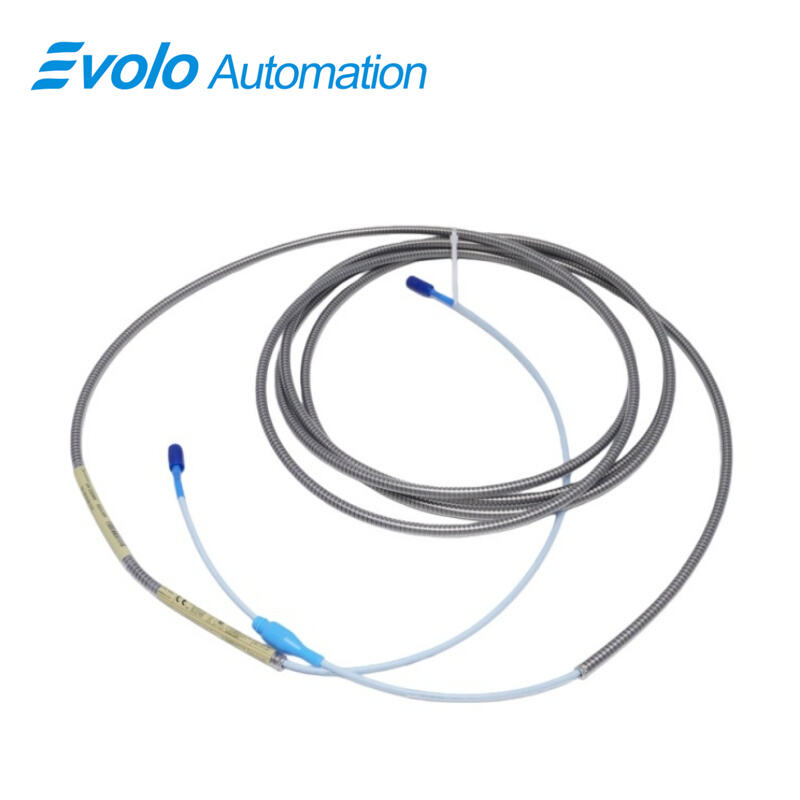

330130-065-00-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-065-00-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-065-00-05 3300 XL Standard Extension Cable is a 6.0-meter (19.7 feet) triaxial cable designed for integration with 3300 XL 8 mm Proximity Transducer Systems. The 75 Ω FEP-insulated standard cable supports linear range measurements up to 2 mm (80 mils) and enables both static (position) and dynamic (vibration) signal transmission from probes to Proximitor sensors. With 69.9 pF/m typical capacitance and field wiring of 0.2 to 1.5 mm² (16 to 24 AWG), the 330130-065-00-05 3300 XL Standard Extension Cable ensures accurate distance-to-target output for automated vibration and speed monitoring. Operating and storage temperatures from -52°C to +177°C (-62°F to +350°F) allow use in harsh industrial environments. The CSA, ATEX, and IECEx approvals confirm compliance with safety standards for fluid-film bearing machine monitoring. The 330130-065-00-05 3300 XL Standard Extension Cable provides secure connections with standard connectors and is fully interchangeable with other 3300 XL series probes and sensors, eliminating the need for component recalibration. Optional FluidLoc configurations prevent fluid leakage and support automated systems requiring high-integrity probe connections.

Applications

Vibration Signal Transmission on Fluid-Film Bearings
The 330130-065-00-05 3300 XL Standard Extension Cable transmits dynamic vibration signals from 3300 XL 8 mm probes over 6.0 meters (19.7 feet) with low capacitance (69.9 pF/m) and minimal voltage variation (<2 mV/V), enabling precise vibration monitoring in fluid-film bearing machines.

Position Measurement for Rotating Shafts
This 330130-065-00-05 3300 XL Standard Extension Cable supports linear range readings up to 2 mm (80 mils), allowing accurate static and dynamic position measurements for shafts and targets in automated industrial equipment.

Integration with Keyphasor and Speed Systems
The 330130-065-00-05 3300 XL Standard Extension Cable maintains high signal fidelity for Keyphasor reference and speed measurement setups, ensuring reliable phase reference signals in automated control systems.

Remote Probe Installation
With 0.2 to 1.5 mm² (16–24 AWG) field wiring and robust insulation (75 Ω FEP triaxial cable), this 330130-065-00-05 3300 XL Standard Extension Cable enables probe placement in confined or hard-to-reach areas while keeping sensors connected to Proximitor units.

Specifications

Competitive Advantage

Direct Compatibility with 3300 XL Systems
The 330130-065-00-05 3300 XL Standard Extension Cable is fully interchangeable with other 3300 XL series probes and Proximitor sensors, eliminating the need for recalibration or component matching.

High Pull Strength and Secure Connections
The 330130-065-00-05 3300 XL Standard Extension Cable leverages CableLoc design, providing 330 N (75 lbf) pull strength, ensuring the connection between probe and extension cable remains secure during operation.

Optional FluidLoc Protection
When equipped with FluidLoc, the 330130-065-00-05 3300 XL Standard Extension Cable prevents oil and liquid ingress into the cable interior, protecting automated measurement systems from contamination.

Wide Temperature Operating Range
The 330130-065-00-05 3300 XL Standard Extension Cable operates from -52°C to +177°C (-62°F to +350°F), allowing continuous signal transmission in extreme industrial environments without performance loss.

Compliance with International Approvals
The 330130-065-00-05 3300 XL Standard Extension Cable meets CSA, ATEX, and IECEx standards, making it suitable for automated installations in regulated industrial environments worldwide.
