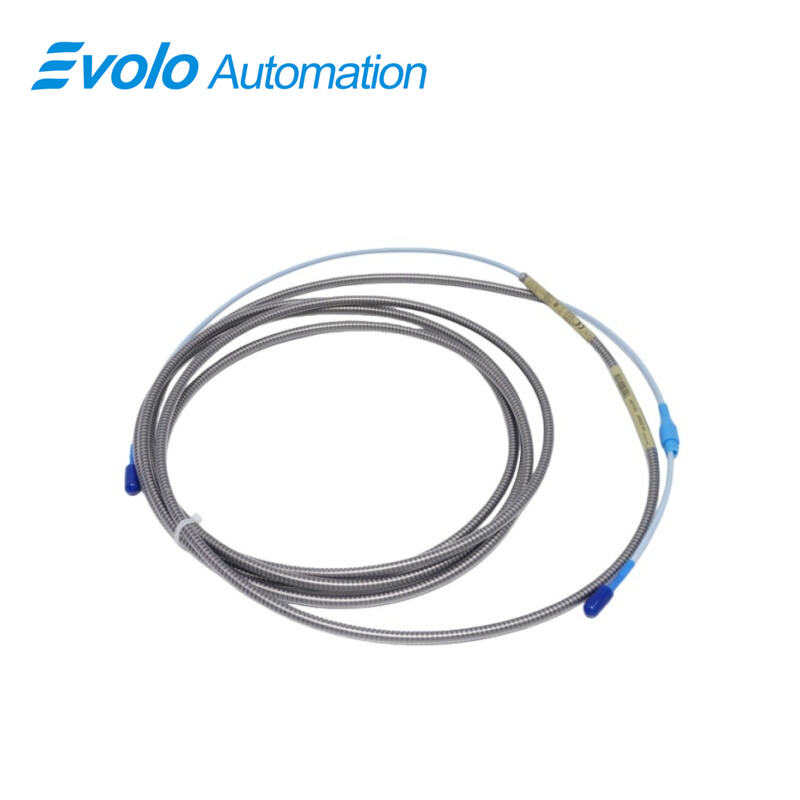

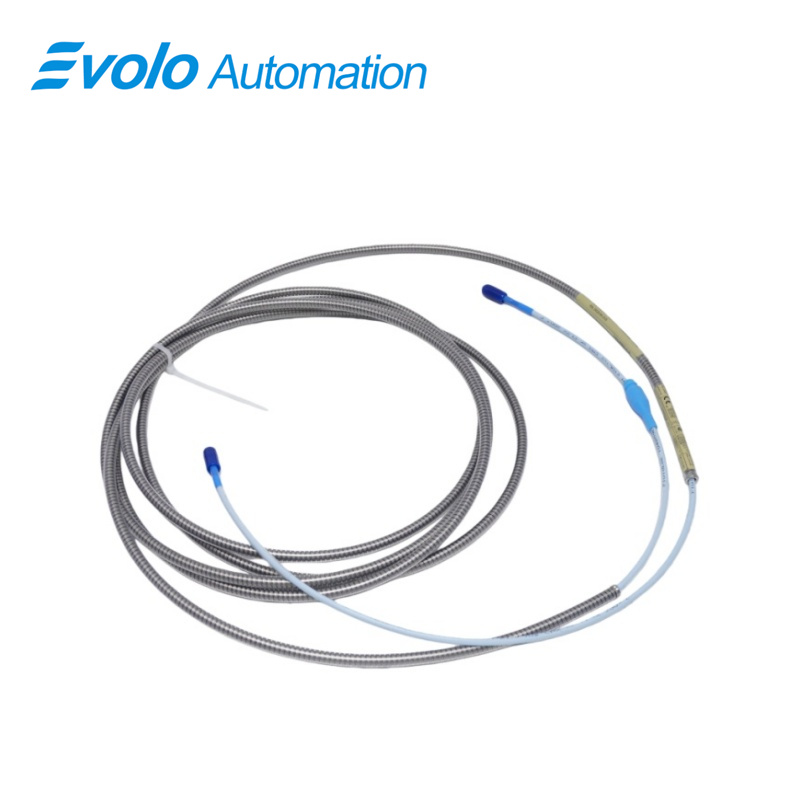

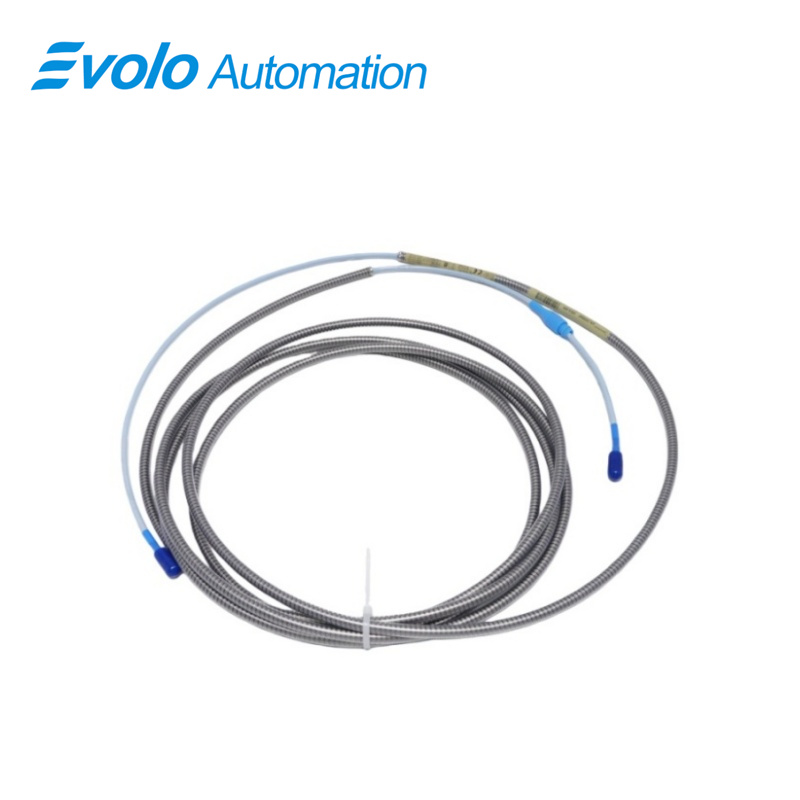

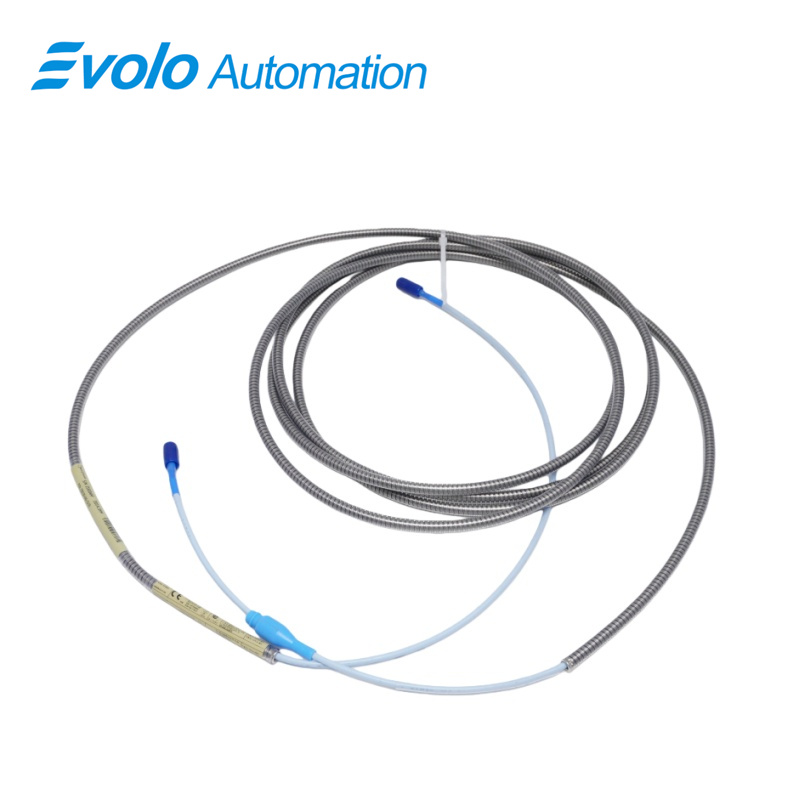

330130-045-13-CN 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-045-13-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-045-13-CN 3300 XL Standard Extension Cable provides a 4.5-meter connection for 8 mm 3300 XL probes, enabling precise measurement of static position and dynamic vibration in automated machinery. Its 75 Q triaxial FEP insulation and 50 Ω output resistance ensure accurate signal transmission with less than 2 mV change per volt input variation. The armored FluidLoc design with connector protector delivers 330 N pull strength and prevents oil ingress, making the 330130-045-13-CN 3300 XL cable suitable for fluid-film bearing machines and automated rotor monitoring. Extension cable capacitance is 69.9 pF/m, supporting linear range of 2 mm and frequency response up to 10 kHz over field wiring lengths to 305 meters. The minimum target size of 15.2 mm ensures reliable Keyphasor reference and speed measurements. CSA, ATEX, and IECEx approvals allow safe deployment in hazardous automated environments. Fully interchangeable with other 8 mm 3300 XL probes and Proximitor sensors, the 330130-045-13-CN 3300 XL cable simplifies system installation and upgrades while maintaining consistent output for automated monitoring systems.

Applications

Monitor rotor vibration on fluid-film bearings
Use the 330130-045-13-CN 3300 XL cable to connect 8 mm probes for precise measurement of rotor vibrations, capturing dynamic displacement up to 10 kHz over field wiring lengths up to 305 meters.

Measure shaft position in automated machinery
The 330130-045-13-CN 3300 XL cable supports linear ranges of 2 mm and minimum target diameters of 15.2 mm, allowing accurate static position monitoring for automated production systems.

Provide Keyphasor reference signals
By maintaining less than 2 mV output variation per volt of input, the 330130-045-13-CN 3300 XL cable ensures reliable Keyphasor pulse generation for speed and phase measurements in turbine or motor control automation.

Connect probes in hazardous environments
CSA, ATEX, and IECEx approvals allow the 330130-045-13-CN 3300 XL cable to safely transmit signals in automated processes exposed to flammable gases or liquids.

Specifications

Competitive Advantage

Enhanced signal integrity with low output resistance
The 330130-045-13-CN 3300 XL cable’s 50 Ω output resistance and 69.9 pF/m capacitance maintain signal quality over long distances, reducing measurement errors in automated monitoring systems.

Robust cable design for harsh environments
Armored FluidLoc construction and 330 N pull strength provide secure probe attachment and prevent oil ingress, enabling the 330130-045-13-CN 3300 XL cable to withstand demanding industrial automation conditions.

Interchangeable with all 8 mm 3300 XL probes
The 330130-045-13-CN 3300 XL cable supports plug-and-play replacement, simplifying system upgrades and maintenance without recalibration.

Support for high-frequency monitoring
With a frequency response of 0–10 kHz, the 330130-045-13-CN 3300 XL cable delivers accurate dynamic data for vibration analysis and speed measurement, enhancing automated process control.
