Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-045-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
4.5 meters (14.8 feet) |
|
Connector Protector and Cable Option: |
Standard cable with connector protector |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
28x28x3cm |
|
Weight: |
0.45 kg |
Description

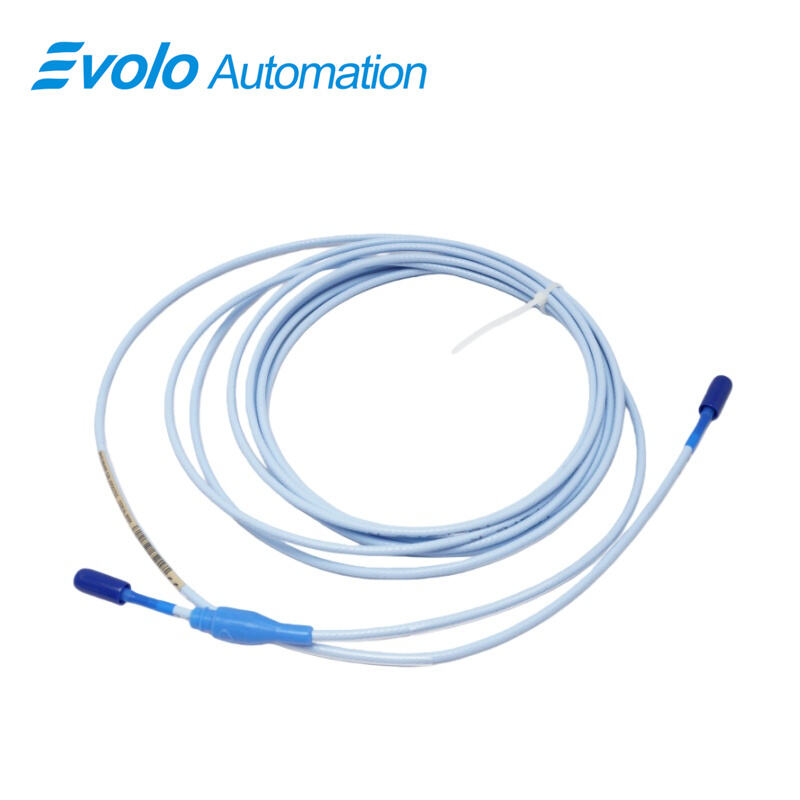

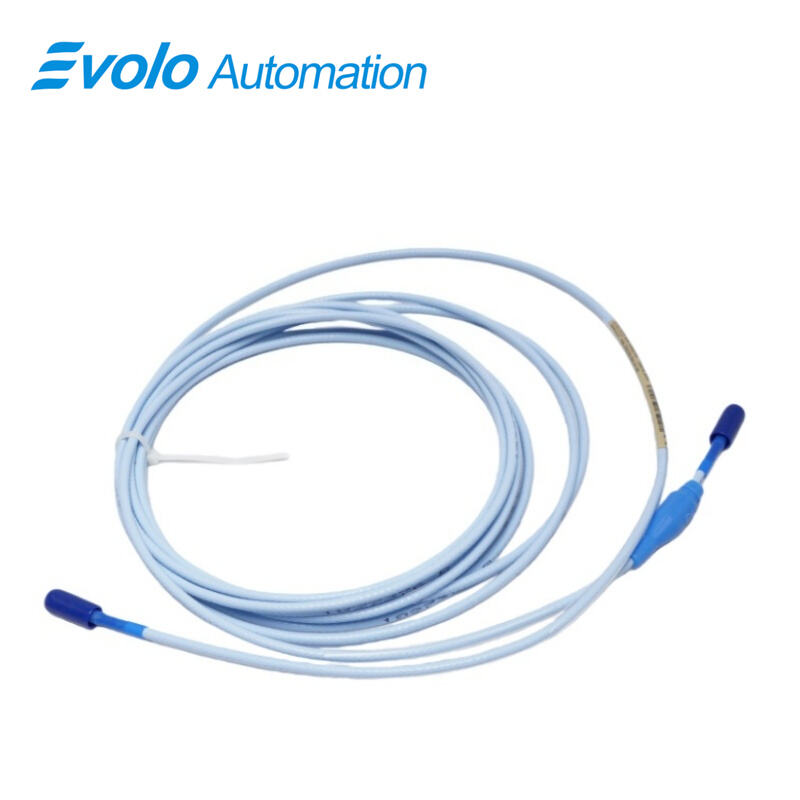

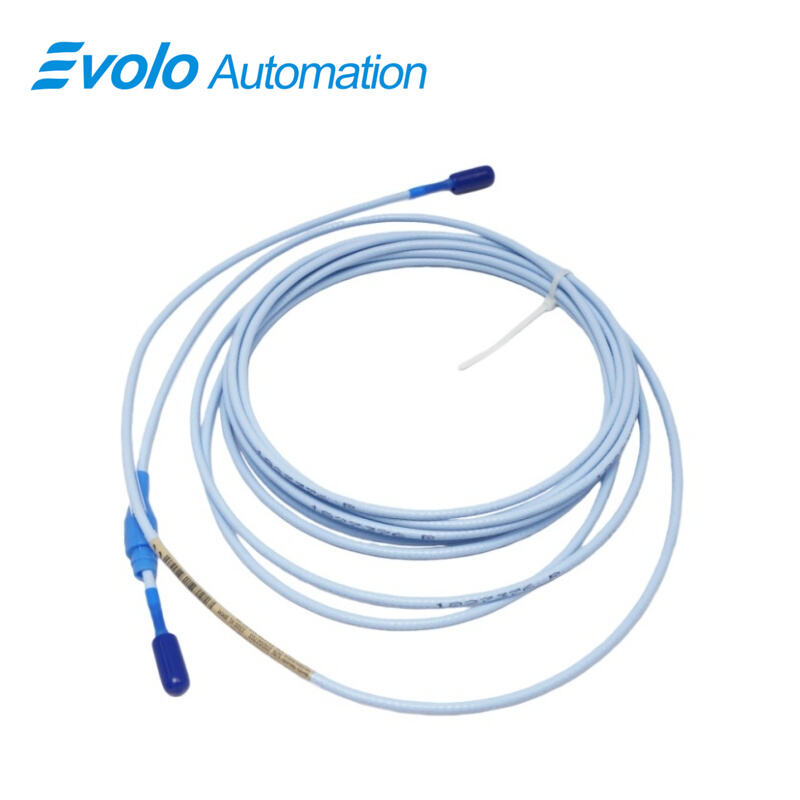

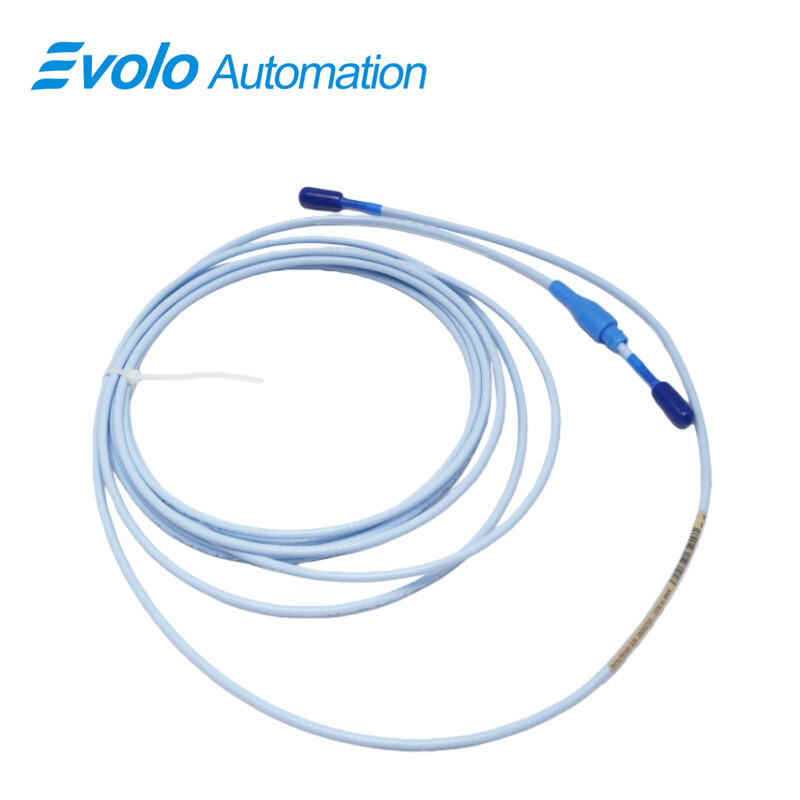

330130-045-02-00 3300 XL Standard Extension Cable is designed for automated eddy current proximity transducer systems, providing reliable signal transmission between 330130-045-02-00 probes and monitoring equipment. With a cable length of 4.5 meters (14.8 ft) and 75 Q triaxial FEP insulation, 330130-045-02-00 delivers minimal signal loss and less than 2 mV change per volt variation in supply voltage.
330130-045-02-00 supports field wiring from 16 to 24 AWG and maintains a linear range of 2 mm (80 mils). The cable has an output resistance of 50 Ω and capacitance of 69.9 pF/m (21.3 pF/ft), allowing high-fidelity transmission up to 10 kHz frequency response and distances up to 305 meters (1000 ft). The connector protector on 330130-045-02-00 ensures secure connections and reduces maintenance in automated installations. The cable accommodates targets with a minimum diameter of 15.2 mm (0.6 in), making 330130-045-02-00 suitable for vibration, position, and Keyphasor measurements in industrial automation systems.
Applications
Vibration Signal Transmission
330130-045-02-00 3300 XL Standard Extension Cable transmits voltage signals from 3300 XL probes to automated monitoring systems with less than 2 mV change per volt of input variation. Its 50 Ω output resistance and 69.9 pF/m capacitance ensure precise vibration measurements over a 4.5-meter (14.8 ft) cable run.
Position Monitoring on Fluid-Film Bearings
330130-045-02-00 supports linear range measurements of 2 mm (80 mils) for shaft position monitoring. The 75 Q triaxial FEP insulation allows accurate gap sensing on turbines, pumps, and compressors in automated control systems.
Keyphasor Signal Delivery
330130-045-02-00 provides high-fidelity frequency response (0–10 kHz) for Keyphasor and speed reference signals, supporting automated phase and speed control in industrial machinery. The cable’s design allows connection to PLCs or DCS modules up to 305 meters (1000 ft) away.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Extended Signal Accuracy
330130-045-02-00 maintains output signal quality over long distances, ensuring precise vibration and position readings for automated machinery monitoring.
Flexible Field Wiring
330130-045-02-00 supports 16–24 AWG wiring, allowing rapid installation and integration into existing automated systems without additional adapters.
High-Frequency Performance
330130-045-02-00 supports up to 10 kHz frequency response, enabling real-time monitoring of rapid shaft movements and dynamic system changes.
Secure Cable-to-Probe Connection
Patented CableLoc design used in 330130-045-02-00 provides 330 N pull strength, preventing disconnection during high-vibration operation in automated industrial environments.
