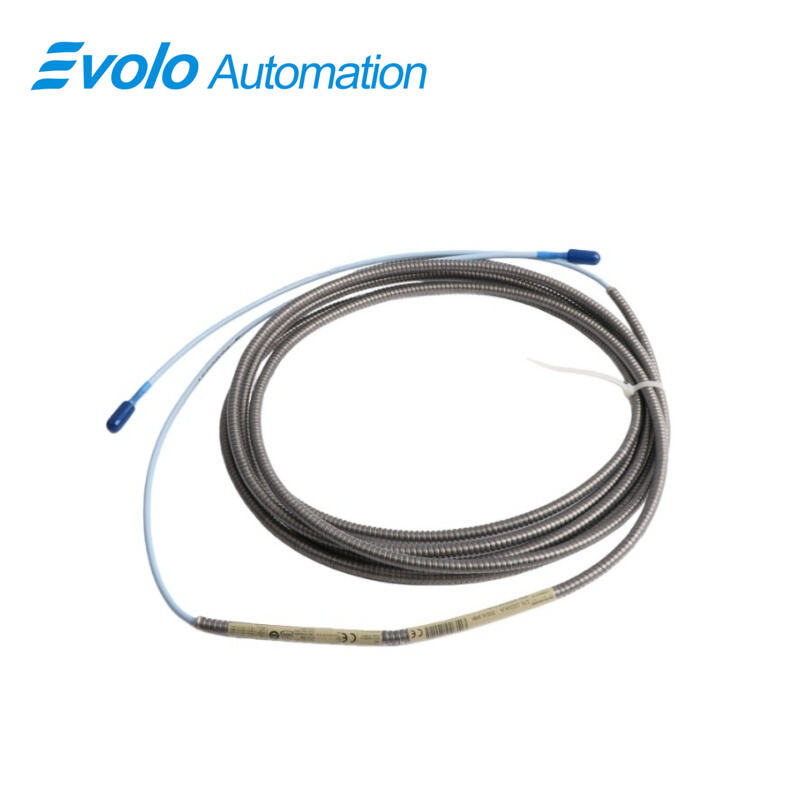

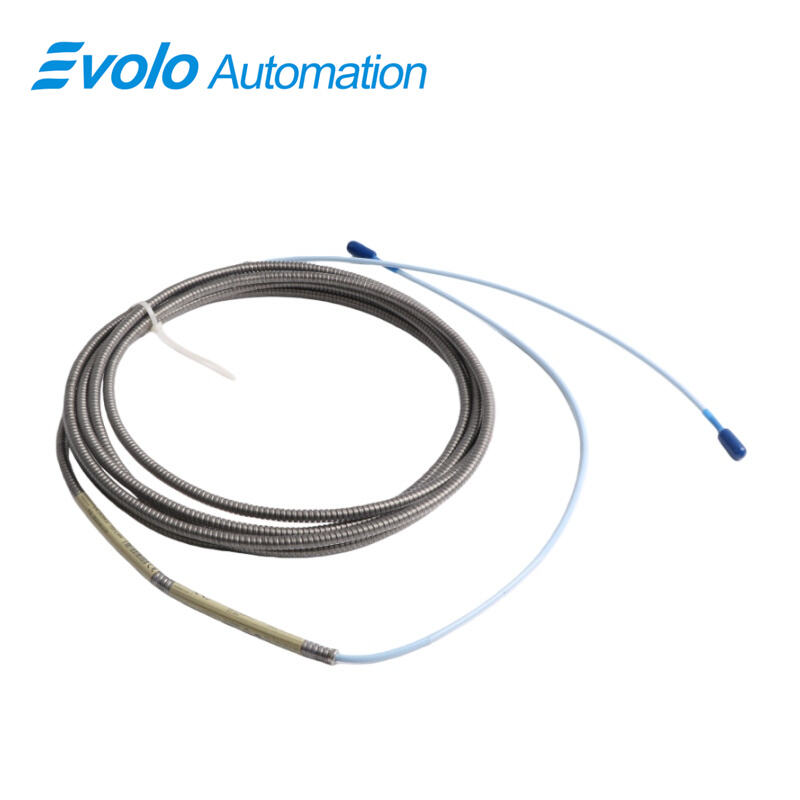

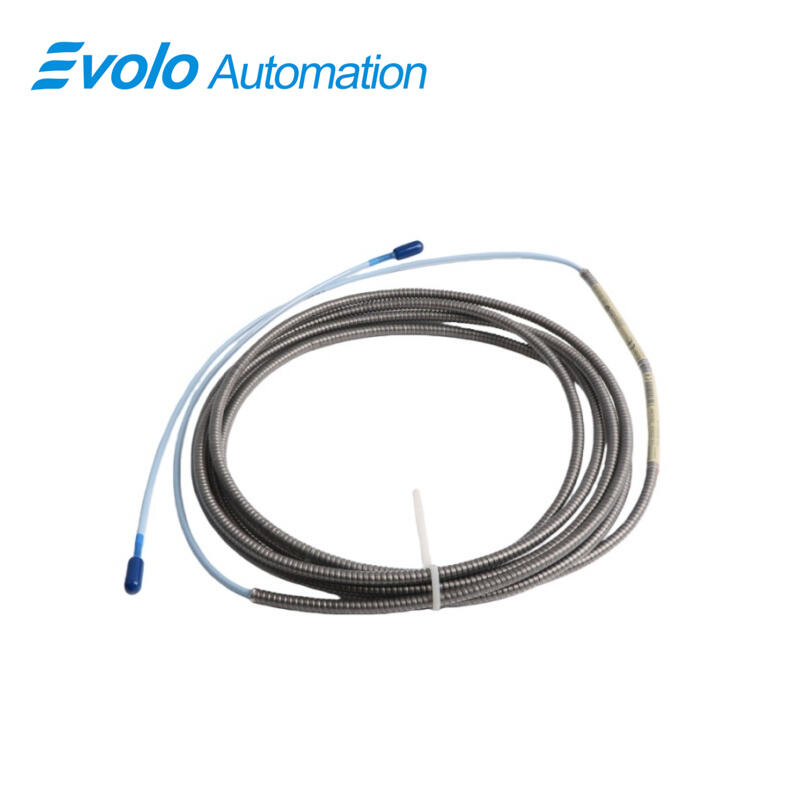

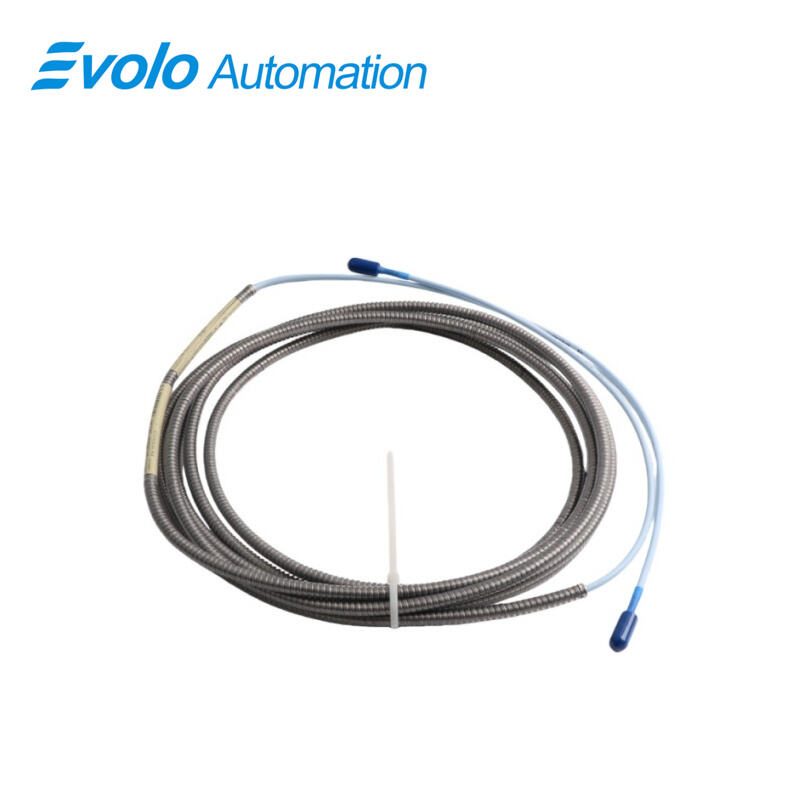

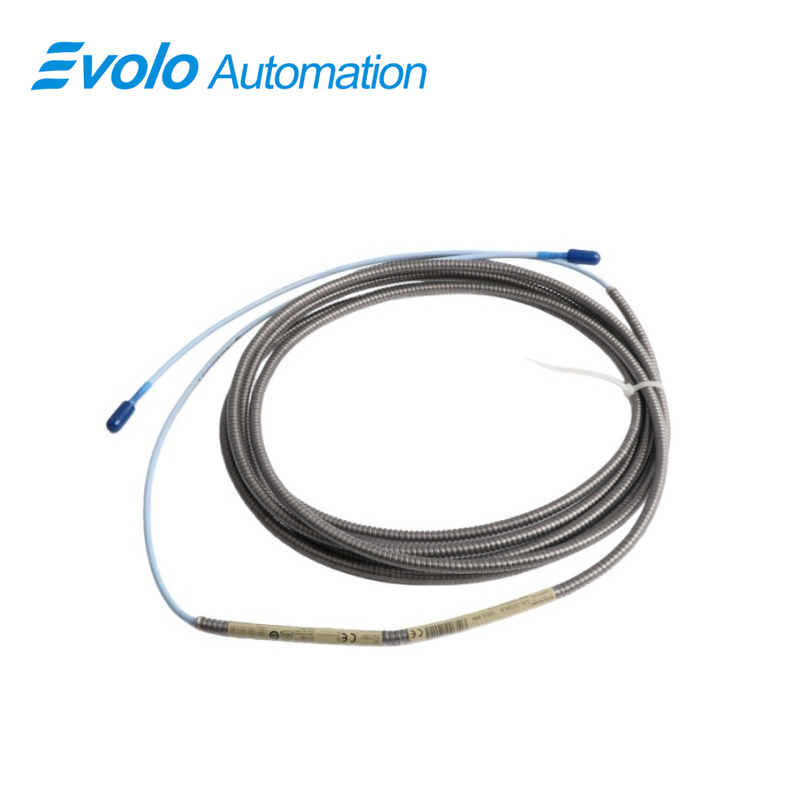

330130-045-01-CN 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-045-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330130-045-01-CN 3300 XL Standard Extension Cable is a 4.5-meter armored extension cable designed for high-performance 3300 XL 8 mm Proximity Transducer Systems. The 330130-045-01-CN uses 75 Q triaxial FEP insulation, supports field wiring from 0.2 to 1.5 mm², and maintains output resistance of 50 Ω with supply sensitivity under 2 mV per volt. Its 69.9 pF/m capacitance and 2 mm linear range allow accurate position and vibration measurement for fluid-film bearing machines. Frequency response of 0–10 kHz remains within ±3 dB even with up to 305 meters of field wiring. The 330130-045-01-CN meets CSA, ATEX, and IECEx approvals and ensures minimal signal loss when connected to 3300 XL probes. Its construction allows reliable Keyphasor and speed measurements, while the patented CableLoc design provides 330 N pull strength for secure probe attachment. The 330130-045-01-CN 3300 XL Standard Extension Cable integrates seamlessly with PLC, DCS, and SCADA systems, enabling automated monitoring and predictive maintenance without additional calibration. Its 15.2 mm minimum flat target capability ensures accurate readings in constrained installation spaces.

Applications

Radial Vibration Measurement
The 330130-045-01-CN 3300 XL Standard Extension Cable extends 8 mm probes for precise radial vibration detection on fluid-film bearing machines. Parameter integration such as 50 Ω output resistance and 2 mm linear range ensures reliable automated signal capture for process control systems.

Axial Shaft Displacement Monitoring
Use 330130-045-01-CN to measure axial (thrust) shaft positions. Its field wiring capability (up to 305 meters) allows deployment in large automation setups while preserving linear measurement accuracy.

Keyphasor Signal Transmission
The 330130-045-01-CN 3300 XL Standard Extension Cable reliably transmits Keyphasor and speed signals from probes to controllers, supporting automated rotor phase detection, zero-speed sensing, and machine synchronization.

Extended Industrial Installations
The armored design of 330130-045-01-CN allows safe installation in industrial environments with mechanical stress, ensuring consistent probe-to-sensor connectivity in automated monitoring systems.

Specifications

Competitive Advantage

High-Precision Signal Integrity
The 330130-045-01-CN maintains 50 Ω output resistance and less than 2 mV/V supply sensitivity across long cable runs, delivering consistent and accurate vibration and position measurements for automation systems.

Seamless Automation Integration
Designed for direct connection to PLC, DCS, and SCADA systems, the 330130-045-01-CN 3300 XL Standard Extension Cable enables rapid installation and immediate data availability for automated machinery monitoring.

Durable Armored Design
The armored 75 Q triaxial FEP cable and patented CableLoc connection provide 330 N pull strength, allowing 330130-045-01-CN to maintain secure probe connections under industrial mechanical stress.

Flexible Deployment
Supports field wiring from 0.2 to 1.5 mm² and probes with minimum flat target size of 15.2 mm, enabling 330130-045-01-CN to adapt to constrained spaces in automation setups while maintaining measurement precision.

Certified for Hazardous Areas
CSA, ATEX, and IECEx approvals ensure that 330130-045-01-CN 3300 XL Standard Extension Cable can be deployed in hazardous zones without compromising automated monitoring or operational safety.
