330130-045-01-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-045-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

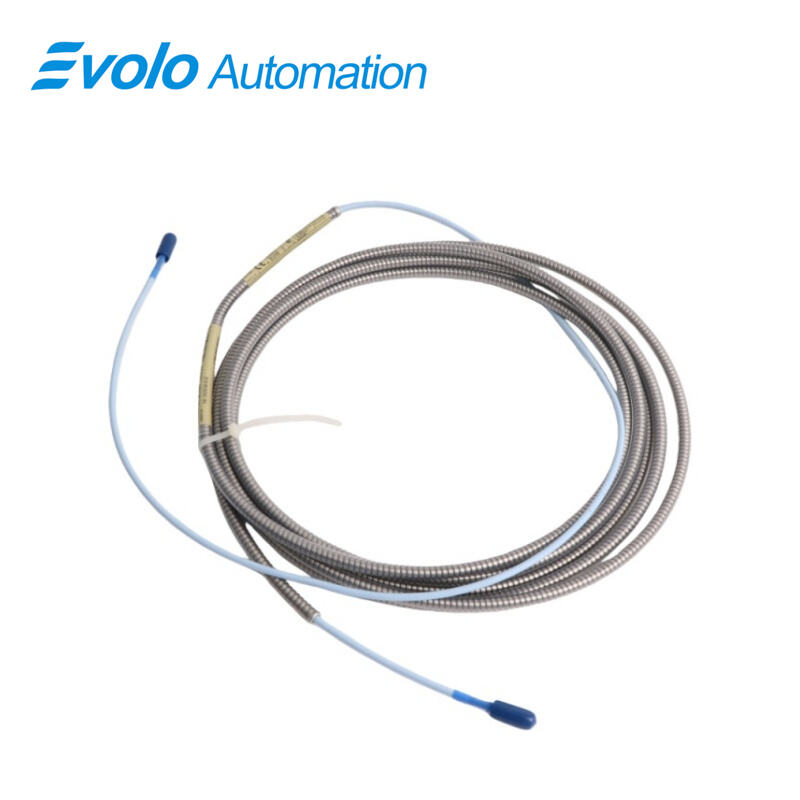

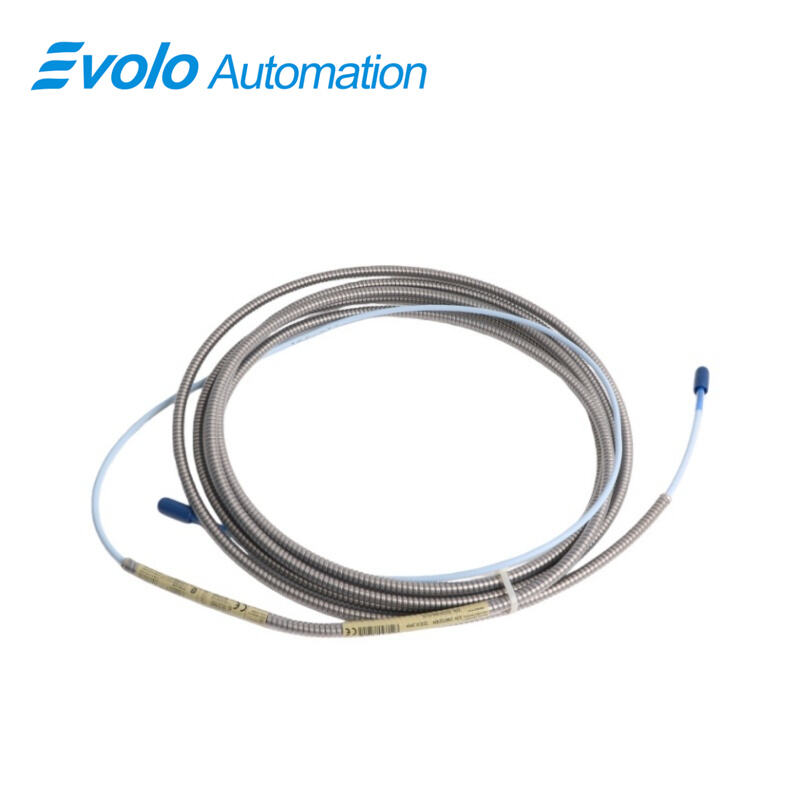

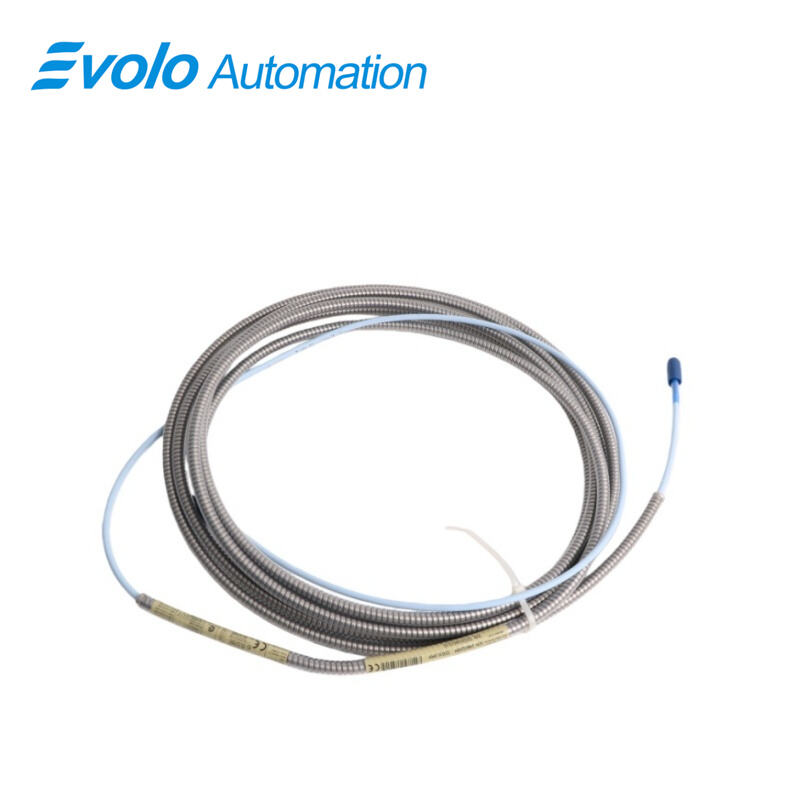

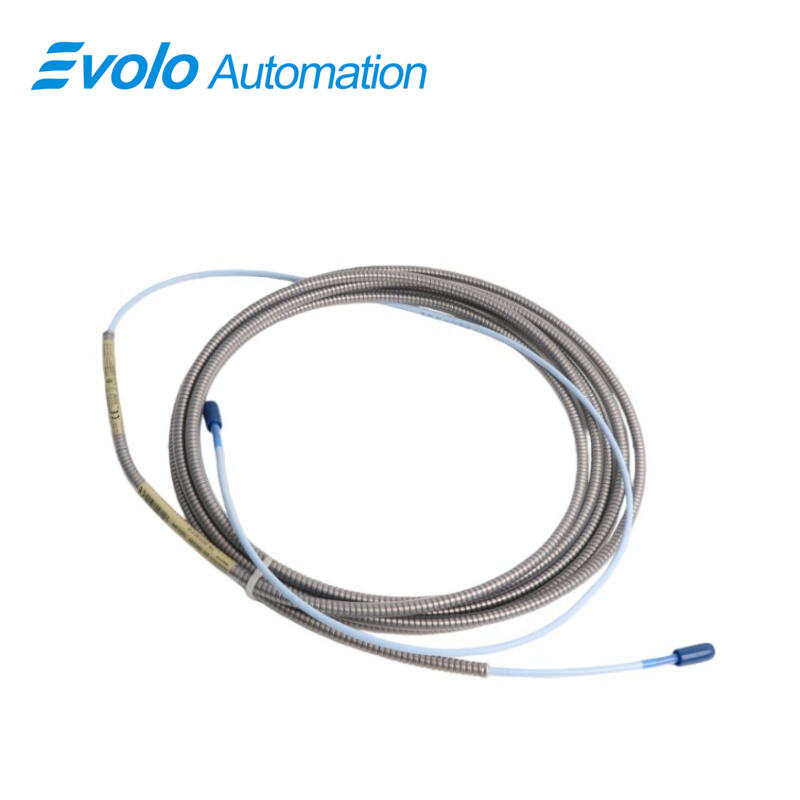

The 330130-045-01-05 3300 XL Standard Extension Cable is a 4.5-meter (14.8-foot) armored extension cable designed for the 3300 XL 8 mm Proximity Transducer System. It connects probes to monitors, delivering precise static (position) and dynamic (vibration) measurements for automated machinery. The 330130-045-01-05 3300 XL cable features 75 Q triaxial FEP insulation, 50 Ω output resistance, and 69.9 pF/m capacitance, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). With a linear range of 2 mm (80 mils), minimum target size of 15.2 mm (0.6 in), and frequency response from 0 to 10 kHz, the 330130-045-01-05 3300 XL cable ensures accurate signal transmission up to 305 meters (1000 feet). It is CSA, ATEX, and IECEx approved for deployment in automated industrial environments. Typical applications for 330130-045-01-05 3300 XL include vibration and shaft position monitoring on turbines, pumps, motors, and compressors, as well as Keyphasor speed signal transmission. Its armored design with connector protector provides 330 N pull strength, preventing cable detachment, while optional FluidLoc prevents oil and liquid ingress. The 330130-045-01-05 3300 XL Standard Extension Cable integrates seamlessly with 3300 XL probes and Proximitor sensors for precise, long-distance signal delivery in automated systems.

Applications

Monitor Shaft Position on Pumps
The 330130-045-01-05 3300 XL cable transmits precise voltage signals from 8 mm probes over 4.5 meters, allowing accurate static and dynamic shaft position monitoring on centrifugal and reciprocating pumps. With a linear range of 2 mm (80 mils) and frequency response up to 10 kHz, it detects minute displacements and vibrations.

Measure Rotor Vibration on Turbines
Use 330130-045-01-05 3300 XL to connect 3300 XL probes to monitors for vibration analysis on gas and steam turbines. Its 75 Q triaxial FEP insulation and 50 Ω output resistance maintain signal integrity across field wiring up to 305 meters (1000 feet).

Transmit Keyphasor Signals for Speed Monitoring
The 330130-045-01-05 3300 XL cable reliably transmits Keyphasor signals from probes to automation systems, enabling accurate rotational speed measurements for motors and compressors. The minimum target size of 15.2 mm ensures detection of small key slots.

Specifications

Competitive Advantage

Long-Distance Signal Transmission
The 330130-045-01-05 3300 XL cable maintains high-fidelity output across up to 305 meters of field wiring without exceeding ±3 dB, supporting remote automation monitoring.

Enhanced Mechanical Protection
Armored construction with connector protector and 330 N pull strength ensures the 330130-045-01-05 3300 XL cable resists accidental cable detachment in industrial environments.

Oil and Fluid Protection
Optional FluidLoc cable configuration in 330130-045-01-05 3300 XL prevents machine oil or liquids from entering the cable interior, protecting signal integrity in harsh environments.

Industry Approvals for Automation
CSA, ATEX, and IECEx certifications for 330130-045-01-05 3300 XL allow deployment in automated processes in hazardous areas, meeting industrial automation requirements.

Seamless Integration with 3300 XL System
The 330130-045-01-05 3300 XL cable is fully interchangeable with 8 mm 3300 XL probes and Proximitor sensors, simplifying system upgrades and reducing installation time.
