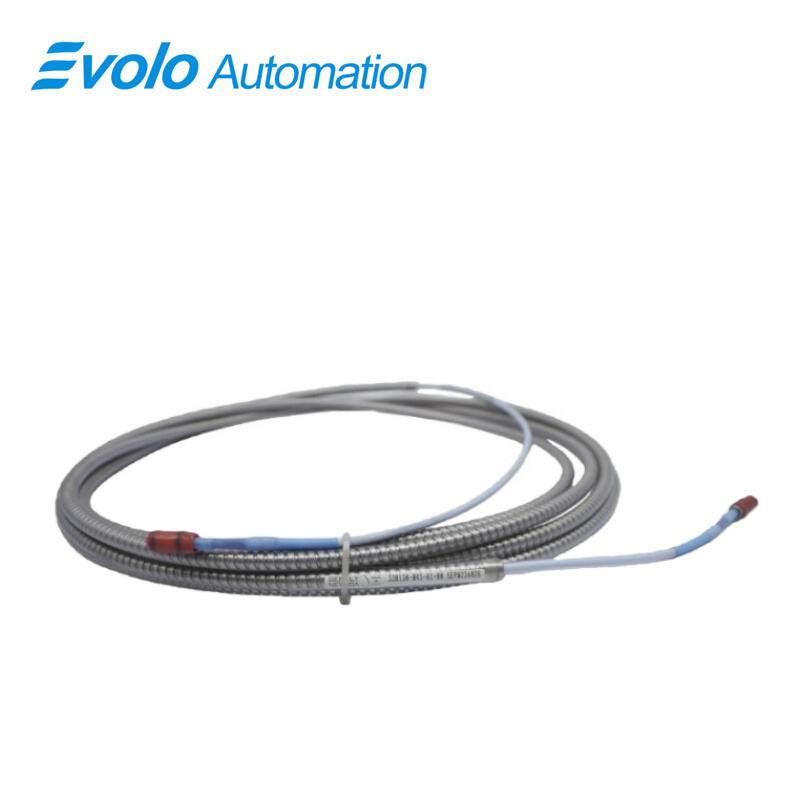

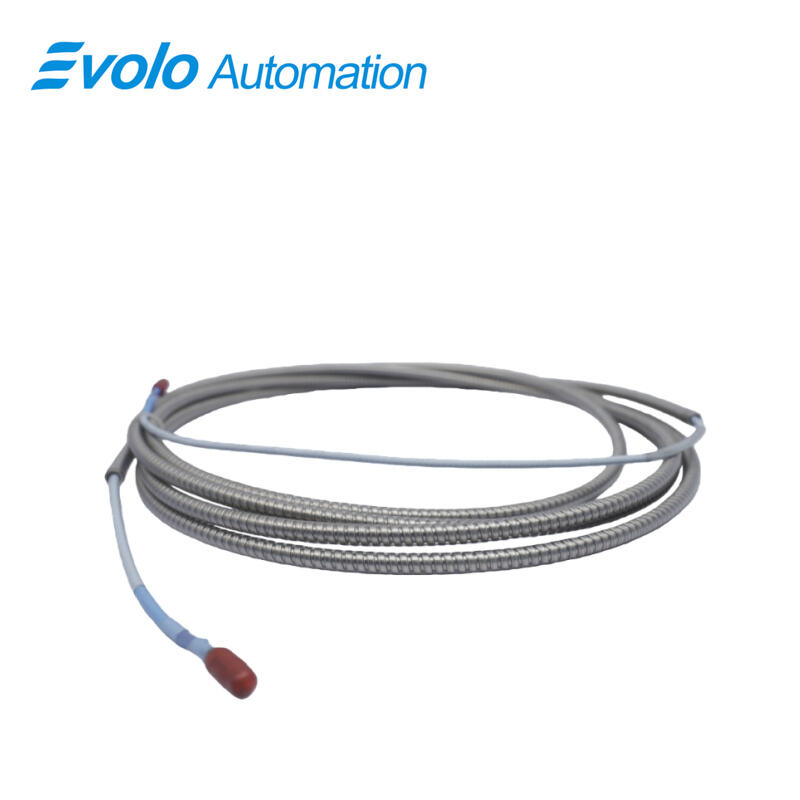

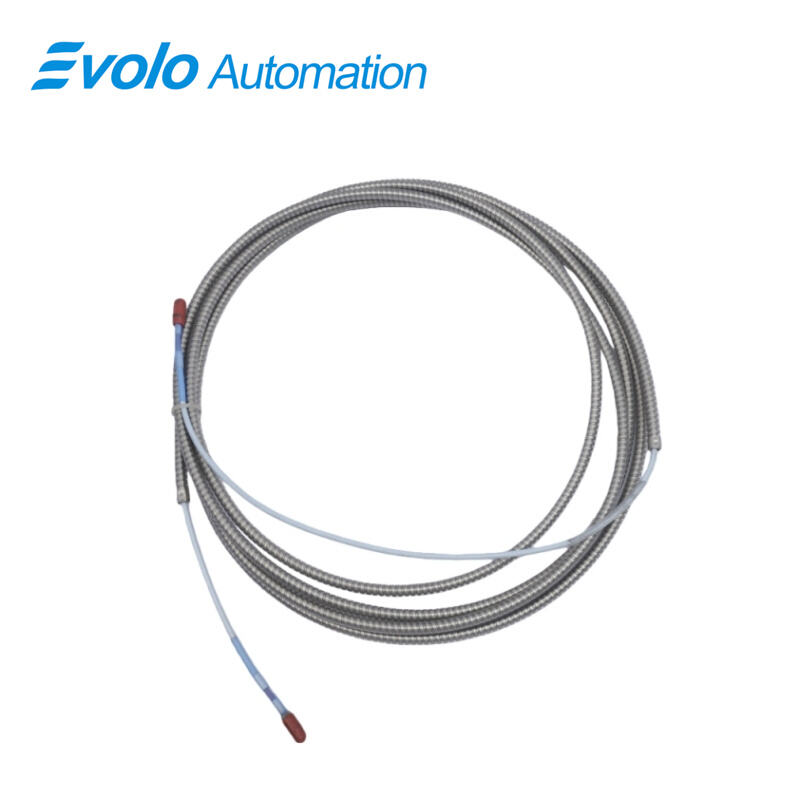

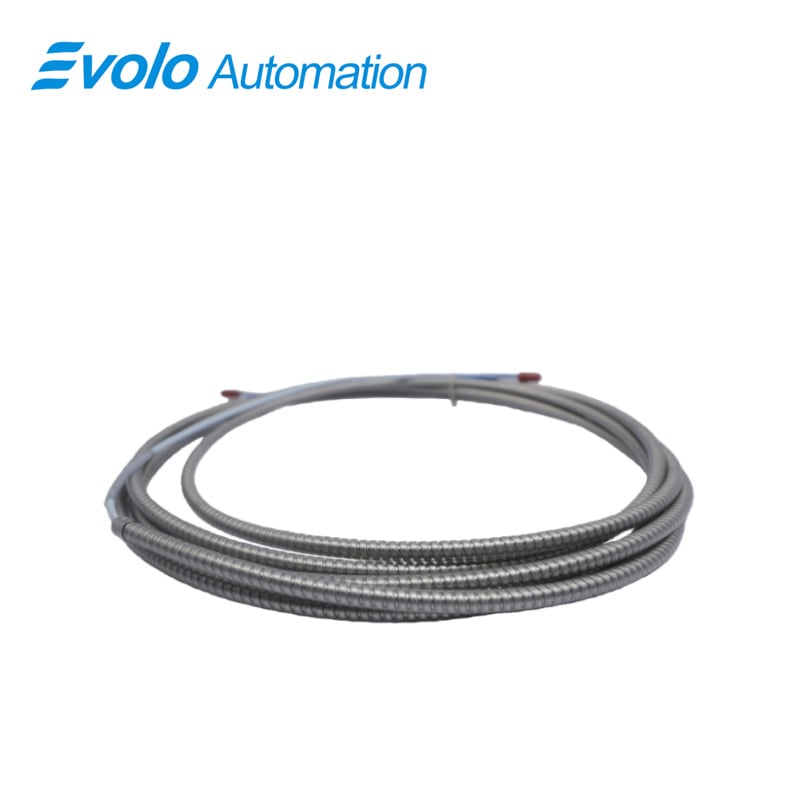

330130-045-01-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-045-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Quick Detai

l

Description

The 330130-045-01-00 3300 XL Standard Extension Cable is a robust, high-performance triaxial extension cable designed for industrial automation and machinery condition monitoring systems. Engineered for use with 3300 XL 8 mm Proximity Probes, it transmits precise displacement and vibration signals over long distances without signal degradation. The cable features 75 Q triaxial construction with FEP insulation, armored protection, and a 4.5-meter (14.8-foot) length, providing durability in harsh industrial environments. With a linear range of 2 mm (80 mils), frequency response from 0 to 10 kHz, and minimal output variation (<2 mV per volt supply change), the extension cable ensures accurate transmission of static and dynamic measurements. Its output resistance of 50 Ω and typical capacitance of 69.9 pF/m (21.3 pF/ft) maintain signal integrity over distances, supporting field wiring up to 305 meters (1000 feet). The cable is backward compatible with other 3300 series probes and Proximitor sensors, enabling seamless system upgrades and full interchangeability. Optional features include FluidLoc protection for applications exposed to oils or liquids, preventing contamination and maintaining consistent measurement performance.

Applications

Extend Proximity Probe Signals up to 4.5 Meters
330130-045-01-00 provides a 4.5-meter (14.8 ft) connection for 3300 XL proximity probes, allowing installation in tight or remote locations. The 75 Q triaxial FEP-insulated cable of 330130-045-01-00 maintains accurate 50 Ω output for automated vibration and shaft monitoring systems.

Monitor Shafts and Bearings over Long Wiring Runs
330130-045-01-00 supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and linear ranges of up to 2 mm (80 mils). Using 330130-045-01-00, vibration and shaft displacement signals remain precise across distances up to 305 meters (1000 ft), enabling reliable remote monitoring of turbines, compressors, and motors.

Connect to Small Targets Accurately
330130-045-01-00 can detect flat targets as small as 15.2 mm (0.6 in) in diameter. When paired with 3300 XL probes, 330130-045-01-00 allows automated systems to track fine mechanical movement in pumps, fans, and gearboxes.

Transmit High-Frequency Signals to Automation Systems
330130-045-01-00 maintains frequency response from 0 to 10 kHz (+0, -3 dB) for field wiring up to 305 meters. Using 330130-045-01-00, industrial control systems can receive real-time vibration and position signals without loss of accuracy.

Operate in Harsh Industrial Environments
The armored cable and FEP insulation of 330130-045-01-00 allow installation near rotating machinery in petrochemical, power generation, and offshore facilities. 330130-045-01-00 protects the signal from physical and chemical exposure while maintaining precise measurements.

Specifications

Competitive Advantage

Secure Signal Transmission over 4.5 Meters
330130-045-01-00 provides reliable 50 Ω output and less than 2 mV change per volt of supply variation. This ensures 330130-045-01-00 delivers consistent readings from 3300 XL probes for accurate vibration and shaft monitoring.

Armored Cable for Mechanical Protection
330130-045-01-00 uses an armored 75 Q triaxial FEP cable to prevent mechanical damage. Installation of 330130-045-01-00 near high-vibration turbines, compressors, and motors keeps probe signals intact over long runs.

Supports Long Distance Field Wiring
330130-045-01-00 allows field wiring up to 305 meters (1000 ft) while maintaining frequency response from 0 to 10 kHz. This lets 330130-045-01-00 transmit high-fidelity data to control and monitoring systems across large industrial facilities.

Easy Connection to Small and Flat Targets
With a minimum target size of 15.2 mm (0.6 in), 330130-045-01-00 enables precise measurement on small rotating components. This allows 330130-045-01-00 to support fine mechanical monitoring in motors, pumps, and gearboxes.
