Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-045-00-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
4.5 meters (14.8 feet) |
|
Connector Protector and Cable Option: |
Standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
20x20x2cm |
|
Weight: |
0.16kg |
Description

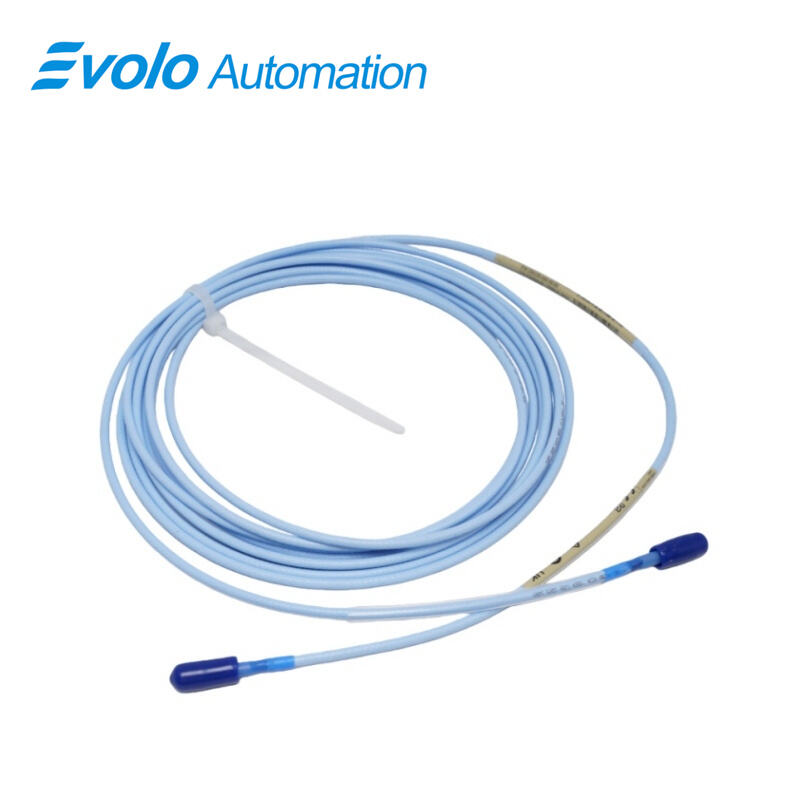

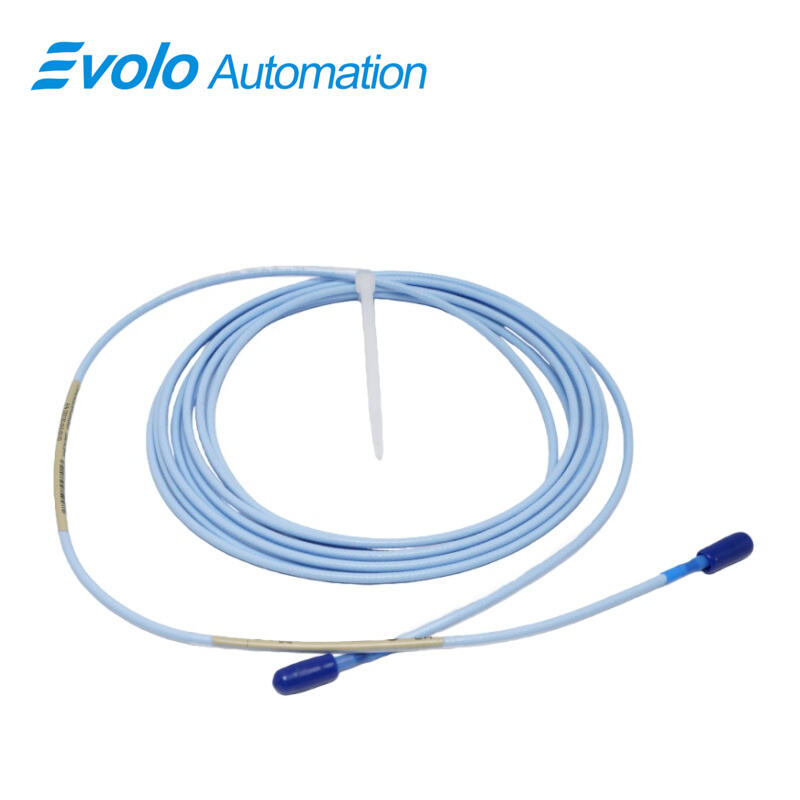

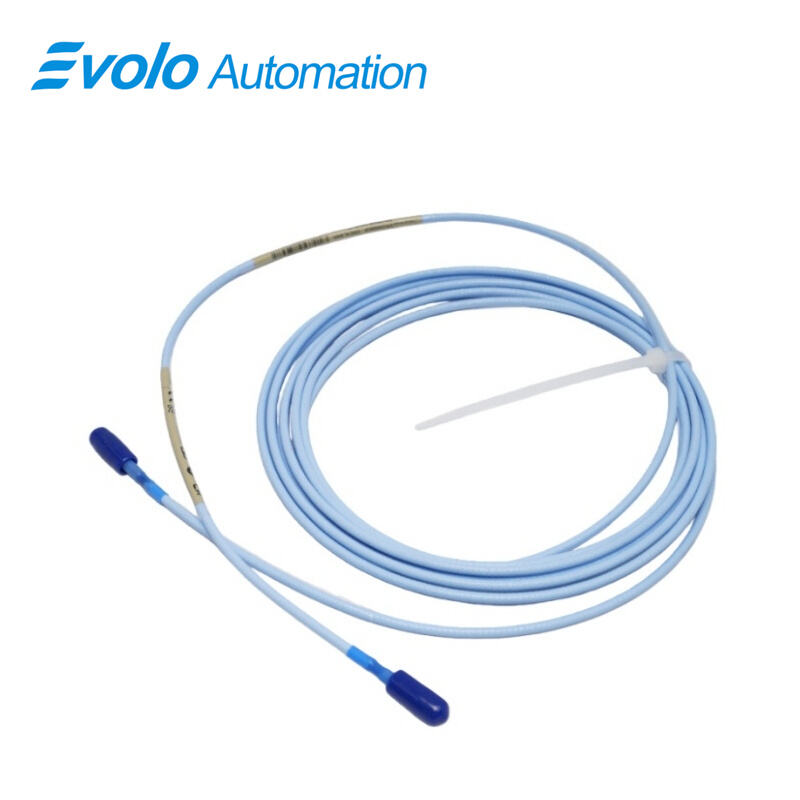

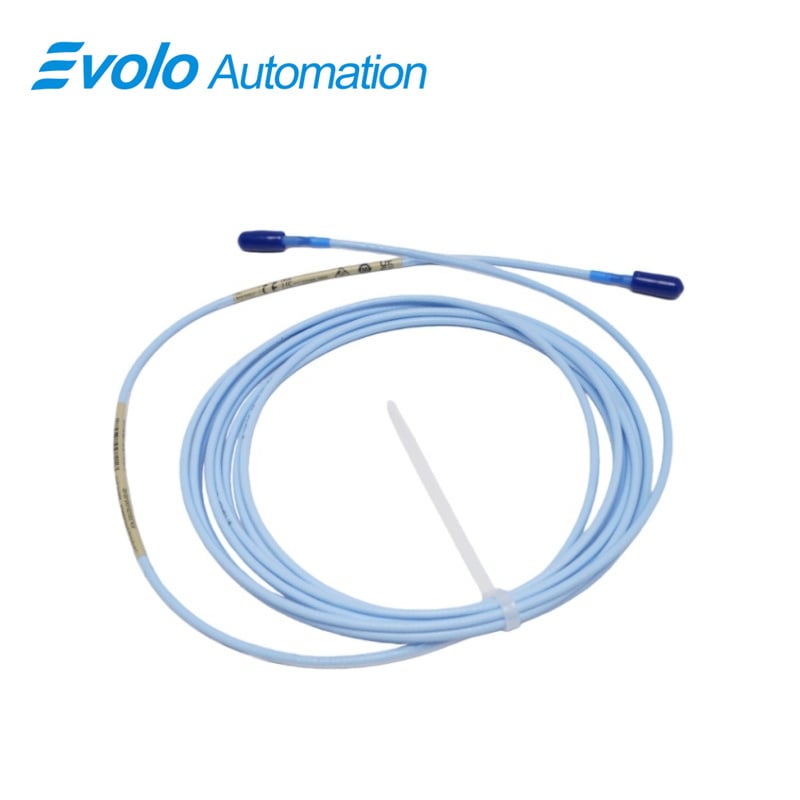

330130-045-00-CN 3300 XL Standard Extension Cable is a 4.5-meter (14.8 feet) extension cable for 3300 XL 8 mm proximity transducer systems. Constructed with 75 Q triaxial FEP insulation, it maintains less than 2 mV output change per volt of input variation, with 50 Ω output resistance and 69.9 pF/m typical capacitance. The cable supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and ensures linear displacement measurement over 2 mm (80 mils) with 0–10 kHz frequency response. 330130-045-00-CN is suitable for capturing both static shaft position and dynamic vibration signals, as well as Keyphasor reference and speed measurements in automation systems. Its standard construction allows integration with probes, extension cables, and Proximitor sensors for fluid-film bearings, turbines, compressors, and pumps. The cable complies with CSA, ATEX, and IECEx approvals and supports up to 305 meters (1000 feet) of field wiring without signal distortion. Optional FluidLoc cables prevent oil leakage and provide mechanical protection.
Applications
Application – Shaft Vibration Monitoring
Use 330130-045-00-CN to measure rotor vibrations on turbines, compressors, and pumps. The 0–10 kHz frequency response and 2 mm linear range ensure accurate dynamic displacement detection in automated monitoring systems.
Application – Static Shaft Position Tracking
Install 330130-045-00-CN to monitor static shaft positions in fluid-film bearing machines. Its 75 Q triaxial FEP insulation and 50 Ω output resistance maintain precise voltage-to-displacement conversion over 4.5 meters.
Application – Keyphasor Signal Transmission
Use 330130-045-00-CN to deliver Keyphasor reference and speed signals from the probe to the control system. The 69.9 pF/m typical cable capacitance preserves signal integrity for automation control loops.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Competitive Advantage – Extended Field Wiring without Signal Loss
330130-045-00-CN supports up to 305 meters (1000 feet) of field wiring while maintaining less than 2 mV change per volt input, allowing flexible automation layouts.
Competitive Advantage – Protection Against Mechanical and Fluid Damage
Armored construction and optional FluidLoc design on 330130-045-00-CN prevent cable damage from oil ingress and handle pull forces up to 330 N, securing continuous automated operation.
Competitive Advantage – Seamless System Integration
330130-045-00-CN fully integrates with 3300 XL probes and Proximitor sensors, enabling automated system deployment without the need for component-specific recalibration.
