330130-045-00-BR 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-045-00-BR
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

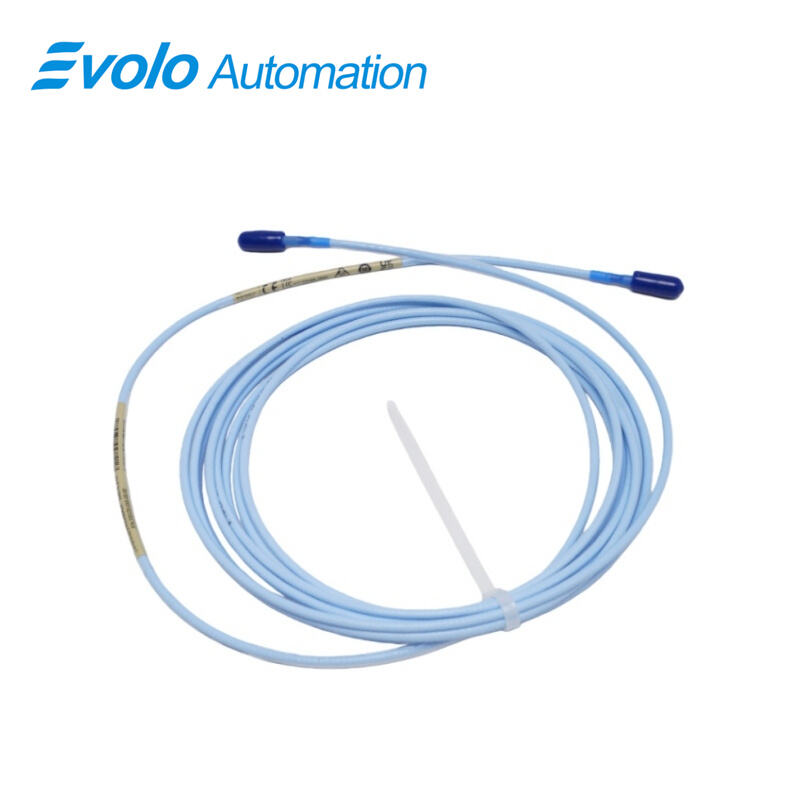

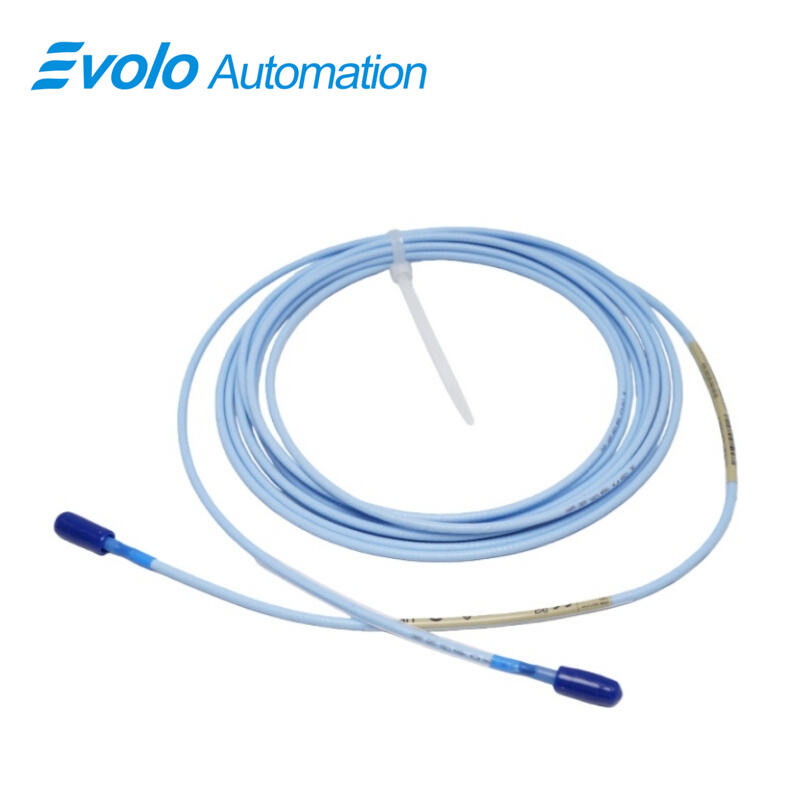

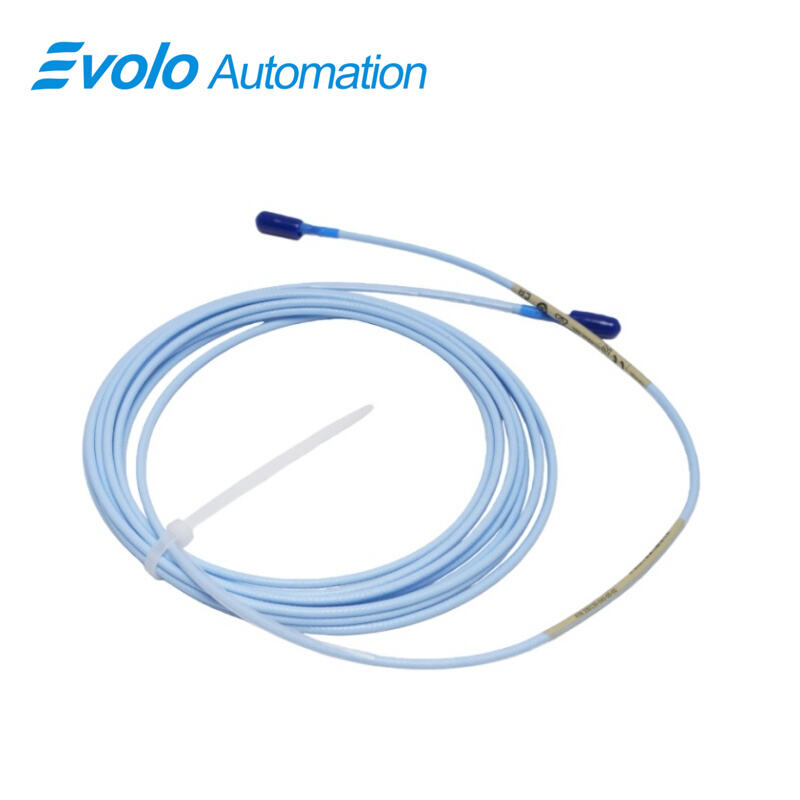

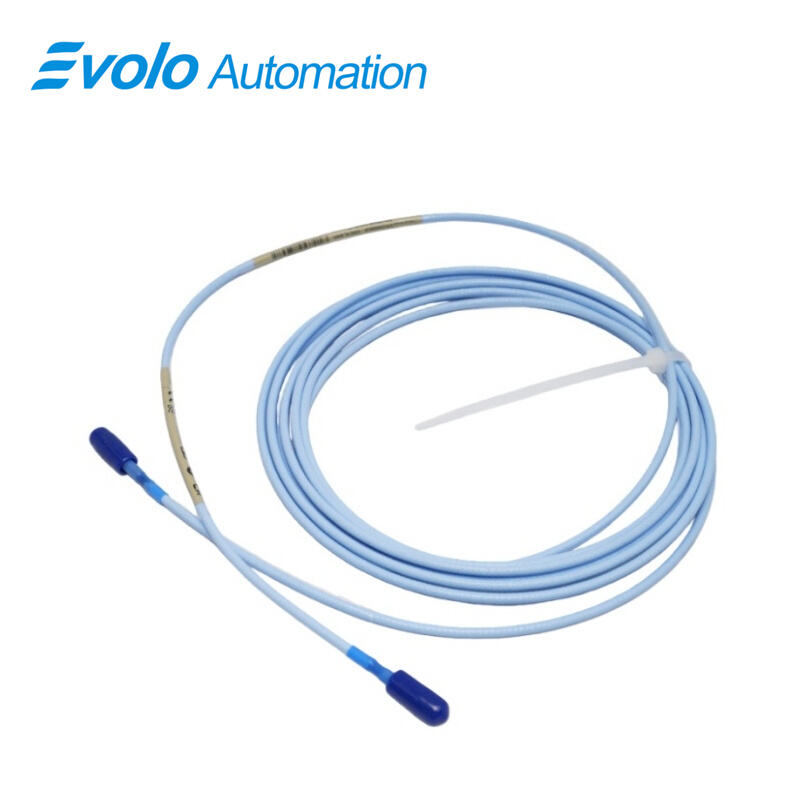

The 330130-045-00-BR is a 4.5-meter 3300 XL Standard Extension Cable designed for Bently Nevada 8 mm Proximity Transducer Systems. The 75 Q triaxial FEP-insulated cable delivers an output voltage directly proportional to the distance between the probe tip and conductive surface, supporting both static (position) and dynamic (vibration) measurements. With a 2 mm (80 mil) linear range, 0–10 kHz frequency response, and 50 Ω output resistance, 330130-045-00-BR enables precise shaft vibration and position monitoring in automated systems. Its 69.9 pF/m typical capacitance and field wiring support of 0.2–1.5 mm² (16–24 AWG) ensures accurate signal transmission up to 305 meters (1000 feet). Approved by CSA, ATEX, and IECEx, this extension cable integrates seamlessly with 3300 XL probes and Proximitor sensors. The standard cable construction with connector protector supports Keyphasor signal delivery and speed reference for fluid-film bearing machines. The 330130-045-00-BR also features enhanced pull strength, providing 330 N force resistance to secure probe connections and optional FluidLoc protection against oil and fluid ingress.

Applications

Measure Shaft Position on Turbines
Use 330130-045-00-BR to connect 8 mm probes to monitor shaft displacement in gas or steam turbines. With its 2 mm (80 mil) linear range and 0–10 kHz frequency response, 330130-045-00-BR captures both static and dynamic shaft movements accurately.

Monitor Rotor Vibration in Motors
Install 330130-045-00-BR with 3300 XL probes on electric motors. Its 50 Ω output resistance and 69.9 pF/m capacitance ensure minimal signal loss, allowing 330130-045-00-BR to deliver precise vibration readings for condition monitoring.

Track Pump Bearing Movement
Attach 330130-045-00-BR to fluid-film bearing machines to measure bearing displacement. The cable supports field wiring from 0.2 to 1.5 mm², making 330130-045-00-BR adaptable to different industrial configurations.

Transmit Keyphasor Speed Signals
Use 330130-045-00-BR to relay Keyphasor reference signals from 3300 XL probes for speed measurement. With CSA, ATEX, and IECEx approvals, 330130-045-00-BR reliably delivers signals in hazardous and automated environments.

Specifications

Competitive Advantage

Enable Long-Distance Signal Accuracy
The 69.9 pF/m capacitance and 50 Ω resistance in 330130-045-00-BR allow voltage signals to be transmitted up to 305 meters without degradation, ensuring accurate readings from connected 3300 XL probes.

Secure Probe Connections
The armored cable with connector protector in 330130-045-00-BR provides 330 N pull strength, preventing probe disconnection during high-vibration operation.

Prevent Fluid Contamination
Optional FluidLoc in 330130-045-00-BR blocks oil or liquid ingress, keeping automated systems and 3300 XL probes safe from contamination.

Support Diverse Automation Environments
With CSA, ATEX, and IECEx approvals, 330130-045-00-BR can be deployed in multiple automation setups, from turbines to pumps, without additional modifications.

Facilitate Flexible System Integration
330130-045-00-BR accommodates field wiring from 0.2 to 1.5 mm² and is fully compatible with other 3300 XL probes and Proximitor sensors, enabling fast installation and maintenance.
