Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-040-13-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
4.0 meters (11.5 feet) |
|
Connector Protector and Cable Option: |
Armored FluidLoc cable with connector protector |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
18x18x2cm |
|
Weight: |
0.15kg |
Description

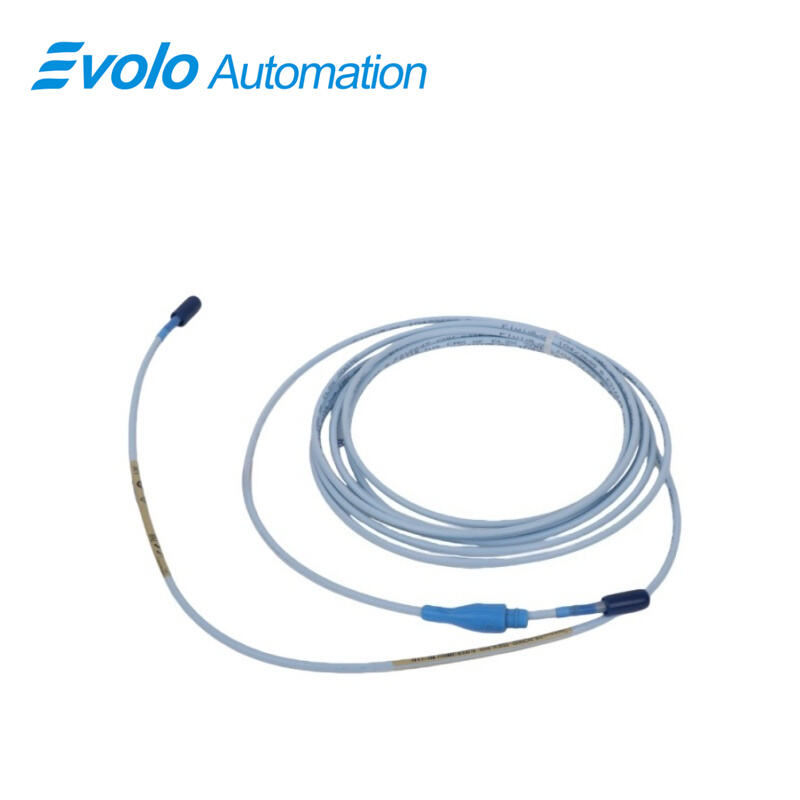

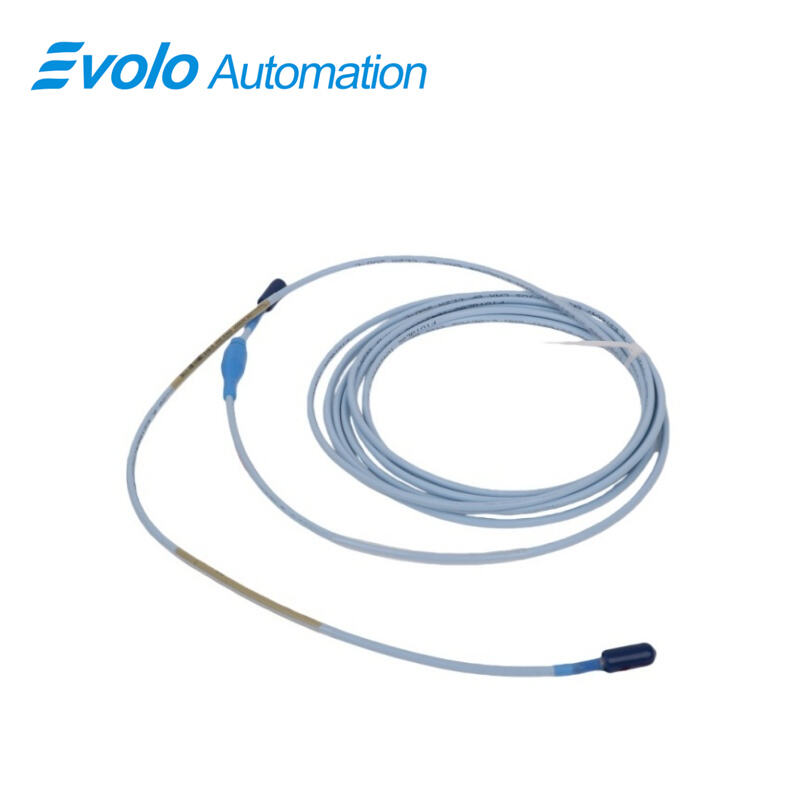

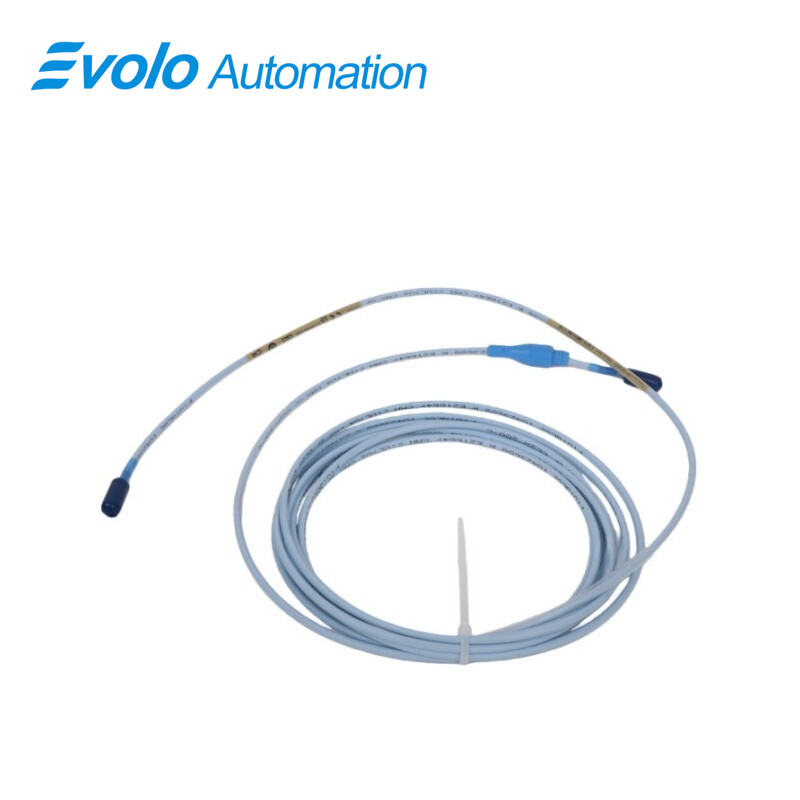

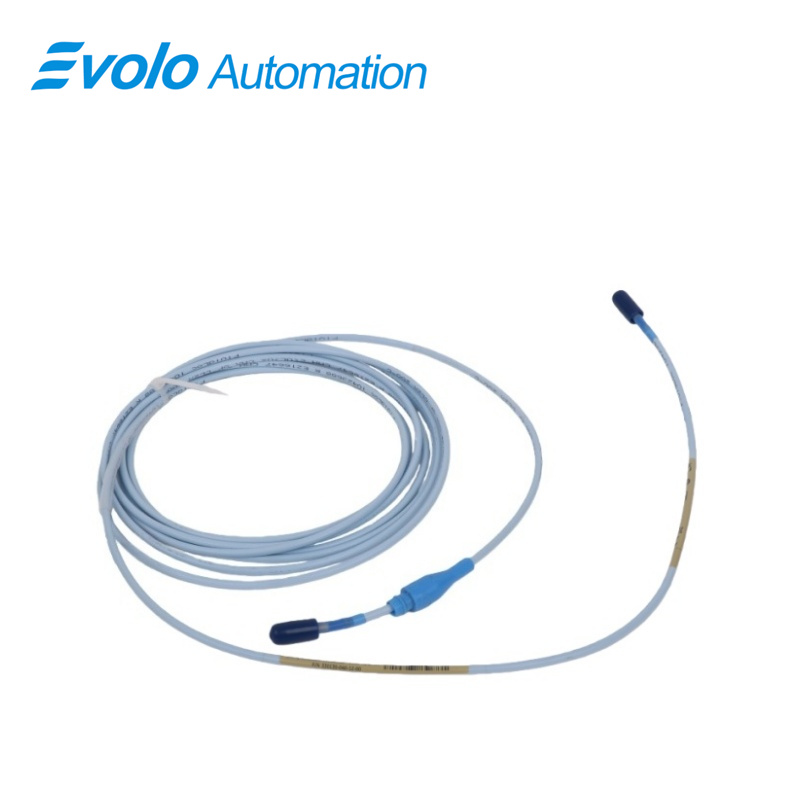

The 330130-040-13-00 3300 XL Standard Extension Cable is designed for industrial automation systems to extend 3300 XL 8 mm proximity probes up to 4.0 meters (11.5 feet). Its armored FluidLoc cable with connector protector ensures reliable signal transmission from probe to monitoring system. Constructed with 75 Q triaxial FEP insulation, 330130-040-13-00 maintains less than 2 mV change per volt input and 50 Ω output resistance, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). The extension cable has a linear measuring range of 2 mm (80 mils) and frequency response from 0 to 10 kHz, enabling precise measurement of both static (position) and dynamic (vibration) values from 3300 XL probes. It supports up to 305 meters (1000 feet) of wiring, making 330130-040-13-00 ideal for turbine, pump, motor, and generator monitoring. The optional FluidLoc design prevents oil or liquid leakage, ensuring clean and safe automated monitoring. Fully compliant with API 670, 330130-040-13-00 integrates seamlessly into 3300 XL systems, enabling consistent, repeatable measurements and supporting rotor position, shaft vibration, and Keyphasor speed applications without bench calibration.
Applications
Application – Vibration Measurement in Turbomachinery
Use 330130-040-13-00 to extend probes on pumps, compressors, and turbines. Frequency response of 0–10 kHz ensures accurate detection of high-speed rotor vibration.
Application – Shaft Position Monitoring
Install 330130-040-13-00 to capture static shaft displacement with ±2 mm linear range for fluid-film bearings in automation systems.
Application – Keyphasor Signal Generation
Use 330130-040-13-00 to transmit clean signals for rotor speed tracking. Low 50 Ω output resistance and low cable capacitance minimize signal distortion over long runs.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Competitive Advantage – Long-Distance Accuracy
330130-040-13-00 supports up to 305 meters of field wiring with minimal signal loss, enabling flexible layout in large-scale plants.
Competitive Advantage – Robust Mechanical and Fluid Protection
Armored FluidLoc design prevents oil ingress and withstands 330 N pull strength, securing the probe cable for high-vibration environments.
Competitive Advantage – Seamless 3300 XL Integration
330130-040-13-00 is fully interchangeable with 3300 XL probes and sensors, eliminating the need for recalibration during automated monitoring installations.
