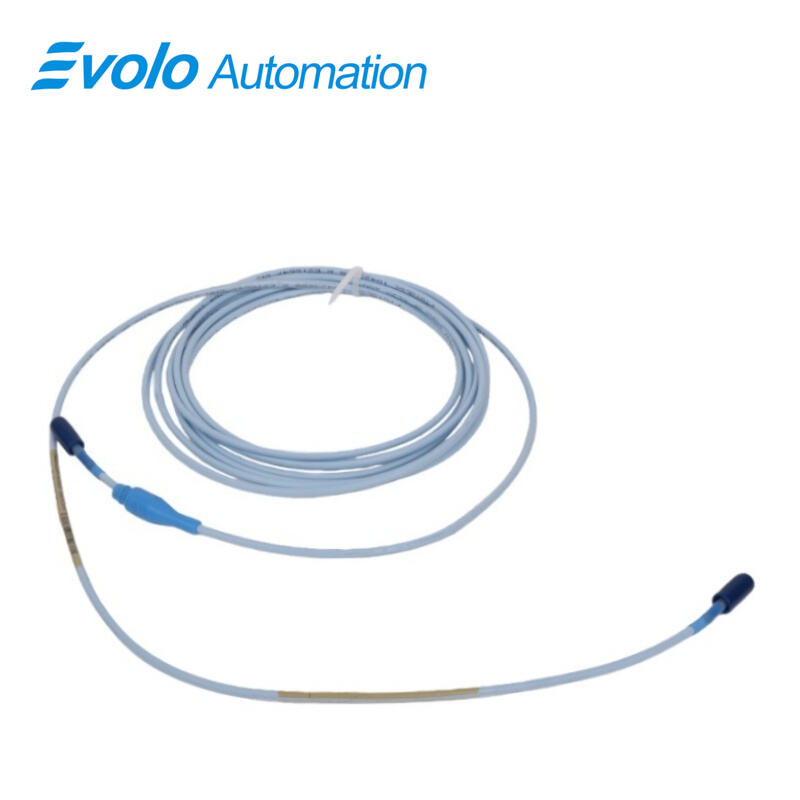

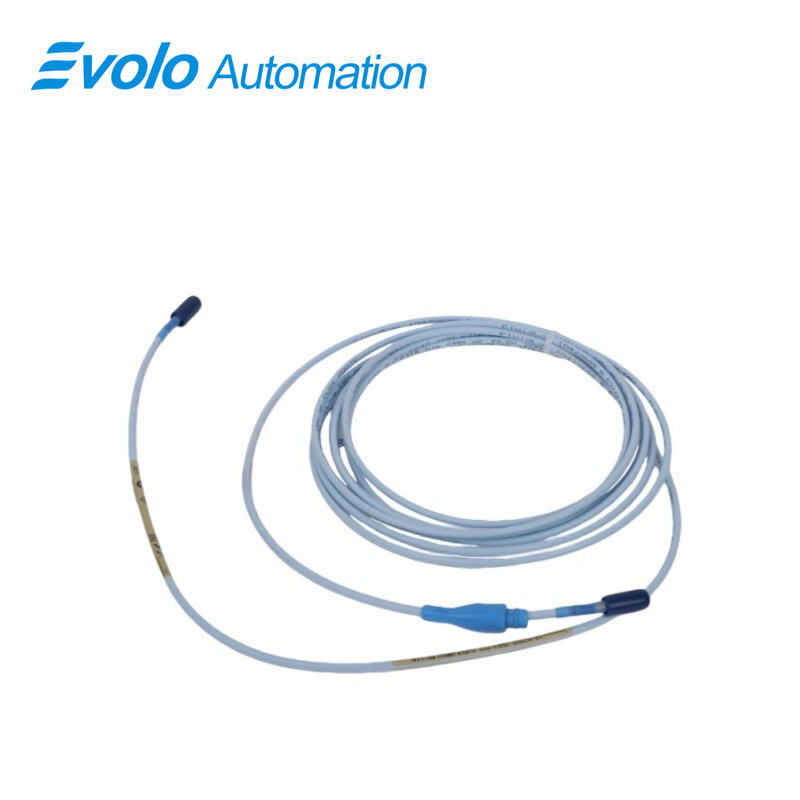

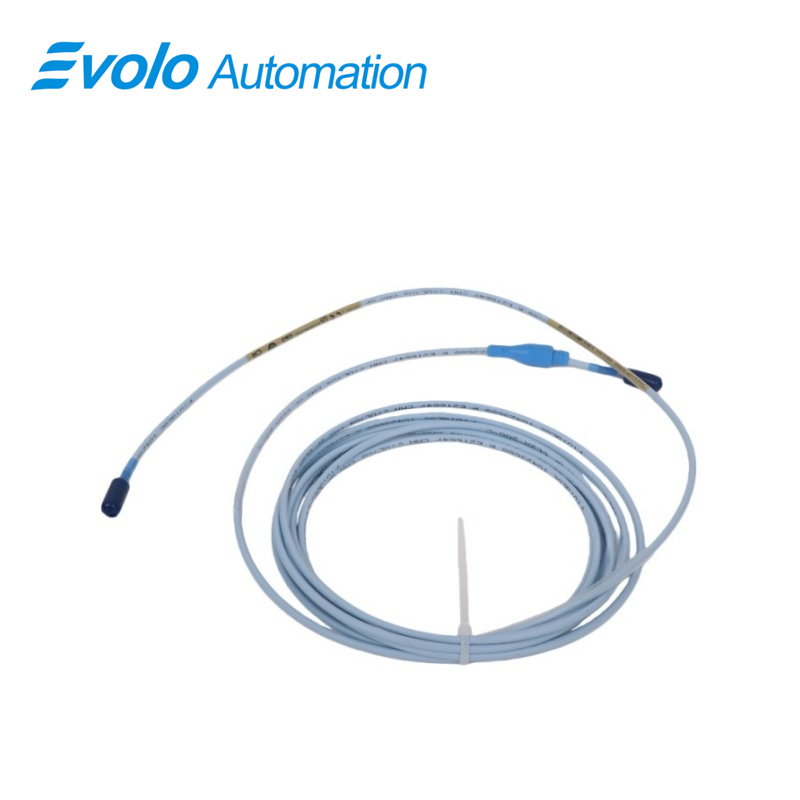

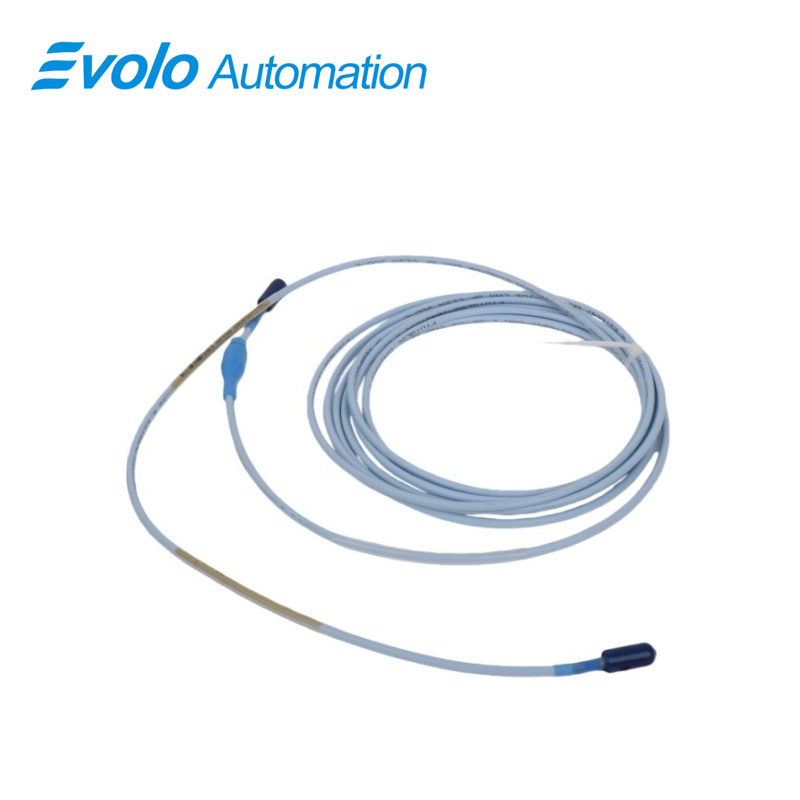

330130-040-12-CN 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-040-12-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-040-12-CN is a 4.0-meter extension cable for 3300 XL 8 mm Proximity Transducer Systems, designed for automated monitoring of shaft position and vibration in turbines, pumps, compressors, and motors. This FluidLoc cable with connector protector ensures that liquids like oil do not leak through the cable interior during machine operation. The 330130-040-12-CN uses 75 Q triaxial FEP insulation, with output resistance of 50 Ω and capacitance of 69.9 pF/m, transmitting accurate signals over field wiring up to 305 meters. With a linear range of 2 mm (80 mils) and frequency response of 0–10 kHz, 330130-040-12-CN supports Keyphasor reference and speed measurement in automated systems. The cable’s design maintains less than 2 mV variation per volt of supply change, providing precise, non-contacting distance-to-voltage conversion for 3300 XL probes. This extension cable fully complies with API 670 standards and is suitable for industrial installations requiring high-precision automated signal transmission and long-distance probe connections.

Applications

Measure Shaft Vibration on Turbines
Use 330130-040-12-CN to extend 3300 XL probes for measuring real-time vibration on gas and steam turbines. Its 4.0-meter length and 0–10 kHz frequency response allow 330130-040-12-CN to capture high-frequency dynamic displacement, ensuring precise automated monitoring.

Monitor Pump Shaft Position
Deploy 330130-040-12-CN with 3300 XL probes to track pump shaft displacement. The 2 mm linear range and FEP-insulated 75 Q triaxial cable of 330130-040-12-CN maintain accurate signal transmission for automated control systems.

Track Motor and Generator Movement
Connect 330130-040-12-CN to 3300 XL probes to monitor rotor position and vibration on motors and generators. Its low output variation (<2 mV per volt) ensures that 330130-040-12-CN delivers precise measurement data for automated diagnostics.

Support Centrifuge Performance Analysis
Use 330130-040-12-CN to capture dynamic displacement on centrifuges. Its capability to handle field wiring up to 305 meters makes 330130-040-12-CN suitable for extended industrial installations.

Specifications

Competitive Advantage

FluidLoc Cable Protection
The 330130-040-12-CN features a FluidLoc cable with connector protector to prevent oil and liquid leakage, enabling reliable operation in rotating machinery environments.

Long-Distance Signal Transmission
With support for up to 305 meters of field wiring, 330130-040-12-CN maintains accurate voltage signals from 3300 XL probes over long distances.

High-Frequency Dynamic Response
The 0–10 kHz frequency response of 330130-040-12-CN allows precise detection of both static and dynamic displacement, improving automated vibration monitoring.

API 670 Compliance
Fully API 670 compliant, 330130-040-12-CN integrates directly with 3300 XL systems without additional calibration, reducing installation time and ensuring consistent automated measurement.

Durable Industrial Design
Constructed from 75 Q triaxial FEP insulation, 330130-040-12-CN withstands industrial temperatures and mechanical stress, providing robust performance in automated monitoring systems.
