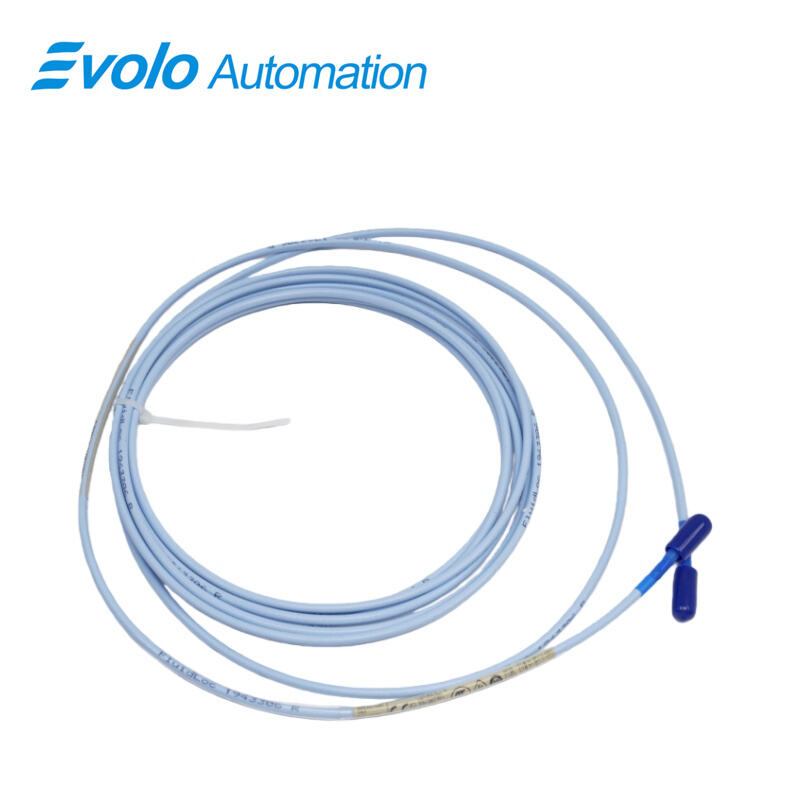

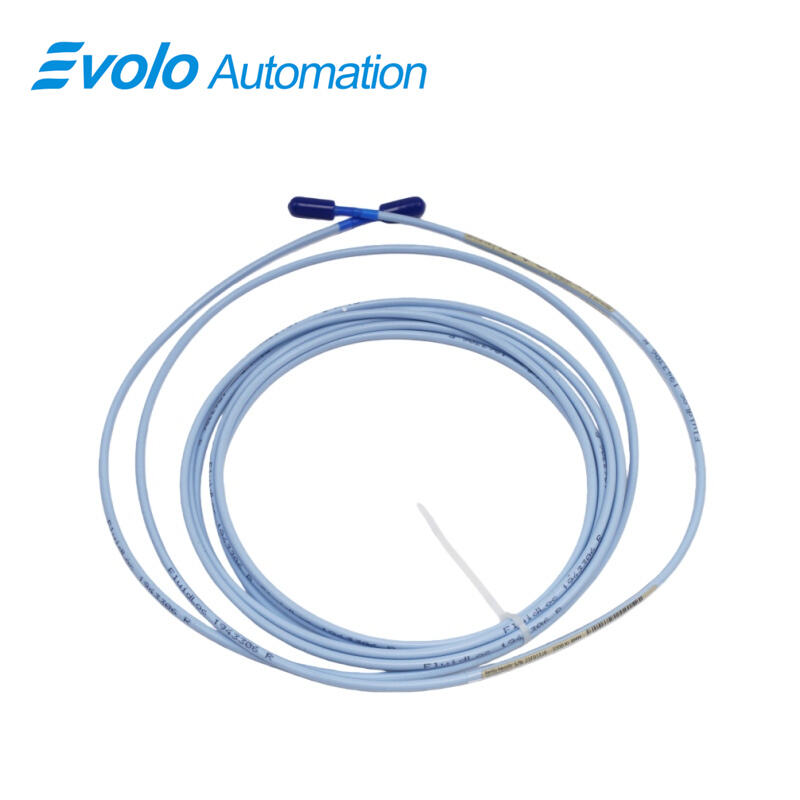

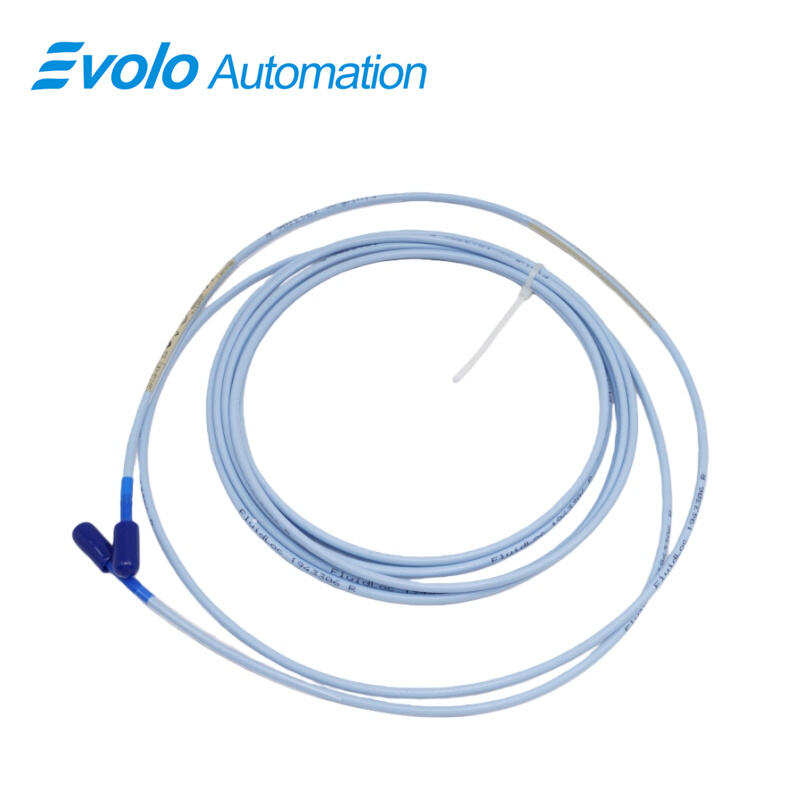

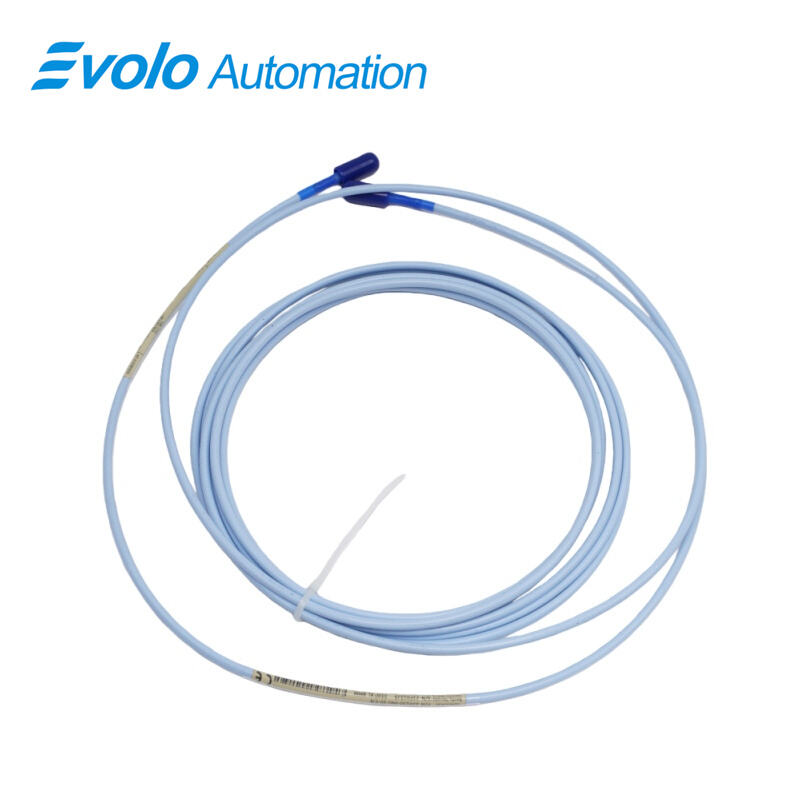

330130-040-10-CN 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-040-10-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-040-10-CN 3300 XL Standard Extension Cable offers a 4.0-meter (11.5-foot) length with a FluidLoc cable protector to ensure secure connection in automated measurement systems. Constructed with 75 Q triaxial FEP-insulated material, the 330130-040-10-CN 3300 XL Standard Extension Cable maintains output resistance at 50 Ω and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), supporting linear ranges up to 2 mm (80 mils). Its supply sensitivity is under 2 mV per volt input change, providing precise position and vibration measurement when paired with 3300 XL 8 mm proximity probes. The 330130-040-10-CN 3300 XL Standard Extension Cable supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG) and frequency response of 0–10 kHz over distances up to 305 meters (1000 feet), with a minimum target size of 15.2 mm (0.6 in) diameter. CSA, ATEX, and IECEx approvals guarantee suitability for industrial automation environments. The 330130-040-10-CN 3300 XL Standard Extension Cable integrates seamlessly with 3300 XL probes and Proximitor sensors, providing robust mechanical bonding via TipLoc molding and 330 N pull strength using CableLoc design. Optional FluidLoc configuration prevents leakage in fluid-film bearing and turbine monitoring applications.

Applications

Monitor Fluid-Film Bearing Vibration with 330130-040-10-CN
The 330130-040-10-CN 3300 XL Standard Extension Cable ensures precise signal transmission from 3300 XL probes to the Proximitor sensor when monitoring fluid-film bearing vibration in turbines, pumps, or compressors. Its 4-meter cable length allows flexible installation, while the low capacitance of 69.9 pF/m maintains signal integrity for high-frequency vibrations up to 10 kHz.

Measure Shaft Position and Movement Using 330130-040-10-CN
Integrating 330130-040-10-CN 3300 XL Standard Extension Cable with 3300 XL probes enables accurate tracking of shaft displacement. The linear range of 2 mm and output resistance of 50 Ω ensures precise measurement of static and dynamic positions, even with field wiring up to 305 meters (1000 feet).

Provide Keyphasor Reference Signals via 330130-040-10-CN
The 330130-040-10-CN 3300 XL Standard Extension Cable supports reliable Keyphasor reference signal transmission for rotor balancing and speed monitoring. Its supply sensitivity of less than 2 mV per volt input change ensures minimal signal drift for critical speed measurements.

Enable Long-Distance Signal Transmission with 330130-040-10-CN
Thanks to its high-frequency response (0–10 kHz) and low capacitance, 330130-040-10-CN 3300 XL Standard Extension Cable can transmit signals accurately over long distances, making it ideal for remote sensor installations up to 305 meters.

Competitive Advantage

Secure Probe-Cable Connection with 330130-040-10-CN
The patented CableLoc design in 330130-040-10-CN 3300 XL Standard Extension Cable provides 330 N (75 lbf) pull strength, maintaining a secure connection between the probe tip and cable even under heavy mechanical stress.

Leak-Resistant Fluid Handling Enabled by 330130-040-10-CN
Optional FluidLoc cables in 330130-040-10-CN 3300 XL Standard Extension Cable prevent oil and liquid leakage, protecting both the machine and the signal path in lubricated or high-pressure environments.

Backward Compatibility with Existing Systems via 330130-040-10-CN
330130-040-10-CN 3300 XL Standard Extension Cable is fully interchangeable with non-XL 3300 series components, enabling seamless integration without recalibration. Its design accommodates 0.2–1.5 mm² (16–24 AWG) field wiring, supporting various industrial setups.

High Accuracy and Minimal Signal Drift in 330130-040-10-CN
With supply sensitivity under 2 mV per volt input and an output resistance of 50 Ω, 330130-040-10-CN 3300 XL Standard Extension Cable maintains precise signal fidelity, ideal for both position and vibration measurements across demanding industrial applications.

Industrial Certification Assuring Safety for 330130-040-10-CN
Certified with CSA, ATEX, and IECEx, 330130-040-10-CN 3300 XL Standard Extension Cable meets global industrial safety standards, making it suitable for hazardous locations while preserving high-performance signal transmission.
