Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-040-03-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
4.0 meters (11.5 feet) |
|
Connector Protector and Cable Option: |
Armored cable with connector protector |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
28x27x3cm |
|
Weight: |
0.4 kg |
Description

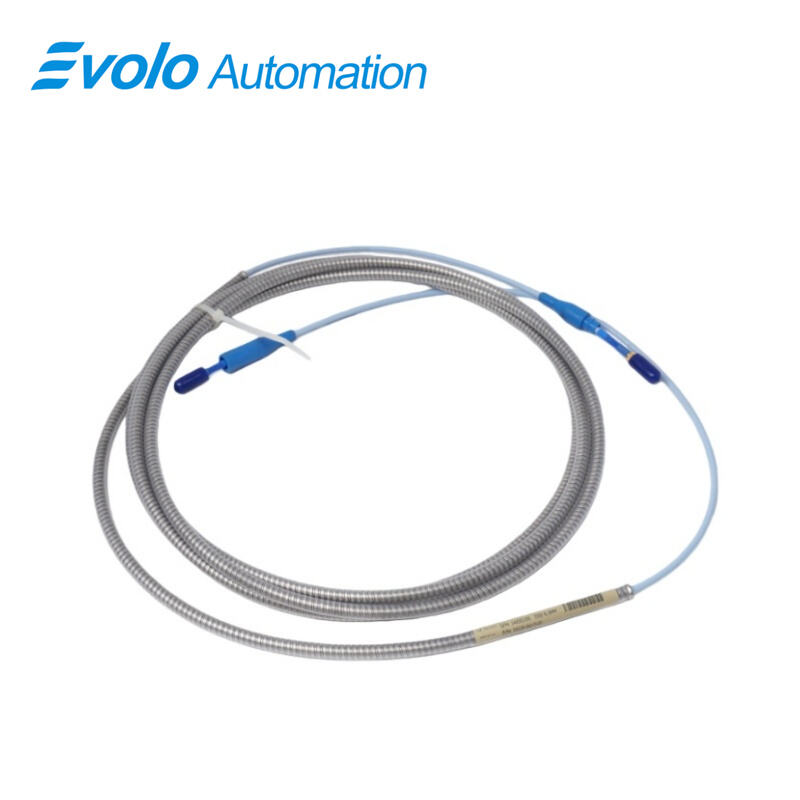

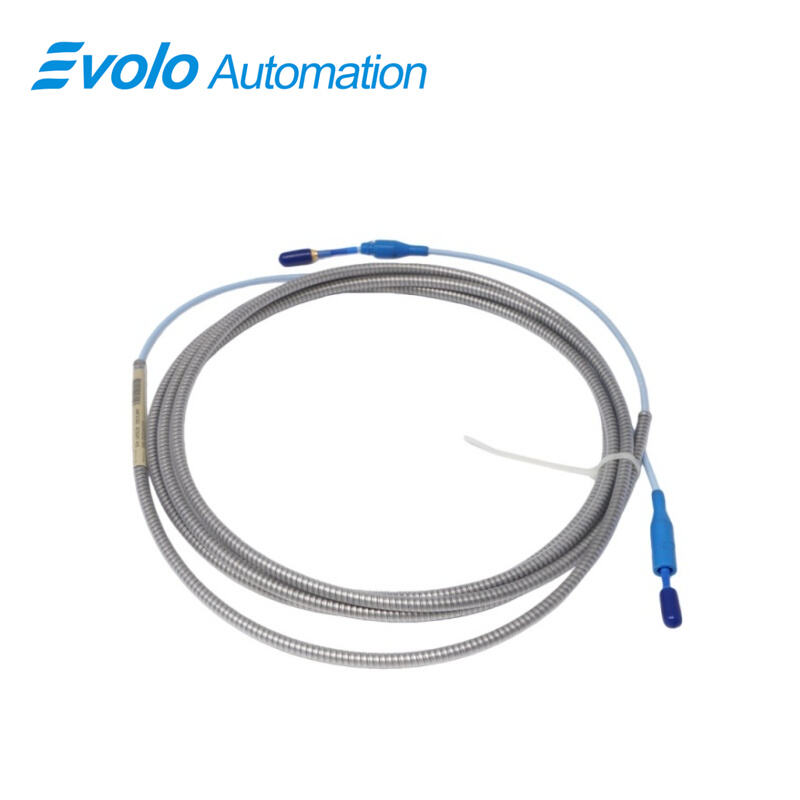

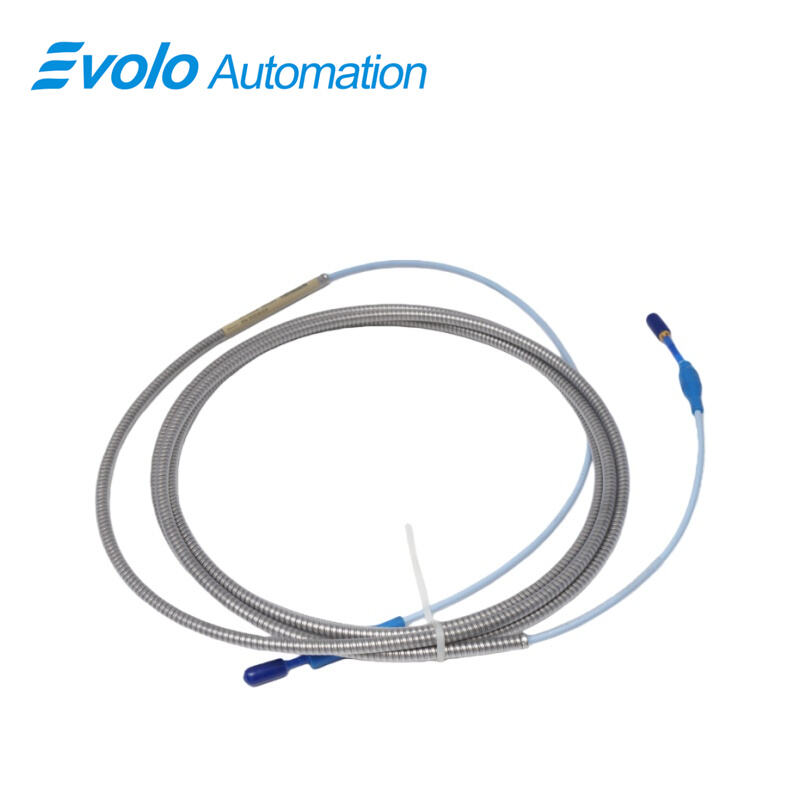

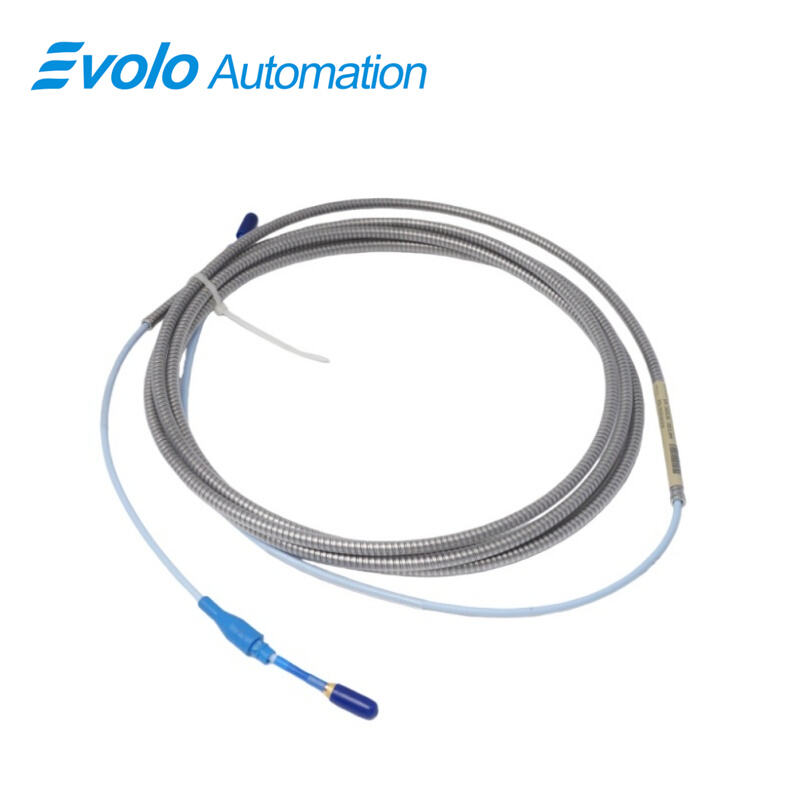

330130-040-03-00 3300 XL Standard Extension Cable is a 4.0-meter armored extension cable designed for 3300 XL 8 mm Proximity Transducer Systems. The 330130-040-03-00 cable transmits both static and dynamic displacement signals up to 2 mm (80 mils) and 0–10 kHz frequency from probes to Proximitor modules. Its 75 Q triaxial FEP insulation and 50 Ω output resistance ensure less than 2 mV variation per volt input, while capacitance of 69.9 pF/m supports up to 305 meters of field wiring. The 330130-040-03-00 cable secures probe connections with a connector protector and CableLoc design, enabling accurate vibration, shaft position, and Keyphasor speed measurements on turbines, pumps, compressors, and motors in automated monitoring systems. Optional FluidLoc prevents fluid leakage through the cable interior, maintaining continuous automated data acquisition.
Applications
Transmit probe signals to Proximitor modules
The 330130-040-03-00 cable carries high-frequency displacement signals from 3300 XL 8 mm probes to Proximitor sensors, supporting automated monitoring of shaft position and vibration on turbines, pumps, compressors, and motors.
Enable Keyphasor reference and speed measurement
With a linear measuring range of 2 mm (80 mils) and frequency response 0–10 kHz, 330130-040-03-00 transmits precise signals for Keyphasor speed detection in rotating machinery.
Support long-distance industrial installations
The 330130-040-03-00 cable accommodates field wiring up to 305 meters with less than 2 mV variation per volt of input, enabling placement of sensors and monitors across large automated plants.
Protect probe connections in harsh environments
Equipped with a connector protector and CableLoc design, 330130-040-03-00 secures probe connections against mechanical stress while maintaining continuous automated signal acquisition.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
High-accuracy signal transmission
330130-040-03-00 features 75 Q triaxial FEP insulation and 50 Ω output resistance, minimizing voltage fluctuations and ensuring precise distance-to-voltage conversion for 3300 XL probes.
Durable armored construction
The 330130-040-03-00 armored cable protects internal conductors from physical damage and electromagnetic interference, maintaining reliable automated data collection.
Optional FluidLoc design
With the 330130-040-03-00 FluidLoc option, the cable prevents oil or fluid leakage from the machine through the cable interior, ensuring uninterrupted automated monitoring.
Full compatibility with 3300 XL systems
The 330130-040-03-00 extension cable is fully interchangeable with other 3300 XL probes and Proximitor sensors, allowing rapid replacement and system upgrades without recalibration.
