Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-040-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
4.0 meters (11.5 feet) |
|
Connector Protector and Cable Option: |
Standard cable with connector protector |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
20.4x22.4x3.5cm |
|
Weight: |
0.22 kg |
Description

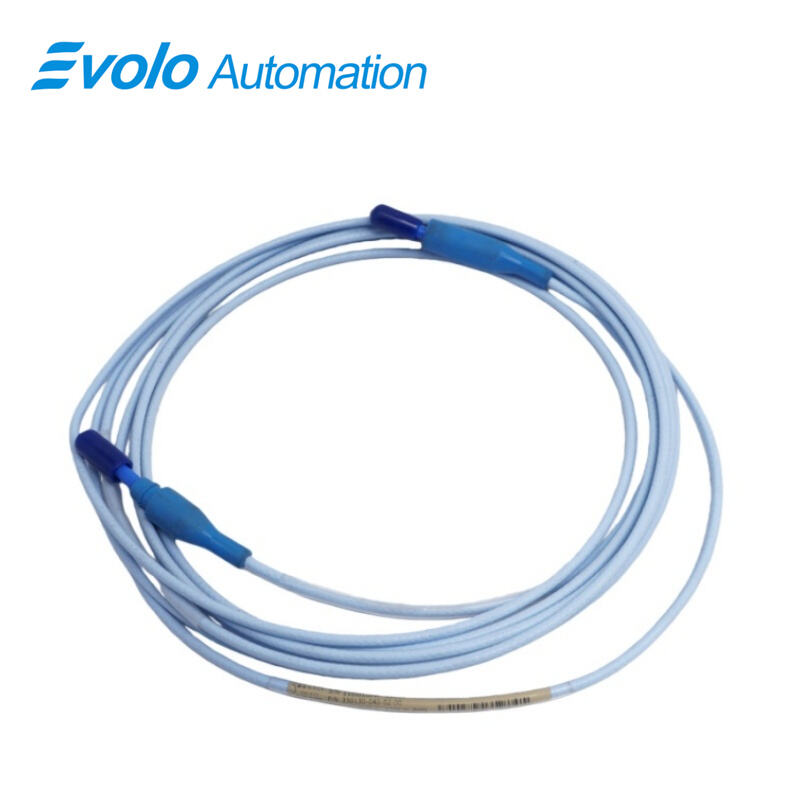

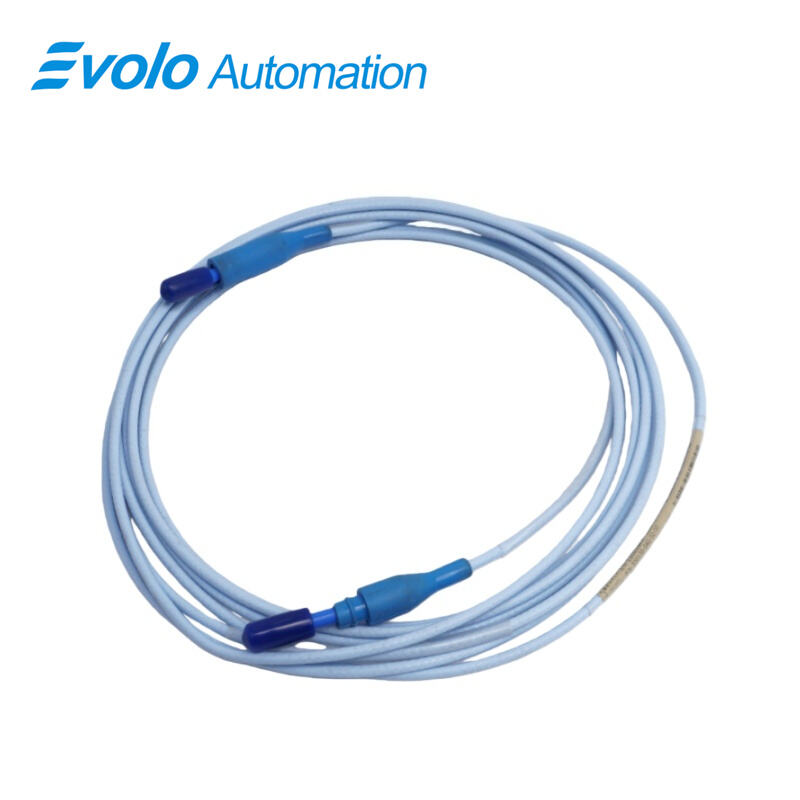

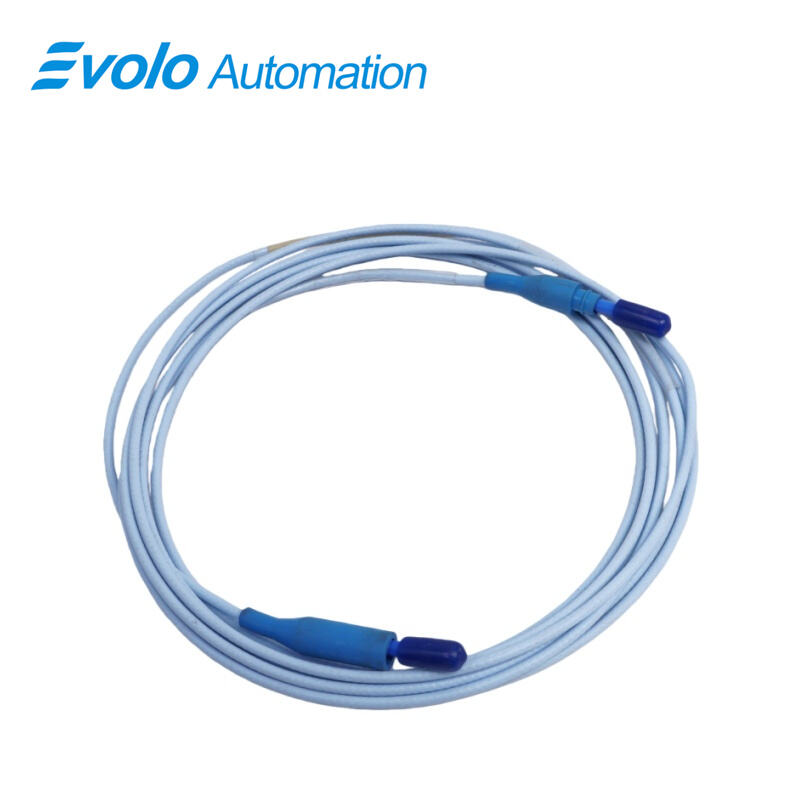

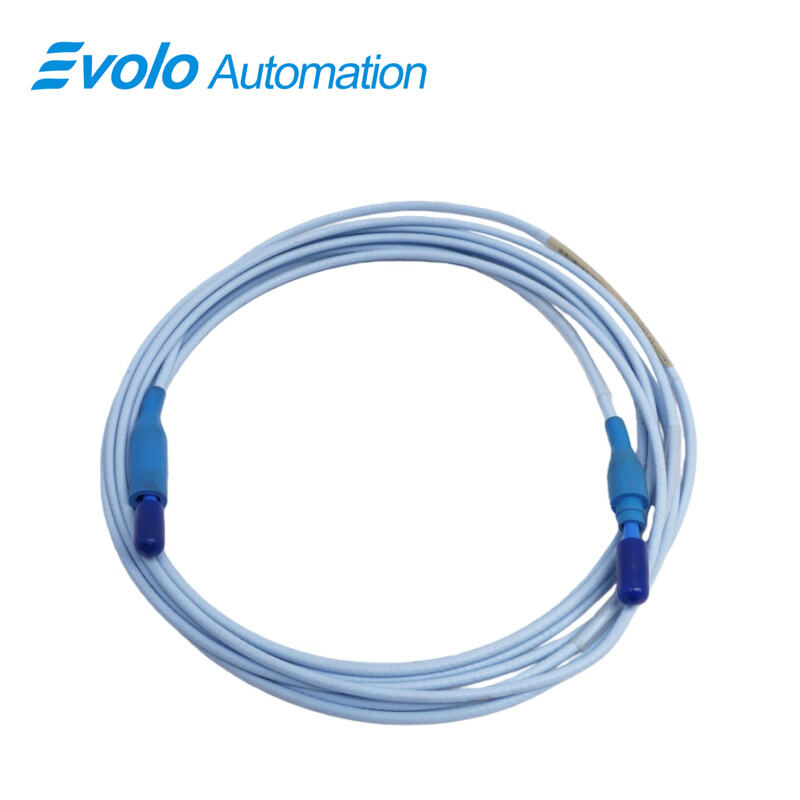

The 330130-040-02-00 3300 XL Standard Extension Cable is a 4.0-meter cable with connector protector designed for 3300 XL 8 mm Proximity Transducer Systems. The 330130-040-02-00 cable uses 75 Q triaxial FEP insulation, 50 Ω output resistance, and 69.9 pF/m capacitance, keeping signal variation below 2 mV per volt input. Supporting linear ranges up to 2 mm (80 mils) and frequency response from 0 to 10 kHz, the 330130-040-02-00 3300 XL Standard Extension Cable transmits static and dynamic displacement, Keyphasor reference, and speed signals for automated vibration and shaft position monitoring. Patented CableLoc and optional FluidLoc designs secure probe connections and prevent fluid leaks. The 330130-040-02-00 cable enables precise signal delivery across turbines, pumps, motors, and compressors for industrial automation and predictive maintenance.
Applications
Install 330130-040-02-00 Cable to Connect 3300 XL Probes and Proximitor
The 330130-040-02-00 3300 XL Standard Extension Cable transmits 0–10 kHz signals from 8 mm probes to Proximitor modules, enabling automated shaft position and vibration measurements.
Extend Probe Reach Across Industrial Equipment
The 330130-040-02-00 cable provides 4.0 meters of 75 Q triaxial FEP insulation, allowing probes to monitor turbines, pumps, motors, and compressors without signal loss.
Transmit Keyphasor Speed Signals for Automation
The 330130-040-02-00 3300 XL Standard Extension Cable carries precise Keyphasor reference and speed measurement signals from probes to monitoring systems for automated rotational analysis.
Support Automated Data Collection
The 330130-040-02-00 cable transmits linear displacement up to 2 mm (80 mils) and static/dynamic vibration data for real-time monitoring and predictive maintenance in industrial automation.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Ensure Accurate Signal Transmission with 330130-040-02-00
The 330130-040-02-00 3300 XL Standard Extension Cable maintains less than 2 mV variation per volt input, with 50 Ω output resistance and 69.9 pF/m capacitance, supporting precise automated measurements.
Secure Probe Connections During Installation
The 330130-040-02-00 cable features armored construction, patented CableLoc design, and optional FluidLoc to firmly attach probe cables and prevent fluid leaks in automated systems.
Deliver Continuous Real-Time Data
The 330130-040-02-00 3300 XL Standard Extension Cable provides static and dynamic displacement, Keyphasor, and speed signals to 3300 XL monitoring systems, enabling real-time automated vibration and position monitoring.
Support Industrial Standards for Automation
The 330130-040-02-00 cable is designed for API 670 compliant 3300 XL 8 mm systems, ensuring accurate automated shaft position and vibration measurement in turbines, pumps, motors, and compressors.
