Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-040-01-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
4.0 meters (11.5 feet) |
|
Connector Protector and Cable Option: |
Armored cable |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
26x26x3cm |
|
Weight: |
0.46kg |
Description

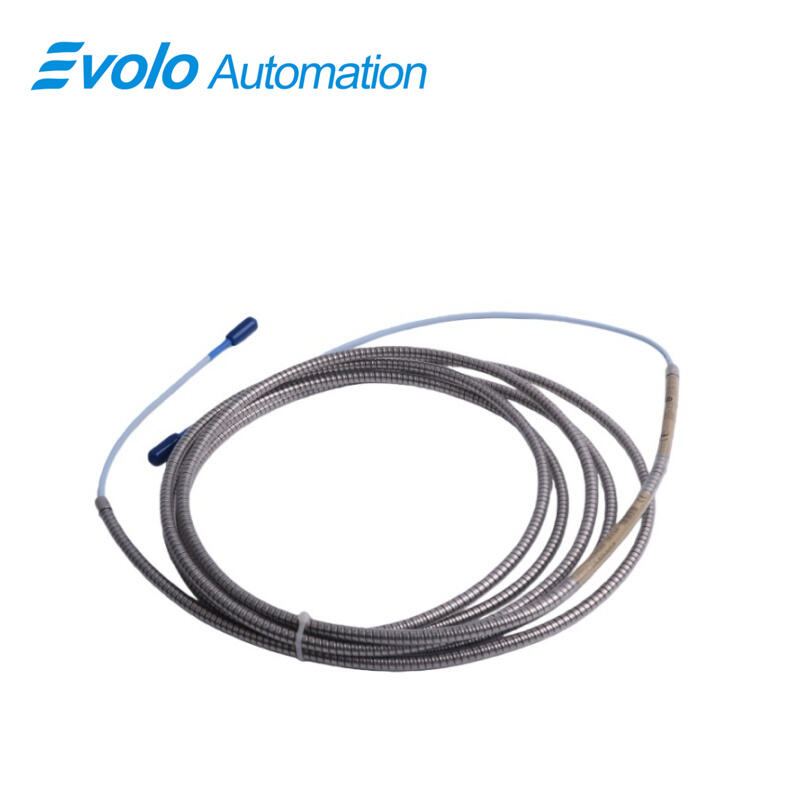

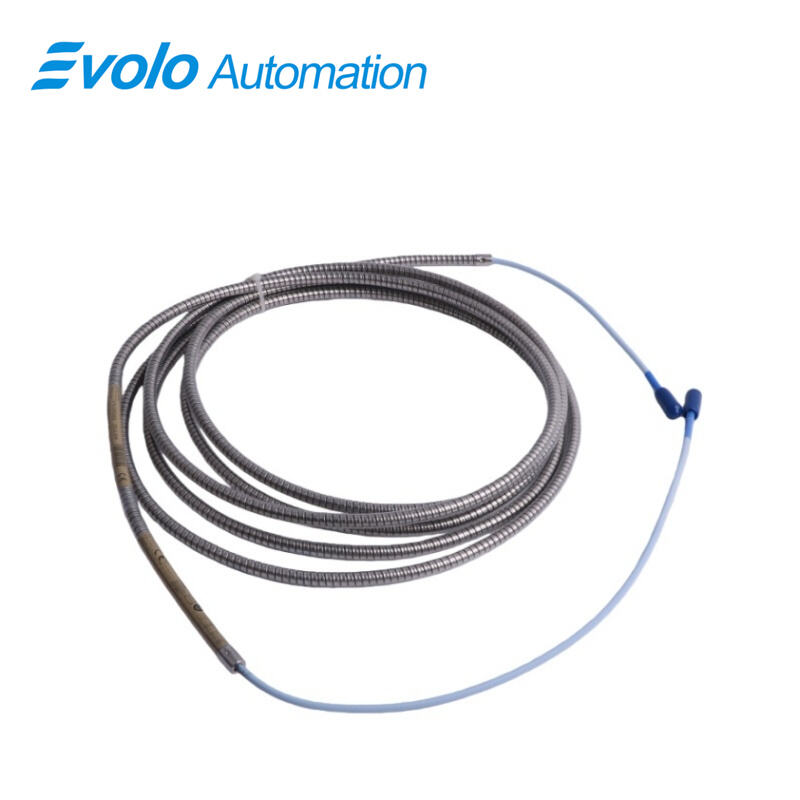

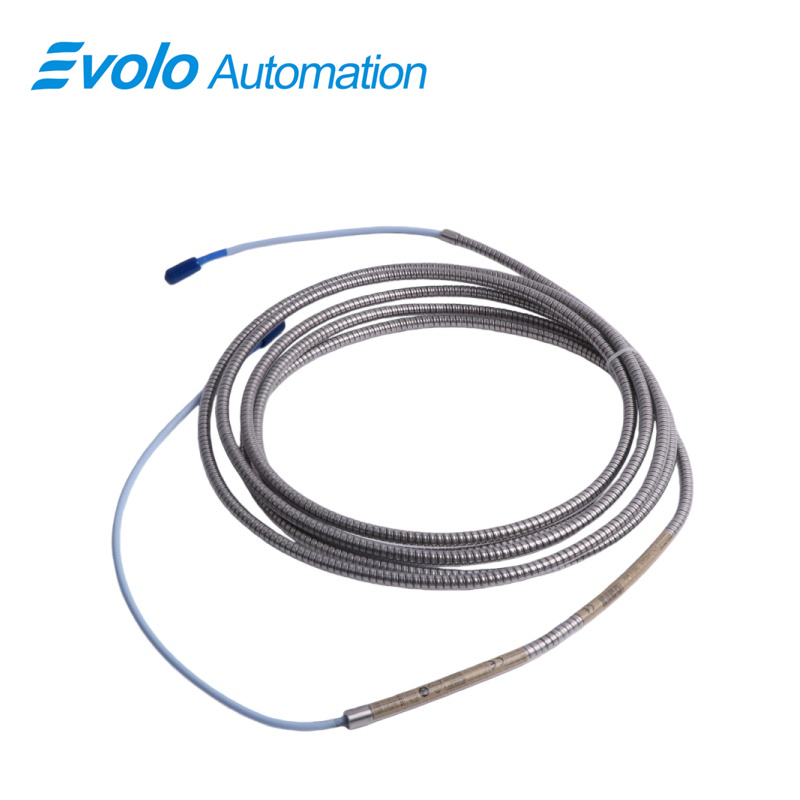

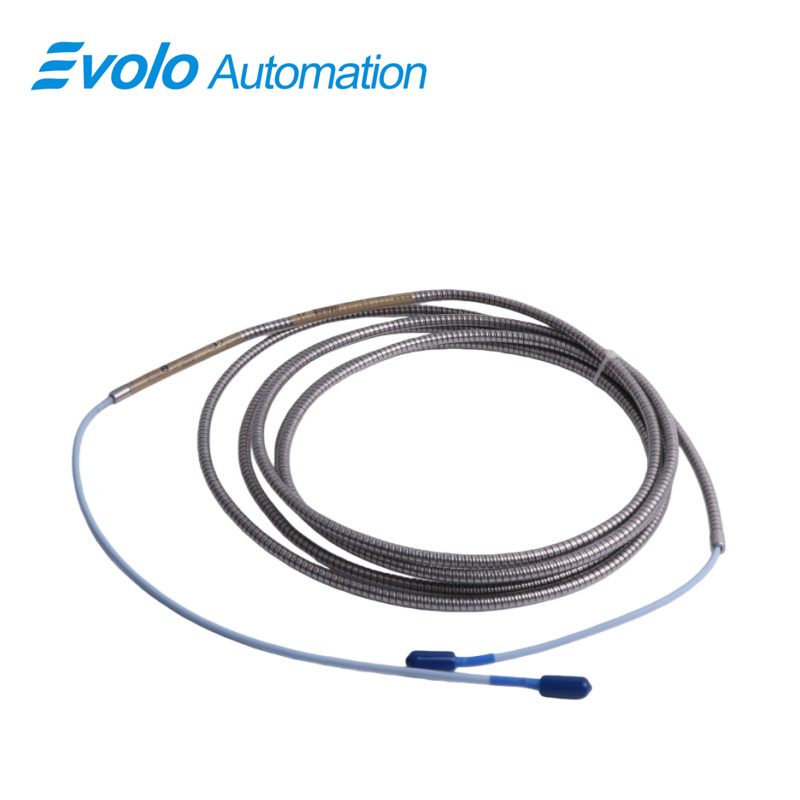

The 330130-040-01-00 3300 XL Standard Extension Cable is a 4.0-meter armored extension cable designed for 3300 XL 8 mm Proximity Transducer Systems. The 330130-040-01-00 cable features 75 Q triaxial FEP insulation, 50 Ω output resistance, and 69.9 pF/m capacitance, maintaining less than 2 mV signal variation per volt input. Supporting linear ranges up to 2 mm (80 mils) and frequency responses from 0 to 10 kHz, the 330130-040-01-00 3300 XL Standard Extension Cable enables automated shaft position, vibration, and Keyphasor speed measurements on turbines, pumps, motors, and compressors. Patented CableLoc and optional FluidLoc designs secure probe connections and prevent fluid leaks. The 330130-040-01-00 cable allows precise signal transmission for industrial automation monitoring and predictive maintenance applications.
Applications
Install 330130-040-01-00 Cable to Connect 3300 XL Probes and Proximitor
The 330130-040-01-00 3300 XL Standard Extension Cable transmits high-frequency 0–10 kHz signals from 8 mm probes to Proximitor modules, enabling automated shaft position and vibration measurements.
Extend Probe Placement Across Industrial Machinery
The 330130-040-01-00 cable provides 4.0 meters of armored FEP-triaxial insulation, allowing probes to reach turbines, pumps, motors, and compressors without signal loss.
Deliver Keyphasor Speed Signals to Automation Systems
The 330130-040-01-00 3300 XL Standard Extension Cable carries precise Keyphasor reference and speed measurement signals from probes to monitoring systems for real-time rotational monitoring.
Support Continuous Automated Data Acquisition
The 330130-040-01-00 cable enables linear measurements up to 2 mm (80 mils) and transmits static and dynamic displacement data for predictive maintenance and automated diagnostics.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Maintain Precise Signal Transmission with 330130-040-01-00
The 330130-040-01-00 3300 XL Standard Extension Cable keeps less than 2 mV variation per volt input and 50 Ω output resistance, ensuring accurate automated shaft position and vibration monitoring.
Simplify Industrial Installation
The 330130-040-01-00 cable features armored construction and patented CableLoc and optional FluidLoc designs to securely attach probe cables and prevent fluid leaks during installation.
Enable Real-Time Data for Automated Monitoring
The 330130-040-01-00 3300 XL Standard Extension Cable feeds displacement, vibration, and Keyphasor speed data to 3300 XL monitoring systems, supporting automated analysis of turbines, pumps, motors, and compressors.
Comply with Industrial Standards
The 330130-040-01-00 cable supports API 670 compliant 3300 XL 8 mm systems, allowing precise automated measurements in industrial environments without additional adjustments.
