Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-040-00-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
4.0 meters (11.5 feet) |
|
Connector Protector and Cable Option: |
Standard cable |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
20.3x22.2x3.5cm |
|
Weight: |
0.2 kg |
Description

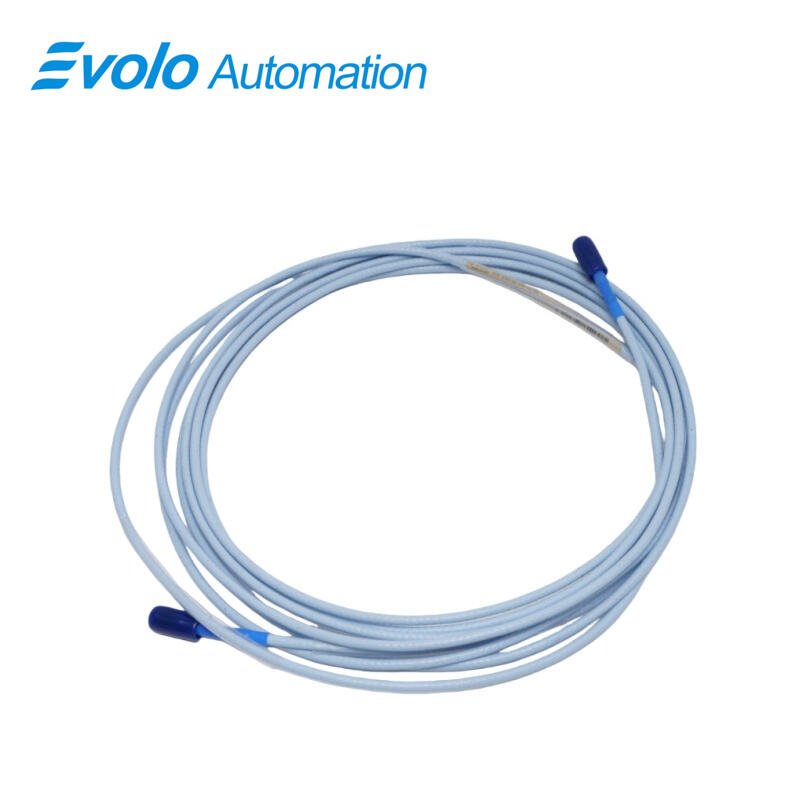

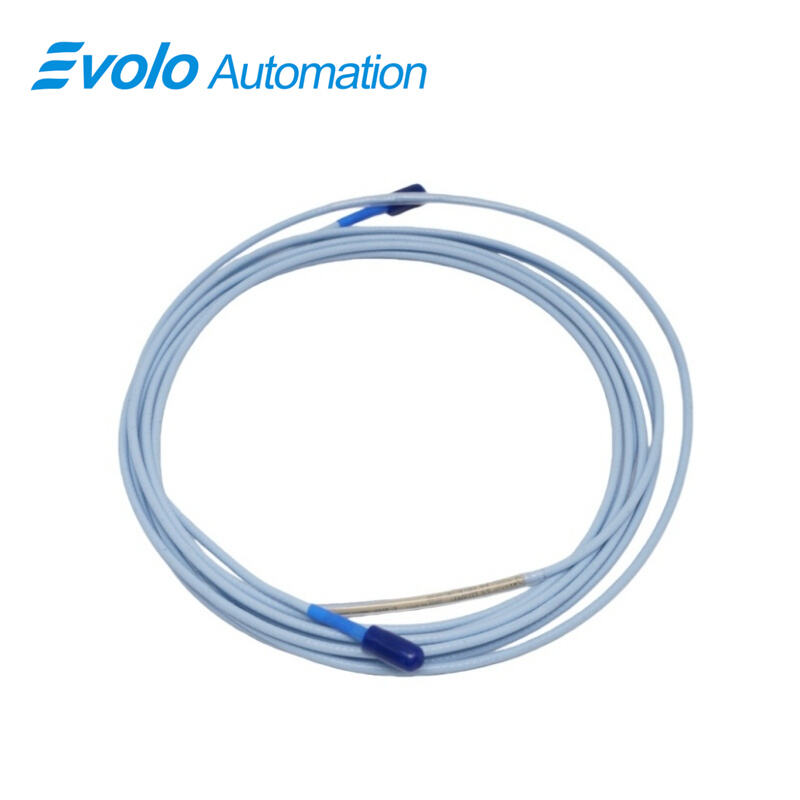

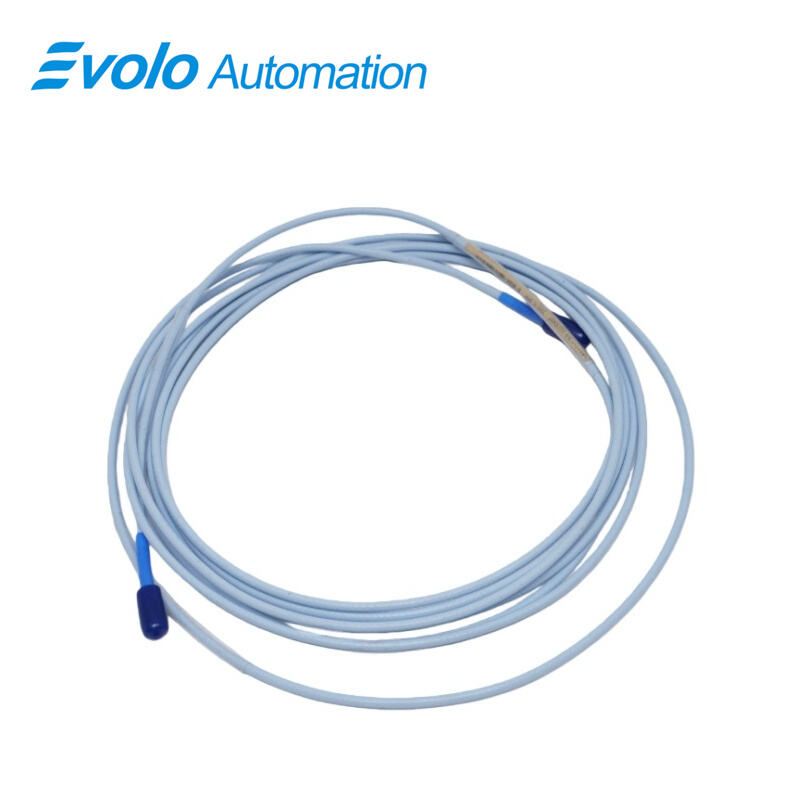

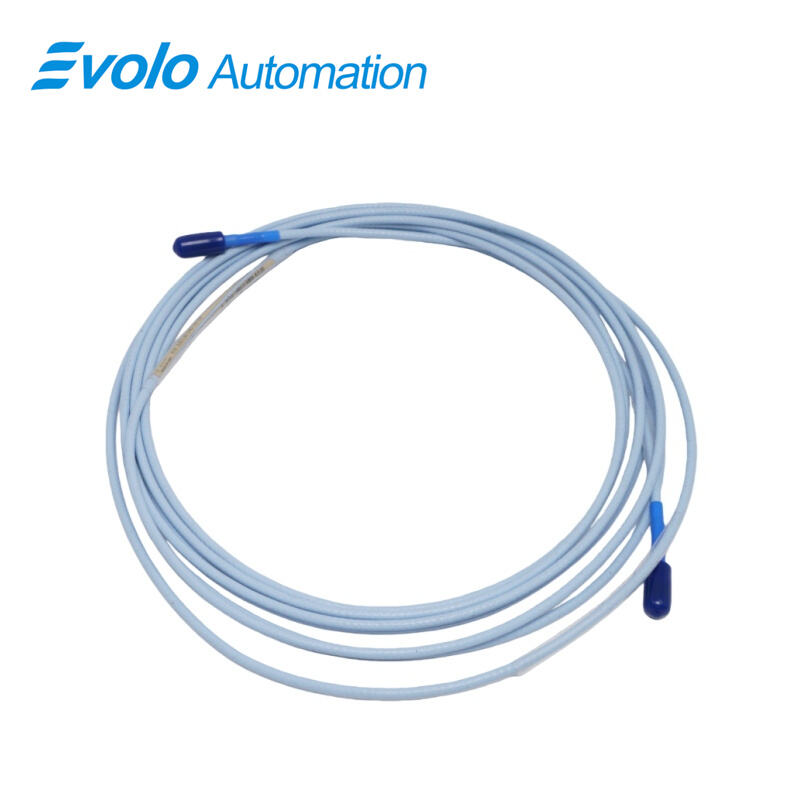

The 330130-040-00-00 3300 XL Standard Extension Cable provides a 4.0-meter (11.5 ft) connection for 3300 XL 8 mm Proximity Probes, maintaining precise output voltage proportional to the distance between the probe tip and the conductive surface. Constructed with 75 Q triaxial FEP-insulated material, the 330130-040-00-00 3300 XL Standard Extension Cable supports supply sensitivity of less than 2 mV per volt change and 50 Ω output resistance, ensuring consistent signal for automated monitoring. Its extension capacitance of 69.9 pF/m (21.3 pF/ft) allows high-fidelity vibration and position measurements up to 10 kHz frequency with field wiring distances up to 305 meters (1000 ft). Compatible with 0.2 to 1.5 mm² (16 to 24 AWG) field wiring, the 330130-040-00-00 3300 XL Standard Extension Cable enables accurate shaft vibration, position tracking, and Keyphasor reference measurements for fluid-film bearing machines. Designed for seamless integration into the 3300 XL 8 mm system, it supports automated data acquisition without the need for bench calibration, preserving signal integrity even in compact or extended installations.
Applications
Extend Signal for 3300 XL 8 mm Probes
The 330130-040-00-00 3300 XL Standard Extension Cable provides a 4.0-meter (11.5 ft) connection, enabling flexible placement of 3300 XL 8 mm probes in automated monitoring setups while maintaining accurate output voltage for distance measurements.
Enable Long-Range Vibration Monitoring
With an extension capacitance of 69.9 pF/m (21.3 pF/ft) and frequency response up to 10 kHz, the 330130-040-00-00 3300 XL Standard Extension Cable supports high-fidelity vibration measurements over field wiring distances up to 305 meters (1000 ft).
Support Position Tracking on Fluid-Film Bearings
Compatible with 0.2 to 1.5 mm² (16 to 24 AWG) field wiring, the 330130-040-00-00 3300 XL Standard Extension Cable transmits precise shaft position and Keyphasor reference signals for automated control of fluid-film bearing machines.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Maintain Consistent Output for Automation
The 330130-040-00-00 3300 XL Standard Extension Cable ensures supply sensitivity of less than 2 mV per volt change and 50 Ω output resistance, preserving signal quality for automated measurement systems.
Simplify System Integration
Its 75 Q triaxial FEP-insulated construction allows direct connection with 3300 XL 8 mm probes without the need for bench calibration, minimizing setup time in automated plants.
Support Long-Distance Wiring
The 330130-040-00-00 3300 XL Standard Extension Cable transmits accurate signals over extended field wiring up to 305 meters, allowing flexible installation in large or complex machinery layouts.
Reduce Signal Loss in High-Frequency Applications
Frequency response of 0 to 10 kHz ensures the 330130-040-00-00 3300 XL Standard Extension Cable maintains measurement accuracy for both vibration and position monitoring in automated systems.
