Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-035-01-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
3.5 meters (13.1 feet) |
|
Connector Protector and Cable Option: |
Armored cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
27x27x2.5cm |
|
Weight: |
0.36kg |
Description

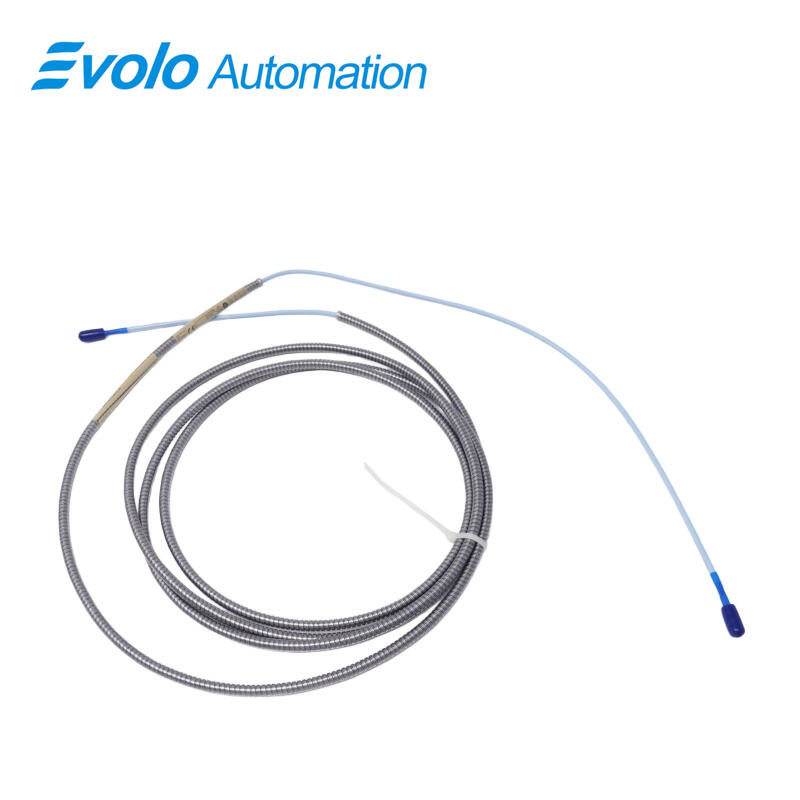

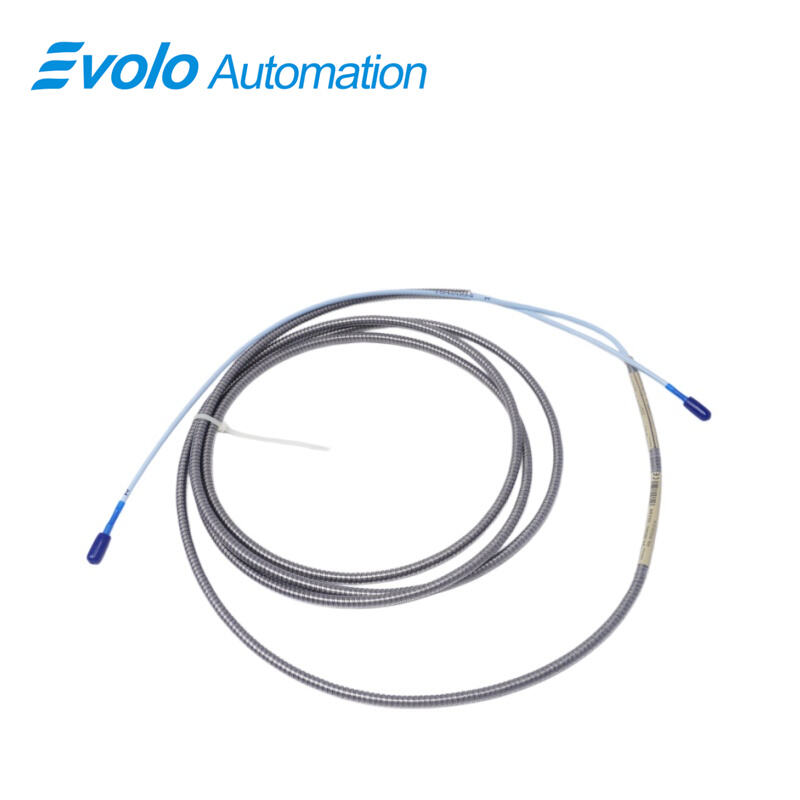

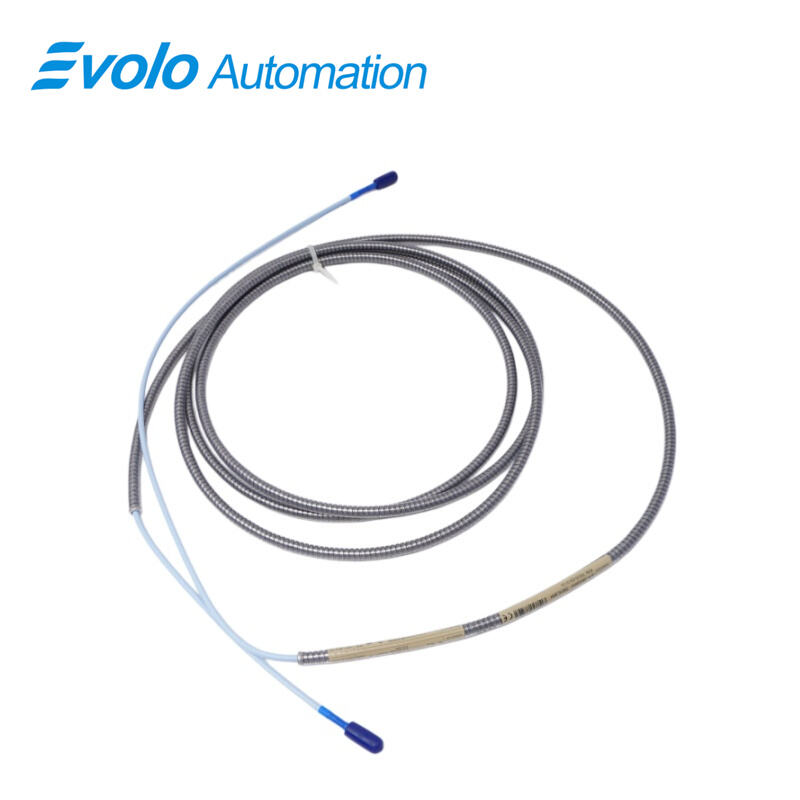

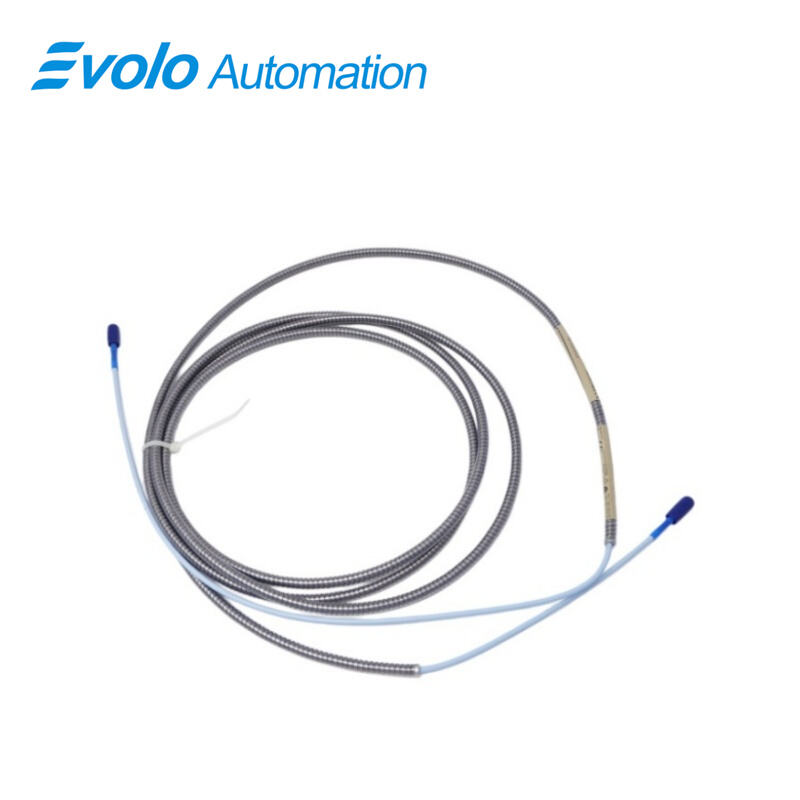

330130-035-01-CN is a 3.5 m 13.1 ft armored extension cable for 3300 XL 8 mm proximity transducer systems in industrial automation. 330130-035-01-CN uses 75 Ω triaxial construction with FEP insulation and external armor for mechanical protection in turbine and compressor installations. With 69.9 pF/m capacitance, the 3.5 m 330130-035-01-CN provides about 245 pF total capacitance, matching calibrated 2 mm linear range requirements.
330130-035-01-CN features 50 Ω output resistance and less than 2 mV per volt supply sensitivity, supporting accurate vibration and position signals. Frequency response is 0 to 10 kHz with up to 305 m 1000 ft field wiring. Field wiring accepts 0.2 to 1.5 mm² 16 to 24 AWG conductors. Minimum target size is 15.2 mm diameter. Operating temperature ranges from -52°C to +177°C. 330130-035-01-CN carries CSA, ATEX, and IECEx approvals for hazardous area automation systems.
Applications
Application for turbine radial vibration monitoring
Use 330130-035-01-CN to connect 3300 XL 8 mm probes to turbine shafts. The 3.5 m 330130-035-01-CN ensures less than 2 mV per volt supply sensitivity, maintaining accurate radial vibration readings up to 10 kHz frequency.
Application for compressor thrust position tracking
Connect axial position probes to control systems using 330130-035-01-CN. The 2 mm linear range and 245 pF total cable capacitance of 330130-035-01-CN maintain precise thrust measurements in centrifugal compressors.
Application for motor bearing proximity measurements
Route 330130-035-01-CN over field wiring up to 305 m to deliver 50 Ω output signals from motor bearing probes. The armored design protects the cable while maintaining 0–10 kHz frequency response for dynamic measurements.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
Competitive Advantage
Competitive advantage for mechanical protection
Deploy 330130-035-01-CN armored cable in high-impact industrial zones. The external armor combined with 75 Ω triaxial FEP insulation resists damage while maintaining total capacitance around 245 pF over 3.5 m length.
Competitive advantage for high temperature installation
Install 330130-035-01-CN near turbines or compressors operating up to +177°C. The FEP insulation maintains output resistance of 50 Ω and supply sensitivity below 2 mV per volt in extreme temperatures.
Competitive advantage for hazardous area operation
Select 330130-035-01-CN with CSA, ATEX, and IECEx approvals to safely transmit 0–10 kHz proximity signals in classified zones while preserving accurate 2 mm linear range readings.
Competitive advantage for consistent signal transmission
Use 3.5 m 330130-035-01-CN to maintain calibrated total capacitance of 245 pF, ensuring linear response of 3300 XL probes and accurate measurement of targets as small as 15.2 mm diameter.
