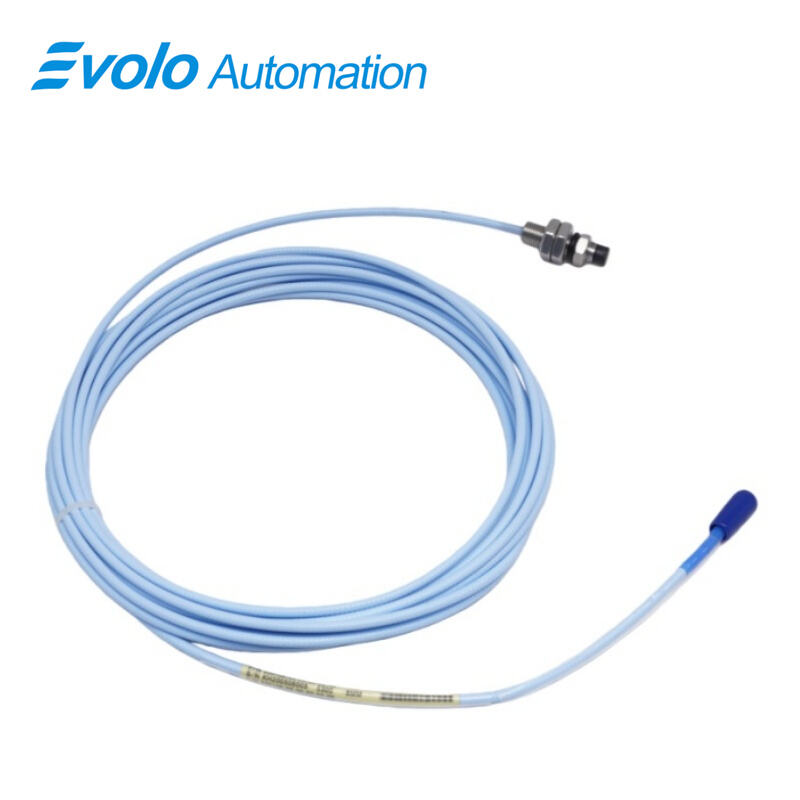

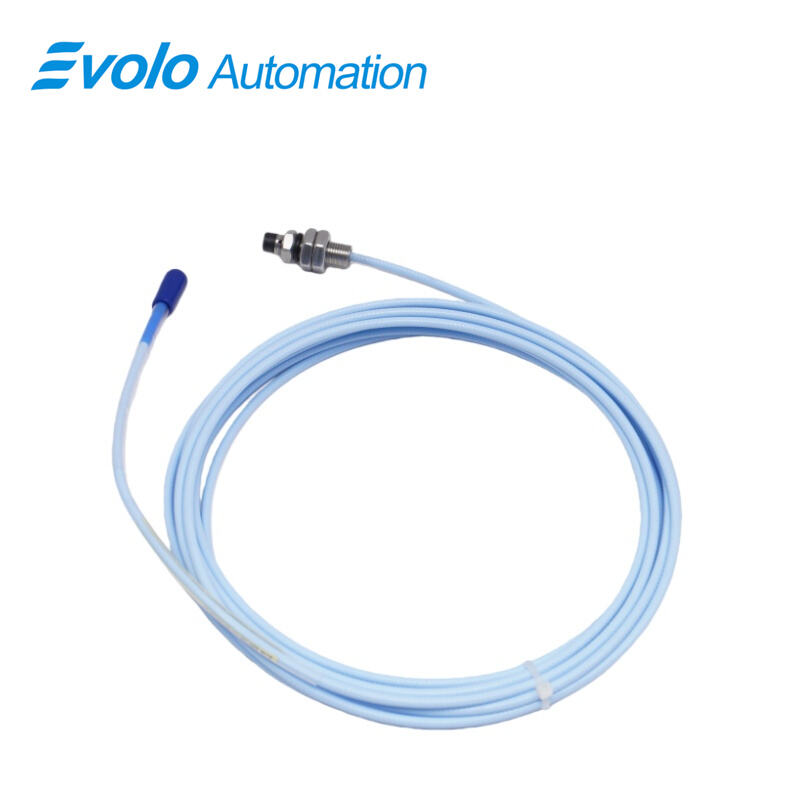

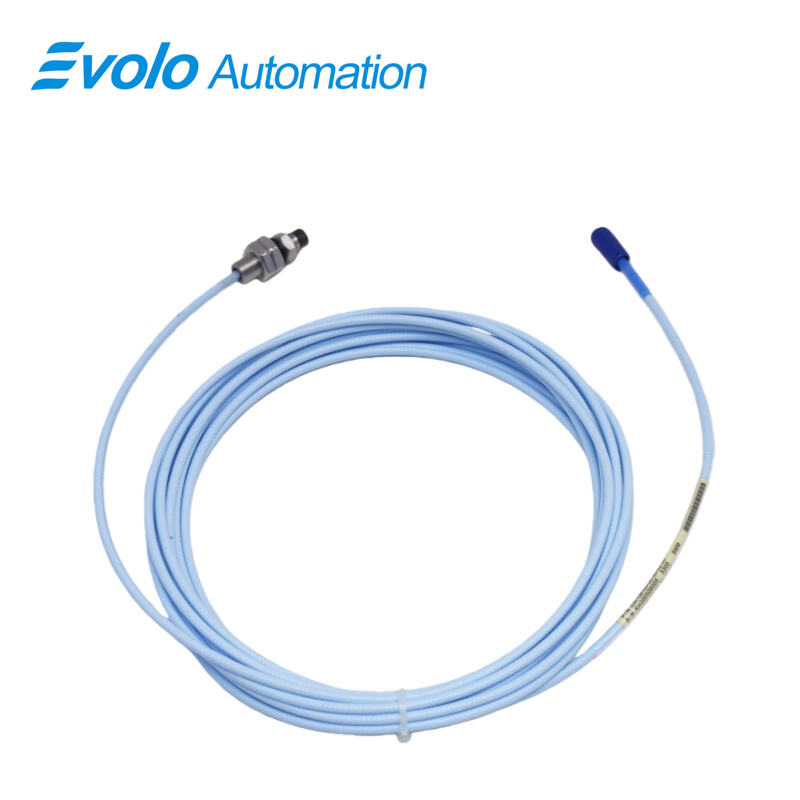

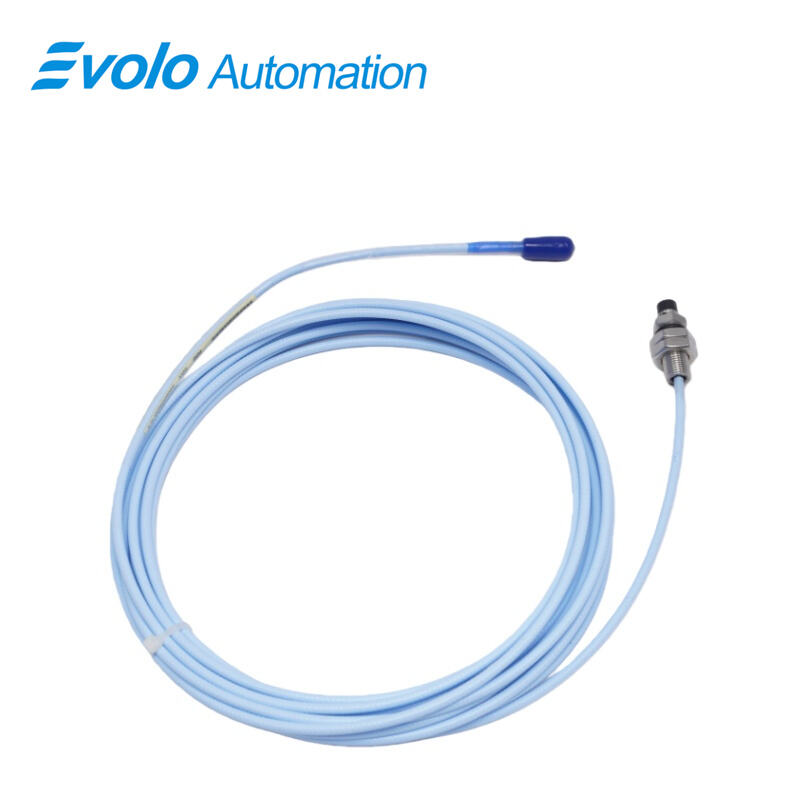

330106-05-30-90-02-05 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-90-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330106-05-30-90-02-05 3300 XL 8 mm Reverse Mount Probe is a high-precision eddy current proximity transducer for automation and industrial monitoring. The 330106-05-30-90-02-05 3300 XL 8 mm probe outputs a voltage proportional to the distance between the probe tip and conductive surfaces, measuring static positions and dynamic vibrations with a linear range of 2 mm (80 mils). It operates reliably from -52°C to +177°C (-62°F to +350°F) in harsh conditions.

With a 9.0-meter (29.5 ft) cable and Miniature ClickLoc coaxial connector, the 330106-05-30-90-02-05 3300 XL 8 mm probe mounts securely via M10 x 1 threads (max 15 mm engagement) and supports 0.2–1.5 mm² (16–24 AWG) wiring. The probe tip is polyphenylene sulfide, and the case is AISI 303/304 stainless steel.

Fully API 670 compliant, the 330106-05-30-90-02-05 3300 XL 8 mm probe is interchangeable with all 3300 XL 8 mm components and earlier 3300 series probes. Patented TipLoc and CableLoc designs enhance tip-body bond and cable pull strength (330 N / 75 lbf), while optional FluidLoc prevents oil leaks. Ideal for vibration, position, and Keyphasor speed measurements, the 330106-05-30-90-02-05 3300 XL 8 mm Reverse Mount Probe ensures precision, durability, and seamless integration in automated systems.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330106-05-30-90-02-05 3300 XL 8 mm probe measures both static and dynamic vibration on fluid-film bearings with high accuracy. Its linear range of 2 mm (80 mils) and operating temperature from -52°C to +177°C (-62°F to +350°F) ensures precise monitoring in extreme industrial environments.

Position Measurement in Rotating Machinery
Using the 330106-05-30-90-02-05 3300 XL 8 mm Reverse Mount Probe, engineers can detect shaft displacement or alignment deviations. Its AISI 303/304 stainless steel case and polyphenylene sulfide tip provide robust performance, maintaining measurement stability over long-term operation.

Keyphasor and Speed Reference Applications
The 330106-05-30-90-02-05 3300 XL 8 mm probe supports Keyphasor systems to accurately track rotational speed and phase in automated process systems. Combined with a 9.0-meter (29.5 ft) Miniature ClickLoc cable, it integrates seamlessly into high-speed monitoring setups.

Specifications

Competitive Advantage

High Durability and Temperature Stability
With an operating range from -52°C to +177°C (-62°F to +350°F) and a rugged stainless steel case, the 330106-05-30-90-02-05 3300 XL 8 mm probe ensures long-term reliability in harsh industrial environments.

Interchangeability and API 670 Compliance
The 330106-05-30-90-02-05 3300 XL 8 mm probe is fully API 670 compliant and backward compatible with 3300 series probes and Proximitor sensors, eliminating the need for bench calibration when upgrading systems.

Enhanced Mechanical Integrity
Patented TipLoc molding and CableLoc designs provide a secure 330 N (75 lbf) cable pull strength and a strong tip-body bond, ensuring the 330106-05-30-90-02-05 3300 XL 8 mm Reverse Mount Probe maintains precise measurements even under heavy vibration.
