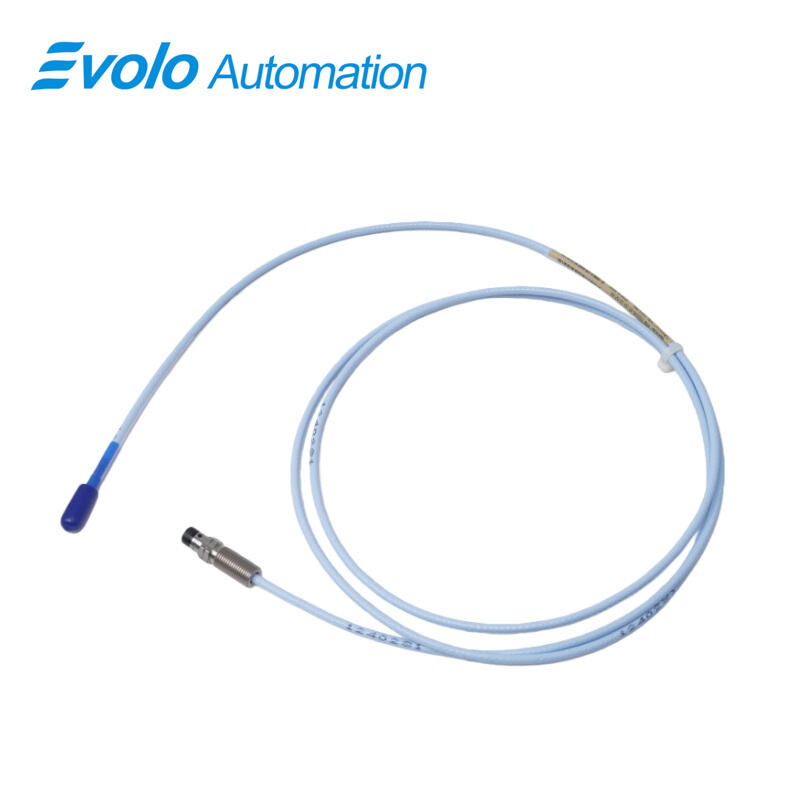

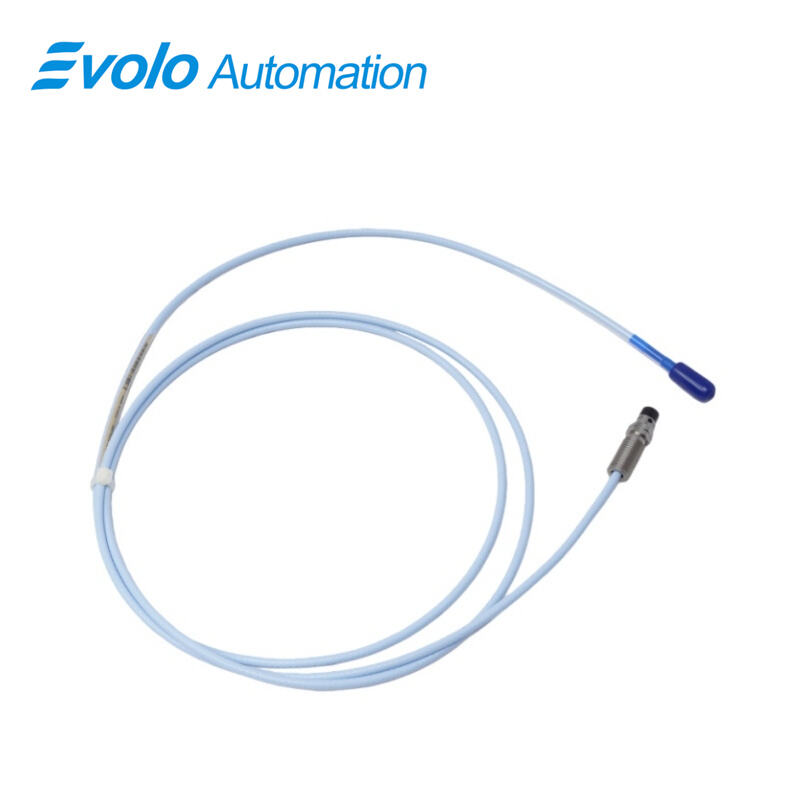

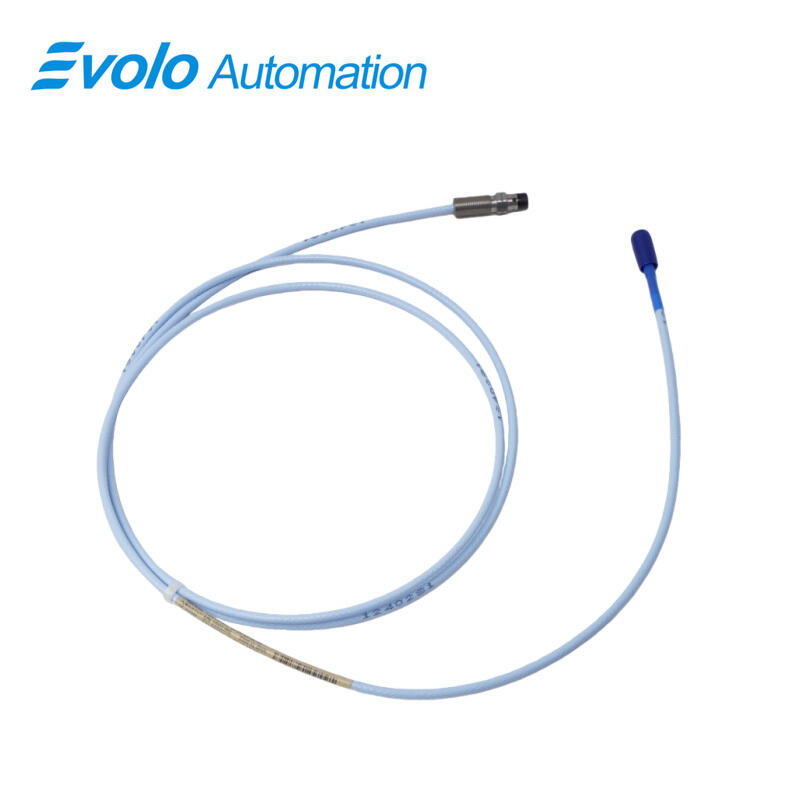

330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-15-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe delivers a precise output voltage proportional to the distance between its probe tip and the target conductive surface, supporting both static (position) and dynamic (vibration) measurements in automated machinery. This 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe features a total length of 1.5 meters (4.9 feet), M10 x 1 threads with 15 mm engagement, and a polyphenylene sulfide probe tip enclosed in AISI 303/304 stainless steel, ensuring durable performance in automated industrial environments. The miniature ClickLoc coaxial connector simplifies integration, while field wiring compatibility from 0.2 to 1.5 mm² (16–24 AWG) and a 2 mm (80 mils) linear range optimize precise monitoring. Operating between -52°C to +177°C (-62°F to +350°F), the 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe allows automation systems to measure vibration, position, and Keyphasor reference speeds without requiring probe recalibration. Optional FluidLoc cables prevent fluid leakage into critical machine areas, enhancing reliability in continuous automated monitoring.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe measures vibration in rotating machinery with a 2 mm (80 mils) linear range and up to 1.5-meter cable length, enabling automated detection of bearing wear and misalignment.

Position Measurement in Confined Spaces
With its M10 x 1 threaded probe and 15 mm engagement, the 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe allows precise position monitoring where standard probes cannot fit, supporting automated control systems in tight assembly or reverse-mount applications.

Keyphasor Reference Signal Generation
The 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe outputs voltage proportional to shaft rotation, providing accurate Keyphasor signals for automated speed and phase control of rotating equipment.

High-Temperature Automation Applications
Operating from -52°C to +177°C (-62°F to +350°F), the 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe can monitor machinery in extreme temperature conditions without affecting automated process feedback loops.

Specifications

Competitive Advantage

Reverse-Mount Design for Limited Space
The 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe allows installation in constrained areas, expanding automation coverage without additional modification to machinery.

Durable Materials for Long-Term Automation Use
Featuring a polyphenylene sulfide tip and AISI 303/304 stainless steel case, the 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe resists wear and chemical exposure, ensuring uninterrupted automated monitoring.

Secure Probe-Cable Attachment
The patented CableLoc design in the 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe provides 330 N pull strength, preventing accidental disconnection in automated processes.

Optional FluidLoc Cable for Leak Prevention
Ordering the 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe with FluidLoc cables prevents oil and liquid leakage into critical automation areas, reducing maintenance downtime.

Interchangeable Components Across 3300 XL Series
The 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe is fully compatible with 5 mm and 8 mm 3300 series transducers and extension cables, simplifying automated system upgrades and component replacement.
