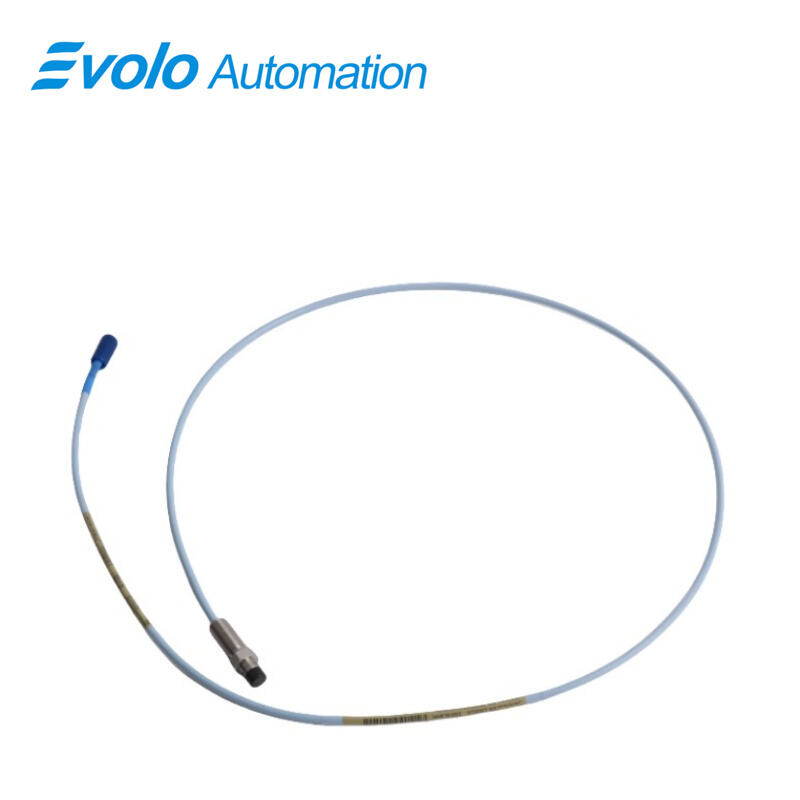

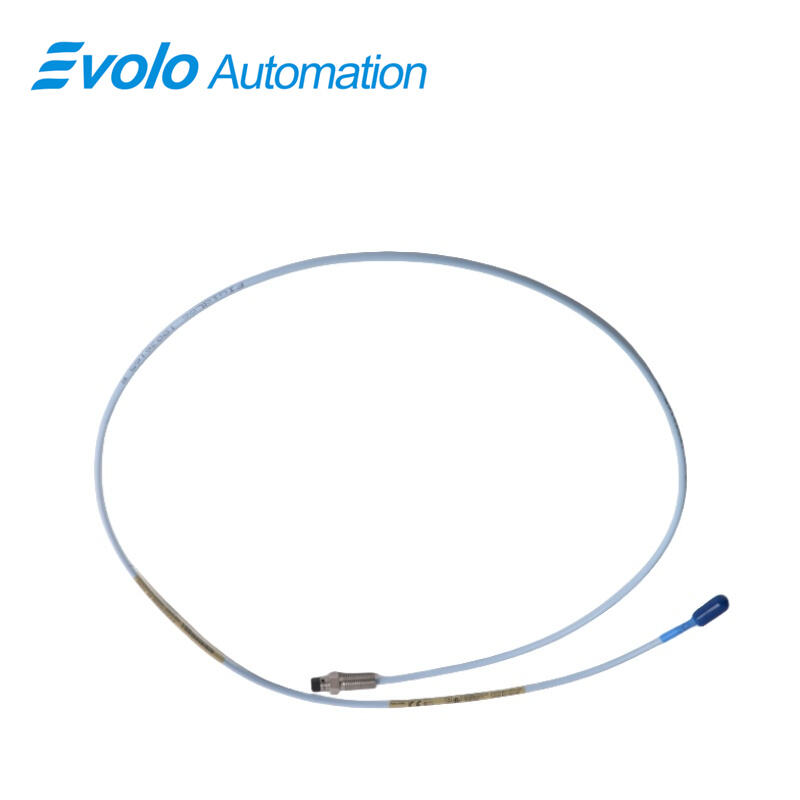

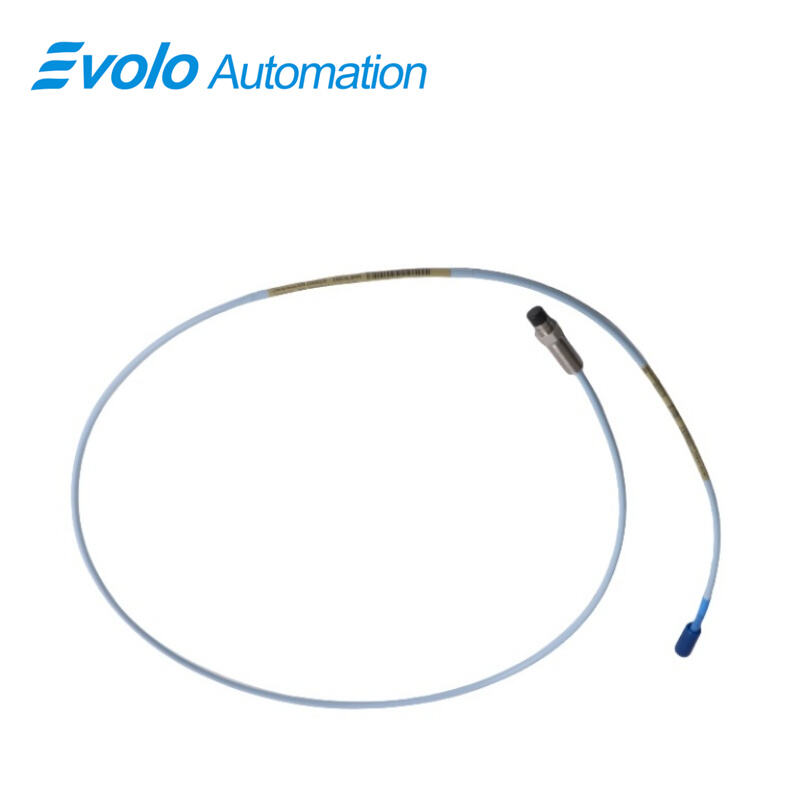

330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330105-02-12-10-05-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe is a high-precision eddy current transducer designed for advanced industrial automation and vibration monitoring applications. Engineered for fluid-film bearing machines, the 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe provides both static position and dynamic vibration measurements, with a 2 mm (80 mils) linear range and an operating temperature range from -52°C to +177°C (-62°F to +350°F). Constructed from AISI 303/304 stainless steel and featuring a polyphenylene sulfide (PPS) probe tip, the 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe ensures excellent mechanical robustness and chemical resistance in harsh industrial environments. Its 3/8-24 UNF threaded case and 1.0 meter (3.3 ft) miniature ClickLoc coaxial connector cable allow for secure installation in space-constrained reverse-mount configurations. Patented TipLoc and CableLoc designs provide enhanced probe-to-cable attachment with 330 N (75 lb) pull strength, while the optional FluidLoc cable prevents leakage of oil or liquids, maintaining signal integrity. Fully compliant with API 670 standards, the 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe supports seamless interchangeability with other 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, simplifying system upgrades and maintenance in automated industrial systems.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe measures high-speed shaft vibrations with a 2 mm linear range. Using the 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe’s miniature ClickLoc coaxial connector and 1.0-meter total length, predictive maintenance is enabled, reducing unplanned downtime in centrifugal compressors and turbines.

Axial and Radial Position Measurement
With an 8 mm high-accuracy probe tip, the 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe provides precise axial and radial displacement data. The stainless steel AISI 303/304 probe case and polyphenylene sulfide tip allow the 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe to operate from -52°C to +177°C while maintaining signal integrity for automation control of fluid-film bearing machines.

Keyphasor Reference Signal Generation
The 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe delivers consistent Keyphasor signals, critical for phase-based vibration analysis and rotor speed detection. Its 3/8-24 UNF thread with 0.563 in maximum engagement ensures secure mounting in automated industrial monitoring systems.

Compact or Reverse-Mount Installations
The 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe fits into tight counterbore or sideview locations where standard 8 mm probes cannot. The probe’s 0.2–1.5 mm² field wiring compatibility allows the 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe to integrate easily in space-constrained automation panels.

API 670 Compliant System Integration
The 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe is fully interchangeable with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors. This enables rapid upgrades and integration into existing automated monitoring systems while maintaining full compliance with API 670 standards.

Specifications

Competitive Advantage

High Precision and Linear Range
The 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe offers a 2 mm linear range with output proportional to the target distance. The 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe delivers precise measurement of both static and dynamic displacements for automated machinery monitoring.

Extreme Temperature and Chemical Resistance
Operating from -52°C to +177°C, the 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe performs reliably under harsh industrial conditions. Its polyphenylene sulfide (PPS) tip and AISI 303/304 stainless steel case provide superior chemical resistance, ensuring the 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe maintains accuracy in aggressive environments.

Robust Mechanical and Electrical Design
The 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe features patented TipLoc and CableLoc designs, delivering 330 N pull strength. These improvements prevent cable loosening and maintain long-term signal integrity for automated monitoring systems.

Flexible Installation Options
The 330105-02-12-10-05-05 3300 XL 8 mm Reverse Mount Probe supports 3/8-24 UNF threads and reverse-mount configurations. Its 1.0-meter total cable length and miniature ClickLoc coaxial connector enable installation in compact or side-view locations without compromising measurement precision.
