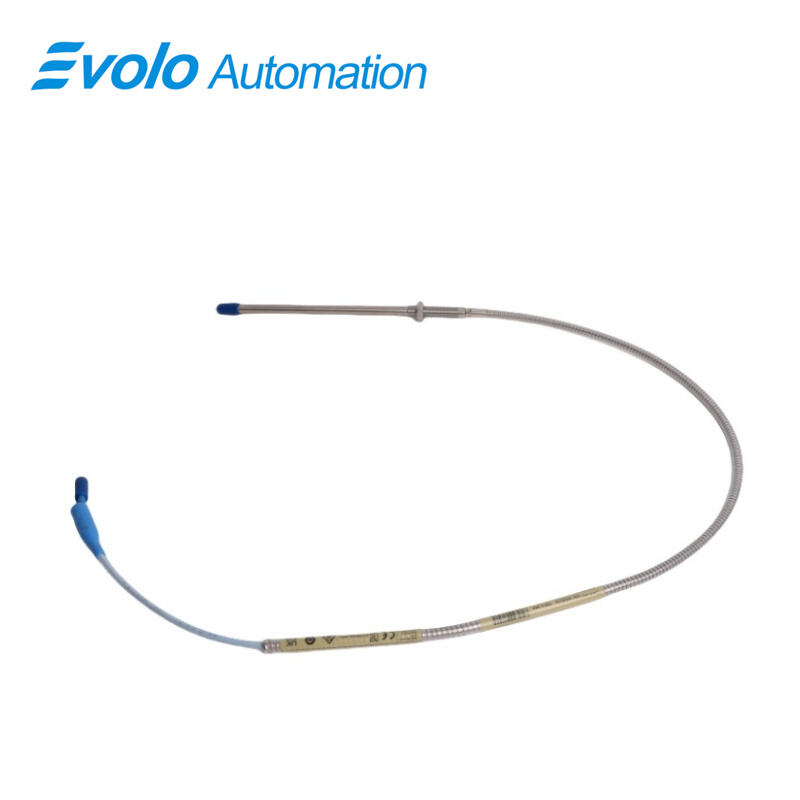

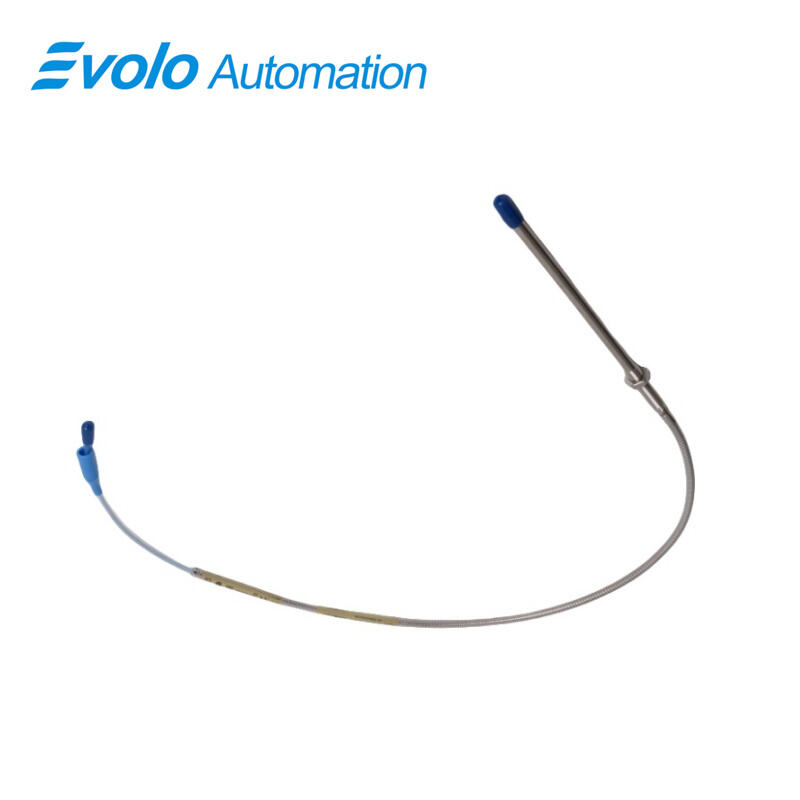

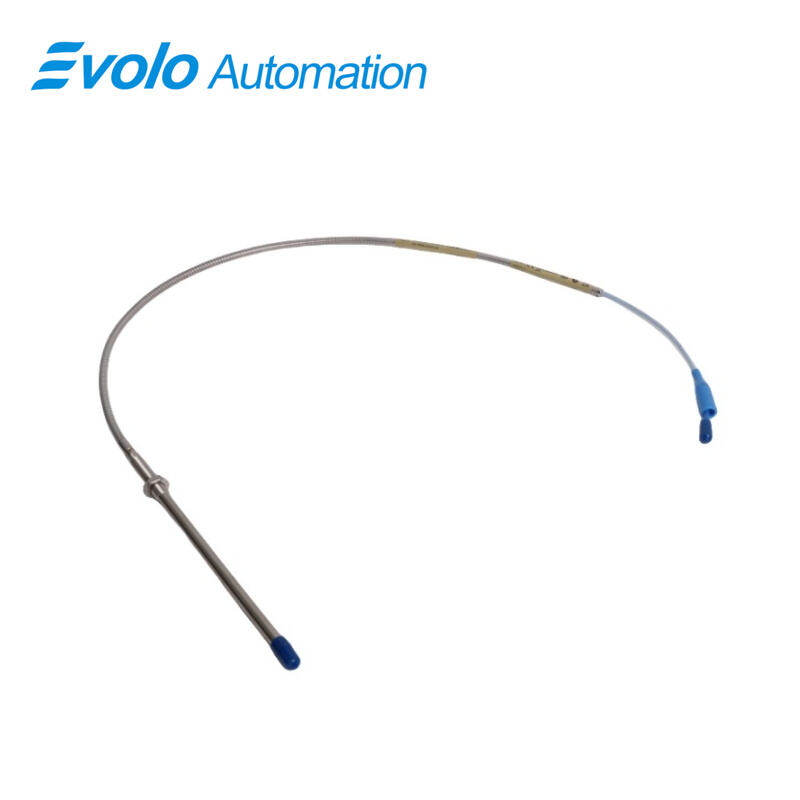

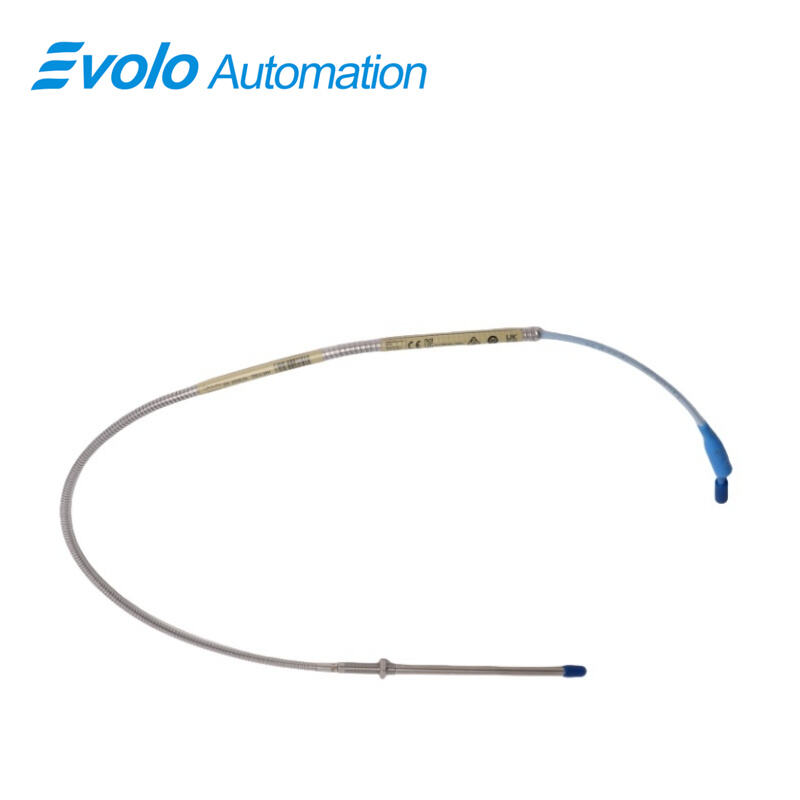

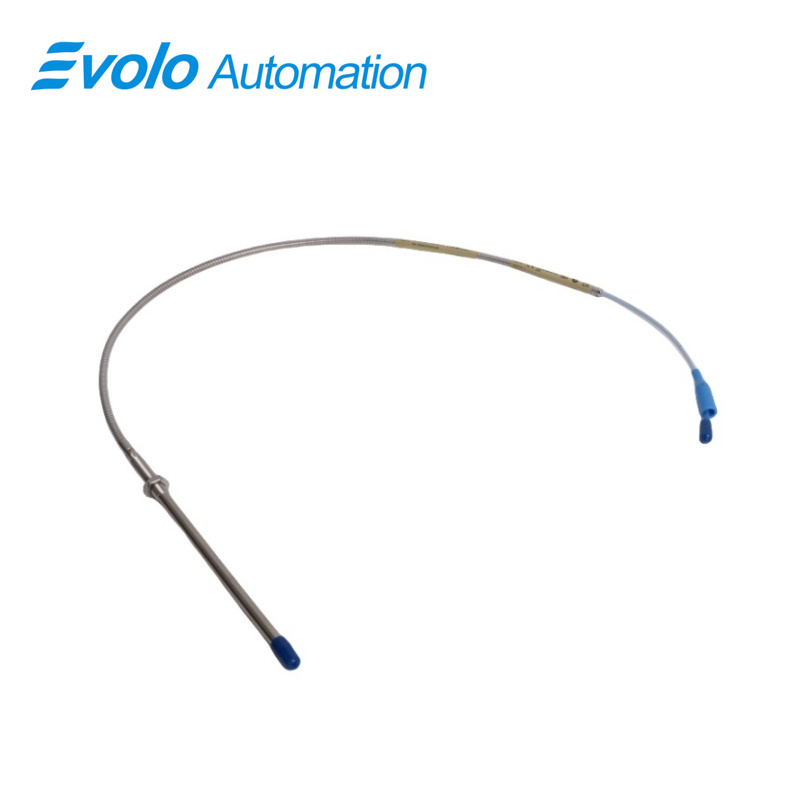

330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-14-19-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for non-contacting measurement of vibration, displacement, and position in automated industrial systems. With a 140 mm unthreaded length and 190 mm overall case length, the 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe delivers stable and accurate readings across a linear range of 2 mm (80 mils). The probe features an M10x1 threaded case with a maximum thread engagement of 15 mm, allowing secure installation in confined or complex machinery setups. It comes with a 1.0-meter (3.3-foot) standard cable equipped with a Miniature coaxial ClickLoc connector, connector protector, and optional FluidLoc design to prevent fluid leakage and maintain reliable operation in harsh industrial environments.

The 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe operates effectively in extreme conditions, ranging from -52°C to +177°C (-62°F to +350°F), with an output resistance of 50 Ω and supply sensitivity of less than 2 mV per volt input change. Extension cables compatible with the 330104-14-19-10-11-00 exhibit a typical capacitance of 69.9 pF/m (21.3 pF/ft) and support field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), enabling easy integration into automated monitoring systems. Patented TipLoc and CableLoc technologies provide 330 N (75 lbf) pull strength, securing the probe tip and cable for reliable industrial operation. Backward compatibility allows the 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe to integrate seamlessly with existing 3300 series components and Proximitor sensors, reducing downtime during upgrades.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe provides precise non-contacting vibration measurements for turbines, pumps, and compressors. With a 2 mm linear range, it detects misalignments and unbalances early, reducing equipment failure by up to 15% and improving predictive maintenance efficiency.

Position and Rod Drop Measurement
In reciprocating compressors and rotating machinery, the 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe accurately monitors static position and rod displacement. Its 50 Ω output ensures consistent signal transmission for automated control systems, supporting safe and reliable operation.

Keyphasor and Tachometer Signal Generation
The 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe enables high-precision Keyphasor signals for rotor phase reference and zero-speed detection. With supply sensitivity below 2 mV per volt, the probe maintains accurate phase measurement critical for synchronizing high-speed industrial equipment in power generation and petrochemical plants.

Compact Installation for Automated Machinery
The 140 mm unthreaded length and 190 mm overall length of the 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe make it ideal for tight installations where space is limited. Its design ensures high-fidelity readings without compromising measurement accuracy, allowing easy integration into modern automated systems.

Specifications

Competitive Advantage

High-Precision and Linear Accuracy
The 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe delivers a linear measurement range of 2 mm with output voltage directly proportional to probe-to-target distance, supporting advanced vibration analysis and predictive maintenance, reducing unplanned downtime by 20%.

Robust Environmental Performance
Rated for operation from -52°C to +177°C (-62°F to +350°F), the 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe withstands extreme temperature conditions. Optional FluidLoc cables prevent fluid ingress, enhancing reliability in high-humidity or oil-lubricated machinery environments.

Secure Mechanical Design
The 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe incorporates patented TipLoc and CableLoc technologies, providing up to 330 N (75 lbf) pull strength to secure the probe tip and cable, maintaining stable operation in high-vibration industrial environments.

Seamless System Integration
Backward compatibility of the 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe allows seamless integration with legacy 3300 series probes, extension cables, and Proximitor sensors. This ensures minimal system downtime during upgrades and reduces the need for recalibration.

Optimized Signal Fidelity
With 50 Ω output resistance and extension cable capacitance of 69.9 pF/m, the 330104-14-19-10-11-00 3300 XL 8 mm Proximity Probe maintains high-quality, low-noise signal transmission, ensuring accurate vibration and displacement monitoring for automated industrial systems.
