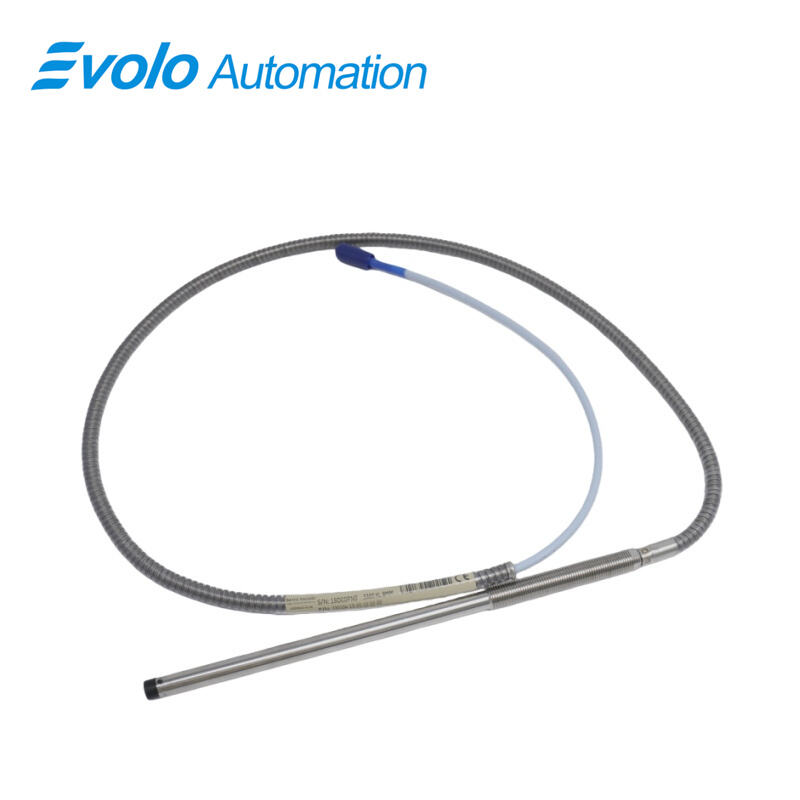

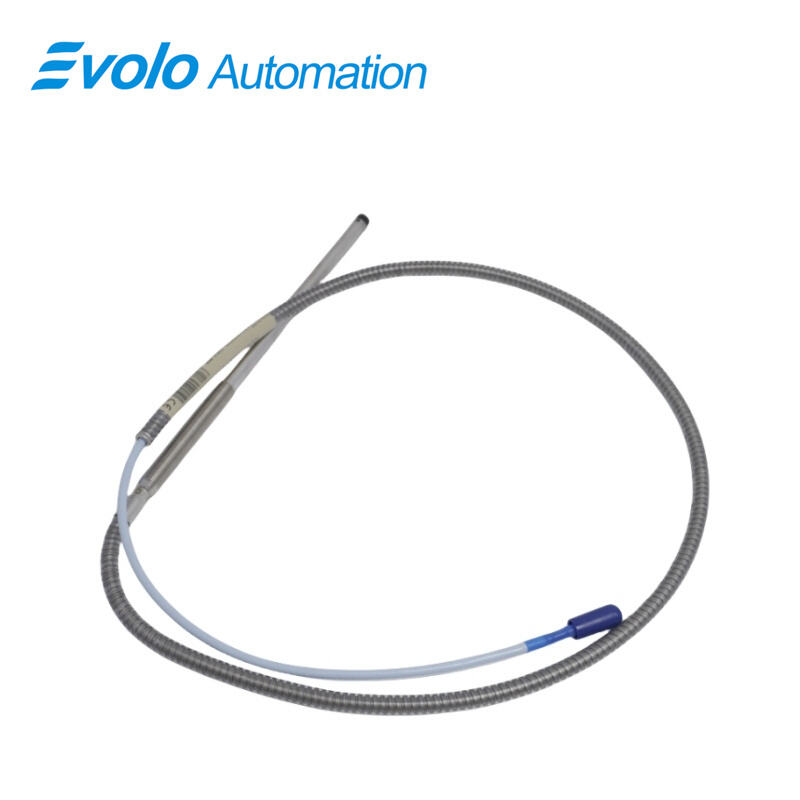

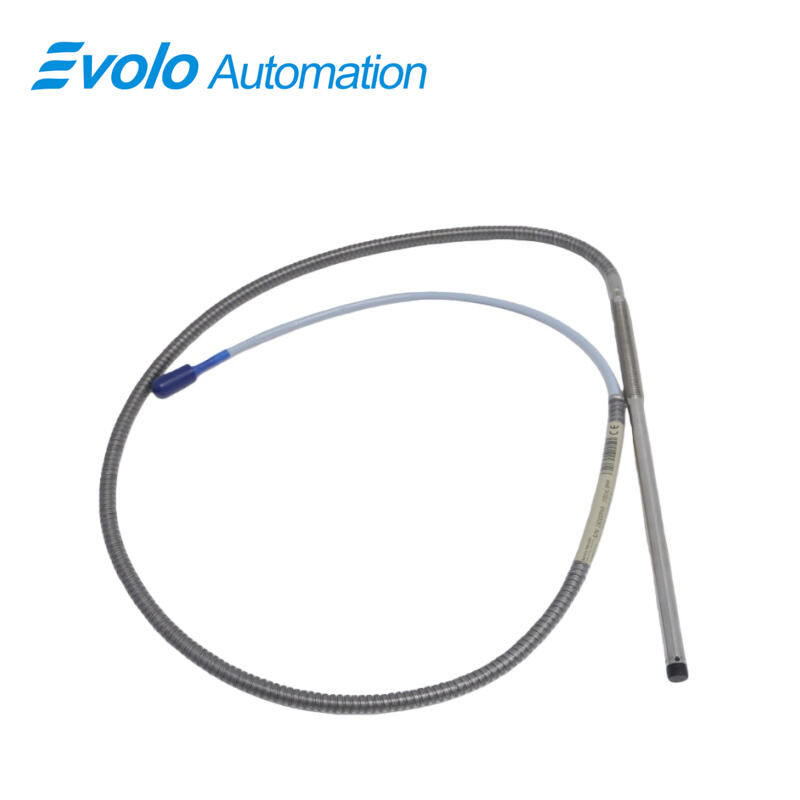

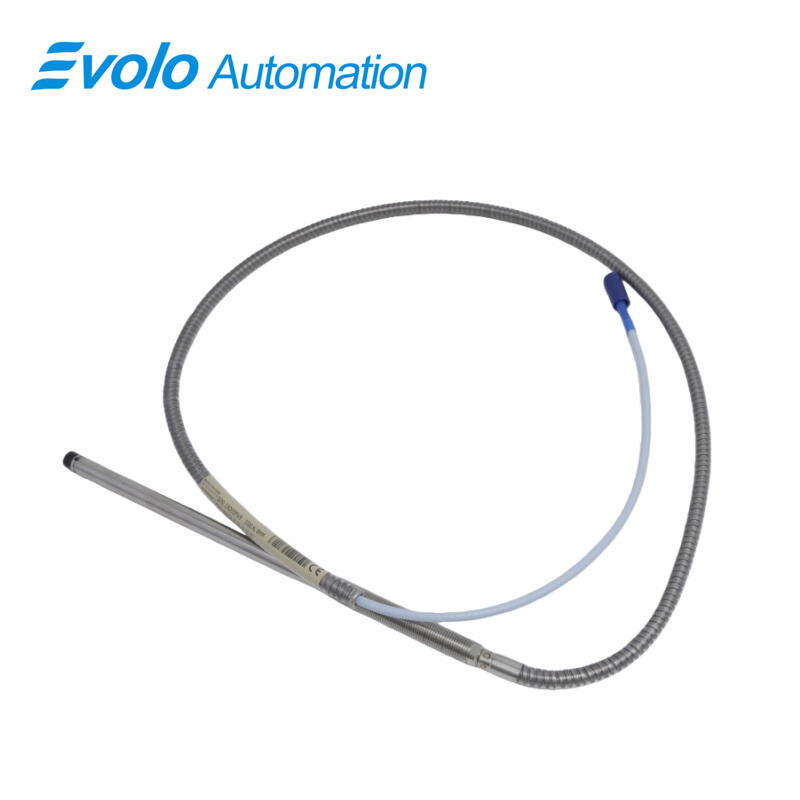

330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-13-20-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe provides precise output voltage directly proportional to the distance between the probe tip and conductive surfaces. With a 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, the 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe accurately measures both static (position) and dynamic (vibration) values in automated systems. The probe’s unthreaded length of 130 mm and overall case length of 200 mm, combined with a 1.0-meter (3.3 feet) total length, M10x1 threaded case, and ClickLoc connector, enables installation in tight spaces on fluid-film bearing machines. Extension cable capacitance of 69.9 pF/m supports high-fidelity signal transmission. The 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe also facilitates Keyphasor reference and speed signal measurement, ensuring precise automation control. Optional FluidLoc cable design prevents leakage of oils or process fluids, protecting measurement accuracy. Its robust TipLoc molding and 330 N (75 lbf) CableLoc design securely attach probe and cable for automated monitoring applications.

Applications

Monitor Shaft Vibration on Fluid-Film Bearings
The 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe measures dynamic vibration up to its 2 mm (80 mils) linear range, enabling precise detection of shaft movement in automated fluid-film bearing machines.

Measure Rotor Position in Rotating Equipment
With a 50 Ω output resistance and less than 2 mV supply sensitivity, the 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe provides accurate static position signals for rotor alignment and automation control.

Generate Keyphasor Signals for Speed Reference
The 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe outputs proportional voltage signals for Keyphasor reference in automated speed monitoring and synchronization systems.

Automated Machine Health Monitoring
Using its 1.0-meter (3.3 ft) total length and miniature coaxial ClickLoc connector, the 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe integrates seamlessly into automated monitoring systems to track machinery performance without manual intervention.

Specifications

Competitive Advantage

Quick Installation in Tight Spaces
The 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe features a 130 mm unthreaded length, 200 mm case, and M10x1 thread, allowing fast and precise mounting in compact automated machinery setups.

Secure Cable and Probe Connection
Patented CableLoc design on the 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe provides 330 N (75 lbf) pull strength, preventing detachment in automated vibration and rotation monitoring applications.

Enhanced Tip Attachment for Accurate Measurement
TipLoc molding ensures the probe tip of the 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe maintains consistent contact with the conductive surface, supporting accurate automated measurement over repeated cycles.

Prevents Fluid Leakage in Automation Systems
The 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe with optional FluidLoc cable prevents oil or process fluids from entering the probe, ensuring signal integrity in automated monitoring applications.

Interchangeable with Existing 3300 Series Systems
Backward compatibility allows the 330104-13-20-10-02-05 3300 XL 8 mm Proximity Probe to replace older 5 mm or 8 mm probes without recalibration, reducing downtime in automated production lines.
